Hammond REDFP19049BK1 28U Locking Acrylic Window Rack Door
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Fits 28U / 49.00 in (1245 mm) REFK frames; pairs with frame part number REFK1904924
- Acrylic (plexiglass) window panel, 43.69 in x 13.75 in (1110 x 349 mm), for equipment visibility
- 16-gauge steel construction finished in textured RAL9005 black powder paint
- Installed lock and two keys included for secured front access
- Reversible mounting: right- or left-hand hinge, as door and cabinet are symmetrical
- Mounting hardware included; compatible with REFK, 1564 and RS cabinet series
- TAA-compliant for GSA Schedule purchases; RoHS and REACH compliant
- Paint finish complies with Greenguard guidelines for indoor air quality
The REDFP19049BK1 is a 28U locking acrylic window door sized for 49.00 in (1245 mm) high frames, intended for IT and AV integrators, facilities teams and OEM builders who need to secure equipment while keeping front-panel indicators, displays and cabling visible. It is part of the RSD Series of locking doors for use with the REFK, 1564 and RS cabinet series, and pairs with the REFK1904924 frame.
Construction is 16-gauge steel with a clear plexiglass window panel, finished in textured RAL9005 black powder paint. The paint finish complies with the Greenguard guidelines for indoor air quality, making it suitable for occupied offices, classrooms and equipment rooms. The door and cabinet are symmetrical, so REDFP19049BK1 can be mounted with either a right-hand or left-hand hinge to suit the room layout and aisle access.
Overall door dimensions from the drawing are 48.75 in (1238 mm) high by 18.84 in (478 mm) wide with a .53 in (13 mm) profile, and the viewing window measures 43.69 in (1110 mm) by 13.75 in (349 mm). Shipping weight is 19 lbs (8.62 kg).
- Includes an installed lock and two keys for basic physical security.
- Includes mounting hardware for installation on the matching frame.
- A cabinet door replacement lock is offered as a series accessory.
The door is manufactured in North America (country of origin CA), is USMCA compliant, RoHS and REACH compliant, and TAA-compliant for GSA Schedule purchases, with ECCN EAR99 and tariff code 9403.10.0040 for procurement and export documentation.
Ideal For
- Securing equipment in 28U REFK open-frame racks
- Retrofitting locking front doors on RS and 1564 series cabinets
- Server, network and AV equipment rooms needing equipment visibility
- Office and classroom installations requiring Greenguard-compliant finishes
- TAA-compliant GSA Schedule rack build-outs
Overview
| Series | RSD Series Locking Doors |
| Door Type | Acrylic window door (plexiglass panel) |
| Description | Window door for 28U REFK |
| Part Number | REDFP19049BK1 |
| Compatibility | For use with the REFK, 1564 and RS Cabinet Series |
Security
| Lock | Installed lock with two keys included |
| Accessory | Cabinet door replacement lock |
Dimensions
| Overall Width | 18.84 in (478 mm) |
| Overall Height | 48.75 in (1238 mm) |
| Profile Thickness | .53 in (13 mm) |
| Window Panel Width | 13.75 in (349 mm) |
| Window Panel Height | 43.69 in (1110 mm) |
Identifiers
| UPC | 623980363424 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980363424 |
| UPC W/o Check Digit | 62398036342 |
Rack Mounting
| Hinge | Mounts either right- or left-hand hinge (door and cabinet are symmetrical) |
| Rack Units | 28U |
| Use With REFK Frame | REFK1904924 |
| Nominal Size (Frame Height) | 49.00 in (1245 mm) |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 19 lbs (8.62 kg) |
| Country Of Origin | CA (Manufactured in North America) |
Construction & Finish
| Gauge | 16-gauge steel |
| Finish | Textured RAL9005 black powder paint coat |
| Material | Mild steel |
Environmental & Protection
| Indoor Air Quality | Paint finish complies with Greenguard guidelines |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant (for GSA Schedule purchases) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which frame does REDFP19049BK1 fit?▾
It is sized for a 28U, 49.00 in (1245 mm) frame and is listed for use with REFK frame part number REFK1904924. The RSD Series doors are compatible with the REFK, 1564 and RS cabinet series.
Does the door come with a lock and keys?▾
Yes. The door ships with an installed lock and two keys, plus mounting hardware. A cabinet door replacement lock is also offered as a series accessory.
Can the door be hinged on the left or the right?▾
Yes. Because the door and cabinet are symmetrical, REDFP19049BK1 can be mounted with either a right-hand or left-hand hinge.
What is the door made of and what colour is it?▾
It is 16-gauge mild steel with a plexiglass (acrylic) window, finished in textured RAL9005 black powder paint.
Is this part suitable for government procurement?▾
It is TAA-compliant for GSA Schedule purchases, USMCA compliant, RoHS and REACH compliant, with ECCN EAR99 and country of origin CA.
What are the actual door dimensions and weight?▾
The drawing shows an overall size of 48.75 in (1238 mm) high by 18.84 in (478 mm) wide with a .53 in (13 mm) profile; shipping weight is 19 lbs (8.62 kg).
Related Products
Save 35%REDFP19042BK1 — Window Door For 24U Refk
Hammond Manufacturing · REDFP19042BK1
Save 35%REDFP19056BK1 — Window Door For 32U Refk
Hammond Manufacturing · REDFP19056BK1

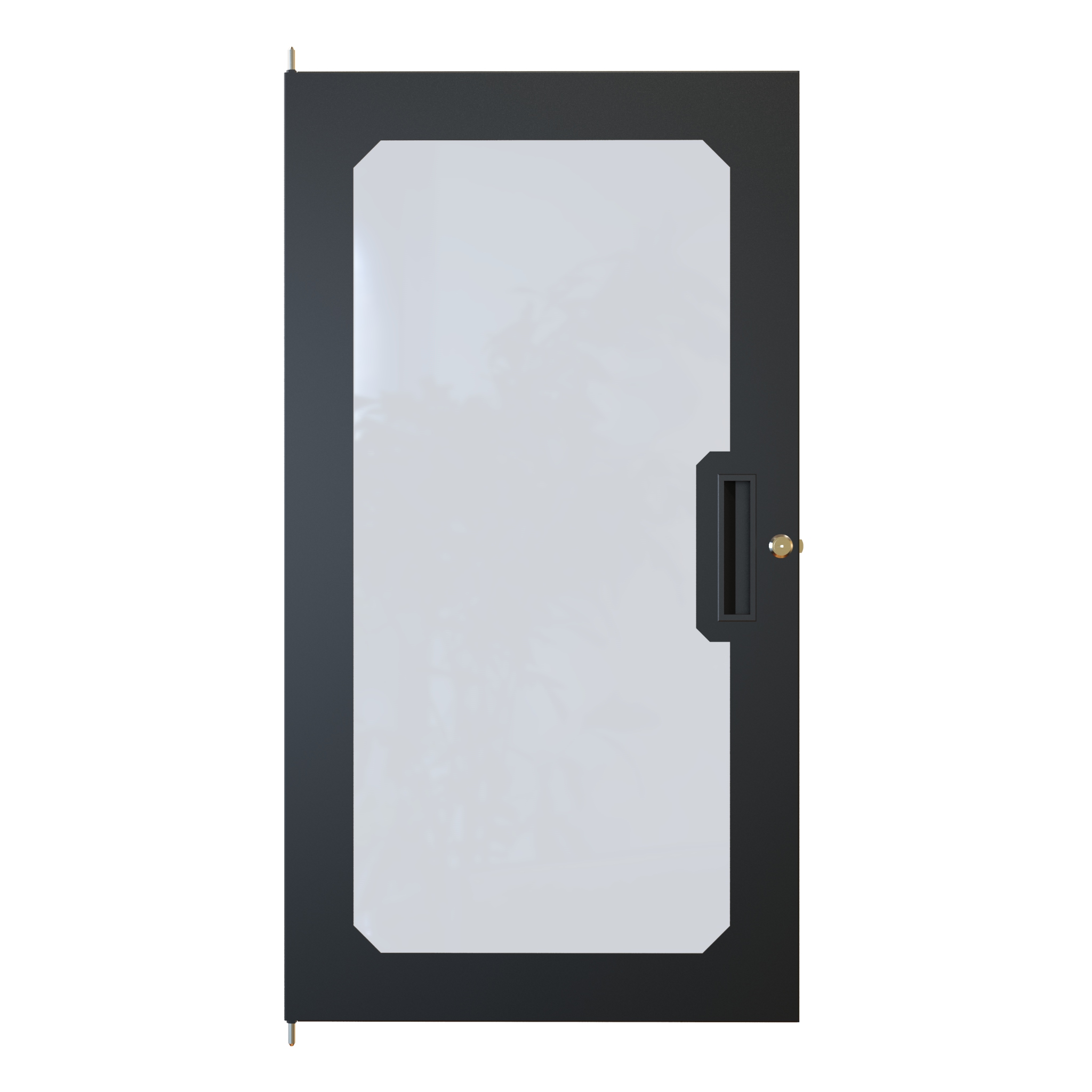

Save 35%REDFP19035BK1 — Window Door For 20U Refk
