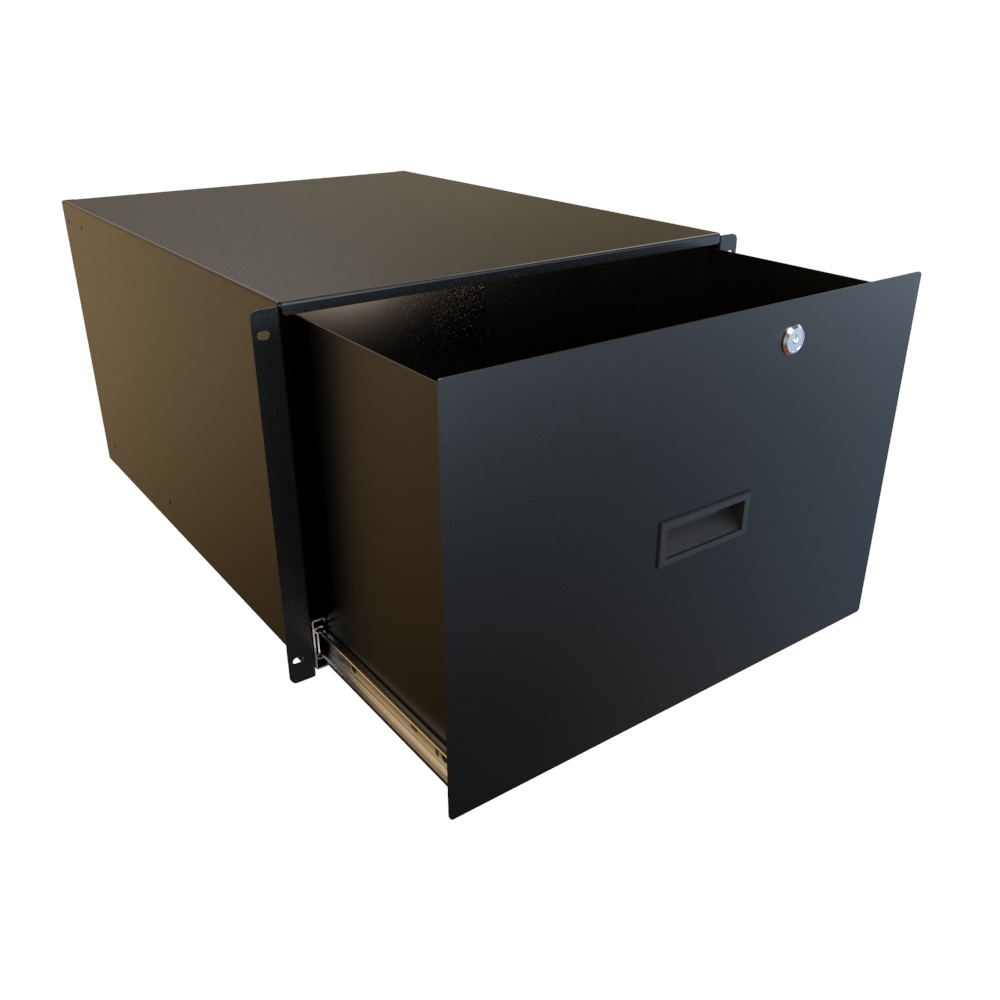

Hammond RDRW1901222BK1 7U Locking Rack Drawer, 22 in Deep, 107 lb
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 7U height with 12.25 in (311 mm) x 17.36 in (441 mm) x 22.25 in (565 mm) overall dimensions for 19-inch EIA-310-E racks
- 107 lbs (48.5 kg) rated load capacity for tools, test equipment, spare parts and documentation
- 22.00 in (559 mm) slide travel on heavy-duty sliding rails for full access to stored items
- Front locking pull handle with keyed lock and two keys included to secure sensitive contents
- Usable interior of 11.64 in (296 mm) high by 21.33 in (542 mm) deep, with a rear cable pass-through
- Two rear support brackets included; mounts to rear rails over a 22.10 in to 27.88 in (561-708 mm) depth range
- Mild steel construction (14 and 16-gauge) with textured RAL9005 black powder coat finish
- Made in Canada in an ISO 9001 certified facility; TAA, USMCA, RoHS and REACH compliant
The RDRW1901222BK1 is a 7U locking rack storage drawer built for 19-inch EIA-310-E racks and cabinets. It gives IT teams, network and telecom technicians, AV integrators and industrial maintenance groups a secure, lockable place to keep tools, documentation, spare parts, laptops and test equipment directly inside the rack, turning unused rack space into organized storage.
The drawer is made from mild steel with a textured RAL9005 black powder coat finish. The RDRW Series is constructed from 14 and 16-gauge steel and runs on heavy-duty sliding rails for smooth operation, with a front locking pull handle, keyed lock and two keys supplied to help secure sensitive media, tools or paperwork. A cable pass-through is provided in the rear of the drawer.
Overall dimensions are 12.25 in (311 mm) high by 17.36 in (441 mm) wide by 22.25 in (565 mm) deep, with a usable interior of 11.64 in (296 mm) high and 21.33 in (542 mm) deep. Slide travel is 22.00 in (559 mm) and the rated load capacity is 107 lbs (48.5 kg). Shipping weight is 52.01 lbs (23.59 kg).
Two rear support brackets are included with RDRW1901222BK1 and mount directly to the rear rack rails, and the drawer accommodates a rack rail depth range of 22.10 in to 27.88 in (561 mm to 708 mm). The front mounting flanges are on the standard 19.00 in (483 mm) rack width, so the unit suits both new builds and retrofits.
The drawer is manufactured in Canada in an ISO 9001 certified facility, is TAA-compliant and USMCA compliant, and is RoHS and REACH compliant.
Ideal For
- Data centers and server rooms
- Network and telecommunications facilities
- Broadcast and AV installations
- Storing network tools and test equipment
- Securing backup media, documentation and manuals
Overview
| Series | RDRW Series |
| Part Number | RDRW1901222BK1 |
| Product Type | Locking rack storage drawer |
| Short Description | 7U 22D LOCKING DRAWER |
| Light Gray Equivalent Part | RDRW1901222LG1 (RAL 7035 Light Gray) |
Dimensions
| Usable Depth | 21.33 in (542 mm) |
| Overall Depth | 22.25 in (565 mm) |
| Overall Width | 17.36 in (441 mm) |
| Usable Height | 11.64 in (296 mm) |
| Overall Height | 12.25 in (311 mm) |
| Front Panel Height (Drawing) | 12.13 in (308 mm) |
Identifiers
| UPC | 623980964850 |
| ECCN | EAR99 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980964850 |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA |
| UPC W/o Check Digit | 62398096485 |
Rack Mounting
| Rack Units | 7U |
| Slide Travel | 22.00 in (559 mm) |
| Load Capacity | 107 lbs (48.5 kg) |
| Rack Compatibility | Standard 19-inch EIA-310-E racks and cabinets |
| Mounting Flange Width | 19.00 in (483 mm) |
| Rear Support Brackets | Included (2); mount directly to rear rack rails |
| Series Load Capacity Range | Up to 145 lb (66 kg) in 4-post installations and 60 lb (27 kg) in 2-post racks |
| Rack Rail Depth Range (Min/max) | 22.10 in / 27.88 in (561 mm / 708 mm) |
Included Items
| Drawer | 1 |
| Drawing Note | Rear support brackets included; mounting hardware not included |
| Keys For Lock | 2 |
| 8-32 Keps Nuts | 4 |
| 10-32 X 0.625 In Screws | 8 |
| Rear Drawer Support Brackets | 2 |
| Assembly And Installation Instructions | 1 |
Packaging & Shipping
| Shipping Weight | 52.01 lbs (23.59 kg) |
Construction & Finish
| Lock | Key-lock with nut, 7.5 mm |
| Finish | Textured RAL9005 black powder coat |
| Handle | Plastic front locking pull handle |
| Material | Mild Steel |
| Steel Gauge | 14 and 16-gauge steel |
| Rear Cable Access | Cable pass-through in rear |
Compliance & Certifications
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | Powder coat finishes are GREENGUARD Gold Certified, TSCA and RoHS compliant |
| Manufacturing Quality | Manufactured in North America in an ISO 9001 certified facility |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much rack space does RDRW1901222BK1 occupy?▾
It occupies 7U of rack space, with an overall height of 12.25 in (311 mm), width of 17.36 in (441 mm) and depth of 22.25 in (565 mm).
How much weight can this drawer hold?▾
The rated load capacity for RDRW1901222BK1 is 107 lbs (48.5 kg). Across the RDRW Series, capacities reach up to 145 lb (66 kg) in 4-post installations and 60 lb (27 kg) in 2-post racks.
Does it come with a lock and keys?▾
Yes. The drawer has a front locking pull handle with a 7.5 mm keyed lock, and two keys are included.
What hardware is supplied in the box?▾
The assembly includes the drawer, two keys, eight 10-32 x 0.625 in screws, two rear drawer support brackets, four 8-32 Keps nuts and assembly and installation instructions. The drawing notes that rear support brackets are included and mounting hardware is not included.
What rack rail depths will it fit?▾
The drawer mounts to 19-inch EIA-310-E racks and cabinets with a front-to-rear rail depth between 22.10 in and 27.88 in (561 mm to 708 mm).
Is a light gray version available?▾
Yes. RDRW1901222LG1 is the same drawer in RAL 7035 light gray; RDRW1901222BK1 is the textured RAL9005 black version.
Related Products

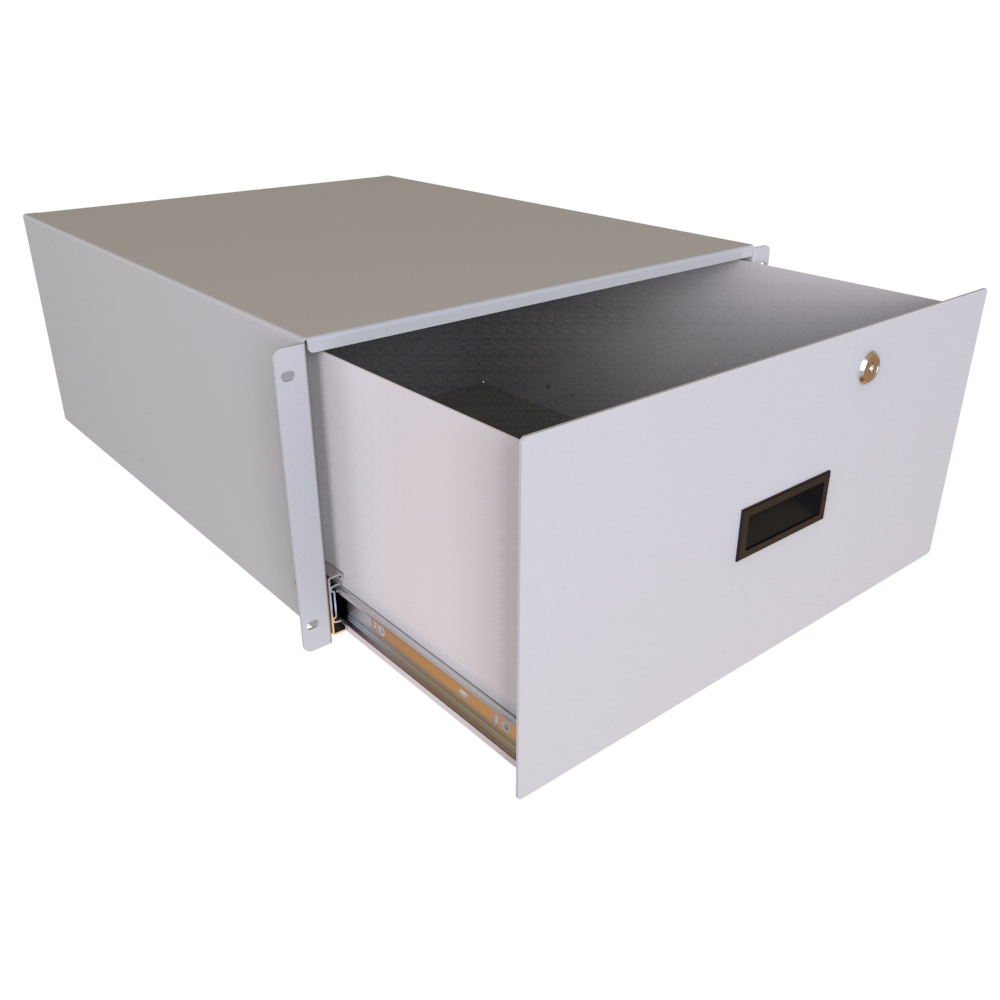

Save 35%RDRW1900822LG1 — 5U 22D Locking Drawer
Hammond Manufacturing · RDRW1900822LG1

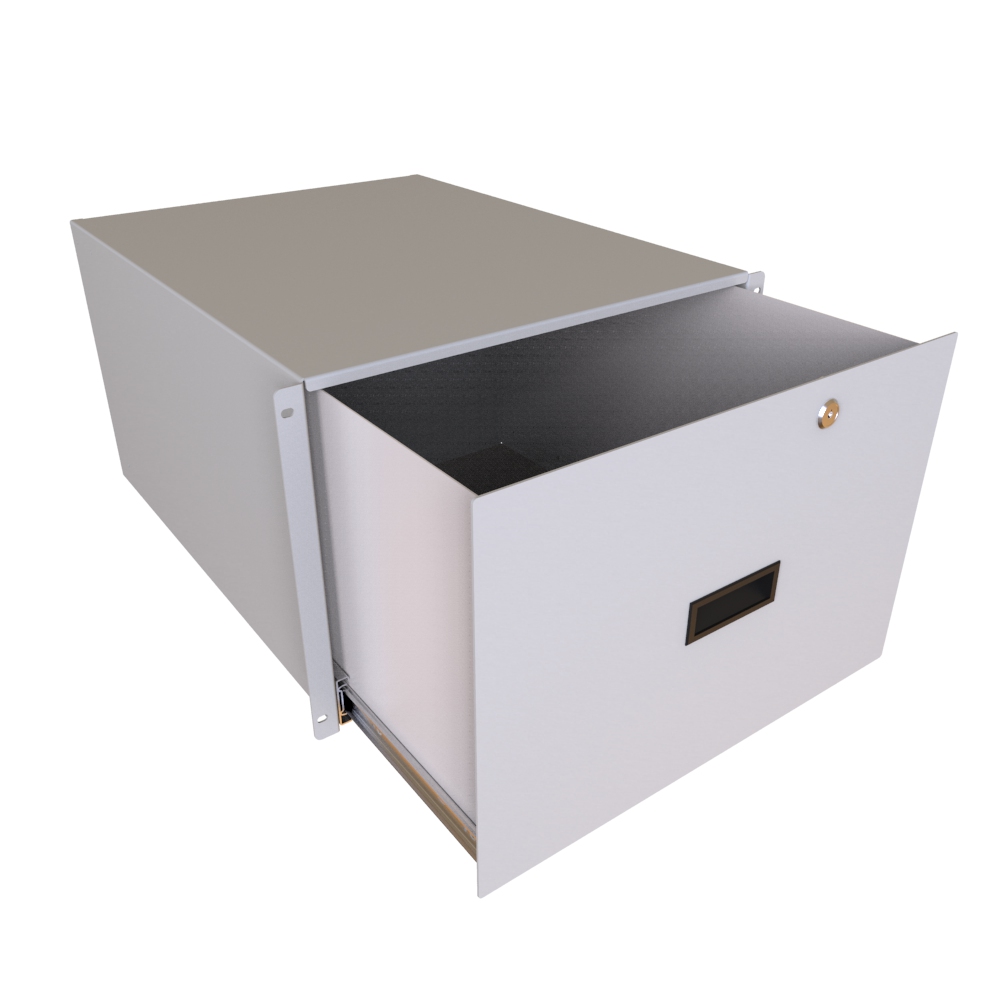

Save 35%RDRW1901222LG1 — 7U 22D Locking Drawer
Hammond Manufacturing · RDRW1901222LG1

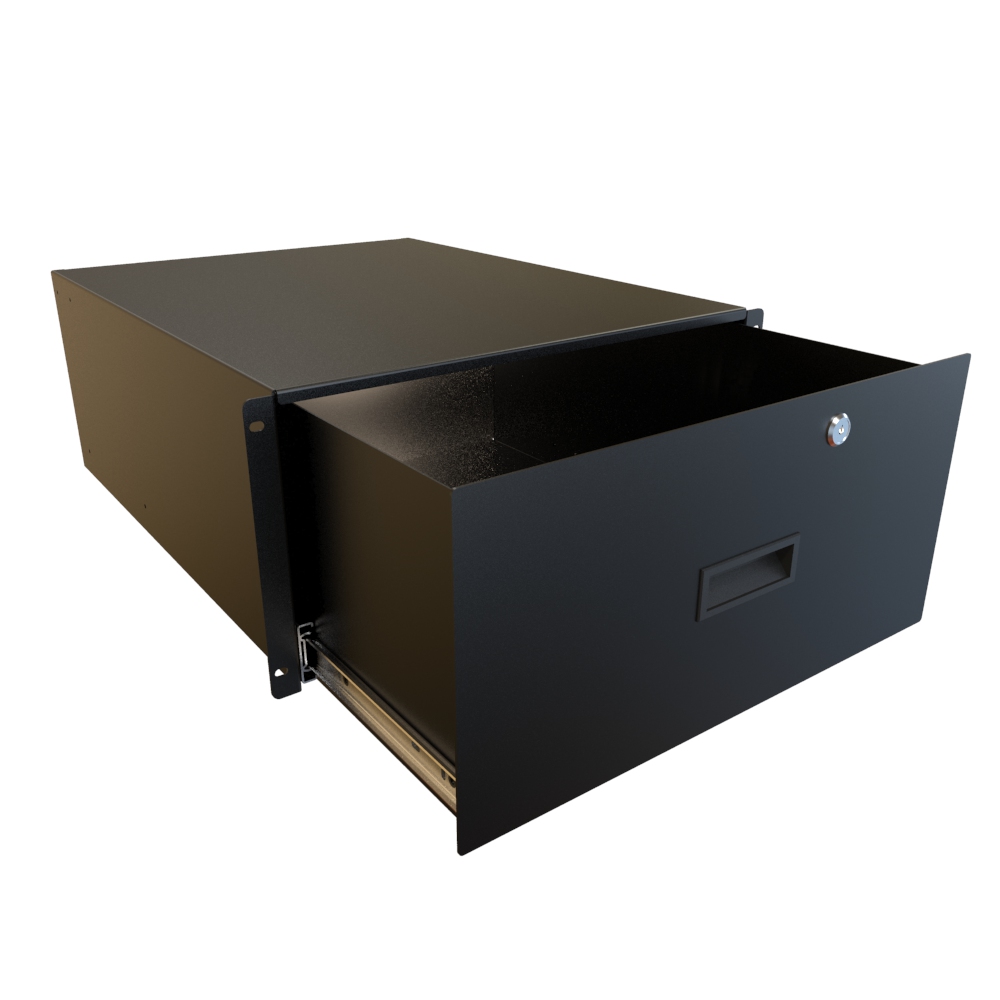

Save 35%RDRW1900822BK1 — 5U 22D Locking Drawer
Hammond Manufacturing · RDRW1900822BK1

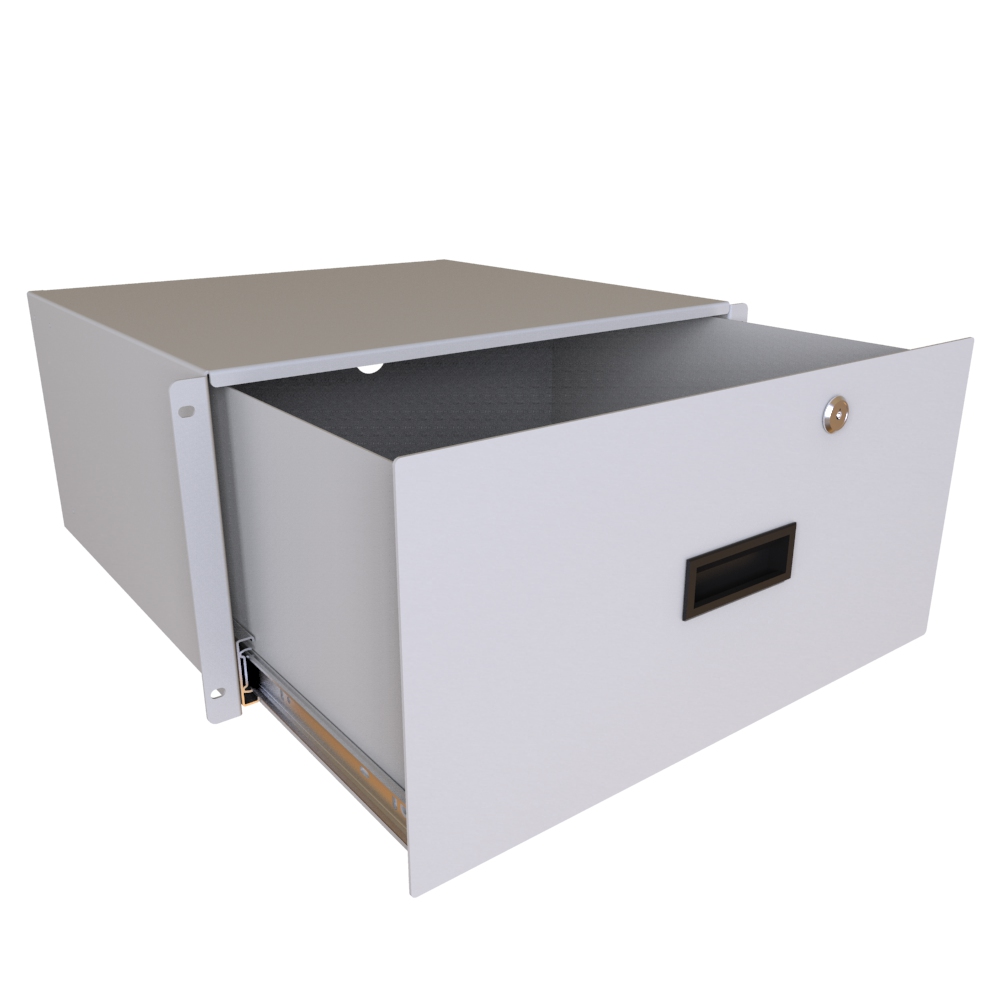

Save 35%RDRW1900816LG1 — 5U 16D Locking Drawer
