Hammond PWDP13073 1100 VAC Power Transformer for Heath SB-1000
Call for Price
Ships from and sold by A5 IT
Call for pricing
This part is quoted to order. Call for current pricing, lead time and volume breaks on the Hammond Manufacturing PWDP13073.
224-955-1644Key Features
- Replacement power transformer for the Heath SB-1000 (Heath P/N 54-1061)
- S1 high-voltage winding: 1100 VAC @ 0.5A CCS
- S2 center-tapped winding: 5.2 VCT @ 15A CCS
- S3 winding: 10.5 VAC @ 0.5A CCS
- 120/240 VAC 60 Hz single-phase primary
- EI-175 X 3.5" 29G M6 core, Style 4; approx. 22 lbs
- RoHS and REACH compliant

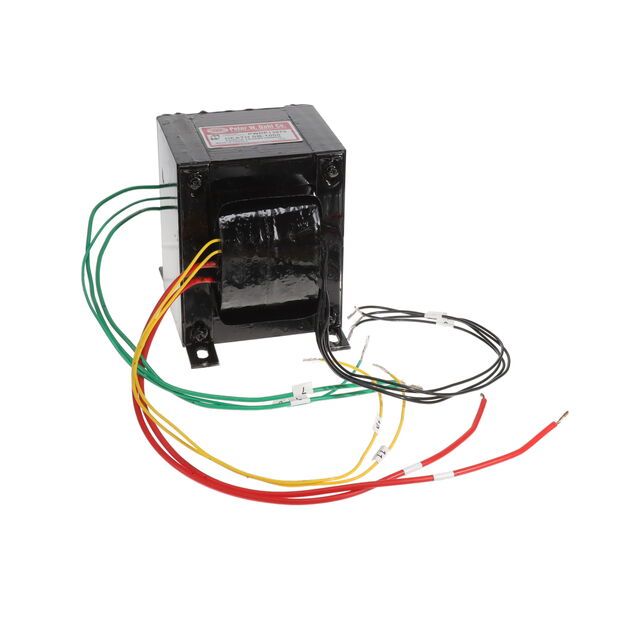

The PWDP13073 is a Peter W. Dahl power transformer for the Heath SB-1000 linear amplifier, matching Heath part number 54-1061. It is aimed at owners and repair technicians returning an SB-1000 to service.
It provides three secondaries on one core:
- S1: 1100 VAC @ 0.5A CCS
- S2: 5.2 VCT @ 15A CCS
- S3: 10.5 VAC @ 0.5A CCS
The dual 120/240 VAC primary is rated for 60 Hz single phase. Construction uses an EI-175 X 3.5" 29G M6 lamination core in Style 4, and the unit weighs approximately 22 lbs.
The part is listed as RoHS compliant and REACH compliant, with UNSPSC 39121301 and UPC 623980186061. Shipping weight is 22 lbs (9.98 kg).
The PWDP13073 is listed in the PWDAHL Series of transformers and chokes taken directly from the Peter W. Dahl files, a range described as magnetics for amateur radio products. These transformers are usually built to order one at a time, and because many of the designs are decades old it is always best to confirm availability by phone or e-mail before planning a repair around it. Units that have already been built are shown with Hammond part numbers, as this one is, and stock units can usually be shipped the next business day.
Ideal For
- Heath SB-1000 amplifier restoration
- Replacement for Heath P/N 54-1061
- Amateur radio linear amplifier power supply repair
Overview
| Series | PWDAHL Series - Peter W Dahl Transformers (Magnetics for Amateur Radio Products) |
| Description | HEATH SB-1000 POWER XFMR HEATH P/N 54-1061 |
| Part Number | PWDP13073 |
| Product Type | Transformer |
| Short Description | HEATSB-1000 POWER TRANS |
Electrical
| Primary | 120/240 VAC 60 HZ 1 PH |
| Secondary S1 | 1100 VAC @ 0.5A CCS |
| Secondary S2 | 5.2 VCT @ 15A CCS |
| Secondary S3 | 10.5 VAC @ 0.5A CCS |
Identifiers
| UPC | 623980186061 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Approx. Weight | 22 lbs |
| Shipping Weight | 22 lbs (9.98 kg) |
Construction & Finish
| Core | EI-175 X 3.5" 29G M6 |
| Style | 4 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which Heath part does the PWDP13073 replace?▾
It is listed as the Heath SB-1000 power transformer, Heath P/N 54-1061.
What secondaries does it have?▾
S1) 1100 VAC @ 0.5A CCS, S2) 5.2 VCT @ 15A CCS and S3) 10.5 VAC @ 0.5A CCS.
What primary voltages does it accept?▾
120/240 VAC, 60 Hz, single phase.
What does it weigh?▾
Approximately 22 lbs; shipping weight is 22 lbs (9.98 kg).
Is it RoHS compliant?▾
Yes, it is listed as both RoHS and REACH compliant.
