Hammond PJPOLEMNT6 Pole Mount Kit for PJ664 & PJ864 Enclosures

The PJPOLEMNT6 is the smallest of the eight pole mounting kits in the PJPOLEMNT series, designed to put compact PJ, PJU and PCJ non-metallic enclosures onto a pole. It suits electrical contractors, installers and OEM builders who need to fix a small enclosure to a round, square or rectangular pole outdoors.

According to the ordering table, this kit is used with PJ 664 and 864 enclosures (including all variations), and with the flange variation only of PJU 664/864 and PCJ 664/864. The drawing gives the standard mount hole pattern for each model:

• PJ664: 5.02 in (127.5 mm) vertical x 5.01 in (127.3 mm) horizontal, direct to box
• PJ864: 6.89 in (175.0 mm) x 5.01 in (127.3 mm), direct to box
• PJU664, PCJ664: 6.75 (171.5)-6.88 (174.8) x 4.00 in (101.6 mm), bolt through flange
• PJU864, PCJ864: 8.75 (222.3)-8.88 (225.4) x 4.00 in (101.6 mm), bolt through flange

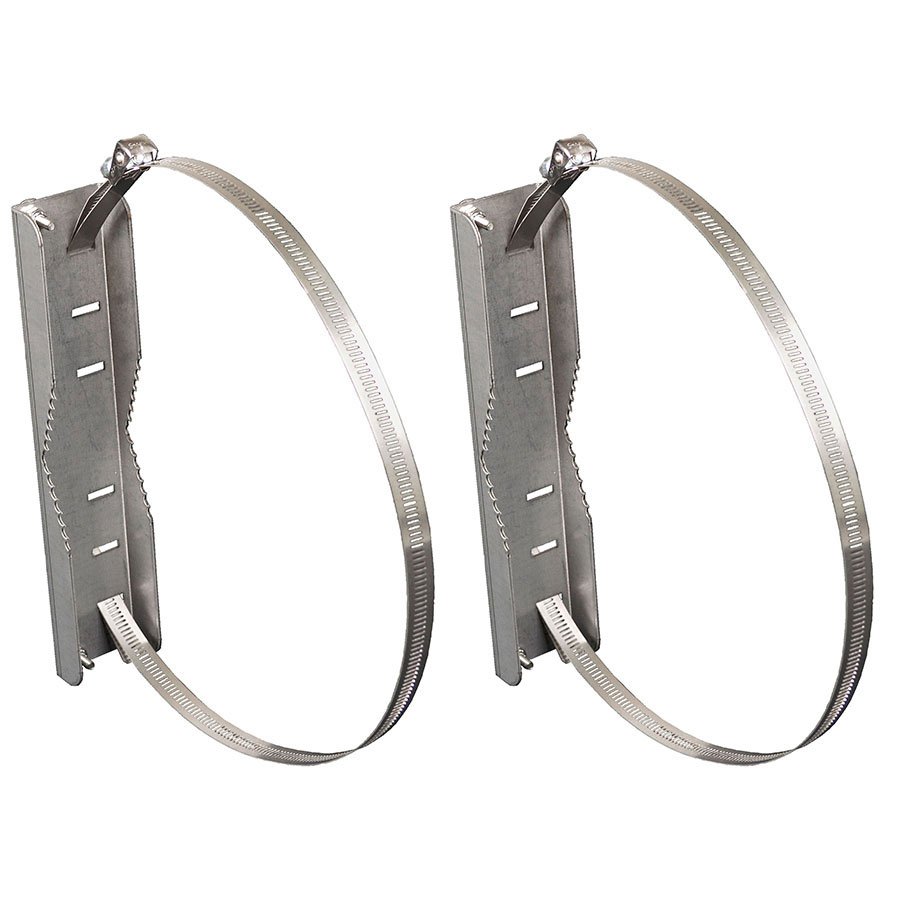

PJ enclosures attach direct to the box, while the flanged PJU and PCJ models bolt through the flange. An adjustable steel band allows mounting on pole diameters up to 15", and the series is built for minimal assembly with fewer parts, with corrosion protection for long outdoor life.

PJPOLEMNT6 ships at 1.35 lbs (0.61 kg) and is listed as RoHS and REACH compliant. Check your enclosure model against the table above before ordering; larger enclosures use the PJPOLEMNT8 and up.
