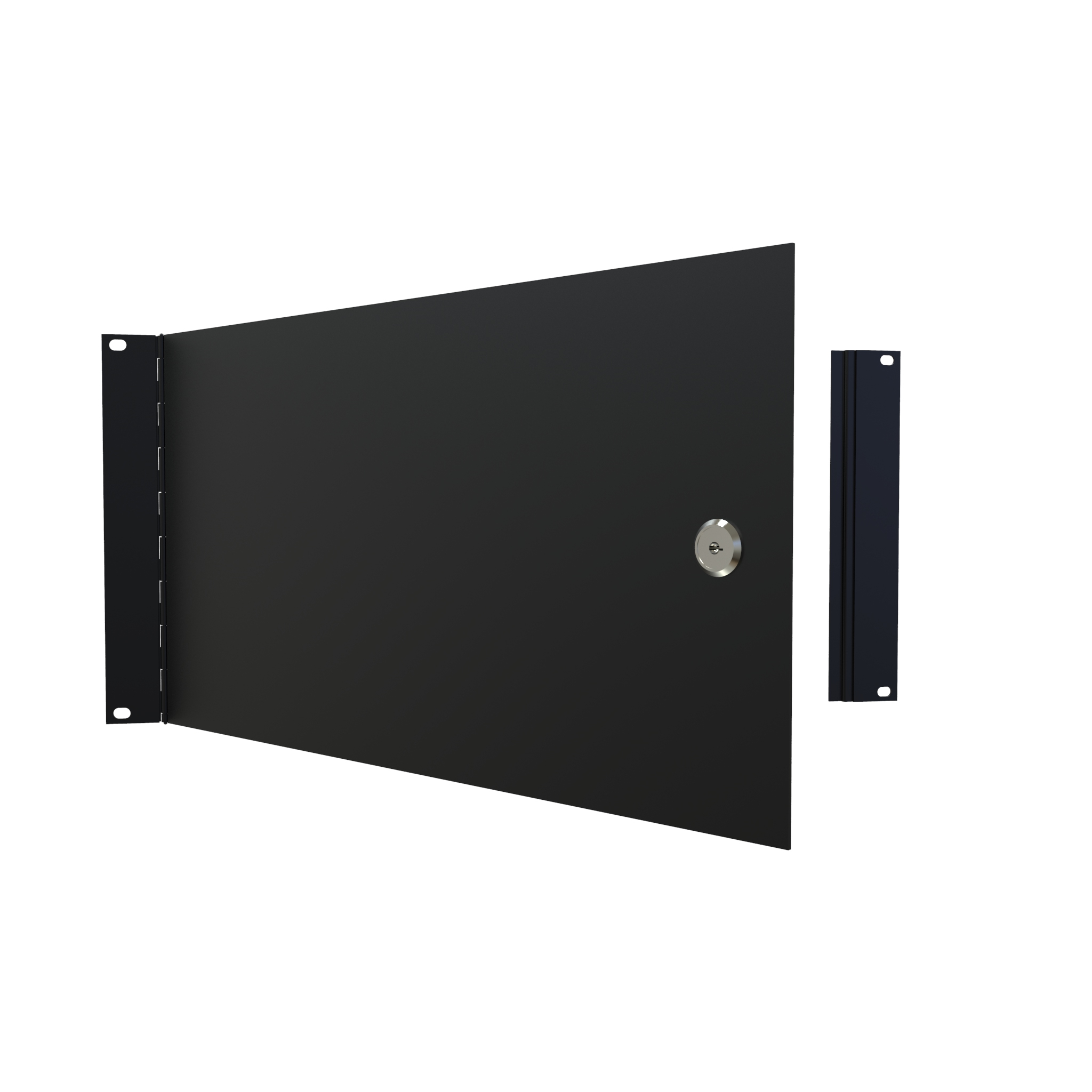

Hammond PHPF19008BK2 5U Hinged Locking Rack Door, Solid Steel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 5U hinged locking rack door with 8.75 in (222 mm) x 19.00 in (483 mm) mounting dimensions
- 14-gauge mild steel construction for durable protection and full concealment of rack-mounted equipment
- Integrated lock with two keys for secure access control
- Hinged design gives full access to equipment when open, without removing installed components
- Solid steel face blocks visibility into the rack, suited to security-sensitive installations
- Installs directly to standard 19 in EIA-compliant rack rails (mounting hardware not included)
- Door folded on all sides for increased rigidity; semi-gloss black powder coat (GREENGUARD, TSCA, RoHS compliant)
- TAA-compliant, made in North America in an ISO 9001 certified facility
The PHPF19008BK2 is a 5U hinged solid rack security cover tent" — a lockable steel door panel that fully conceals and secures rack-mounted equipment behind a 19 in rack face. It suits IT and AV integrators, telecom technicians and facilities teams who need to restrict access to a specific section of a rack without installing a full enclosure.
Construction is 14-gauge mild steel, folded on all sides for increased rigidity and durability, and finished in semi-glossy black powder coat (GREENGUARD, TSCA and RoHS compliant). The solid door face blocks visibility into the equipment behind it, making it a practical choice for security-sensitive and shared rack environments. An integrated lock with two keys is included for access control, while the hinged design lets you swing the door open for full service access without removing installed components.
This 5U version provides an opening 8.72 in (221 mm) high by 16.20 in (411 mm) wide, with mounting dimensions of 8.75 in (222 mm) high by 19.00 in (483 mm) wide. It installs directly to standard 19 in EIA-compliant mounting rails; mounting hardware is not included. Shipping weight is 4 lbs (1.81 kg).
PHPF19008BK2 is TAA-compliant and manufactured in North America in an ISO 9001 certified facility, with RoHS, REACH and USMCA compliance. The same 5U panel is offered in RAL 7035 light gray as PHPF19008LG2, and the series also covers 3U and 7U sizes for protecting different rack sections.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- Shared or public rack environments
- Security-sensitive installations and open frame rack deployments
- Concealing sensitive equipment or connections to prevent tampering
Overview
| Colour | Black (semi-gloss) |
| Series | PHPF Series - Hinged Solid Rack Security Cover |
| Rack Units | 5U |
| Description | 5U Hinged Rack Mount Door |
| Part Number | PHPF19008BK2 |
| Equivalent Light Gray Part | PHPF19008LG2 (RAL 7035 light gray) |
Dimensions
| Opening Width | 16.20 in (411 mm) |
| Mounting Width | 19.00 in (483 mm) |
| Opening Height | 8.72 in (221 mm) |
| Mounting Height | 8.75 in (222 mm) |
| Inner Width (Top View) | 18.31 in (465 mm) |
| Depth (Right Side View) | 4.34 in (110 mm) |
| Overall Width (Top View) | 19.00 in (483 mm) |
| Front Panel Height (Front View) | 8.25 in (210 mm) |
Identifiers
| UPC | 623980409887 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980409887 |
| Drawing Reference | PHPF19008 |
| UPC W/o Check Digit | 62398040988 |
Rack Mounting
| Access | Hinged door, opens for full equipment access |
| Security | Integrated lock with two keys included |
| Mounting Hardware | Not included |
| Rack Compatibility | Installs directly to standard 19 in EIA-compliant mounting rails |
Packaging & Shipping
| Tariff Code | 8538.10.0000 |
| Shipping Weight | 4 lbs (1.81 kg) |
| Country Of Origin | CA |
Construction & Finish
| Gauge | 14-gauge steel |
| Finish | Powder coat, painted black (semi-gloss) |
| Material | Mild Steel |
| Construction Detail | Door folded on all sides for increased rigidity and durability |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| Manufacturing | Manufactured in North America in an ISO 9001 certified facility |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | Powder coat finish is GREENGUARD, TSCA and RoHS compliant |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much rack space does PHPF19008BK2 cover?▾
It covers 5U of rack space, with mounting dimensions of 8.75 in (222 mm) high by 19.00 in (483 mm) wide and an opening of 8.72 in (221 mm) by 16.20 in (411 mm).
Does it come with a lock and keys?▾
Yes. The PHPF Series includes an integrated lock and two keys for secure access control.
Is mounting hardware included?▾
No. The drawing notes that mounting hardware is not included; the door installs directly to 19 in mounting rails.
Can I see the equipment behind the door?▾
No. This is a solid steel door that blocks visibility. If you need visibility while maintaining security, the RMSC Series is suggested instead.
Is this part available in light gray?▾
Yes. The same 5U door is offered in RAL 7035 light gray as PHPF19008LG2; PHPF19008BK2 is the black semi-gloss version.
What other sizes are in the PHPF Series?▾
The series is available in 3U, 5U and 7U sizes to protect different rack sections. For larger rack sections, the RSDP Series is suggested.
