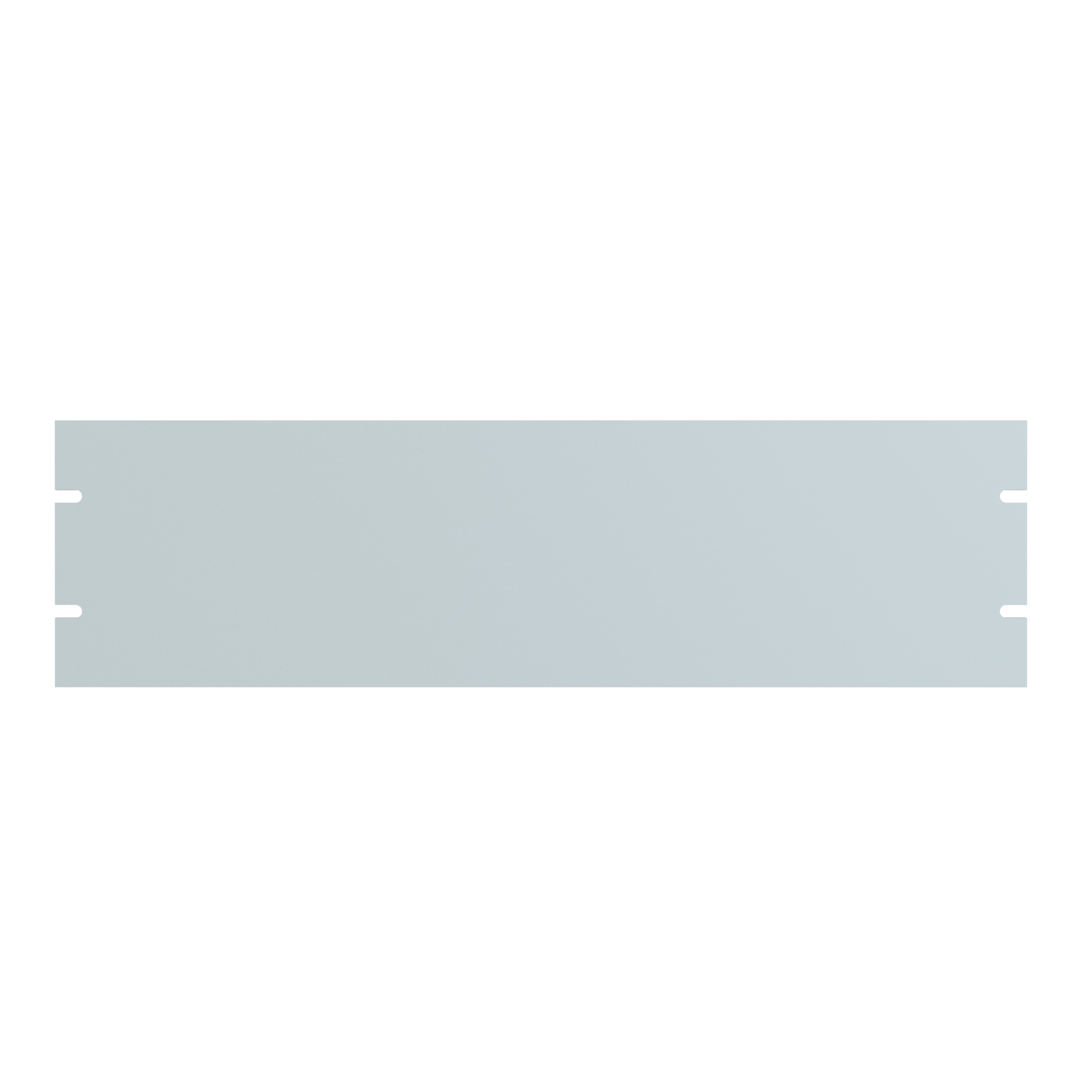

Hammond PBPA19005LG2 3U Flat Aluminum Rack Blanking Panel, Light Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 3U blanking panel with 5.25 in (133 mm) panel height for 19 in EIA-compliant rack rails
- RAL7035 light gray powder coat finish for a clean, professional rack appearance
- 8-gauge (0.125 in) 5052-H32 aluminum construction: lightweight, durable and corrosion resistant
- 4 mounting points via 0.250 x 0.375 in slots; 19.00 in (483 mm) overall width
- Covers unused rack space to improve cooling efficiency and prevent air recirculation
- Lighter and easier to handle than steel panels; shipping weight 1.24 lbs (0.56 kg)
- TAA-compliant and made in North America (country of origin CA) for government procurement
- RoHS, REACH and USMCA compliant; mounting hardware not included
The PBPA19005LG2 is a 3U flat aluminum blanking panel for standard 19 in EIA-compliant rack rails, finished in RAL7035 light gray. It is intended for IT and AV integrators, telecom technicians and facilities teams who need to close off unused rack space so cooling air moves through equipment instead of recirculating around it.
The panel is fabricated from 8-gauge (0.125 in) 5052-H32 aluminum, giving it lightweight durability and corrosion resistance in rack environments. The smooth powder coat finish provides a clean, professional appearance across a rack front, and the aluminum construction makes the panel easier to handle and install than comparable steel panels. Shipping weight is 1.24 lbs (0.56 kg).
Panel height is 5.25 in (133 mm) — a 3U opening — with an overall width of 19.00 in (483 mm) per the part drawing, and a usable flat face of 18.32 in (465 mm). Four 0.250 x 0.375 in mounting slots provide 4 mounting points; slot corners are radiused R .12 in (3 mm). Mounting hardware is not included with PBPA19005LG2, so specify rack screws separately.
Compliance data for this part includes RoHS, REACH and USMCA compliance, TAA-compliant status and manufacture in Canada (country of origin CA), supporting government and institutional procurement requirements. Tariff code is 8538.10.0000 and the ECCN is EAR99.
- 3U flat panel for 19 in racks, light gray RAL7035
- 0.125 in aluminum, 4 slotted mounting points
- Covers unused rack space to improve airflow separation
Ideal For
- Data centers and server rooms
- Telecom and network installations
- High-density rack environments where airflow separation matters
- Wall mount and floor-standing racks
- Covering unused rack space to prevent hot and cold air recirculation
Overview
| Series | PBPA Series — Aluminum Rack Blanking Lightweight Rack Panels |
| Description | 3U Flat Aluminum Rack Panel |
| Part Number | PBPA19005LG2 |
| Product Type | Rack panel / blanking panel |
Dimensions
| Panel Height | 5.25 in (133 mm) |
| Overall Width | 19.00 in (483 mm) |
| Flat Face Width | 18.32 in (465 mm) |
| Slot Corner Radius | 4X R .12 in (3 mm) |
| Overall Height (Drawing) | 5.22 in (133 mm) |
Identifiers
| UPC | 623980700038 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980700038 |
| UPC W/o Check Digit | 62398070003 |
Rack Mounting
| Rack Units | 3U |
| Mounting Slots | 4X 0.250 x 0.375 in slot |
| Mounting Hardware | Not included |
| Rack Rail Compatibility | Standard 19 in EIA-compliant rack rails |
| Quantity Of Mounting Points | 4 |
Packaging & Shipping
| Tariff Code | 8538.10.0000 |
| Shipping Weight | 1.24 lbs (0.56 kg) |
| Country Of Origin | CA |
Construction & Finish
| Finish | RAL7035 Light Gray |
| Material | Aluminum — 8-gauge (0.125 in) 5052-H32 |
| Panel Style | Flat, smooth finish |
| Material Thickness | 0.125 in |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much rack space does PBPA19005LG2 cover?▾
It is a 3U panel with a panel height of 5.25 in (133 mm) and an overall width of 19.00 in (483 mm) for 19 in EIA-compliant rack rails.
Are mounting screws included?▾
No. The part drawing states that mounting hardware is not included, so rack screws or cage nuts must be specified separately.
What colour and material is this panel?▾
It is RAL7035 light gray and made from 8-gauge (0.125 in) 5052-H32 aluminum, which provides lightweight durability and corrosion resistance.
How many mounting points does it have?▾
Four mounting points, using 0.250 x 0.375 in slots with R .12 in (3 mm) radiused corners.
Is this part suitable for government projects?▾
The data lists PBPA19005LG2 as TAA-compliant and USMCA compliant with country of origin CA (manufactured in North America), which supports government procurement requirements.
Is the same 3U panel offered in other finishes?▾
Yes. The 3U size is also listed as PBPA19005BK (matte black RAL9005), PBPA19005GY2 (ANSI61 dark gray), PBPA19005WH (matte white RAL9003) and PBPA19005UNF (unfinished).
