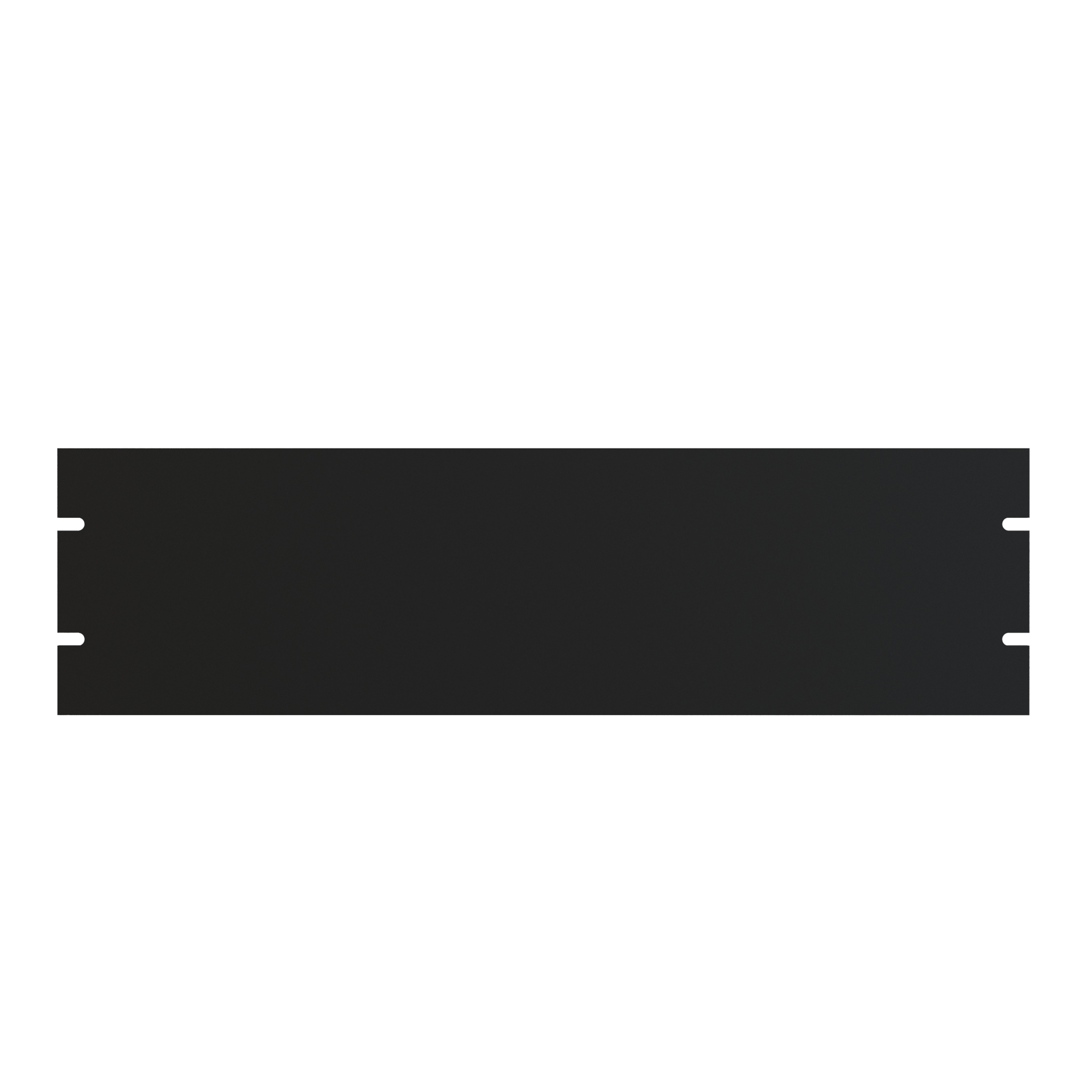

Hammond PBPA19005BK 3U Flat Aluminum Rack Blanking Panel, Black
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 3U blanking panel: 5.25 in (133 mm) panel height, 19.00 in (483 mm) wide for standard 19 in EIA rack rails
- 8-gauge (0.125 in) 5052-H32 aluminum construction for lightweight durability and corrosion resistance
- RAL9005 matte black powder coat finish for a clean, professional rack appearance
- 4 mounting points with 0.250 x 0.375 in slots; mounting hardware not included
- Installs in unused rack space to improve cooling efficiency and prevent hot/cold air recirculation
- Lightweight at 1.24 lbs (0.56 kg) for easier handling than steel panels
- TAA-compliant, made in Canada; RoHS, REACH and USMCA compliant, ECCN EAR99
PBPA19005BK is a 3U flat blanking panel for standard 19 in EIA-compliant rack rails, finished in RAL9005 matte black. It is intended for IT, telecom and AV teams who need to close off unused rack space, tidy the front of a rack and keep supply and return air separated in cabinets and open frame racks.
The panel is formed from 8-gauge (0.125 in) 5052-H32 aluminum, giving lightweight durability and corrosion resistance in rack environments. The lightweight aluminum build simplifies handling and installation compared with steel panels, and the smooth finish provides a clean, professional rack appearance. Shipping weight is just 1.24 lbs (0.56 kg).
Panel height is 5.25 in (133 mm) for 3 rack units, with an overall width of 19.00 in (483 mm) across the rack flanges and a front panel face of 18.32 in (465 mm) per the part drawing. There are 4 mounting points using 0.250 x 0.375 in slots, so the panel can be positioned on standard EIA rail hole patterns. Mounting hardware is not included.
PBPA19005BK is TAA-compliant and manufactured in Canada, supporting government procurement requirements, and is RoHS, REACH and USMCA compliant with ECCN EAR99. Sibling part numbers in the PBPA series cover ANSI61 dark gray, RAL7035 light gray, RAL9003 matte white and unfinished aluminum, as well as other heights from 1U through 10U.
- Covers unused rack space to improve cooling efficiency and prevent air recirculation
- Helps improve rack organization and airflow separation
Ideal For
- Data centers and server rooms
- Telecom and network installations
- High-density rack environments
- Wall mount and floor-standing racks
- Covering unused rack space to improve airflow
Overview
| Series | PBPA Series — Aluminum Rack Blanking Lightweight Rack Panels |
| Description | 3U Flat Aluminum Rack Panel |
| Part Number | PBPA19005BK |
| Color / Finish Code | RAL9005 Matte Black |
Dimensions
| Panel Height | 5.25 in (133 mm) |
| Corner Radius | 4X R .12 in (3 mm) |
| Overall Width | 19.00 in (483 mm) |
| Panel Face Width | 18.32 in (465 mm) |
| Overall Height (Drawing) | 5.22 in (133 mm) |
Identifiers
| UPC | 623980608242 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980608242 |
| UPC W/o Check Digit | 62398060824 |
Rack Mounting
| Rack Units | 3U |
| Mounting Slots | 4X 0.250 x 0.375 in slot |
| Mounting Hardware | Not included |
| Rack Rail Compatibility | Standard 19 in EIA-compliant rack rails |
| Quantity Of Mounting Points | 4 |
Packaging & Shipping
| Tariff Code | 8538.10.0000 |
| Shipping Weight | 1.24 lbs (0.56 kg) |
Construction & Finish
| Alloy | 5052-H32 aluminum |
| Material | Aluminum |
| Panel Style | Flat blanking / filler panel |
| Material Thickness | 0.125 in (8-gauge) |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much rack space does PBPA19005BK cover?▾
It covers 3 rack units, with a panel height of 5.25 in (133 mm) and an overall width of 19.00 in (483 mm) for standard 19 in EIA-compliant rack rails.
Is mounting hardware included?▾
No. The drawing notes state that mounting hardware is not included. The panel has 4 mounting points with 0.250 x 0.375 in slots. Hardware for rack mounting solutions is listed as an accessory for the PBPA series.
What material and finish is used?▾
The panel is 8-gauge (0.125 in) 5052-H32 aluminum. The BK suffix indicates a RAL9005 matte black finish.
Does this panel meet TAA requirements?▾
Yes. PBPA19005BK is listed as TAA-compliant and manufactured in North America (country of origin CA), which supports government procurement requirements. It is also RoHS, REACH and USMCA compliant.
What other colors and sizes are available?▾
The same 3U panel is offered as PBPA19005GY2 (ANSI61 dark gray), PBPA19005LG2 (RAL7035 light gray), PBPA19005WH (RAL9003 matte white) and PBPA19005UNF (unfinished). The series spans heights from 1U to 10U.
Why use a blanking panel like this?▾
It installs in unused rack space to improve cooling efficiency and prevent air recirculation, keeping hot and cold air from mixing while improving rack organization and appearance.
