Hammond PBPA19003LG2 2U Light Gray Aluminum Rack Blanking Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 2U flat aluminum blanking panel, 3.50 in (89 mm) panel height, 19.00 in (483 mm) overall width
- 8-gauge (0.125 in) 5052-H32 aluminum construction for lightweight durability and corrosion resistance
- Fits standard 19 in EIA-compliant rack rails for universal compatibility
- RAL7035 light gray powder coat finish for a clean, professional rack appearance
- Four 0.250 x 0.375 in slots provide 4 mounting points; mounting hardware not included
- Covers unused rack space to improve cooling efficiency and prevent air recirculation
- TAA-compliant and manufactured in North America; RoHS, REACH and USMCA compliant
- Light shipping weight of 0.79 lbs (0.36 kg) simplifies handling versus steel panels

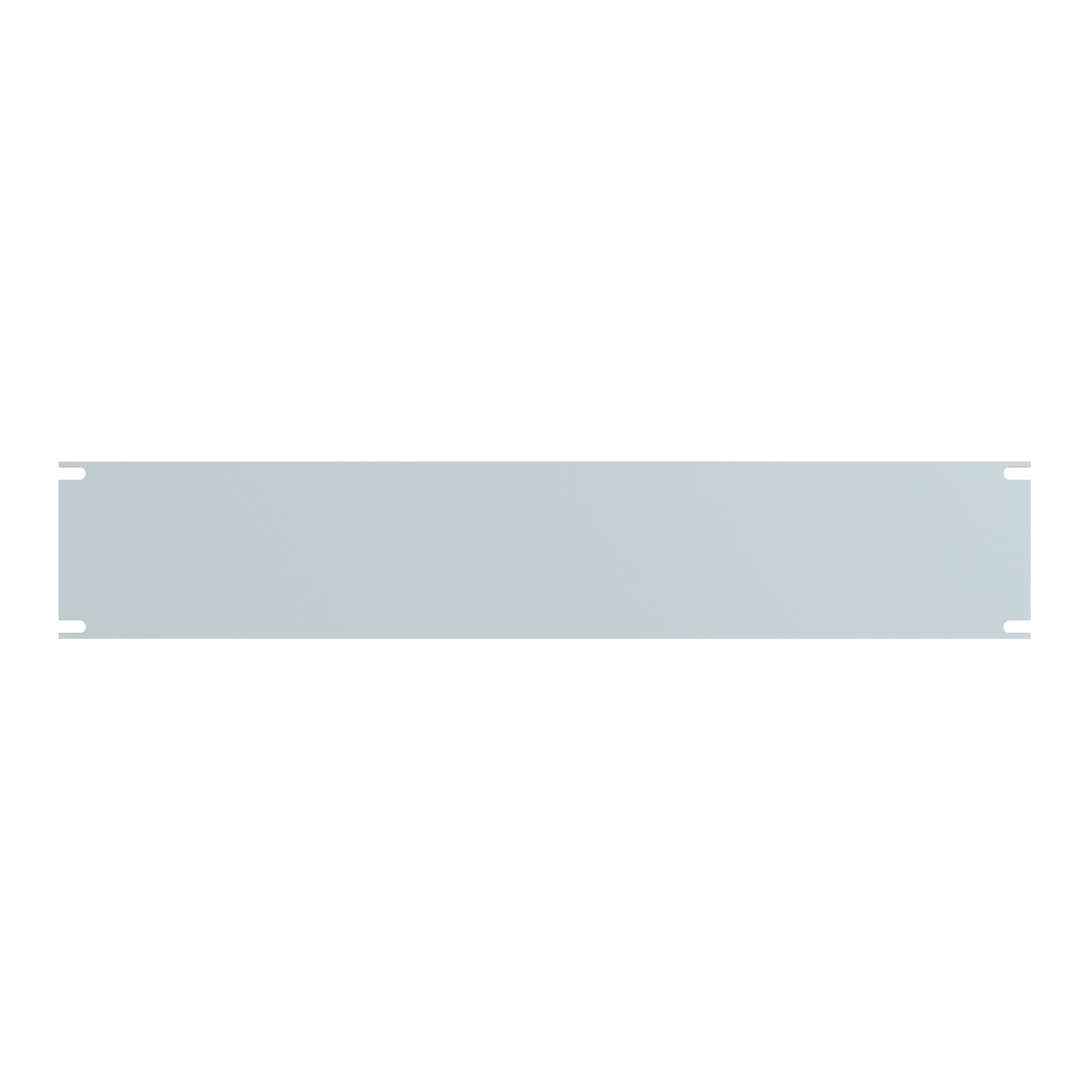

The PBPA19003LG2 is a 2U flat aluminum rack panel finished in RAL7035 light gray, made to fill unused space in standard 19 in EIA-compliant rack rails. It is intended for IT and AV integrators, telecom technicians and facilities teams who need to close open rack openings so cooling air travels through equipment instead of recirculating around it.
The panel is formed from 8-gauge (0.125 in) 5052-H32 aluminum, which gives it lightweight durability and corrosion resistance in rack environments. Compared with steel blanking panels, the aluminum construction is easier to handle during installation, and the smooth powder coat finish keeps the rack front looking clean and consistent.
PBPA19003LG2 measures 19.00 in (483 mm) wide overall with a panel height of 3.50 in (89 mm), occupying 2 rack units, and has a shipping weight of 0.79 lbs (0.36 kg). Four 0.250 x 0.375 in mounting slots provide 4 mounting points against the rack rails; corners of the cut-outs are radiused R .12 in (3 mm). Mounting hardware is not included, so specify rack screws or cage-nut hardware separately to match your rails.
For procurement, this part is TAA-compliant and manufactured in North America, with Canada (CA) as the country of origin, and it is listed as USMCA, RoHS and REACH compliant. The PBPA Series is offered across 1U to 10U heights and in matte black, dark gray, light gray, matte white and unfinished aluminum, so PBPA19003LG2 can be matched to the rest of a rack build.
Ideal For
- Covering unused rack space in data centers and server rooms
- Preventing hot and cold air recirculation in high-density racks
- Telecom and network equipment installations
- Wall mount and floor-standing rack build-outs
- Improving rack organization and front-panel appearance
Overview
| Series | PBPA Series — Aluminum Rack Blanking Lightweight Rack Panels |
| Description | 2U FLAT ALUMINUM RACK PANEL |
| Part Number | PBPA19003LG2 |
| Product Type | Rack panel / blanking panel |
Dimensions
| Rack Units | 2U |
| Panel Height | 3.50 in (89 mm) |
| Overall Width | 19.00 in (483 mm) |
| Material Thickness | 0.125 in (8-gauge) |
Identifiers
| UPC | 623980700021 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980700021 |
| UPC W/o Check Digit | 62398070002 |
Rack Mounting
| Mounting Slots | 4X 0.250 x 0.375 in slot |
| Mounting Hardware | Not included |
| Slot Corner Radius | 4X R .12 in (3 mm) |
| Rack Rail Compatibility | Standard 19 in EIA-compliant rack rails |
| Quantity Of Mounting Points | 4 |
Packaging & Shipping
| Tariff Code | 8538.10.0000 |
| Shipping Weight | 0.79 lbs (0.36 kg) |
| Country Of Origin | CA |
Construction & Finish
| Material | Aluminum — 5052-H32 |
| Panel Style | Flat, smooth finish |
| Finish / Color | RAL7035 Light Gray |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much rack space does PBPA19003LG2 cover?▾
It is a 2U panel with a panel height of 3.50 in (89 mm) and an overall width of 19.00 in (483 mm), so it covers two rack units in a standard 19 in rack.
Is mounting hardware supplied with this panel?▾
No. The drawing notes state that mounting hardware is not included, so rack screws or equivalent hardware must be specified separately.
What material and finish are used?▾
The panel is 8-gauge (0.125 in) 5052-H32 aluminum, finished in RAL7035 light gray, which provides lightweight durability and corrosion resistance.
How many mounting points does it have?▾
Four. The panel uses four 0.250 x 0.375 in slots for attachment to the rack rails.
Is this panel suitable for government procurement?▾
The part is listed as TAA-compliant and manufactured in North America, with Canada as the country of origin, and is also USMCA, RoHS and REACH compliant.
What other sizes and colors are available in the PBPA Series?▾
The series covers heights from 1U to 10U and is offered in RAL9005 matte black, ANSI61 dark gray, RAL7035 light gray, RAL9003 matte white and unfinished aluminum.
