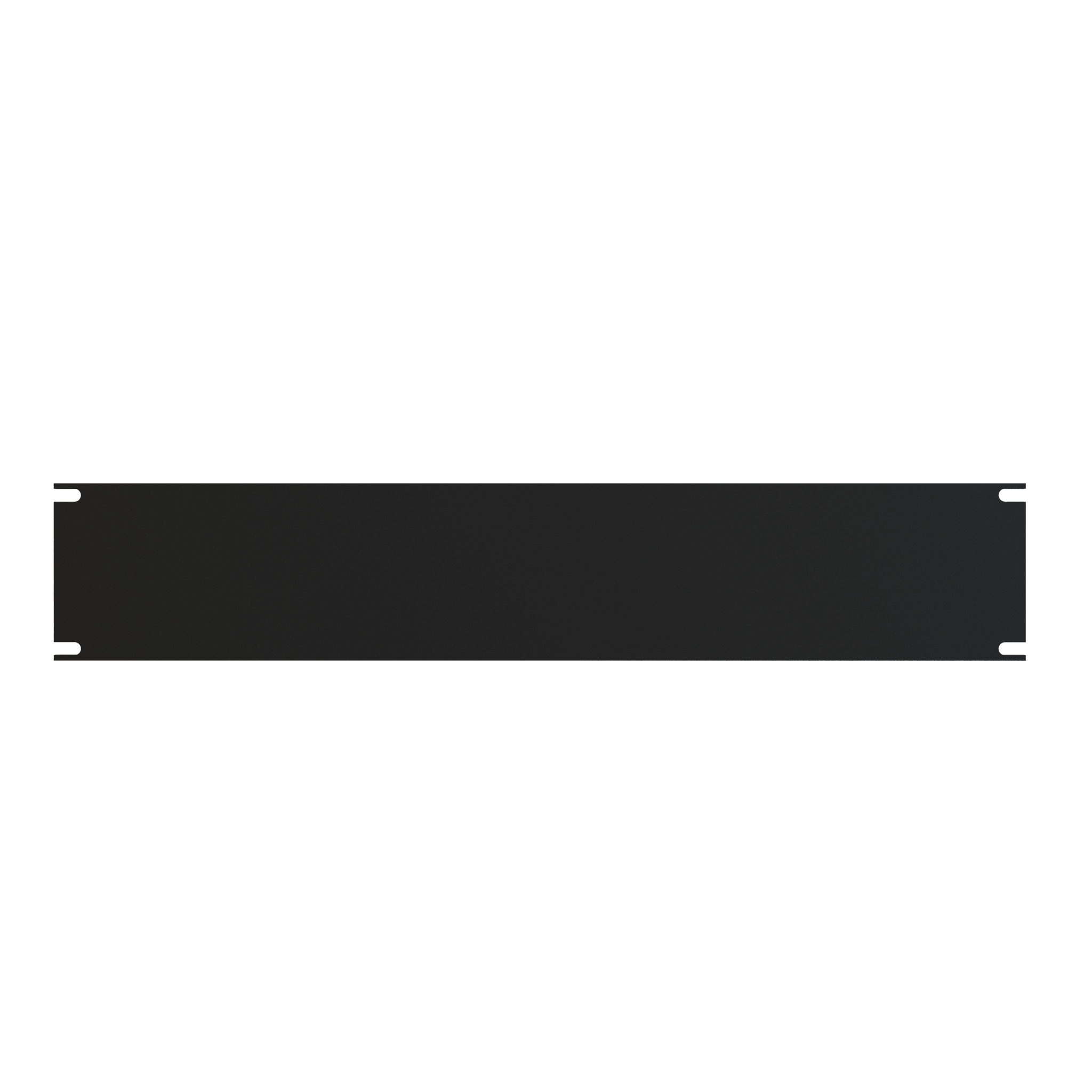

Hammond PBPA19003BK 2U Flat Aluminum Rack Blanking Panel, Black

The PBPA19003BK is a 2U flat aluminum rack panel used to close off unused space in standard 19 in EIA-compliant rack rails. It is intended for IT and AV integrators, telecom technicians and facilities teams who need a lightweight blanking panel to tidy an open rack face and keep supply and return air from mixing.

The panel is formed from 8-gauge (0.125 in) 5052-H32 aluminum, a material chosen for lightweight durability and corrosion resistance in rack environments. Compared with steel panels, the aluminum construction simplifies handling and installation. This version is finished in RAL9005 Matte Black for a smooth, professional rack appearance; the same 2U size is also offered in ANSI61 Dark Gray, RAL7035 Light Gray, RAL9003 Matte White and unfinished aluminum.

PBPA19003BK occupies 2 rack units with a panel height of 3.50 in (89 mm) and an overall width of 19.00 in (483 mm) per the part drawing. It uses 4 mounting points, with four 0.250 x 0.375 in mounting slots and 4X R .12 in (3 mm) radiused corners. Shipping weight is 0.79 lbs (0.36 kg). Mounting hardware is not included, so specify rack screws separately.

Installed in open rack space, the panel supports thermal management strategies by preventing air recirculation, helping cooling airflow follow the intended path in data centers, server rooms, telecom rooms and high-density racks. The part is RoHS and REACH compliant, TAA-compliant, USMCA compliant and made in Canada (ECCN EAR99), which supports government and regulated procurement requirements.
