Hammond MF0300 #304 Stainless Steel Mounting Feet, Set of 4
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Set of 4 mounting feet for RP Series enclosures
- Compatible enclosures: All except RP1450, 1455, 1460, 1465, 1610, 1615, 1630, 1635
- Material: #304 stainless steel
- Size 1.84 in x 0.79 in x 0.27 in (47 mm x 20 mm x 7 mm)
- Listed color: Light Gray
- REACH and RoHS compliant

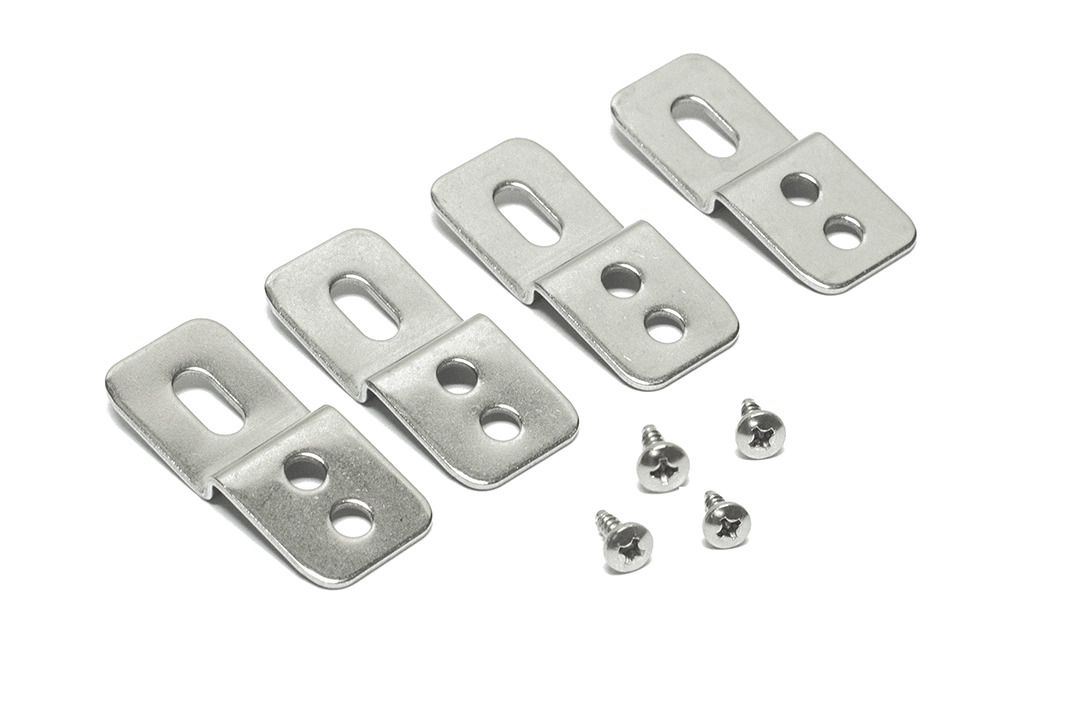

The MF0300 is a set of four #304 stainless steel mounting feet for the RP Series water-tight enclosures, fitting every RP size except RP1450, 1455, 1460, 1465, 1610, 1615, 1630 and 1635. It is the metal choice among the RP mounting foot kits.
The part page lists the material as steel and the series table as stainless steel, with the description specifying #304 SS. Each foot measures 47 mm x 20 mm x 7 mm (1.84 in x 0.79 in x 0.27 in), and the drawing shows 46.70 mm [1.84 in] x 20.00 mm [.79 in].
It fits all RP Series enclosures except RP1450, 1455, 1460, 1465, 1610, 1615, 1630 and 1635; for those larger sizes the MF0050 or MF0055 open U-slot feet apply. The RP Series enclosures these feet serve are gasketed ABS and polycarbonate boxes designed to meet IP 65 and ideally suited for mounting printed circuit boards or components.
The MF0300 ships in a bag at a listed shipping weight of 0.01 lbs (0.00 kg), and it is REACH and RoHS compliant. The series specification lists the mounting feet kits in sets of 4. For a version of the enclosure with a bottom flange instead of separate feet, the manufacturer points to the RPBF Series.
Ideal For
- Mounting smaller RP Series enclosures with metal feet
- Wall or panel installation of water-tight enclosures
- Equipment-mounted junction boxes
- OEM electronics housings
Overview
| Type | Foot Kit |
| Quantity | Set of 4 |
| Description | Mounting Feet #304 SS |
| Long Description | hardware- #304 SS mounting feet |
Dimensions
| Size (L X W X H) | 1.84 in x 0.79 in x 0.27 in (47 mm x 20 mm x 7 mm) |
| Overall Dimensions (Drawing) | 46.70 mm [1.84 in] x 20.00 mm [.79 in] |
Identifiers
| UPC | 623980318301 |
| UNSPSC | 39121301 |
| Part Number | MF0300 |
Compatibility
| Compatible RP Series Enclosures | All except RP1450, 1455, 1460, 1465, 1610, 1615, 1630, 1635 |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Color | Light Gray |
| Grade | #304 SS |
| Material | Steel |
| Material (Series Table) | Stainless Steel |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the MF0300 fit?▾
The MF0300 is listed for RP Series enclosures: All except RP1450, 1455, 1460, 1465, 1610, 1615, 1630, 1635.
How many feet are in the MF0300 kit?▾
The series specification lists the mounting feet kits as sets of 4.
What is the MF0300 made of?▾
It is #304 stainless steel (the part page lists the material as steel; the series table as stainless steel).
How big is each foot?▾
The listed size is 1.84 in x 0.79 in x 0.27 in (47 mm x 20 mm x 7 mm). The drawing shows 46.70 mm [1.84 in] x 20.00 mm [.79 in].
Is there an RP enclosure option with a built-in mounting flange?▾
Yes. For a version with a bottom flange, the manufacturer refers to the RPBF Series.
