Hammond M286-8 6.0 in Fold-Lock Chrome Steel Handle, Pair
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Pair of 6.0" spring-locked folding handles
- CR steel, bright chrome plated finish
- 6.0" (152.4 mm) long x 1.73" (43.9 mm) high
- 6.7" (170.4 mm) hole-to-hole mounting centers
- M8 x 1.25 6g threaded mounting studs
- Includes 4 M8 nuts and 4 washers
- RoHS and REACH compliant

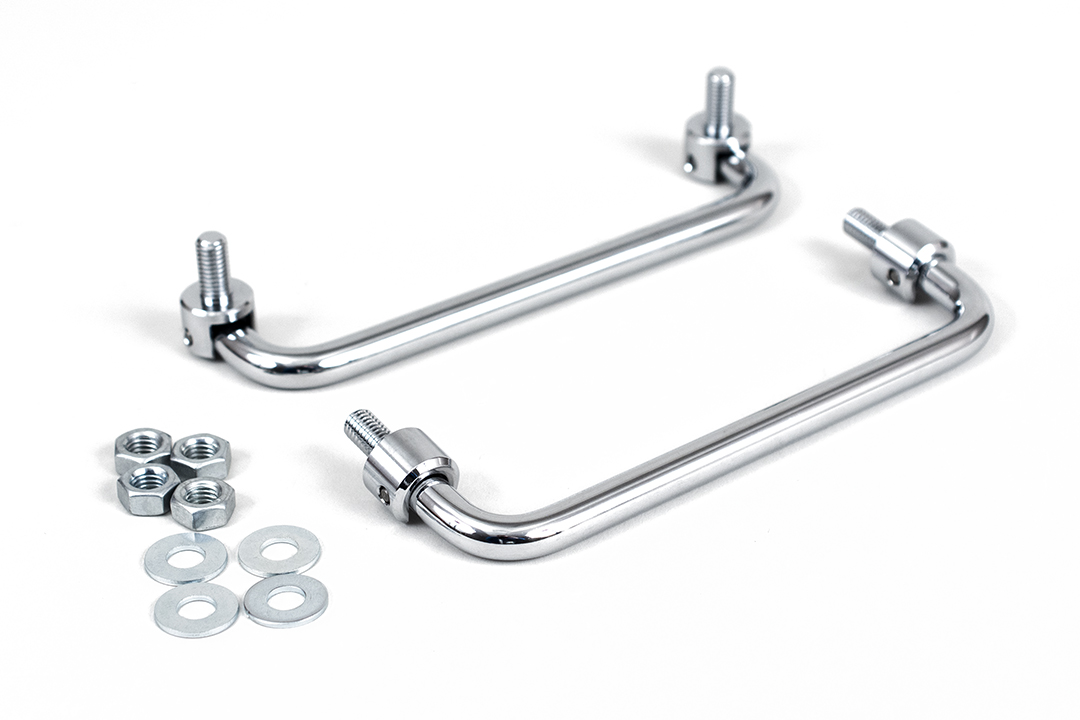

The M286-8 is a pair of 6.0" spring-locked folding handles made from chrome plated steel. It is designed for enclosures, cases and equipment that need a strong, compact carry handle that folds flat when not in use.
The drawing specifies CR steel as the handle material with a bright chrome plated finish. Each handle is 6.0" (152.4 mm) long and 1.73" (43.9 mm) high, with 6.7" (170.4 mm) hole-to-hole mounting centers.
Mounting is through threaded M8 x 1.25 6g studs with ø18.00 mm [0.709 in] bosses. Hardware is included; per the drawing that is 4 M8 nuts and 4 washers. The part page lists the size as 1.73 in x 6 in x 0.4 in (44 mm x 152 mm x 10 mm).
The handles are sold in pairs, ship at 0.75 lbs (0.34 kg), and are RoHS and REACH compliant. For a shorter version with 3.9" (99 mm) centers, see the M286-6.
For purchasing and inventory, the M286-8 carries UPC 623980031699 and UNSPSC 39121301. Because the handle folds down and spring-locks, it stays out of the way when the case is stacked or stored.
Ideal For
- Carry handles for larger equipment cases
- Folding handles on enclosures and instruments
- Portable electronic equipment
Overview
| Type | Handle |
| Series | M Series (Folding Metal Handles) |
| Quantity | Sold in pairs |
| Description | 6.0" fold-lock handle (pair) |
| Part Number | M286-8 |
Dimensions
| Height | 1.73" (43.9 mm); drawing 43.89 mm [1.728 in] |
| Length | 6.0" (152.4 mm) [6.000 in] |
| Other Drawing Dimensions | 33.89 mm [1.334 in]; 14.00 mm [0.551 in]; 16.00 mm [0.630 in]; 10.00 mm [0.394 in] |
| Size L X W X H (Part Page) | 1.73 in x 6 in x 0.4 in (44 mm x 152 mm x 10 mm) |
Identifiers
| UPC | 623980031699 |
| UNSPSC | 39121301 |
Rack Mounting
| Boss Diameter | ø18.00 mm [0.709 in] |
| Mounting Thread | M8 x 1.25 6g |
| Hole-to-Hole Mounting Centers | 6.7" (170.4 mm) [6.709 in] |
Packaging & Shipping
| Shipping Weight | 0.75 lbs (0.34 kg) |
Construction & Finish
| Action | Spring-locked folding |
| Finish | Bright chrome plated |
| Handle Material | CR steel |
| Material (Part Page) | N/A |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How far apart are the M286-8 mounting studs?▾
6.7" (170.4 mm) hole to hole.
What hardware is included?▾
Per the drawing, 4 M8 nuts and 4 washers.
What is the handle made of?▾
CR steel with a bright chrome plated finish.
How long is the handle?▾
6.0" (152.4 mm), with a height of 1.73" (43.9 mm).
Is it sold singly?▾
No, the handles are sold in pairs.
