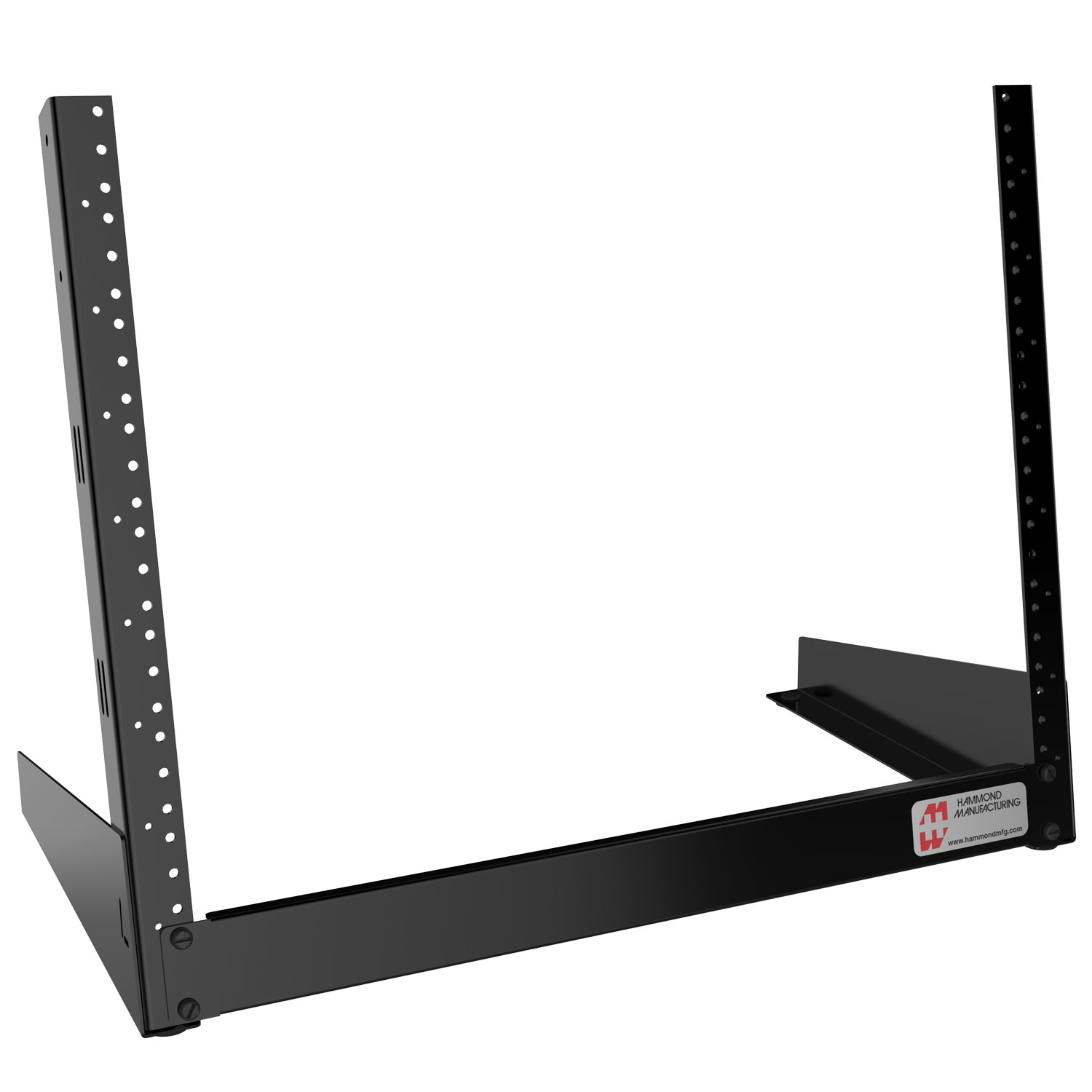

Hammond HDR8UBK 8U Desktop 2-Post Open Frame Rack, 195 lb Rating
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 8U of usable mounting height (14.00 in / 356 mm) on a 19 in EIA (483 mm) mounting width
- 16-gauge steel construction rated for 195 lb of equipment load
- Two 12-gauge steel rails with tapped 10-32 holes and rack unit markings; 25-pack of 10-32 screws included
- Rails angled 10 degrees when assembled for better visibility and access to equipment faces
- Compact desktop footprint: 20.00 in (508 mm) wide with 11.50 in (292 mm) base depth
- Side cable tie slots for organized cable routing in tight installations
- Self-squaring knock-down design ships flat packed for easy transport and quick assembly
- RAL9005 Black powder coat; TAA compliant and made in Canada
The HDR8UBK is an 8U desktop 2-post open frame rack built for mounting 19-inch equipment where a full-size floor rack is not practical. It suits IT labs, AV and media setups, small network or edge deployments, bench-top work areas and trade show demonstrations, giving technicians open access to the front and rear of gear at desk height.
Construction is 16-gauge steel with a 195 lb load rating, finished in RAL9005 Black powder coat. Two 12-gauge steel mounting rails carry tapped 10-32 holes with rack unit markings for consistent, repeatable installation, and the rails sit at a 10-degree angle when assembled to improve visibility of equipment faces and front-panel controls. Cable tie slots along the sides support tidy cable routing in tight spaces.
Overall dimensions are 16.00 in (406 mm) high x 20.00 in (508 mm) wide with an 11.50 in (292 mm) base depth; the product list gives a nominal size of 15.7 in x 20 in x 11.5 in (399 mm x 508 mm x 292 mm). Mounting dimensions are 14.00 in (356 mm) of usable 8U rail height on a 19.00 in (483 mm) EIA width. Shipping weight is 4.5 lbs (2.04 kg).
HDR8UBK uses a self-squaring knock-down design and ships flat packed, so it is easy to transport and quick to assemble on site. The box includes assembly instructions, two rack rails, left and right side angle bases, a base panel, four PVC non-slip feet and a 25-pack of 10-32 x 0.625 in rack screws.
The rack is made in Canada, TAA compliant, USMCA compliant, and RoHS and REACH compliant, with the black powder coat finish noted as GREENGUARD, TSCA and RoHS compliant.
Ideal For
- Desktop and bench-top equipment installations
- IT labs, testing environments and development spaces
- AV and media equipment setups
- Small network and edge deployments
- Trade show and demonstration demo racks
Overview
| Series | HDR Series Desktop 2-Post Open Frame Rack |
| Rack Type | Open Frame Rack |
| Rack Units | 8U |
| Description | 8U 2-Post Desktop Rack |
| Part Number | HDR8UBK |
| Load Capacity | 195 lb |
Dimensions
| Base Depth | 11.50 in (292 mm) |
| Overall Width | 20.00 in (508 mm) |
| Overall Height | 16.00 in (406 mm) |
| Nominal Size (H X W X D) | 15.7 in x 20 in x 11.5 in (399 mm x 508 mm x 292 mm) |
Identifiers
| UPC | 623980417011 |
| ECCN | EAR99 |
| UNSPSC | 43223308 |
| GTIN-14 | 00623980417011 |
| Tariff Code | 9403.10.0040 |
| UPC W/o Check Digit | 62398041701 |
| Drawing Part Reference | HDR8U (painted black smooth) |
Rack Mounting
| Rail Type | Tapped 10-32 |
| Rail Angle | 10 degrees when assembled |
| Rail Gauge | 12-gauge steel |
| Rail Markings | Rack unit (U) markings |
| EIA Compliance | 19 in EIA compliant |
| Mounting Width | 19.00 in (483 mm) |
| Mounting Height | 14.00 in (356 mm) — 8U usable |
| Number Of Rails | 2 |
| Cable Management | Side cable tie slots / tie points |
What's In The Box
| Included Items | 1 assembly instructions, 2 rack rails, 1 left side angle base, 1 right side angle base, 1 base panel, 4 PVC non-slip feet, 25 10-32 x 0.625 in rack screws |
| Mounting Hardware | Included (25-pack 10-32 screws, replacement part no. SCREW1032-25) |
Packaging & Shipping
| Packaging | Shipped flat packed |
| Shipping Weight | 4.5 lbs (2.04 kg) |
Construction & Finish
| Feet | 4 PVC non-slip feet |
| Finish | Black powder coat, smooth |
| Assembly | Self-squaring knock-down design; ships unassembled (flat packed) |
| Material | Mild Steel |
| Frame Gauge | 16-gauge steel |
| Paint Color | RAL9005 Black |
Compliance & Certifications
| Standards | TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | GREENGUARD, TSCA and RoHS compliant black powder coat |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much equipment can the HDR8UBK hold?▾
It provides 8U of usable mounting height (14.00 in / 356 mm) on a 19 in EIA mounting width, with a 195 lb load rating from its 16-gauge steel construction.
Does HDR8UBK come with mounting screws?▾
Yes. Mounting hardware is included — a 25-pack of 10-32 x 0.625 in rack screws (replacement part no. SCREW1032-25), along with the rails, side angle bases, base panel and four PVC non-slip feet.
Does it ship assembled?▾
No. It uses a self-squaring knock-down design and ships flat packed and unassembled, with assembly instructions included, which supports easy transport and quick on-site assembly.
What kind of rails does it use?▾
Two 12-gauge steel rails with tapped 10-32 threaded holes and rack unit markings. The rails are angled at 10 degrees when assembled for better visibility and access to equipment.
Is the HDR8UBK suitable for government procurement?▾
It is listed as TAA compliant and manufactured in North America (country of origin Canada), and is also USMCA, RoHS and REACH compliant.
What are the footprint dimensions?▾
Overall width is 20.00 in (508 mm) with an 11.50 in (292 mm) base depth and 16.00 in (406 mm) overall height; the nominal listed size is 15.7 in x 20 in x 11.5 in (399 mm x 508 mm x 292 mm).
