Hammond HDR6UBK 6U Desktop 2-Post Open Frame Rack, 195 lb
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 6U of usable 19-inch EIA rack space in a compact desktop footprint, 20.00 in wide x 11.50 in base depth
- 16-gauge steel construction rated for a 195 lb equipment load
- Two 12-gauge steel rails with tapped 10-32 holes and rack unit markings for consistent installation
- Rails angled 10 degrees when assembled for better equipment visibility and access
- Side cable tie slots for organized cable routing in tight installations
- Self-squaring knock-down design ships flat packed for easy transport and quick assembly
- Includes 25-pack of 10-32 x 0.625 in rack screws plus four PVC non-slip feet
- RAL9005 Black powder coat (GREENGUARD, TSCA, RoHS compliant); TAA compliant, made in Canada

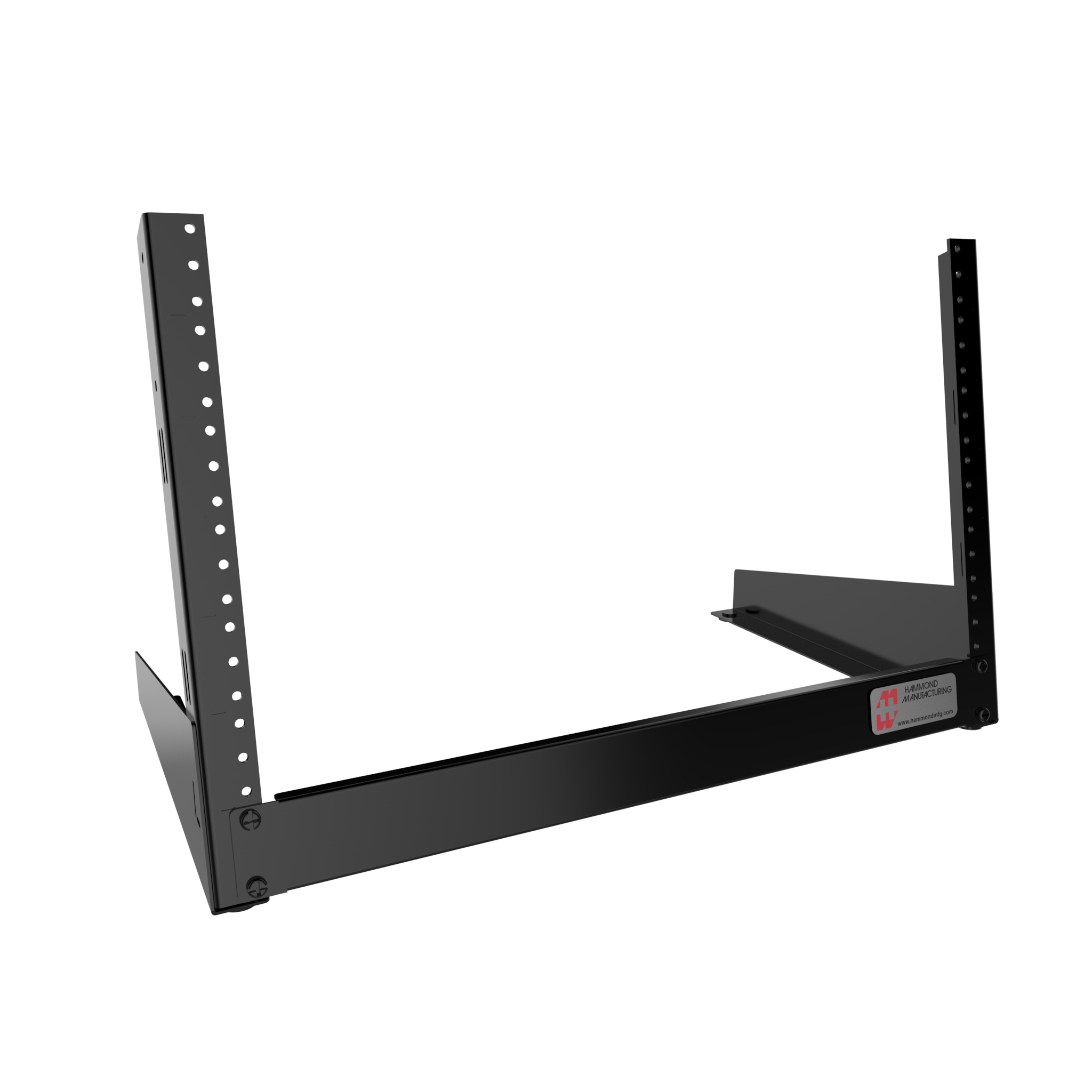

The HDR6UBK is a 6U desktop 2-post open frame rack built for mounting standard 19-inch equipment where a full-size floor rack is not practical. It suits IT labs, AV and media setups, small network or edge deployments, bench-top work areas and trade show demonstrations, giving integrators, engineers and facilities teams an open, accessible frame that sits on a desk or shelf.
Construction is 16-gauge mild steel with a 195 lb load rating, finished in RAL9005 Black powder coat that is GREENGUARD, TSCA and RoHS compliant. Two 12-gauge steel mounting rails carry tapped 10-32 holes with rack unit markings for repeatable installation, and the rails are angled at 10 degrees once assembled so front-panel controls and indicators stay visible and within reach. Cable tie slots along the sides support tidy cable routing in tight spaces.
Assembled overall dimensions are 12.50 in (318 mm) high, 20.00 in (508 mm) wide and 11.50 in (292 mm) base depth, with an EIA-compliant mounting area of 10.50 in (267 mm) high by 19.00 in (483 mm) wide — 6U of usable rack space. Shipping weight is 4 lbs (1.81 kg).
HDR6UBK uses a self-squaring knock-down design and ships flat packed, so it is easy to transport and quick to assemble on site. The box includes assembly instructions, two rack rails, left and right side angle bases, a base panel, four PVC non-slip feet, and a 25-pack of 10-32 x 0.625 in rack screws (replacement part SCREW1032-25).
Made in Canada and TAA compliant, the HDR6UBK is also USMCA, RoHS and REACH compliant with ECCN EAR99, supporting government and enterprise procurement requirements.
Ideal For
- Desktop and bench-top equipment installations
- IT labs, testing and development spaces
- AV and media equipment setups
- Small network or edge deployments
- Trade show and demonstration demo racks
Overview
| Series | HDR Series - Desktop 2-Post Open Frame Rack (195 lb Capacity) |
| Assembly | Self-squaring knock-down design; ships unassembled / flat packed |
| Rack Type | Open Frame Rack |
| Rack Units | 6U |
| Description | 6U 2-Post Desktop Rack |
| Part Number | HDR6UBK |
| Load Capacity | 195 lb |
Dimensions
| Base Depth | 11.50 in (292 mm) |
| Overall Width | 20.00 in (508 mm) |
| Overall Height | 12.50 in (318 mm) |
| Front Opening Width | 17.81 in (452 mm) |
| Base Width (Top View) | 19.93 in (506 mm) |
| Nominal Size (H X W X D) | 10.5 in x 20 in x 11.5 in (267 mm x 508 mm x 292 mm) |
Identifiers
| UPC | 623980659763 |
| UNSPSC | 43223308 |
| GTIN-14 | 00623980659763 |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA (manufactured in North America) |
| UPC W/o Check Digit | 62398065976 |
Rack Mounting
| Rail Type | Tapped 10-32 |
| Rail Angle | 10 degrees when assembled |
| Rail Markings | Rack unit (U) markings |
| Rail Material | 12-gauge steel, two (2) rails |
| EIA Compliance | 19" EIA compliant |
| Mounting Width | 19.00 in (483 mm) |
| Mounting Height | 10.50 in (267 mm) - 6U usable |
| Cable Management | Side cable tie slots / tie points |
Included Items
| What's In The Box | 1 x Assembly instructions; 2 x Rack rail; 1 x Left side angle base; 1 x Right side angle base; 1 x Base panel; 4 x PVC non-slip feet; 25 x 10-32 x 0.625 in rack screws |
| Assembly Hardware (Drawing) | 4 x 10-32 KEP nut; 4 x plug bumper; 4 x screw 10-32 x 5/8" |
| Rack Screw Replacement Part No. | SCREW1032-25 |
Packaging & Shipping
| Packing | Shipped flat packed |
| Shipping Weight | 4 lbs (1.81 kg) |
Construction & Finish
| Feet | 4 PVC non-slip feet |
| Finish | Black powder coat, smooth |
| Paint Color | RAL9005 Black |
| Frame Material | Mild steel, 16-gauge |
Environmental & Protection
| Finish Compliance | GREENGUARD, TSCA and RoHS compliant powder coat |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much equipment weight can the HDR6UBK hold?▾
The HDR Series desktop rack, including the HDR6UBK, is rated for a 195 lb load and uses 16-gauge steel construction.
What kind of mounting holes do the rails have?▾
Both rails are 12-gauge steel with tapped 10-32 threaded holes and rack unit markings. A 25-pack of 10-32 x 0.625 in rack screws is included.
Does the HDR6UBK arrive assembled?▾
No. It uses a self-squaring knock-down design and ships flat packed, with assembly instructions included in the box.
What is the usable mounting space?▾
The mounting area is 10.50 in (267 mm) high by 19.00 in (483 mm) wide, providing 6U of usable 19-inch EIA rack space.
Why are the rails angled?▾
The rails are angled at 10 degrees when assembled, which improves visibility of and access to mounted equipment for operation and monitoring.
Is the HDR6UBK suitable for government purchases?▾
It is TAA compliant and manufactured in North America (Country of Origin CA), and is also USMCA, RoHS and REACH compliant with ECCN EAR99.
