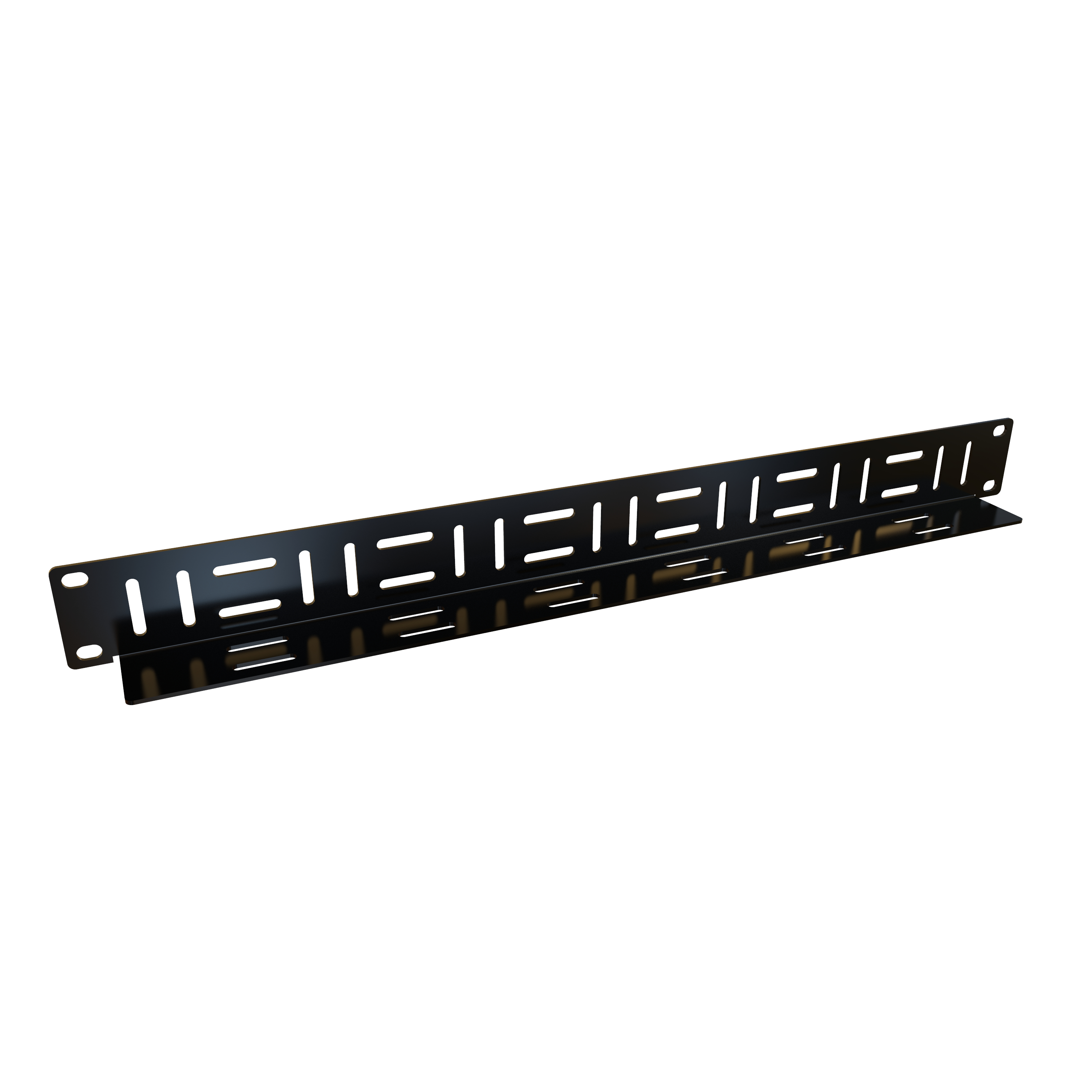

Hammond HCMP191UBK 1U Horizontal Cable Lacer Panel, 75 lb Capacity

The HCMP191UBK is a 1U horizontal cable lacing panel built for cable support, routing and light equipment mounting in standard 19-inch racks. It suits IT and network technicians, AV and broadcast integrators, and control-system builders who need a simple, structural place to dress and anchor cable bundles rather than a manager that only conceals them.

Construction is 14-gauge mild steel with a black powder coat finish, and the panel is rated for a 75 lb capacity. The slotted panel face provides repeatable tie-down points so bundles can be laced with hook-and-loop straps or cable ties, giving strain relief for cables entering or leaving equipment. Because it acts as a structural support platform, the panel can also carry lightweight non-rackmount devices, and it can serve as a shallow support shelf when mounted to both front and rear rails.

Overall dimensions are 1.75 in (44 mm) high by 19.00 in (483 mm) wide by 1.50 in (38 mm) deep, occupying a single rack unit with a 1.75 in (44 mm) mounting height. The drawing shows a 18.32 in (465 mm) 19-inch mounting dimension, a 17.50 in (444 mm) panel dimension and a 1.25 in (32 mm) dimension, with 0.19 x 1.00 in slots. Shipping weight is 0.8 lbs (0.36 kg). Mounting hardware is not included.

HCMP191UBK is designed for standard 19-inch EIA-compliant rack mounting and its low-profile form keeps rack space use to a minimum. The panel is TAA-compliant and manufactured in North America, with a finish stated as GREENGUARD, TSCA and RoHS compliant. The part is also listed as RoHS, REACH and USMCA compliant, with ECCN EAR99 and country of origin CA.
