Hammond FT-01 Folding Foot Kit for RH/RM Series Enclosures

The FT-01 is a folding foot kit for Hammond RH and RM series plastic enclosures. It lets an instrument enclosure sit at an angle on a bench or desk so the front panel is easier to read and operate, which makes it a useful add-on for designers building meters, controllers and test equipment in the RM Series instrument enclosures.

The kit consists of two enclosure brackets, two mounting screws and two hinged feet. The parts are ABS plastic in light gray, matching the light gray instrument enclosures, and the kit is listed as RoHS and REACH compliant.

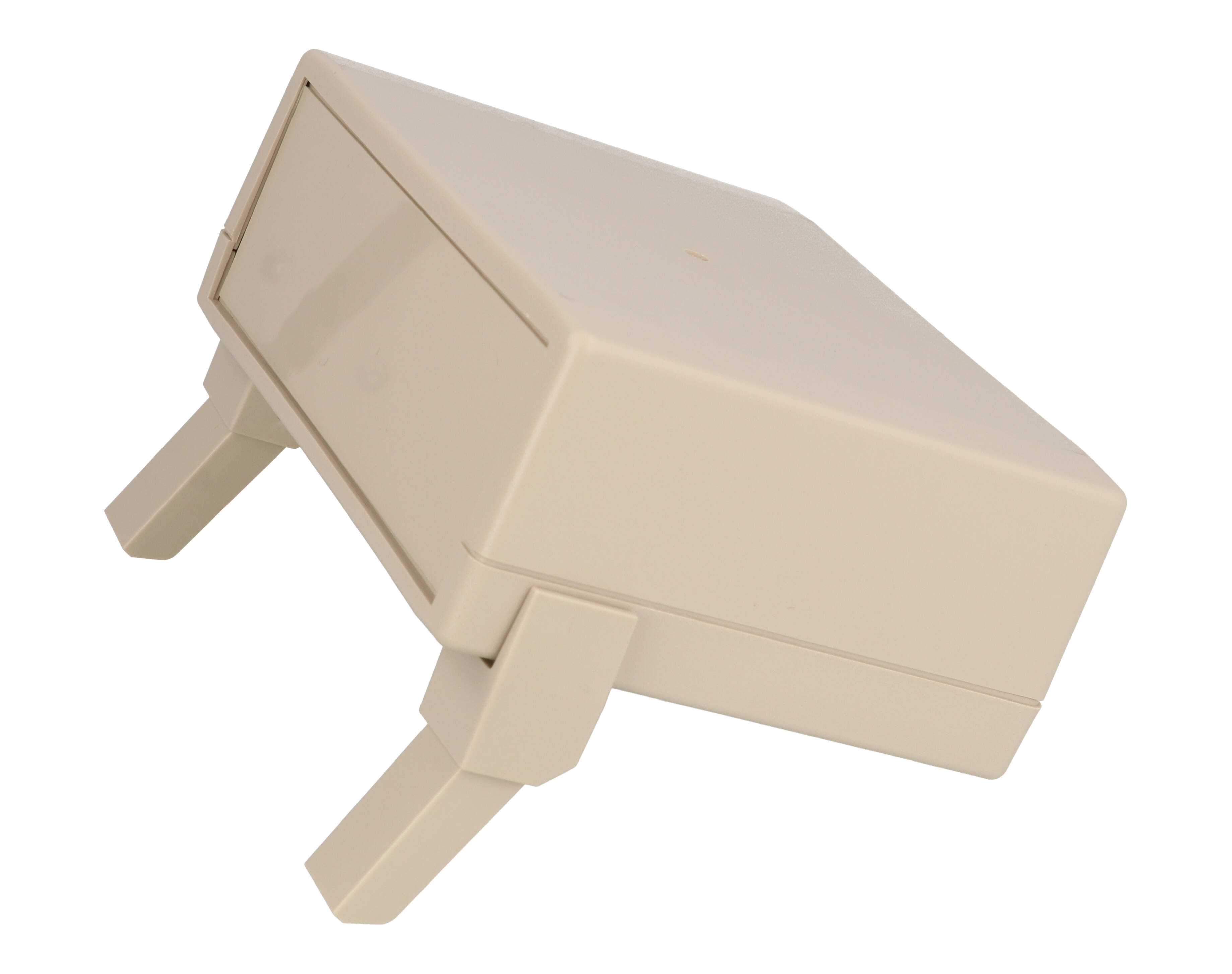

The feet mount to the bottom half of the enclosure, towards the front. Once fitted, the hinged feet fold out to tilt the enclosure and allow an angled view of the front panel, and fold away when not needed. The RM Series drawings list FT-01 as the folding feet kit accessory for the RM2005 sizes.

The FT-01 ships boxed with a shipping weight of 0.04 lbs (0.02 kg). Its UPC is 623980179070 and its UNSPSC code is 39121301. Because it is a small accessory, it is easy to add to an order alongside the RM Series enclosure it will be fitted to, together with any replacement lid or PCB screw packs listed for that enclosure.
