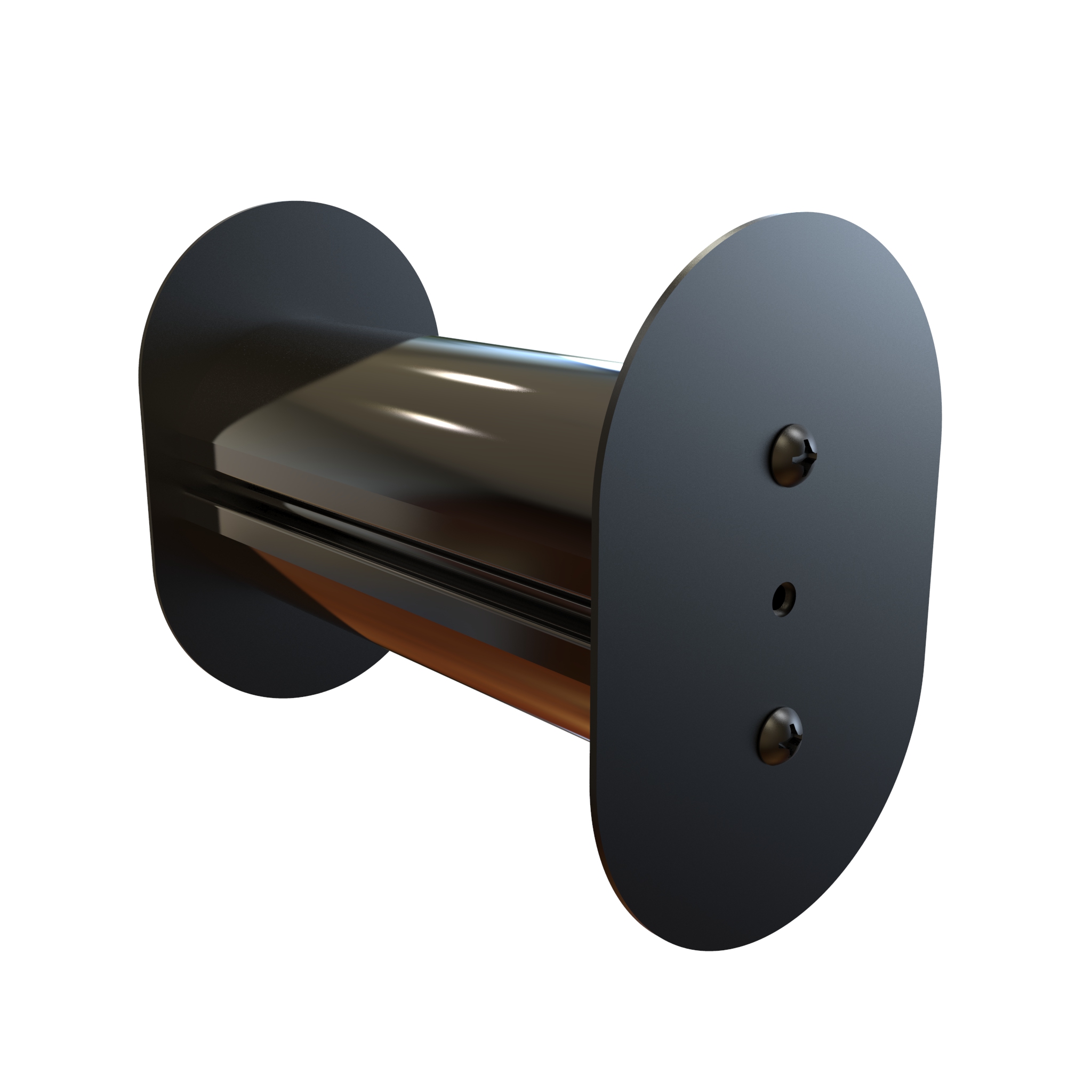

Hammond FRCMSPOOL 5.5 inch Cable Slack Spool Pair, Toolless Mount
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Supplied as a pair (2 units) of cable slack spools for vertical cable managers
- Spool diameter 2.50 in (64 mm) with 1.25 in (32 mm) bend radius to protect fiber and high-performance copper
- Spool length 5.50 in (140 mm); overall length 5.61 in (143 mm) per drawing
- Toolless mounting installs at the rear of vertical managers without extra hardware
- Heavy-duty extruded aluminum body with steel end caps for durable slack support
- Black anodized finish with powder-coated steel end caps for long-term durability
- Compatible with FRCM and VFM vertical cable managers and the HWF rear pan
- TAA-compliant, made in North America; RoHS, REACH and USMCA compliant
FRCMSPOOL is a pair of cable management spools designed to manage cable slack and maintain proper bend radius inside vertical rack cable managers. It is aimed at data center technicians, network and telecom installers, and structured cabling contractors who need organized slack storage points within a vertical cable pathway. Each order includes 2 units, so both sides of a manager or multiple rack positions can be equipped at once.
Construction is a heavy-duty extruded aluminum body with steel end caps. The aluminum is finished in black anodize and the steel end caps are powder coated, giving the assembly long-term durability in high-density environments. The toolless mounting design allows fast installation at the rear of vertical managers without additional hardware.
Dimensionally, the FRCMSPOOL spool measures 2.50 in (64 mm) in diameter with a 1.25 in (32 mm) bend radius and a spool length of 5.50 in (140 mm); the drawing shows an overall length of 5.61 in (143 mm). Shipping weight is 1 lb (0.45 kg) for the pair.
The spools are compatible with FRCM and VFM vertical cable managers and the HWF rear pan. By supporting excess cable length and controlling bend radius, they help protect fiber and high-performance copper cabling, improve routing efficiency, and reduce congestion and strain where cable density is high.
- Toolless installation at the rear of vertical managers
- Maintains bend radius for fiber and high-performance copper
- Supplied in pairs for balanced slack management
FRCMSPOOL is TAA-compliant and manufactured in North America (country of origin CA), and is RoHS, REACH and USMCA compliant, supporting government and regulated procurement requirements.
Ideal For
- Managing slack in fiber and copper cable installations
- Maintaining proper bend radius for sensitive cables
- Improving organization within vertical cable managers
- High-density data center and telecom installations
- Multi-rack deployments using vertical managers
Overview
| Series | FRCMSPOOL Series |
| Part Number | FRCMSPOOL |
| Product Type | Cable management spool for vertical rack managers |
| Compatibility | FRCM and VFM vertical cable managers; HWF rear pan |
| Quantity Included | 2 (sold in pairs) |
| Short Description | CABLE SPOOL FOR FRCM (PAIR) |
Dimensions
| Bend Radius | 1.25 in (32 mm) |
| Spool Length | 5.50 in (140 mm) |
| Spool Diameter | 2.50 in (64 mm) |
| Spool Depth (Drawing) | 1.00 in (25 mm) |
| Overall Length (Drawing) | 5.61 in (143 mm) |
| End Cap / Spool Height (Front View) | 2.50 in (64 mm) |
Identifiers
| UPC | 623980695556 |
| UNSPSC | 43223305 |
| GTIN-14 | 00623980695556 |
| UPC W/o Check Digit | 62398069555 |
Rack Mounting
| Mounting Method | Toolless mounting at the rear of vertical cable managers |
Packaging & Shipping
| Tariff Code | 7326.90.8688 |
| Shipping Weight | 1 lbs (0.45 kg) |
| Country Of Origin | CA |
Construction & Finish
| Body | Extruded aluminum |
| Finish | Anodized black |
| End Caps | Steel, powder coated |
| Material | Aluminum |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many spools come with FRCMSPOOL?▾
FRCMSPOOL is sold in pairs, with 2 units included, for balanced cable management and installation flexibility.
What size is the FRCMSPOOL spool?▾
The spool diameter is 2.50 in (64 mm), the bend radius is 1.25 in (32 mm), and the spool length is 5.50 in (140 mm). The drawing shows an overall length of 5.61 in (143 mm).
Which cable managers does it fit?▾
It is compatible with FRCM and VFM vertical cable managers and the HWF rear pan.
Do I need tools or extra hardware to install it?▾
No. The toolless mounting design allows fast installation at the rear of vertical managers without additional hardware.
What is it made of and how is it finished?▾
The body is heavy-duty extruded aluminum with steel end caps. The aluminum is anodized black and the steel end caps are powder coated.
Is FRCMSPOOL suitable for government projects?▾
It is TAA-compliant and manufactured in North America (country of origin CA), and is also RoHS, REACH and USMCA compliant.
How does it protect fiber cabling?▾
The 1.25 in (32 mm) bend radius helps maintain proper cable bend radius to protect fiber and high-performance copper cables and support reliable data transmission.
