Hammond EPA Quarter-Turn Padlock Adaptor, 316 Stainless Steel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Adds padlock security to a quarter-turn lock or slot by fitting directly over it
- Designed for EN4SD / Series 2000 enclosures; also fits C2, C4 and HWM rack cabinets
- 14-gauge 316 stainless steel construction
- Stainless steel mounting hardware included; padlock not included
- Bolts cannot be removed without the door open
- Maintains UL/CSA Type 4, 4X rating
- Easily installed in the field
- TAA-compliant for GSA Schedule purchases; RoHS compliant

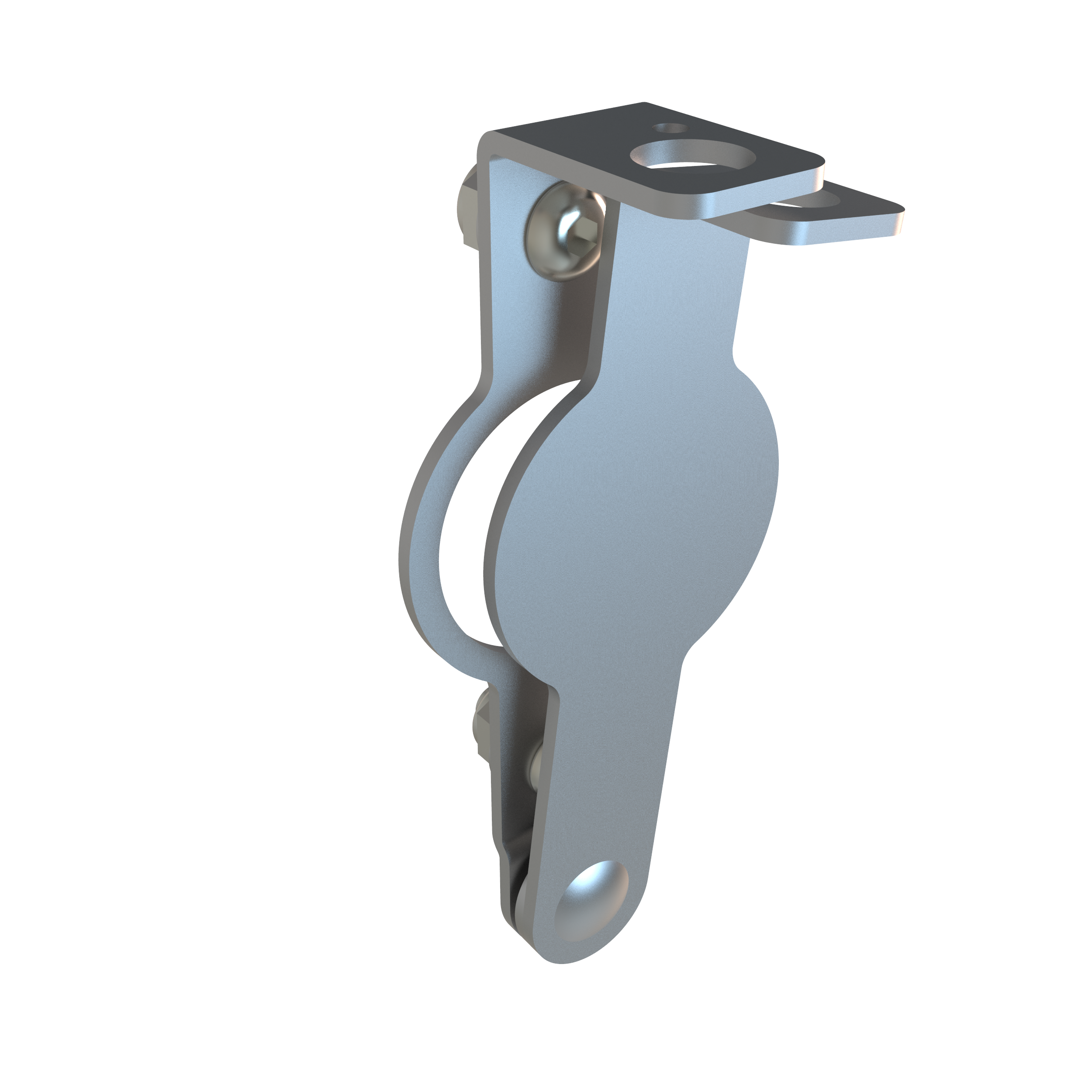

The EPA is a universal quarter-turn padlock adaptor that lets you padlock a quarter-turn latch on a Hammond enclosure. It is designed for use with EN4SD / Series 2000 enclosures and is also compatible with C2, C4 and HWM rack cabinets, making it relevant to panel builders, facilities teams and IT integrators who need to restrict access to an enclosure or cabinet.
The adaptor fits directly over the quarter-turn lock or slot, preventing access until the padlock is removed. It is constructed in 14-gauge 316 stainless steel and comes with stainless steel mounting hardware. Once installed, the bolts cannot be removed without the door open, so the adaptor cannot simply be unscrewed from outside. The padlock itself is not included.
The EPA is easily installed in the field and maintains the enclosure's UL/CSA Type 4 and 4X rating. The part drawing shows an overall length of 3.575 in, with 1.38 in and 1.00 in dimensions and holes of 0.375 in and 0.120 in diameter.
For procurement, the adaptor is TAA-compliant for GSA Schedule purchases, RoHS compliant and REACH compliant, and is manufactured in North America within an ISO 9001:2015 certified facility. It ships in a bag with a shipping weight of 0.2 lbs (0.09 kg).
Ideal For
- Padlocking quarter-turn latches on EN4SD / Series 2000 enclosures
- Securing C2, C4 and HWM rack cabinets
- Field retrofit of lockable access on Type 4 and 4X enclosures
- GSA Schedule projects requiring TAA-compliant hardware
Overview
| Function | Fits directly over the quarter-turn lock or slot, preventing access |
| Description | Padlock Adapter for Eclipse - 316 SS |
| Designed For | EN4SD / Series 2000 Enclosures |
| Product Type | Universal Quarter-Turn Padlock Adaptor |
| Short Description | ECLIPSE PADLOCK ADAPTOR |
| Also Compatible With | C2, C4 and HWM rack cabinets |
Dimensions
| Hole Diameters (Drawing) | 0.375 in, 0.120 in |
| Other Drawing Dimensions | 1.38 in, 1.00 in |
| Overall Length (Drawing) | 3.575 in |
Identifiers
| UPC | 623980190853 |
| UNSPSC | 39121321 |
| Part Number | EPA |
Installation
| Installation | Easily installed in the field |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.2 lbs (0.09 kg) |
Construction & Finish
| Gauge | 14 |
| Padlock | Not included |
| Material | 316 stainless steel |
| Mounting Hardware | Stainless steel, included |
| Tamper Resistance | Once installed, bolts cannot be removed without the door open |
Environmental & Protection
| Enclosure Rating | Maintains UL/CSA Type 4, 4X rating |
Compliance & Certifications
| TAA | TAA-compliant for GSA Schedule purchases |
| Manufacturing | Manufactured in North America within an ISO 9001:2015 certified facility |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the EPA fit?▾
It is designed for EN4SD / Series 2000 enclosures and is also compatible with C2, C4 and HWM rack cabinets.
Is a padlock included?▾
No. The padlock is not included; stainless steel mounting hardware is included.
Will installing the EPA affect the enclosure rating?▾
The adaptor maintains the UL/CSA Type 4, 4X rating.
Can the adaptor be removed from outside the enclosure?▾
Once installed, the bolts cannot be removed without the door open.
What is the EPA made of?▾
It is constructed in 14-gauge 316 stainless steel.
Is the EPA suitable for GSA Schedule purchases?▾
Yes, it is TAA-compliant for GSA Schedule purchases.
