Hammond EN4SD422410GY 42x24x10 in Type 4 Wallmount Enclosure, ANSI 61 Gray

Measuring 42 in tall by 24 in wide by 10 in deep, the EN4SD422410GY is a mild steel Eclipse Series wallmount enclosure with a single hinged door. It is rated NEMA Type 3R, 4 and 12 and IP66, and is aimed at integrators, electricians and OEM teams enclosing electrical or electronic equipment in demanding industrial locations.

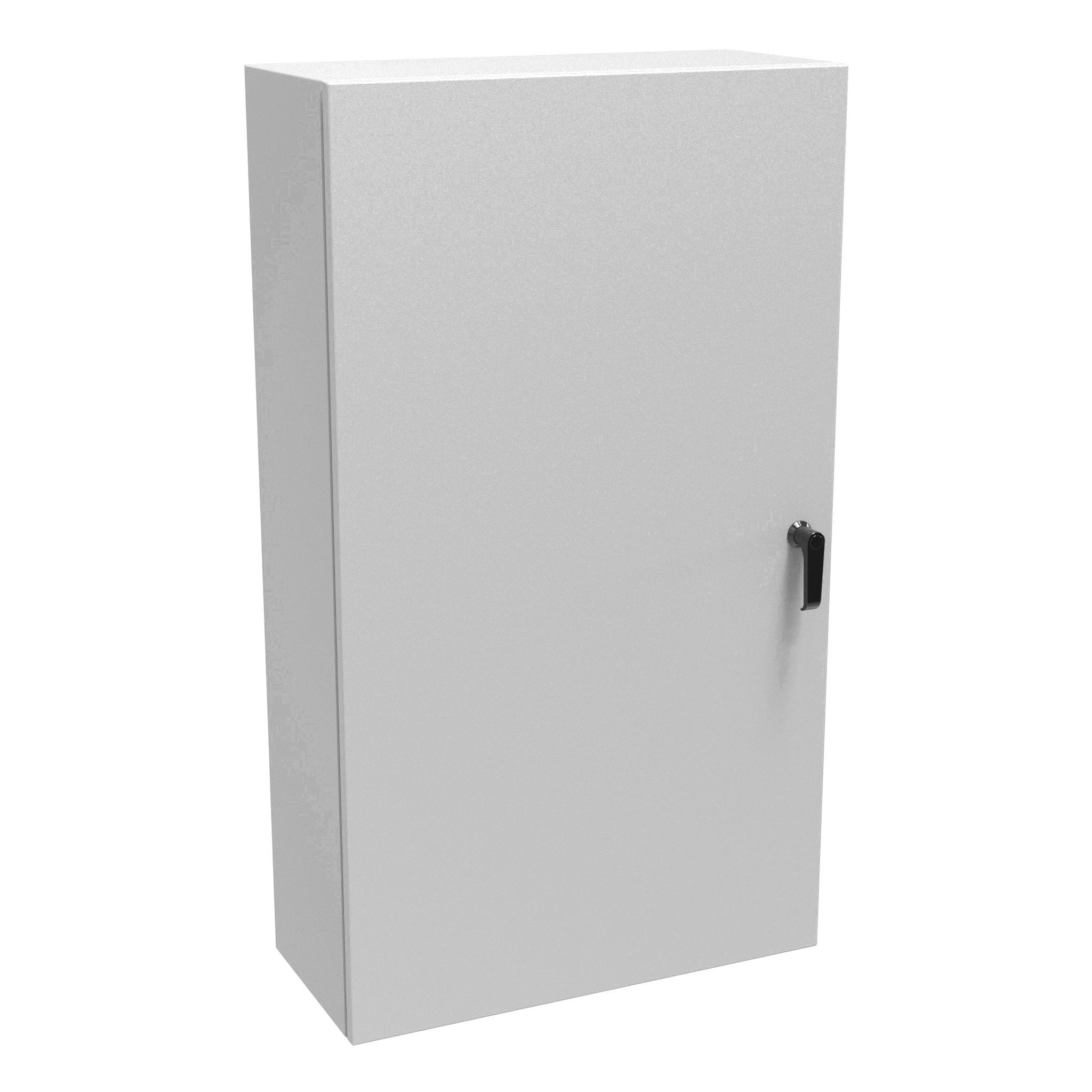

Construction is 14 gauge formed steel with continuously welded seams ground smooth. A formed lip on the body keeps flowing liquids and contaminants out, and a seamless poured-in-place gasket completes the seal. Hinges are 304 stainless steel with stainless steel pins. Inside and out, the enclosure is phosphatized and finished in a recoatable ANSI 61 smooth gray powder coat; order EN4SD422410LG for the RAL 7035 light gray version.

This size uses Type B latching, a handle with 3-point latching; the multi-point handle (key lockable) is zinc diecast with a black epoxy finish. The door opening measures 22.31 x 40.31 in, and the drawing shows 18.65 x 40.00 in of clear space available on the door. Doors can be removed for modification, and door swing can be reversed by ordering adapter kit EHLLSAK. Shipping weight is 87 lbs (39.46 kg).

Collar studs are provided for mounting an inner panel; the optional EP4224 panel measures 40.20 in (1021 mm) high by 22.20 in (564 mm) wide. A hardware kit with panel mounting nuts and sealing washers for the wall mounting holes is included, along with a bonding stud on the door and a grounding stud in the enclosure. The EN4SD422410GY is UL 508A (File E65324) and CSA (LR21001) listed for Type 3R, 4 and 12; a mounting foot kit is required to maintain UL/CSA external mounting requirements. It is REACH and RoHS compliant.
