Hammond EN4SD362416GY 36x24x16 in Type 4 Steel Wallmount Enclosure, Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 36 x 24 x 16 in (914 x 610 x 406 mm) H x W x D single-door wallmount enclosure
- UL 508A and CSA Type 3R, 4 and 12; complies with IEC 60529 IP66 and NEMA Type 3R, 4 and 12
- Formed 14 gauge mild steel, continuously welded seams ground smooth
- Ansi 61 smooth gray recoatable powder finish inside and out over phosphatized steel
- Type A slotted quarter-turn latching; zinc diecast latch with black epoxy finish
- Seamless poured-in-place gasket and formed lip to exclude flowing liquids and contaminants
- Hidden 304 stainless steel hinges; reversible door swing with adapter kit EHLLSAK
- Collar studs for optional EP3624 inner panel (34.20 in x 22.20 in)
Part number EN4SD362416GY is an Eclipse Series wallmount enclosure measuring 36 x 24 x 16 in (914 x 610 x 406 mm) H x W x D. It is designed to enclose electrical and/or electronic equipment on a wall and protect it against harsh, industrial conditions, making it a practical choice for control panel, automation and facilities work.
Construction is formed 14 gauge steel with smooth, continuously welded seams ground smooth, a formed lip that excludes flowing liquids and contaminants, and a seamless poured-in-place gasket. The enclosure and door are phosphatized and powder coated inside and out in ANSI 61 smooth gray (GY); the matching RAL 7035 light gray version is EN4SD362416LG. Hinges are 304 stainless steel with stainless steel hinge pins, hidden for a clean look.
The door uses latch Type A, slotted quarter turns, with the quarter turn latch zinc diecast in a black epoxy finish. The drawing shows a 35.97 in x 23.97 in door, a 34.49 in x 22.49 in door opening, and 34.00 in x 22.00 in of clear space available on the door. Doors can be removed for modifications and are interchangeable, and the door swing can be reversed with adapter kit EHLLSAK.
For mounting, the back has Ø0.50 in holes on a 34.50 in x 22.50 in pattern, and a hardware kit with panel mounting nuts and sealing washers for the wall mounting holes is included. Collar studs accept the optional EP3624 inner panel (34.20 in (869 mm) x 22.20 in (564 mm)), which is ordered separately. A bonding stud is provided on the door and a grounding stud in the body. Shipping weight is 95 lbs (43.09 kg).
The EN4SD362416GY is listed to UL 508A Type 3R, 4 and 12 (UL file E65324) and CSA Type 3R, 4 and 12 (certificate LR21001), and complies with IEC 60529 IP66 and NEMA Type 3R, 4 and 12. A mounting foot kit is required to maintain UL/CSA external mounting requirements. It is RoHS and REACH compliant.
Ideal For
- Wallmount housing for electrical and electronic equipment in harsh, industrial environments
- Equipment builds using the optional inner panel or Eclipse DIN rail mounting kit
- Installations requiring NEMA Type 3R, 4 or 12 or IP66 protection
- High-tech equipment installations where hidden hinges and clean styling matter
Mounting
| Mounting Type | Wallmount |
| Mounting Foot Kit | Required to maintain UL/CSA external mounting requirements (accessory) |
| Inner Panel Mounting | Collar studs provided for mounting inner panel |
| Wall Mounting Hardware | Hardware kit with panel mounting nuts and sealing washers for wall mounting holes (included) |
| Optional Inner Panel Part No. | EP3624 |
| Mounting Hole Diameter (Drawing) | 0.50 in (typ.) |
| Optional Inner Panel Size (H X W) | 34.20 in (869 mm) x 22.20 in (564 mm) |
| Back Mounting Hole Pattern (H X W, Drawing) | 34.50 in x 22.50 in |
Overview
| Style | Hinge Door with Quarter Turn/Handle |
| Series | Eclipse Series (EN4SD) |
| Product Type | Type 4 Mild Steel Wallmount Enclosure |
| Number Of Doors | 1 (single door wallmount) |
| Long Description | N4,12 Eclipse encl. - 36 x 24 x 16 - Steel/Gray |
| Short Description | ECLIPSE N4 1 DR. WALLMOUNT |
Dimensions
| Depth | 16.00 in (406 mm) |
| Width | 24.00 in (610 mm) |
| Height | 36.00 in (914 mm) |
| Size (H X W X D) | 36 in x 24 in x 16 in (914 mm x 610 mm x 406 mm) |
| Door Size (H X W, Drawing) | 35.97 in x 23.97 in |
| Door Opening (H X W, Drawing) | 34.49 in x 22.49 in |
| Overall Depth Incl. Door (Drawing) | 16.84 in |
| Clear Space Available On Door (H X W, Drawing) | 34.00 in x 22.00 in |
Electrical
| Grounding | Bonding stud on door; grounding stud installed in enclosure body |
Identifiers
| UPC | 623980759357 |
| UNSPSC | 39121324 |
| Part Number | EN4SD362416GY |
| Drawing Date | Jan. 29, 2025 |
Door & Latching
| Hinges | 304 stainless steel, hidden |
| Hinge Pins | Stainless steel |
| Latch Type | A - slotted quarter turns |
| Door Removal | Doors may be easily removed for modifications and are interchangeable |
| Latch Material | Quarter turn latch zinc diecast with black epoxy finish |
| Door Stiffeners | Provided where required for strength and rigidity; also permit additional mounting options |
| Door Swing Reversal | Requires adapter kit EHLLSAK |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 95 lbs (43.09 kg) |
Construction & Finish
| Gauge | 14 (24x24" and larger) |
| Seams | Smooth, continuously welded seams ground smooth |
| Colour | ANSI 61 smooth gray (GY) |
| Finish | Phosphatized, recoatable powder finish inside and out |
| Gasket | Seamless poured-in-place gasket |
| Material | Formed 14 gauge mild steel |
| Liquid Exclusion | Formed lip on enclosure to exclude flowing liquids and contaminants |
| Alternate Colour Part No. | EN4SD362416LG (RAL 7035 Light Gray) |
Environmental & Protection
| NEMA Type | 3R, 4 and 12 |
| Ingress Protection | IP66 (IEC 60529) |
Compliance & Certifications
| UL | UL 508A Type 3R, 4 and 12 |
| CSA | CSA Type 3R, 4 and 12 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| EU Declaration Of Conformity | Low Voltage Directive 2014/35/EU; EN 60204-1: 2006 / IEC 60204-1: 2005-10; EN 60529: 1992 + A2: 2013 / IEC 60529: 2001-02 + A2: 2013-08 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the EN4SD362416GY?▾
The enclosure measures 36 in x 24 in x 16 in (914 mm x 610 mm x 406 mm) (H x W x D). The drawing shows a 35.97 x 23.97 in door and a 34.49 x 22.49 in door opening.
Does it come with an inner panel?▾
No. The inner panel is optional: EP3624, measuring 34.20 in (869 mm) x 22.20 in (564 mm), mounts on the collar studs provided.
What ratings does this enclosure carry?▾
UL 508A Type 3R, 4 and 12 (UL file E65324), CSA Type 3R, 4 and 12 (cert. LR21001), and it complies with IEC 60529 IP66 and NEMA Type 3R, 4 and 12. A mounting foot kit is required to maintain UL/CSA external mounting requirements.
What colour is it, and is there another colour?▾
EN4SD362416GY is finished in ANSI 61 smooth gray. The RAL 7035 light gray version of the same size is EN4SD362416LG.
How does the door latch?▾
It uses latch Type A, slotted quarter turns. The quarter turn latch is zinc diecast with a black epoxy finish, and the door swing can be reversed with adapter kit EHLLSAK.
Related Products
Save 44%EN4SD362412LG — N4,12 Eclipse encl. - 36 x 24 x 12 - Steel/Lt. Gray
Hammond Manufacturing · EN4SD362412LG
Save 44%EN4SD362416LG — Eclipse N4 1 Dr. Wallmount
Hammond Manufacturing · EN4SD362416LG
Save 44%EN4SD362412GY — N4,12 Eclipse encl. - 36 x 24 x 12 - Steel/Gray
Hammond Manufacturing · EN4SD362412GY

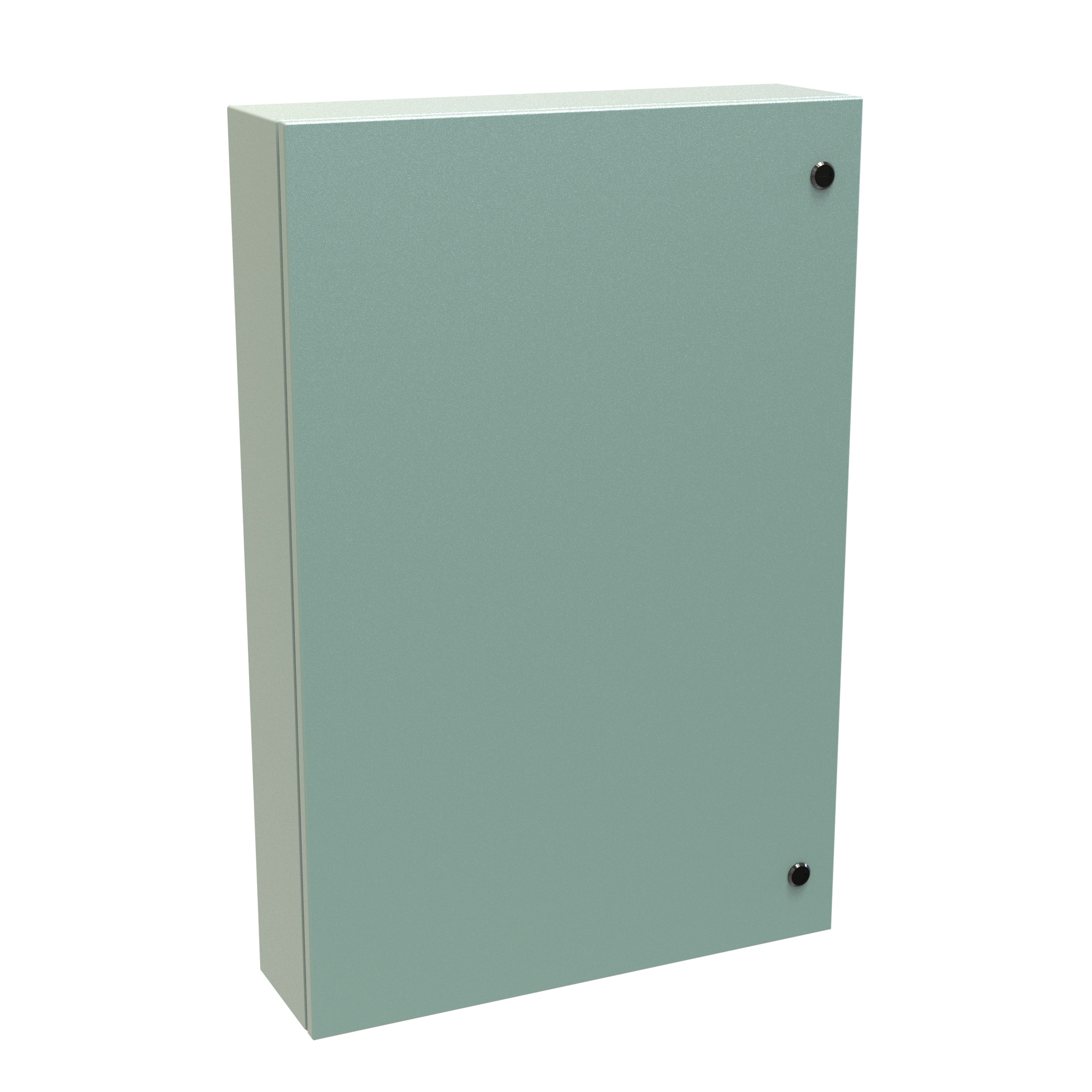

Save 44%EN4SD36246GY — N4,12 Eclipse encl. - 36 x 24 x 6 - Steel/Gray
