Hammond DNCE19BK1 2U 19-Inch Cable Entry Panel, Black Steel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Large 15 in x 2 in cable entry opening routes bundled cables without restriction
- 2U of rack space, 3.50 in (89 mm) usable mounting height, 19.00 in (483 mm) wide panel
- 16-gauge mild steel construction for durable, high-volume cable entry
- Protected edge around the opening reduces cable abrasion for long-term cable protection
- Fits standard 19 in EIA-compliant rack rails for universal compatibility
- Black powder coat finish; GREENGUARD, TSCA and RoHS compliant
- TAA-compliant, made in North America in an ISO 9001 certified facility
- Supplied with one gasket; mounting hardware not included

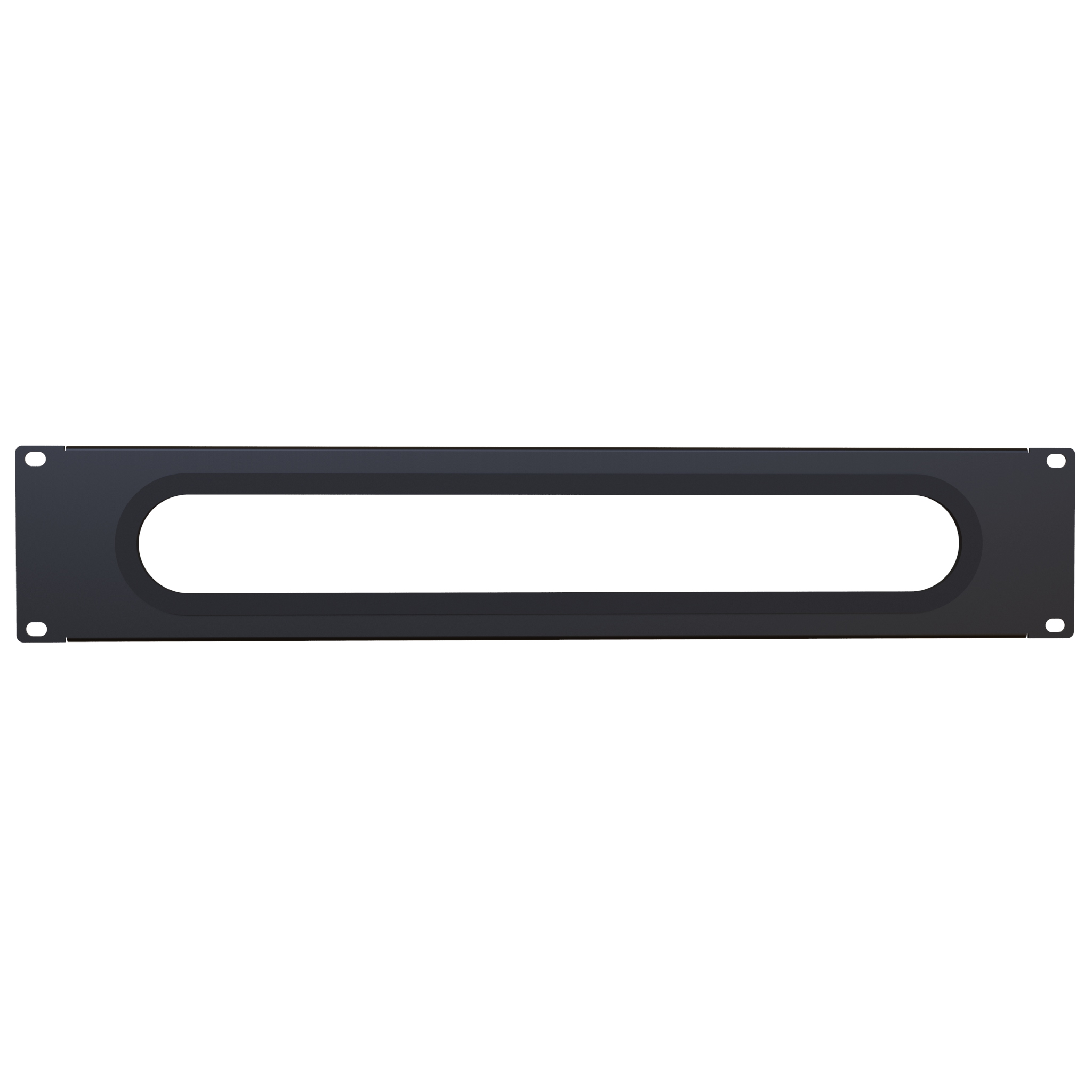

The DNCE19BK1 is a 2U cable entry panel for standard 19 in EIA-compliant rack rails, designed to give IT and telecom installers a clean, high-capacity pass-through point for cable bundles entering a rack or cabinet. Its large 15 in x 2 in opening accepts fiber trunks, bundled copper and backbone cabling without the restriction of brush strips or grommet-style entries, making it a practical choice for data centers, server rooms and network closets.
Construction is 16-gauge mild steel finished in black powder coat, so the panel blends with black rack rails and door frames while resisting handling in busy installations. The powder coat finish is GREENGUARD, TSCA and RoHS compliant, and the panel is TAA-compliant and manufactured in North America in an ISO 9001 certified facility. A protected edge around the opening reduces cable abrasion, helping protect jackets and fiber over the long term.
DNCE19BK1 measures 19.00 in (483 mm) wide and occupies 2U of usable mounting height, 3.50 in (89 mm), on the rack rails. Shipping weight is 1.15 lbs (0.52 kg). The part ships with one gasket; mounting hardware is not included, so specify rack screws or cage nuts to suit your rails.
- Large open entry for high-volume cable routing
- 2U footprint that balances capacity with rack space
- Steel panel with a finish matched to black rack hardware

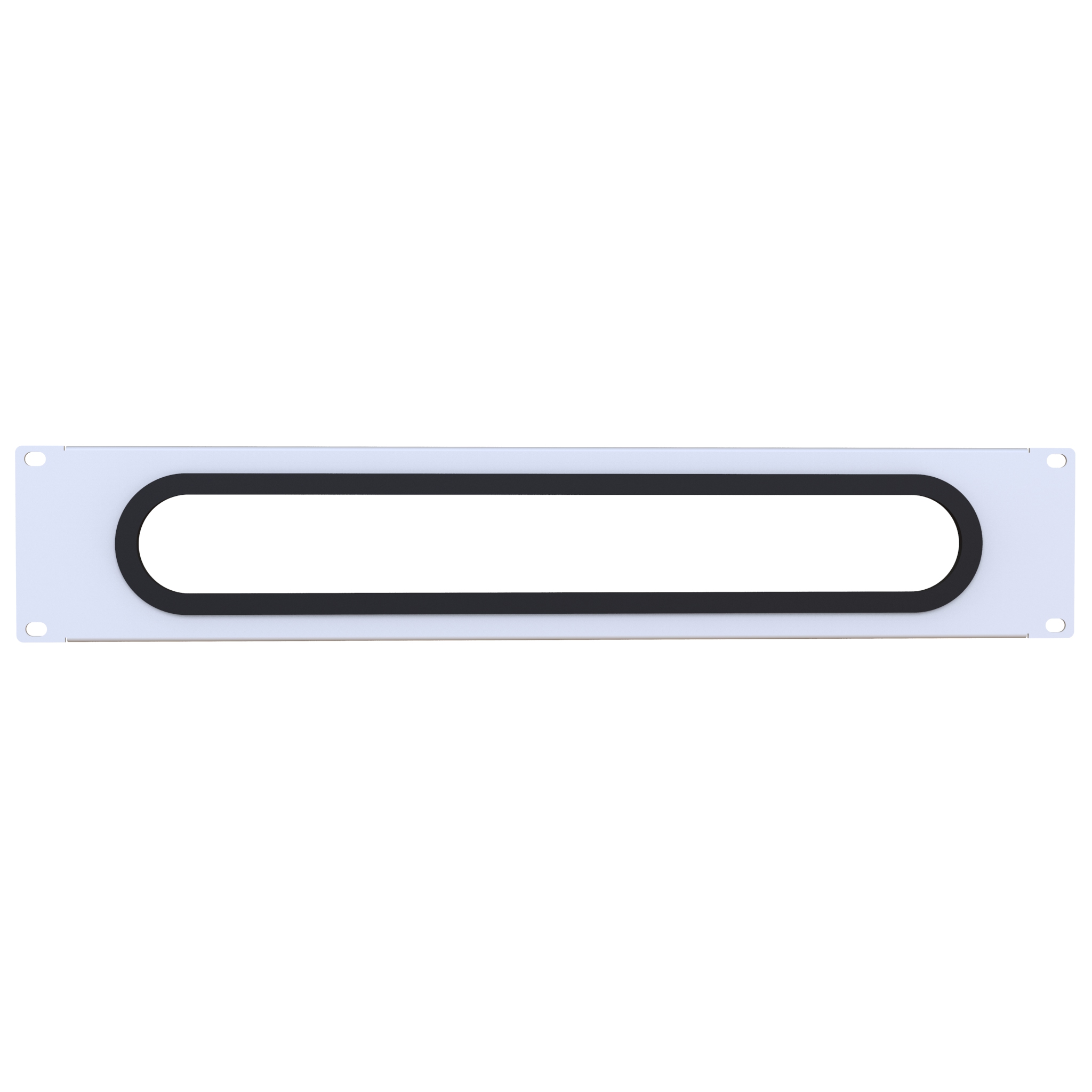

If airflow separation and dust control are required at the pass-through, the BRP Series brush panels (such as BRP2UBK, listed as a similar-size alternative) address that need instead. A light gray version of this panel, DNCE19LG1, is available for lighter rack environments.
Ideal For
- Routing large cable bundles into racks in data centers and server rooms
- Cable entry points for telecom and network installations
- Fiber trunk and backbone cabling entry in high-density racks
- Reducing cable congestion at rack entry locations
- Creating clean, organized cable routing paths
Overview
| Colour | Black |
| Series | DNCE Series Cable Entry Opening Cable Pass Through Panel |
| Description | 2U 19IN HCM Cable Entry Panel |
| Part Number | DNCE19BK1 |
| Product Type | Rack panel / cable pass-through panel |
| Light Gray Equivalent | DNCE19LG1 |
| Similar Size Part No. | BRP2UBK |
Dimensions
| Panel Width | 19.00 in (483 mm) |
| Cable Entry Opening | 15 in x 2 in |
Identifiers
| UPC | 623980778877 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980778877 |
| UPC W/o Check Digit | 62398077887 |
Rack Mounting
| Rack Units | 2U |
| Mounting Hardware | Not included |
| Usable Mounting Height | 3.50 in (89 mm) |
| Rack Rail Compatibility | Standard 19 in EIA-compliant rack rails |
Packaging & Shipping
| Tariff Code | 7326.90.8688 |
| Shipping Weight | 1.15 lbs (0.52 kg) |
| Country Of Origin | CA |
Construction & Finish
| Gauge | 16 Ga. steel |
| Finish | Powder coat |
| Material | Mild Steel |
| Opening Edge | Protected edge to reduce cable abrasion |
| Included Items | 1 x 2U 19IN HCM Cable Entry Panel, 1 x gasket |
Environmental & Protection
| Powder Coat Compliance | GREENGUARD, TSCA and RoHS compliant |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| Manufacturing | North America, ISO 9001 certified facility |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much rack space does DNCE19BK1 take up?▾
It occupies 2U, with a usable mounting height of 3.50 in (89 mm), and mounts to standard 19 in EIA-compliant rack rails.
How large is the cable opening?▾
The panel has a single large 15 in x 2 in cable entry opening, which allows bundled cables such as fiber trunks and large copper bundles to pass through without restriction.
Are mounting screws included?▾
No. The drawing notes state that mounting hardware is not included. The part ships with the panel and one gasket.
What is the panel made of and how is it finished?▾
It is 16-gauge mild steel with a powder coat finish in black. The powder coat is GREENGUARD, TSCA and RoHS compliant.
Is there a version in another colour?▾
Yes. DNCE19BK1 is the black version; DNCE19LG1 is the light gray version of the same 2U panel.
What if I need dust control and airflow separation at the pass-through?▾
An open entry panel does not block airflow. For airflow and dust control during cable pass-through, the BRP Series brush panels are the alternative noted for this series.
