Hammond CSP7823BK1 45U Solid Side Panel Pair for 23.6-Inch Deep Cabinet
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Pair of solid side panels for 45U C2 Series cabinet frames (78.75 in / 2000 mm high, 23.63 in / 600 mm deep)
- Designed to close in C2 open frames such as C2F197823
- Textured black powder coat finish; light gray equivalent available as CSP7823LG1
- Four slotted quarter-turn latches and a black plastic handle included per panel for tool-free removal
- C2 Series doors and panels are 16-gauge steel
- Grounding studs on C2 frame, doors and panels support bonding and safe installation
- TAA compliant and manufactured in Canada; RoHS, REACH and USMCA compliant
- Powder coat finish is GREENGUARD, TSCA and RoHS compliant

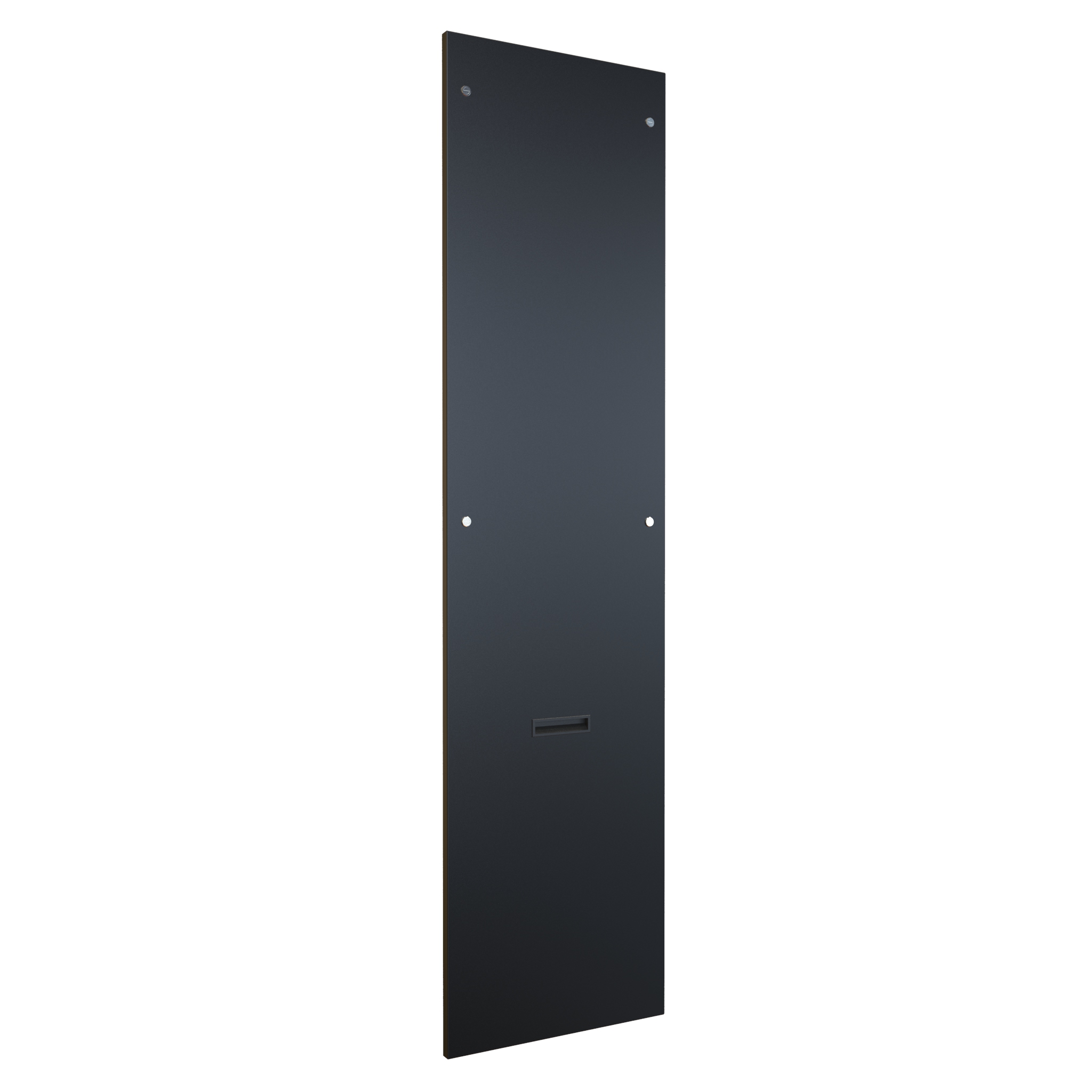

CSP7823BK1 is a pair of solid side panels sized for 45U C2 Series modular rack cabinet frames measuring 78.75 in (2000 mm) high by 23.63 in (600 mm) deep. It is the enclosure component AV integrators, telecom technicians, lab managers and OEM engineers add to an open C2 frame such as C2F197823 to close in the sides of the cabinet for a finished, contained look and restricted side access.
Each panel is finished in textured black powder coat, matching the black C2 frames, doors and top panels. Across the C2 Series, doors and panels are 16-gauge steel and the powder coat finish is GREENGUARD, TSCA and RoHS compliant, supporting indoor air quality and environmental requirements. C2 panels also carry grounding studs so the side panels can be bonded to the cabinet frame during installation.
The panels are quick to fit and quick to remove for service: each panel ships with a black plastic handle and four slotted quarter-turn latches, so no tools are needed to take a side off once installed. A light gray version of the same panel pair is offered as CSP7823LG1 if the cabinet is being built in RAL 7035.
CSP7823BK1 is sold as a pair and has a shipping weight of 85 lbs (38.56 kg). The panels are made in Canada, are USMCA and TAA compliant, and are also REACH and RoHS compliant, which helps on government and institutional procurement. Panel height on the drawing is 78.69 in (1999 mm).
Ideal For
- Enclosing 45U C2 open frames in AV and media installations
- Telecom and legacy network equipment cabinets
- Test and measurement rack builds
- Industrial and automation control cabinets
- Custom cabinet configurations requiring side access control
Overview
| Series | C2 Series Modular Rack Cabinet System (1500 lb) |
| Sold As | Pair (2 panels) |
| Panel Type | Solid side panel |
| Description | 45U 23D Solid Pair of Side Panels |
| Part Number | CSP7823BK1 |
| Short Description | 45U 23.6D SIDE PANELS FOR C2 |
Dimensions
| Panel Height | 78.69 in (1999 mm) |
Identifiers
| UPC | 623980326764 |
| UNSPSC | 43223306 |
| GTIN-14 | 00623980326764 |
| UPC W/o Check Digit | 62398032676 |
Rack Mounting
| Use With Cabinet Frame - Depth | 23.63 in (600 mm) |
| Use With Cabinet Frame - Height | 78.75 in (2000 mm) |
| Use With Cabinet Frame - Part No. | C2F197823 |
| Use With Cabinet Frame - Rack Units | 45U |
Packaging & Shipping
| Tariff Code | 8538.10.0000 |
| Shipping Weight | 85 lbs (38.56 kg) |
Construction & Finish
| Colour | Black (RAL 9005 black frame range); light gray version: CSP7823LG1 |
| Finish | Painted black textured powder coat |
| Grounding | Grounding studs on C2 frame, doors and panels |
| Material / Gauge | 16-gauge steel doors and panels (C2 Series) |
| Included Hardware | Black plastic handle (1 per panel); slotted 1/4 turn latches (4 per panel) |
Environmental & Protection
| Finish Compliance | GREENGUARD, TSCA and RoHS compliant textured powder coat |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many panels come with CSP7823BK1?▾
CSP7823BK1 is sold as a pair, so you receive two solid side panels. Each panel includes a black plastic handle and four slotted quarter-turn latches.
Which cabinet frame do these panels fit?▾
They are specified for 45U C2 Series cabinet frames that are 78.75 in (2000 mm) high and 23.63 in (600 mm) deep, listed as frame part number C2F197823.
Are tools needed to remove the side panels?▾
Each panel uses four slotted quarter-turn latches and a handle, both included, which allow the panel to be released without disassembling the cabinet.
Is there a light gray version of this panel pair?▾
Yes. The RAL 7035 light gray equivalent in the C2 ordering table is CSP7823LG1; CSP7823BK1 is the black textured version.
Do these panels meet government procurement requirements?▾
The C2 Series is TAA compliant and manufactured in North America. CSP7823BK1 has a country of origin of Canada and is USMCA, RoHS and REACH compliant, with ECCN EAR99.
What is the shipping weight of CSP7823BK1?▾
The listed shipping weight is 85 lbs (38.56 kg) for the pair.
Related Products

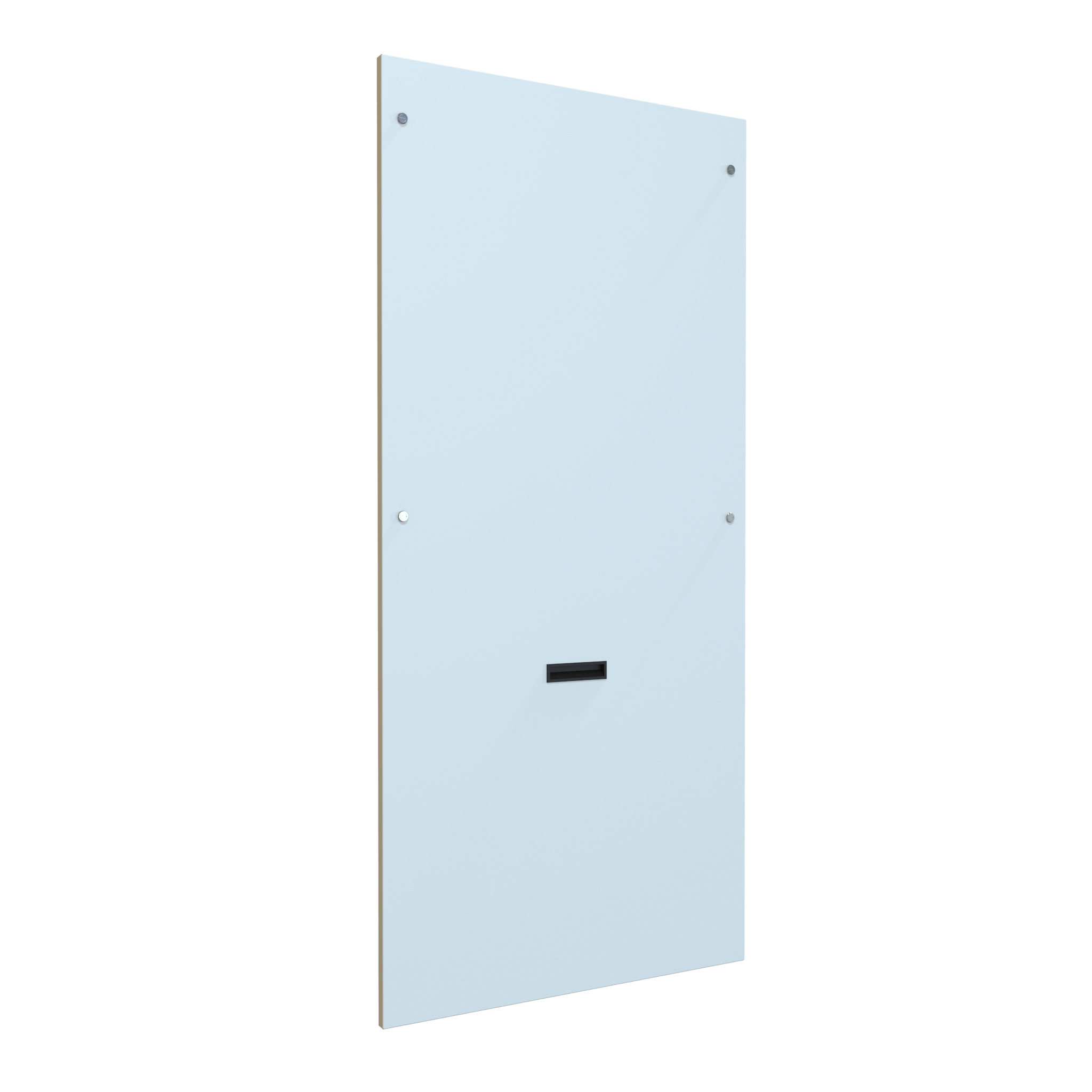

Save 35%CSP7036LG1 — 40U 36D Solid Pair of Side Panels
Hammond Manufacturing · CSP7036LG1

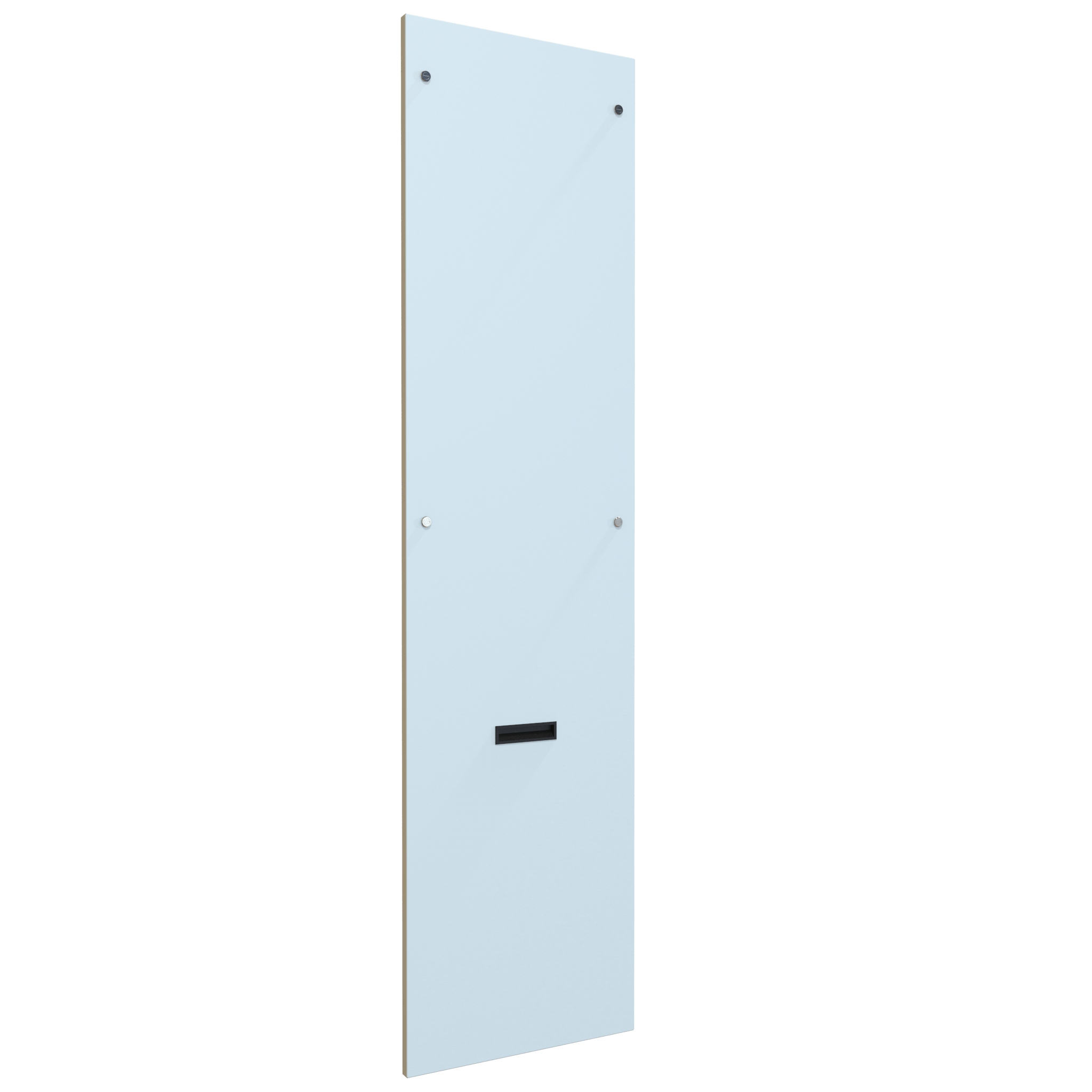

Save 35%CSP7823LG1 — 45U 23D Solid Pair of Side Panels
Hammond Manufacturing · CSP7823LG1
Save 35%CSP7036BK1 — 40U 36D Solid Pair of Side Panels
Hammond Manufacturing · CSP7036BK1

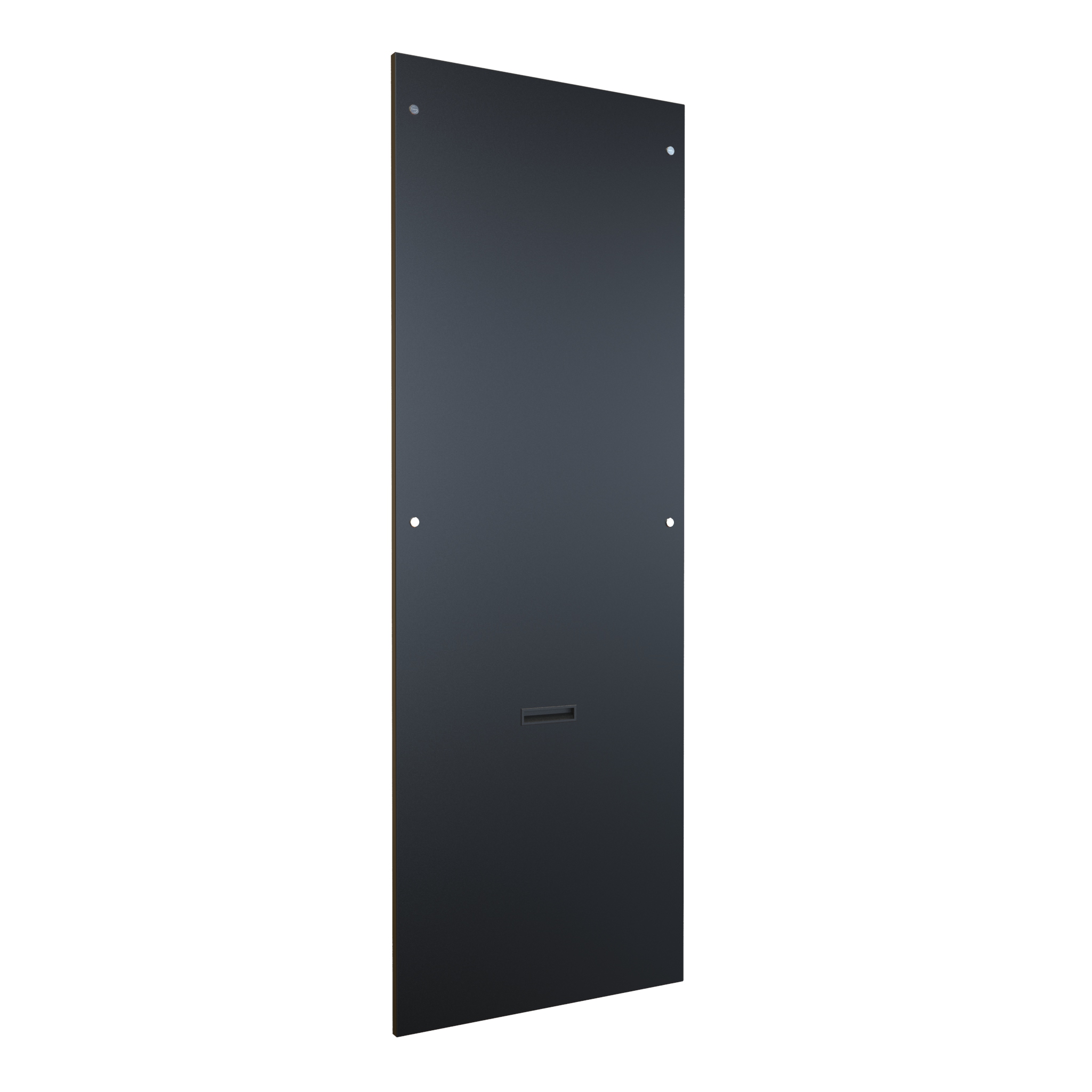

Save 35%CSP7831BK1 — 45U 31.5D Solid Pair of Side Panels
