Hammond CSP6331BK1 36U 31.5-Inch Deep Solid Side Panel Pair
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Pair of solid side panels — both cabinet sides supplied in one part number
- Sized for 36U C2 frames 63.00 in (1600 mm) high and 31.50 in (800 mm) deep (frame C2F196331)
- Painted black textured powder coat finish; GREENGUARD, TSCA and RoHS compliant series finish
- Four slotted quarter-turn latches and a black plastic handle included per panel for removable access
- #10-32 x 1/2 in ground stud for bonding the panel to the cabinet frame
- 16-gauge steel doors and panels within the C2 Series modular cabinet system
- TAA compliant and USMCA compliant, manufactured in Canada
- Light gray alternative available as CSP6331LG1

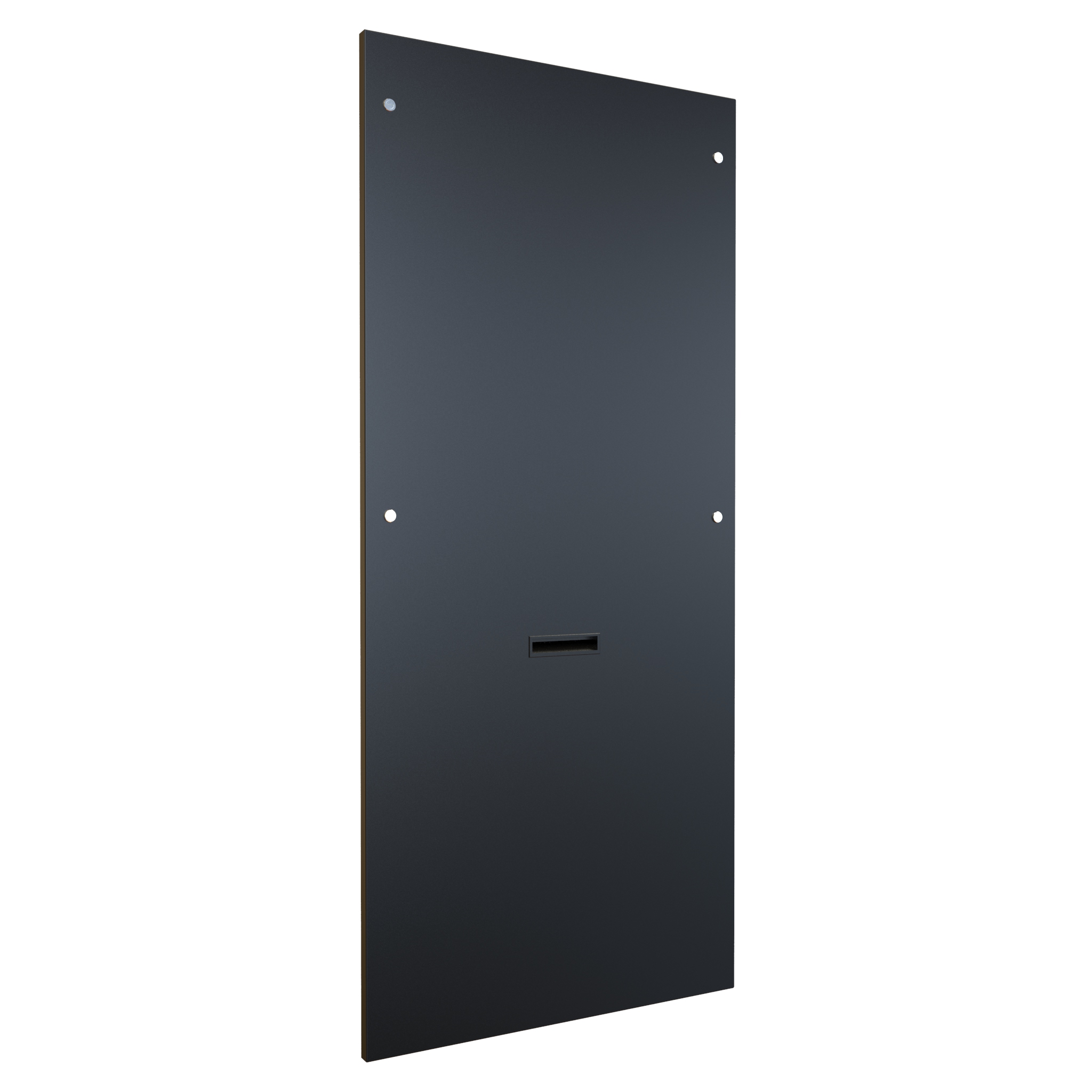

CSP6331BK1 is a pair of solid steel side panels for the Hammond C2 Series modular rack cabinet system, sized for a 36U frame measuring 63.00 in (1600 mm) high by 31.50 in (800 mm) deep (frame part number C2F196331). Because the C2 platform is built up from separate frames, rails, doors and panels, side panels are ordered separately — this part supplies both sides of the cabinet in one order, making it a straightforward add-on for AV, telecom, lab, test and general equipment enclosures.
The panels are finished in painted black textured powder coat. Within the C2 Series, doors and panels are 16-gauge steel, and the series powder coat finish is GREENGUARD, TSCA and RoHS compliant, supporting indoor air quality and environmental requirements. Each panel carries a #10-32 x 1/2 in ground stud so it can be bonded to the cabinet frame as part of a complete grounding scheme.
Mounting is tool-light: four slotted quarter-turn latches and a black plastic handle are included per panel, so panels can be removed and refitted for equipment access, cabling work or service without dismantling the cabinet. The panel measures 62.94 in (1599 mm) high on the drawing to suit the 36U C2 frame opening.
CSP6331BK1 ships at 78 lbs (35.38 kg) for the pair, is made in Canada, is USMCA compliant, TAA compliant, RoHS compliant and REACH compliant, with ECCN EAR99 and tariff code 8538.10.0000. Choose CSP6331BK1 for black cabinets; the equivalent RAL 7035 light gray pair is CSP6331LG1.
Ideal For
- AV and media installations
- Telecom and legacy network environments
- Test and measurement applications
- Industrial and automation systems
- Custom cabinet configurations requiring enclosed sides
Overview
| Series | C2 Series Modular Rack Cabinet System (1500 lb) |
| Panel Type | Solid side panel |
| Description | 36U 31.5D Solid Pair of Side Panels |
| Part Number | CSP6331BK1 |
| Product Type | Rack cabinet side panels, solid, sold in pairs |
| Quantity Per Order | 1 pair (2 panels) |
Dimensions
| Panel Height (Drawing) | 62.94 in (1599 mm) |
Electrical
| Ground Stud | #10-32 x 1/2 in ground stud |
Identifiers
| UPC | 623980326702 |
| UNSPSC | 43223306 |
| GTIN-14 | 00623980326702 |
| UPC W/o Check Digit | 62398032670 |
Rack Mounting
| For Cabinet Rack Units | 36U |
| For Cabinet Frame Depth | 31.50 in (800 mm) |
| Compatible Cabinet Frame | C2F196331 |
| For Cabinet Frame Height | 63.00 in (1600 mm) |
Packaging & Shipping
| Tariff Code | 8538.10.0000 |
| Shipping Weight | 78 lbs (35.38 kg) |
| Country Of Origin | CA |
Construction & Finish
| Finish | Painted black textured |
| Included Hardware | Slotted 1/4 turn latches (4) and black plastic handle |
| Color Option (Alternate Part) | RAL 7035 Light Gray – CSP6331LG1 |
| Door And Panel Gauge (Series) | 16-gauge steel |
Environmental & Protection
| Powder Coat Compliance (Series) | GREENGUARD, TSCA and RoHS compliant textured powder coat |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does CSP6331BK1 include one panel or two?▾
It is sold as a pair, so one order of CSP6331BK1 supplies side panels for both sides of the cabinet. The drawing notes confirm the C2 Series side panels are sold in pairs.
Which C2 cabinet frame does this fit?▾
It is listed for use with a 36U C2 frame that is 63.00 in (1600 mm) high and 31.50 in (800 mm) deep — frame part number C2F196331.
How do the panels attach and can they be removed for service?▾
Each panel includes four slotted quarter-turn latches and a black plastic handle, so panels can be released and refitted for equipment and cable access.
Is there a grounding provision?▾
Yes. The panel drawing shows a #10-32 x 1/2 in ground stud, and the C2 Series provides grounding studs on the frame, doors and panels to support bonding.
Is a light gray version available?▾
Yes. CSP6331BK1 is painted black textured; CSP6331LG1 is the same panel pair in painted light gray textured (RAL 7035).
Is this part suitable for government or TAA-restricted projects?▾
The part is listed as TAA compliant and USMCA compliant, with country of origin CA, and the C2 Series is stated to be manufactured in North America to support government procurement requirements.
Related Products

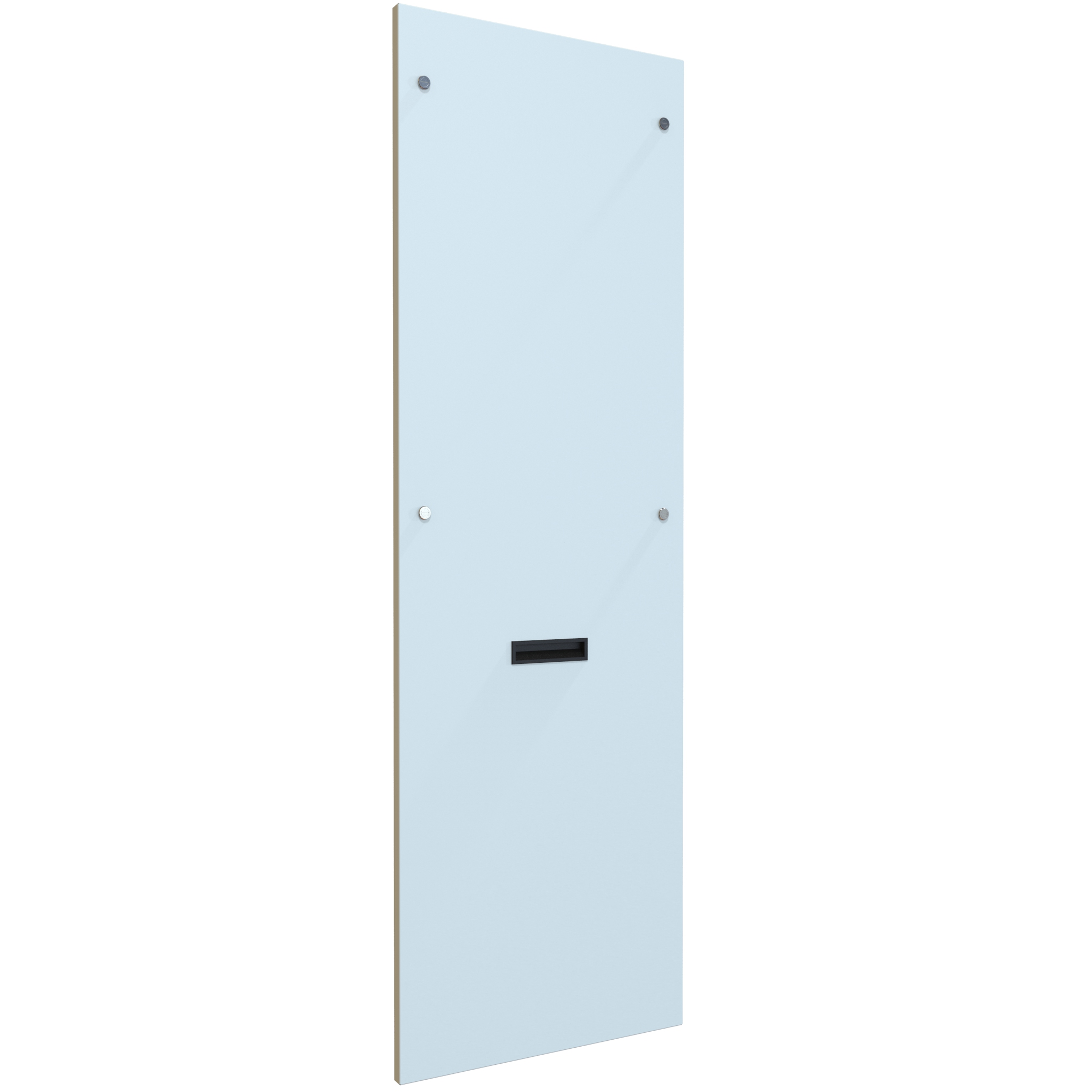

Save 35%CSP6323LG1 — 36U 23D Solid Pair of Side Panels
Hammond Manufacturing · CSP6323LG1

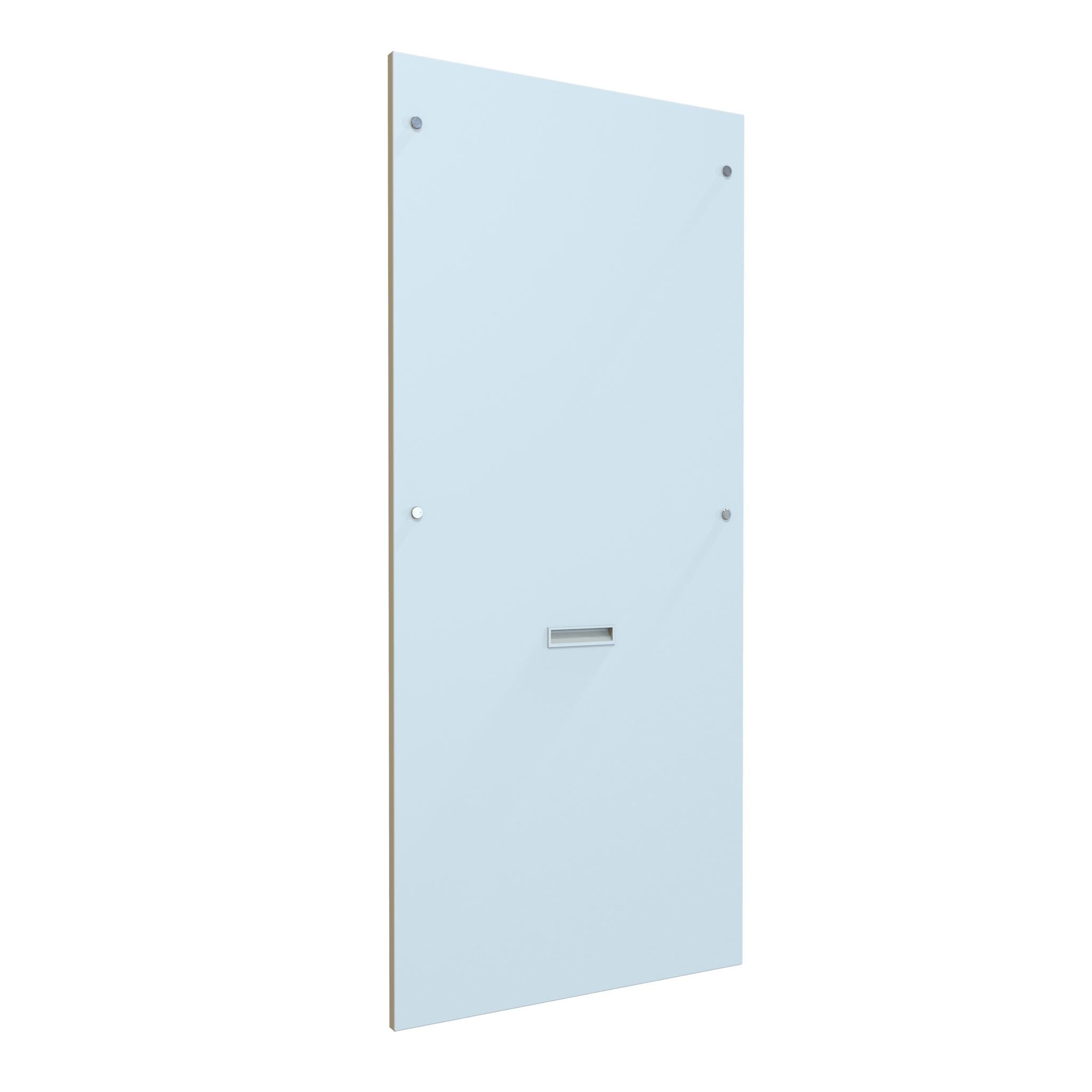

Save 35%CSP6331LG1 — 36U 31.5D Solid Pair of Side Panels
Hammond Manufacturing · CSP6331LG1

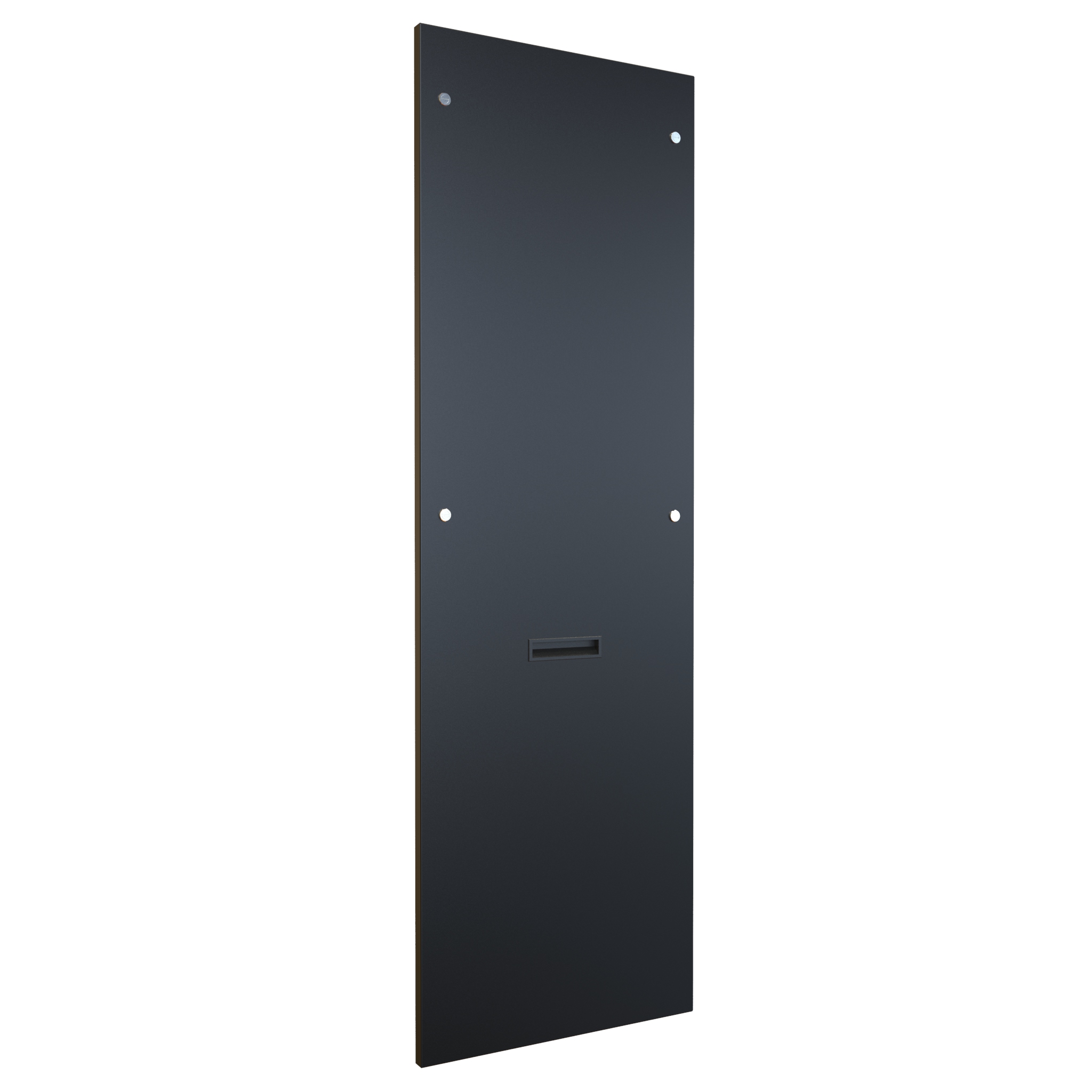

Save 35%CSP6323BK1 — 36U 23D Solid Pair of Side Panels
Hammond Manufacturing · CSP6323BK1

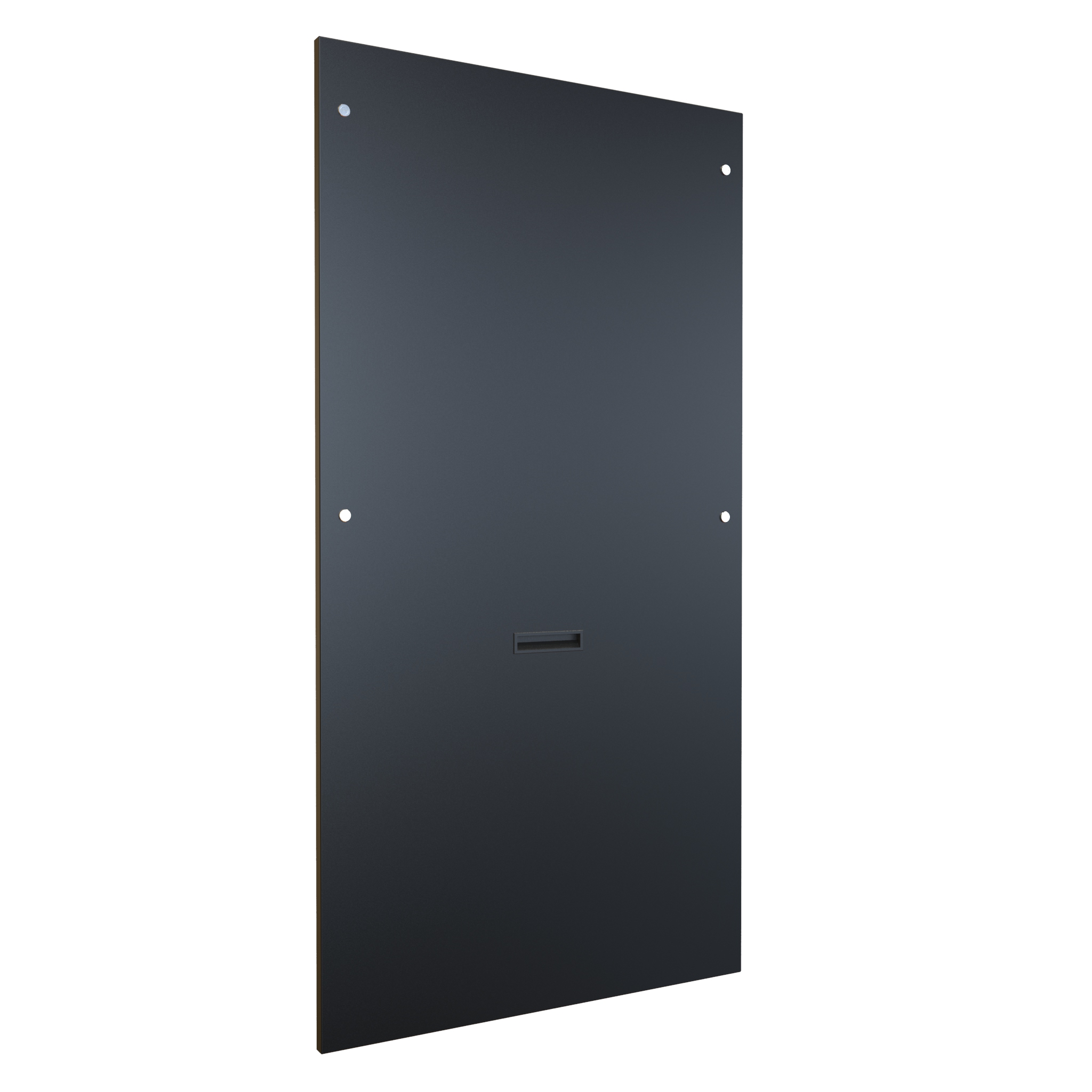

Save 35%CSP6336BK1 — 36U 36D Solid Pair of Side Panels
Hammond Manufacturing · CSP6336BK1

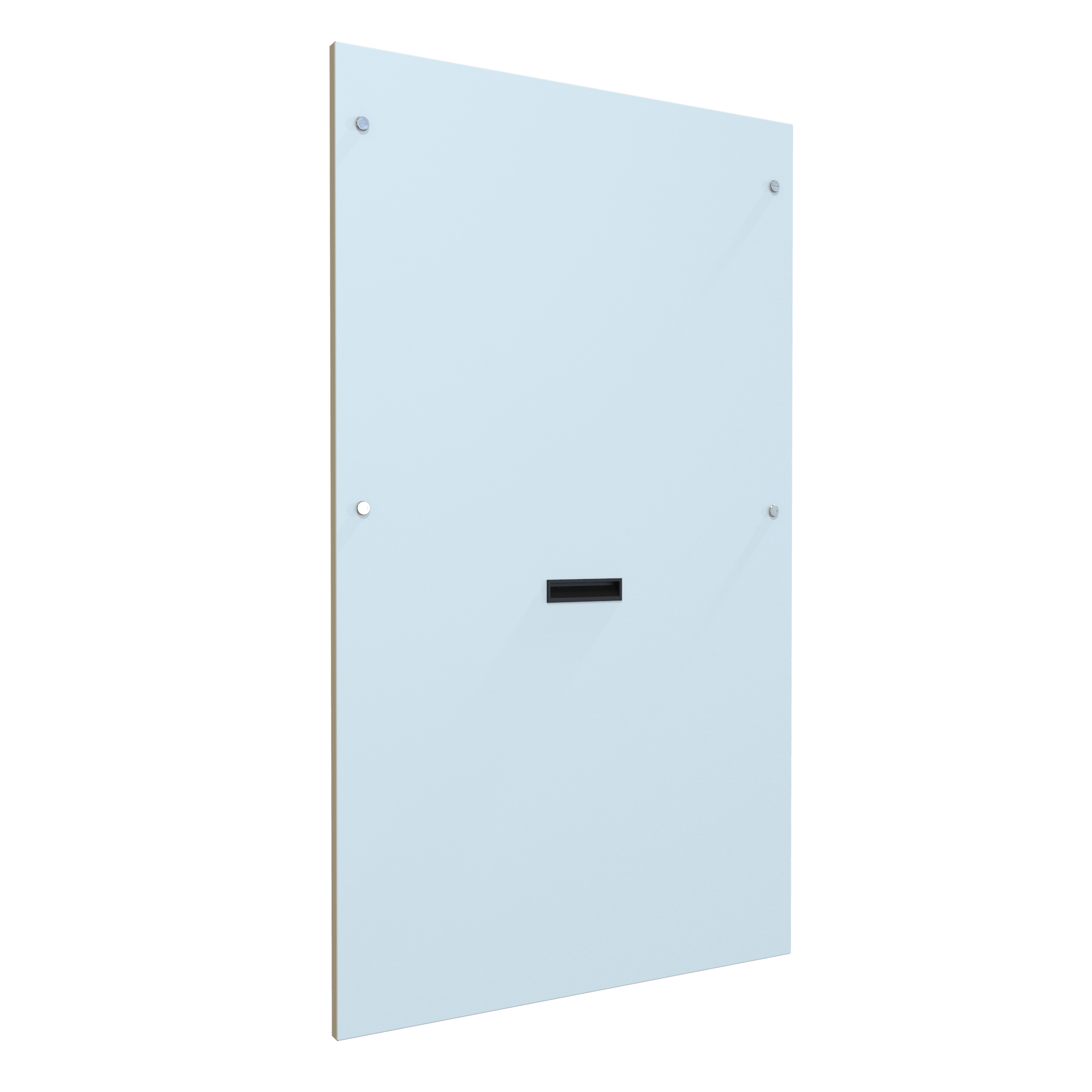

Save 35%CSP5636LG1 — 32U 36D Solid Pair of Side Panels
