Hammond CLWA24 24 in Ladder Rack Wall Angle Support Bracket

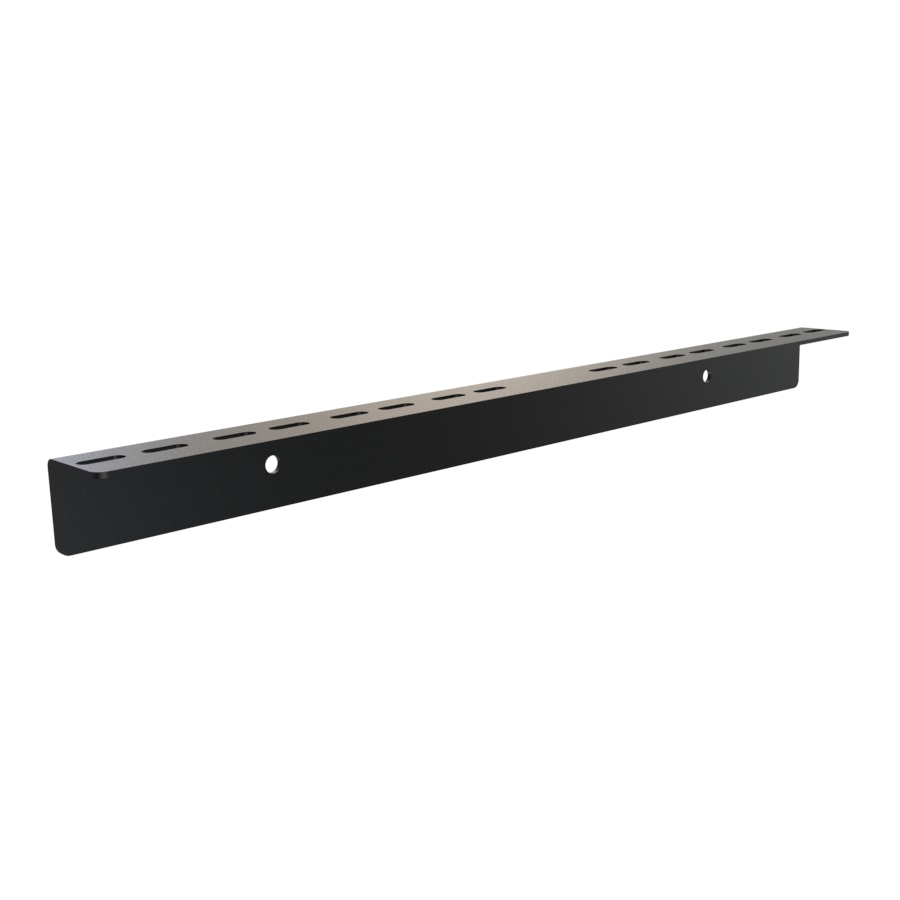

The CLWA24 is a wall angle support bracket that anchors cable ladder rack (cable runway) to a wall surface for stable overhead cable routing. It is intended for structured cabling contractors, telecom technicians, data center teams and network installers who need a secure termination or support point where a ladder run meets a wall.

Construction is 16-gauge tube steel in mild steel, finished in black powder coat that is GREENGUARD, TSCA and RoHS compliant for environmental and durability requirements. The universal design fits many ladder rack brands, and the bracket supports both horizontal and vertical mounting configurations when used with compatible accessories.

CLWA24 measures 2 in x 26.25 in x 2 in (51 mm x 667 mm x 51 mm) overall and supports ladder widths from 6.00 in (152 mm) up to 24.00 in (610 mm), making it the wider member of the CLWA Series. Shipping weight is 3.6 lbs (1.63 kg). Mounting provisions on the bracket include 0.31 in x 1.00 in (7.95 mm x 24.5 mm) slots and 0.41 in (10 mm) holes.

Each CLWA24 ships with one wall angle and one J-Bolt Kit (pair), which is also available separately as replacement part CLJBK; the J-bolts attach the ladder rack section to the angle. Wall mounting hardware is not included, so fasteners can be selected to suit the wall construction.

• 1 x Wall Angle
• 1 x J-Bolt Kit (pair) - replacement part no. CLJBK

The part is TAA-compliant and manufactured in North America (country of origin CA), and is listed as USMCA, RoHS and REACH compliant with ECCN EAR99 - useful where government and public-sector procurement rules apply.
