Hammond CLWA 6-18 in Ladder Rack Wall Angle Support Bracket
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Supports ladder widths from 6.00 in (152 mm) to 18.00 in (457 mm), including 6 in, 12 in and 18 in ladder sections
- Overall size 20.25 in W x 2.00 in H x 2.00 in D (514 x 51 x 51 mm)
- 16-gauge tube steel construction in mild steel for durable structural wall support
- Black powder coat finish, GREENGUARD, TSCA and RoHS compliant
- Includes one wall angle plus a J-bolt kit (2 J-bolts, replacement part no. CLJBK) for attaching ladder sections
- Universal design fits many ladder rack brands; supports horizontal and vertical mounting with compatible accessories
- TAA-compliant and manufactured in North America; USMCA, RoHS and REACH compliant
- Wall mounting hardware sold separately so fasteners can suit the wall type

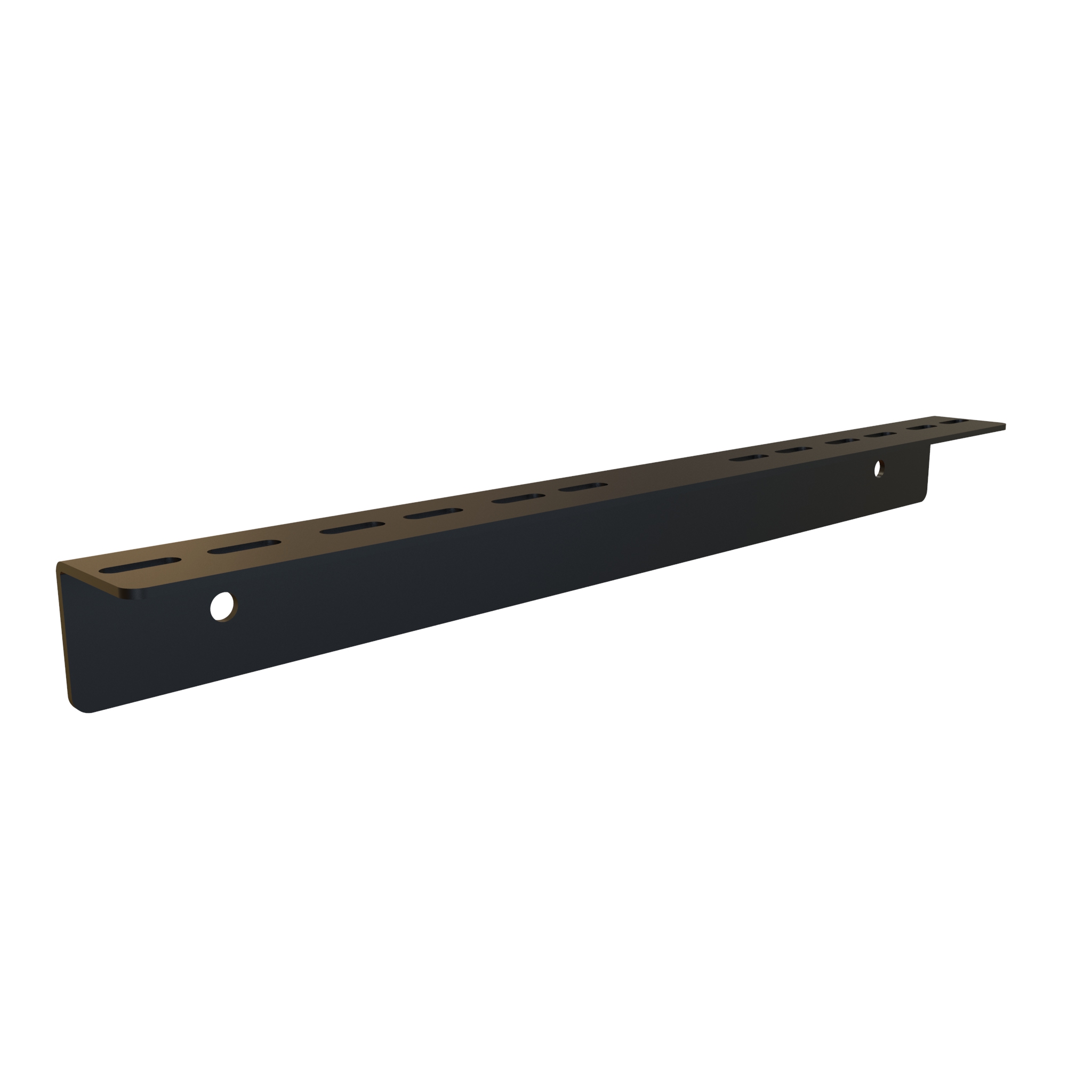

The CLWA is a ladder rack wall angle support bracket used to anchor cable ladder rack (cable runway) to a wall surface for stable overhead cable routing. It is intended for IT and telecom installers, structured cabling contractors and facilities teams terminating or supporting a ladder run at a wall, an entry point or a transition in the pathway.
Construction is 16-gauge tube steel in mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant, providing durable structural support for wall-mounted ladder rack. The universal design fits many ladder rack brands, and the bracket supports both horizontal and vertical mounting configurations when used with compatible accessories.
This part number measures 20.25 in (514 mm) wide by 2.00 in (51 mm) high by 2.00 in (51 mm) deep and supports ladder widths from 6.00 in (152 mm) to 18.00 in (457 mm) - covering common 6 in, 12 in and 18 in ladder sections. For ladder widths up to 24 in, the CLWA24 covers that range within the same series. Shipping weight is 2.8 lbs (1.27 kg).
Each CLWA ships with one wall angle and one J-bolt kit (pair of J-bolts, replacement part number CLJBK) for attaching the ladder rack section. Mounting slots and holes in the angle allow fastening to the wall structure; wall mounting hardware is sold separately so the fasteners can be matched to the wall type.
The CLWA is TAA-compliant and manufactured in North America (country of origin CA), is USMCA, RoHS and REACH compliant, and carries ECCN EAR99 - useful documentation for government and enterprise procurement.
Ideal For
- Anchoring ladder rack systems to wall surfaces in data centers and server rooms
- Supporting ladder rack runs along walls in telecom and network rooms
- Stabilizing ladder rack at rack entry points
- Structured cabling and overhead cable routing pathways
- Entry and transition points in cable runway systems
Overview
| Series | CLWA Series - Cable Ladder Rack Wall Angle Support Wall Mount Bracket |
| Part Number | CLWA |
| Product Type | Ladder rack wall angle support / wall mount bracket |
| Short Description | LADDER END WALL ANGLE |
Dimensions
| Mounting Slot | 0.31 x 1.00 in (7.95 x 24.5 mm) slot |
| Overall Depth | 2.00 in (51 mm) |
| Overall Width | 20.25 in (514 mm) |
| Overall Height | 2.00 in (51 mm) |
| Mounting Hole Diameter | 0.41 in (10 mm) |
| Compatible Ladder Widths | 6 in, 12 in and 18 in ladder widths |
| Ladder Width Support - Max | 18.00 in (457 mm) |
| Ladder Width Support - Min | 6.00 in (152 mm) |
Identifiers
| UPC | 623980004495 |
| UNSPSC | 39121301 |
| GTIN-14 | 00623980004495 |
| UPC W/o Check Digit | 62398000449 |
Installation
| Compatibility | Universal design fits many ladder rack brands |
| Wall Mounting Hardware | Not included / sold separately |
| Mounting Configurations | Horizontal and vertical mounting supported with compatible accessories |
What's Included
| Wall Angle | 1 |
| J-Bolt Kit (Pair) | 1 kit, 2 J-bolts included (replacement part no. CLJBK) |
Packaging & Shipping
| Tariff Code | 7326.90.8688 |
| Shipping Weight | 2.8 lbs (1.27 kg) |
| Country Of Origin | CA (manufactured in North America) |
Construction & Finish
| Gauge | 16-gauge tube steel |
| Material | Mild Steel |
| Finish / Colour | Painted black (black powder coat) |
| Finish Compliance | GREENGUARD, TSCA and RoHS compliant powder coat |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What ladder rack widths does the CLWA support?▾
The CLWA supports ladder widths from 6.00 in (152 mm) up to 18.00 in (457 mm), covering common 6 in, 12 in and 18 in ladder sections. For widths up to 24 in, the CLWA24 in the same series covers that range.
Is mounting hardware included with the CLWA?▾
The CLWA includes one wall angle and one J-bolt kit (2 J-bolts) for attaching the ladder rack section. Wall mounting hardware is not included and is sold separately so fasteners can be matched to the wall.
What are the overall dimensions of the CLWA?▾
20.25 in (514 mm) wide, 2.00 in (51 mm) high and 2.00 in (51 mm) deep. Shipping weight is 2.8 lbs (1.27 kg).
Will the CLWA work with other manufacturers' ladder rack?▾
Yes. The CLWA uses a universal design that fits many ladder rack brands, giving flexibility in mixed or existing installations.
Can the J-bolts be ordered separately?▾
Yes. The included J-bolt kit (pair) has replacement part number CLJBK, which is part of the same CLWA Series.
Is the CLWA suitable for government or TAA-required projects?▾
The CLWA is TAA-compliant and manufactured in North America, with country of origin CA, USMCA, RoHS and REACH compliance and ECCN EAR99.
What finish does the CLWA have?▾
It is 16-gauge tube steel in mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant.
