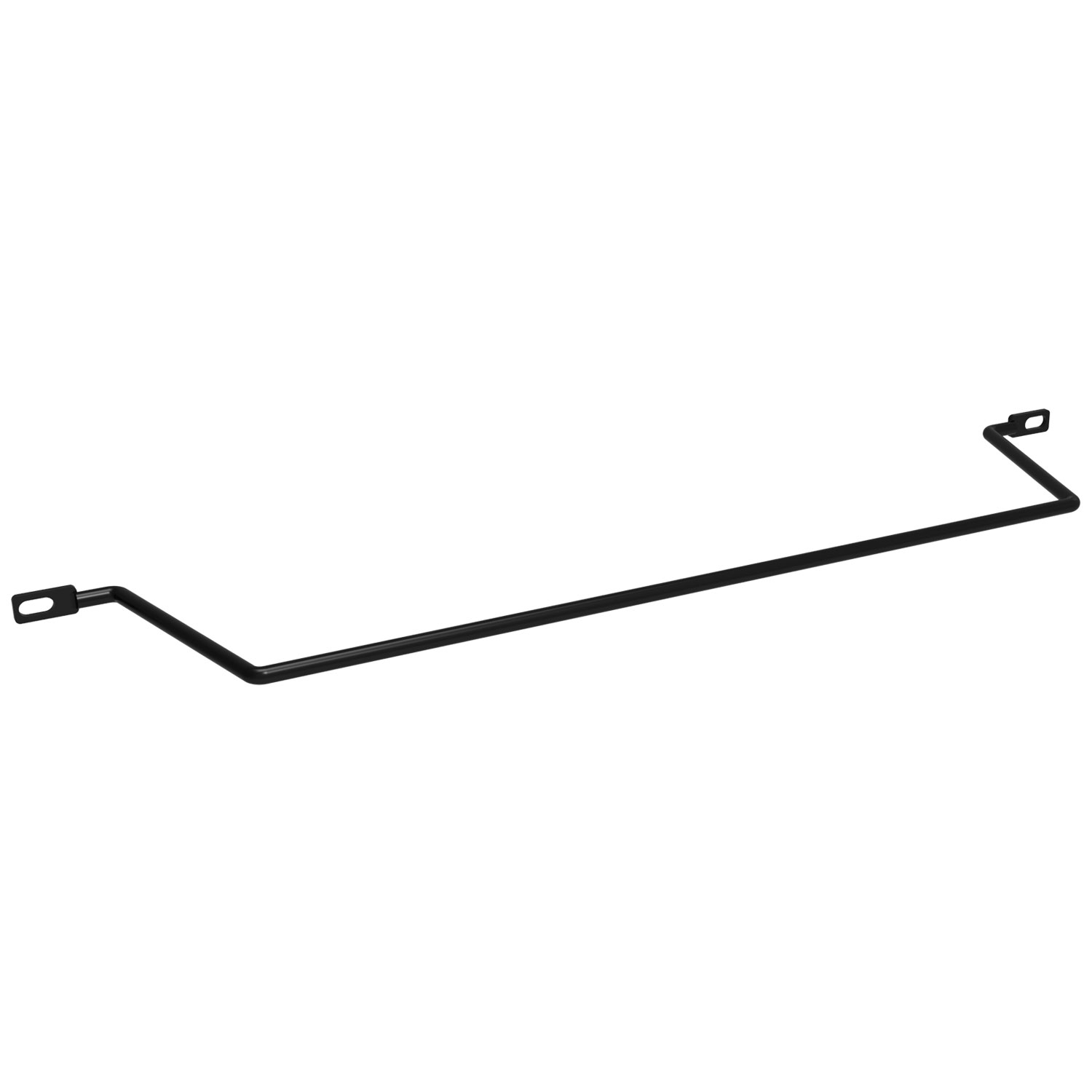

Hammond CLB194BK 4 in Offset 1U Cable Lacing Bar, 10-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 4.00 in (102 mm) depth created by a 75-degree offset for clearance behind rack-mounted equipment
- 0.25 in (6 mm) mild steel rod construction for durable cable support and strain relief
- Mounts to standard 19-inch EIA-compliant rack rails in a 1U form factor; 19.00 in (483 mm) wide, 0.44 in (11 mm) high
- Black smooth powder coat finish described as GREENGUARD, TSCA and RoHS compliant
- Anchor point for cable ties or hook and loop straps such as the TS Series
- TAA compliant and manufactured in North America; USMCA, RoHS and REACH compliant
- Low-profile design maximizes usable rack space while supporting cable weight; mounting hardware not included
The CLB194BK is a horizontal cable lacing bar from the Hammond CLB Series, supplied in 10 packs and intended for IT, network, AV and structured cabling teams that need dependable rear cable support inside 19-inch racks. Unlike cable managers that simply tidy cables visually, a lacing bar acts as a structural support component: cable bundles are anchored to the bar so that their weight is carried by the rack rather than by connectors and ports.
Construction is mild steel rod measuring 0.25 in (6 mm) thick, finished in a black smooth powder coat. The finish is described as GREENGUARD, TSCA and RoHS compliant, supporting indoor air quality and environmental compliance programs, and the part is TAA compliant and manufactured in North America with a Canadian country of origin for government and public-sector procurement.
Overall dimensions are 19.00 in (483 mm) wide by 0.44 in (11 mm) high with a 4.00 in (102 mm) depth, created by a 75-degree offset that stands the bar off the mounting plane so cable bundles clear equipment at the rear of the rack. Mounting is to standard 19-inch EIA-compliant rack rails in a 1U form factor, using two 0.250 x 0.406 slots on an 18.35 in (466 mm) 19-inch mounting pattern. Mounting hardware is not included.
The CLB194BK is well suited to positions behind patch panels, switches and servers, where bundles can be secured with cable ties or reusable hook and loop straps such as the Hammond TS Series. The low-profile bar preserves usable rack space while keeping cables elevated and routed for better airflow. Shipping weight is 4 lbs (1.81 kg) per pack.
Ideal For
- Data centers and IT rooms
- Network and telecom installations
- AV and broadcast environments
- Structured cabling deployments requiring rear cable support
- Strain relief for cable bundles behind patch panels, switches and servers
Overview
| Series | CLB Series |
| Part Number | CLB194BK |
| Product Type | Horizontal cable lacing bar / cable support bar |
| Pack Quantity | Sold in 10 packs |
| Short Description | 10PK 4IN OFFSET CABLE LACE BAR |
Dimensions
| Offset Angle | 75 Degrees (105 degrees complementary, per drawing) |
| Overall Depth | 4.00 in (102 mm) |
| Overall Width | 19.00 in (483 mm) |
| Rod Thickness | 0.25 in (6 mm) |
| Overall Height | 0.44 in (11 mm) |
| Offset Leg Length (Drawing) | 1.53 in (39 mm) |
| Bar Length Between Bends (Drawing) | 14.11 in (358 mm) |
Identifiers
| UPC | 623980932606 |
| UNSPSC | 43223305 |
| GTIN-14 | 00623980932606 |
| Drawing Reference | CLB194 |
| UPC W/o Check Digit | 62398093260 |
Rack Mounting
| Rack Units | 1U form factor |
| Mounting Slots | 2X 0.250 x 0.406 slot |
| Mounting Hardware | Not included |
| Rack Compatibility | Standard 19-inch EIA-compliant rack rails |
| Mounting Hole Centers | 18.35 in (466 mm), 19 in mounting |
Packaging & Shipping
| Tariff Code | 7326.90.8688 |
| Shipping Weight | 4 lbs (1.81 kg) |
| Country Of Origin | CA (manufactured in North America) |
Construction & Finish
| Finish | Painted black smooth (black powder coat) |
| Material | Mild Steel |
Environmental & Protection
| Finish Compliance | GREENGUARD, TSCA and RoHS compliant powder coat finish |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many lacing bars come with CLB194BK?▾
CLB194BK is sold in 10 packs, as noted on both the short description (10PK 4IN OFFSET CABLE LACE BAR) and the part drawing. Shipping weight for the pack is 4 lbs (1.81 kg).
How far does the CLB194BK stand off the rack rails?▾
The overall depth is 4.00 in (102 mm), produced by a 75-degree offset in the 0.25 in (6 mm) steel rod.
Is mounting hardware supplied?▾
No. The drawing states mounting hardware is not included. The bar has two 0.250 x 0.406 slots on an 18.35 in (466 mm) 19-inch mounting pattern for use with standard rack hardware.
How much rack space does it occupy?▾
It is a 1U form factor part with an overall height of 0.44 in (11 mm) and a width of 19.00 in (483 mm), so it mounts in a single rack unit of a standard 19-inch EIA-compliant rack.
Does CLB194BK meet government procurement requirements?▾
The data lists it as TAA compliant and manufactured in North America, with country of origin CA, USMCA compliant, RoHS and REACH compliant, and ECCN EAR99.
What is the difference between this and the other CLB Series bars?▾
All three share a 19.00 in width, 0.44 in height and 0.25 in rod. CLB190BK has 0.00 in depth with no offset, CLB192BK has 2.00 in depth at 75 degrees, and CLB194BK has 4.00 in depth at 75 degrees.
How are cables secured to the bar?▾
The lacing bar provides an anchor point for cable ties or hook and loop straps, including Hammond TS Series straps for reusable bundling.
