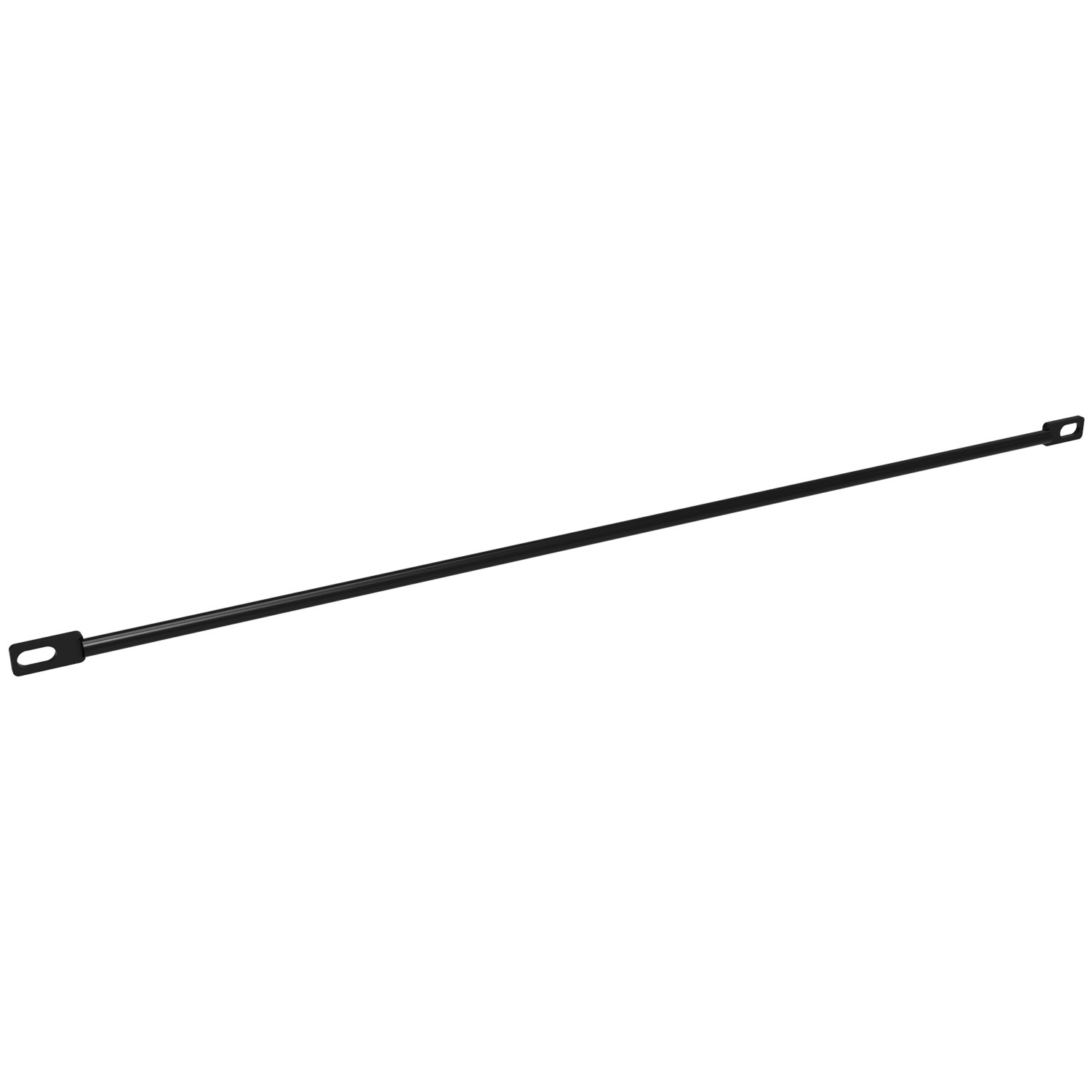

Hammond CLB190BK 1U Straight 19-Inch Steel Cable Lacing Bar, 10-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Sold as a 10-pack of straight horizontal cable lacing bars (10PK straight cable lace bar).
- 0.25 in (6 mm) steel rod construction for durable cable support and strain relief.
- 19.00 in (483 mm) wide, 0.44 in (11 mm) high, 0.00 in (0 mm) depth straight profile with no offset angle.
- Mounts to standard 19-inch EIA-compliant rack rails in a 1U form factor.
- Two 0.250 x 0.406 mounting slots on 18.35 in (466 mm) 19 in mounting centres.
- Black powder coat finish; GREENGUARD, TSCA and RoHS compliant.
- TAA-compliant and USMCA compliant, made in Canada for government procurement.
- Compatible with hook and loop straps such as the TS Series, or standard cable ties.
The CLB190BK is a 10-pack of straight horizontal cable lacing bars for 19-inch EIA-compliant rack rails, intended for IT, network, AV and broadcast installers who need dependable rear cable support behind patch panels, switches and servers. Unlike a cable manager that simply hides cables, a lacing bar acts as a structural anchor point: cable bundles are strapped to the bar so their weight is carried by the rack rather than by connectors and ports.
Each bar is formed from 0.25 in (6 mm) mild steel rod and finished in a painted smooth black powder coat that is GREENGUARD, TSCA and RoHS compliant, supporting indoor air quality and environmental requirements. The straight, zero-offset profile measures 19.00 in (483 mm) wide by 0.44 in (11 mm) high with 0.00 in (0 mm) depth, so it occupies a 1U form factor and keeps usable rack depth free. Mounting is via 2X 0.250 x 0.406 slots on 18.35 in (466 mm) centres for standard 19 in mounting.
Because the CLB190BK bar is flat rather than offset, it sits close to the mounting plane and is a good choice where clearance behind equipment is tight. Cable bundles can be secured with hook and loop straps such as the TS Series, or with cable ties, giving a reusable and serviceable bundling method that keeps routing paths consistent and improves airflow behind equipment.
- Straight bar, no offset angle (n/a)
- 1U mounting to standard 19-inch EIA rack rails
- Supplied in 10 packs; hardware not included
The CLB190BK is manufactured in North America, is TAA-compliant and USMCA compliant, and carries RoHS and REACH compliance for regulated and government procurement projects. Shipping weight for the 10-pack is 2.8 lbs (1.27 kg).
Ideal For
- Data centers and IT rooms
- Network and telecom installations
- AV and broadcast environments
- Structured cabling deployments requiring rear cable support
- Supporting cable bundles behind patch panels and switches
Overview
| Series | CLB Series Horizontal Cable Lacing Bar |
| Part Number | CLB190BK |
| Product Type | Horizontal cable lacing bar / rack cable support bar |
| Pack Quantity | Sold in 10 packs |
| Short Description | 10PK STRAIGHT CABLE LACE BAR |
Dimensions
| Offset Angle | n/a (straight) |
| Overall Depth | 0.00 in (0 mm) |
| Overall Width | 19.00 in (483 mm) |
| Overall Height | 0.44 in (11 mm) |
| Rod Thickness (Diameter) | 0.25 in (6 mm) |
Identifiers
| UPC | 623980932583 |
| UNSPSC | 43223305 |
| GTIN-14 | 00623980932583 |
| UPC W/o Check Digit | 62398093258 |
Rack Mounting
| Hardware | Hardware not included |
| Rack Space | 1U form factor |
| Rack Width | Standard 19-inch EIA-compliant rack rails |
| Mounting Slots | 2X 0.250 x 0.406 slot |
| Mounting Centres | 18.35 in (466 mm), 19 in MTG |
Packaging & Shipping
| Tariff Code | 7326.90.8688 |
| Shipping Weight | 2.8 lbs (1.27 kg) |
| Country Of Origin | CA |
Construction & Finish
| Colour | Black |
| Finish | Painted smooth black powder coat |
| Material | Mild Steel |
| Construction | 0.25 in steel rod |
Environmental & Protection
| Finish Compliance | GREENGUARD, TSCA and RoHS compliant powder coat |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many lacing bars come with CLB190BK?▾
CLB190BK is supplied as a 10-pack. The manufacturer's description is "10PK STRAIGHT CABLE LACE BAR" and the drawing notes that hardware is sold in 10 packs.
Is mounting hardware included?▾
No. The drawing states "Hardware Not Included." Hardware for rack mounting solutions is listed as an accessory.
How much rack space does it use and what rack does it fit?▾
Each bar mounts to standard 19-inch EIA-compliant rack rails and occupies a 1U form factor, with 18.35 in (466 mm) mounting centres and two 0.250 x 0.406 slots.
What is the difference between CLB190BK and the other CLB bars?▾
CLB190BK is the straight version with 0.00 in (0 mm) depth and no offset angle. CLB192BK and CLB194BK have 2.00 in and 4.00 in depths respectively with a 75 degree offset angle.
What material and finish are used?▾
The bars are mild steel, formed from 0.25 in (6 mm) rod, and finished in painted smooth black powder coat that is GREENGUARD, TSCA and RoHS compliant.
Is CLB190BK suitable for government projects?▾
It is TAA-compliant and USMCA compliant, manufactured in North America (Country of Origin: CA), with RoHS and REACH compliance and ECCN EAR99.
How are cables secured to the bar?▾
Cable bundles are secured to the bar with hook and loop straps, such as the TS Series, or with cable ties.
