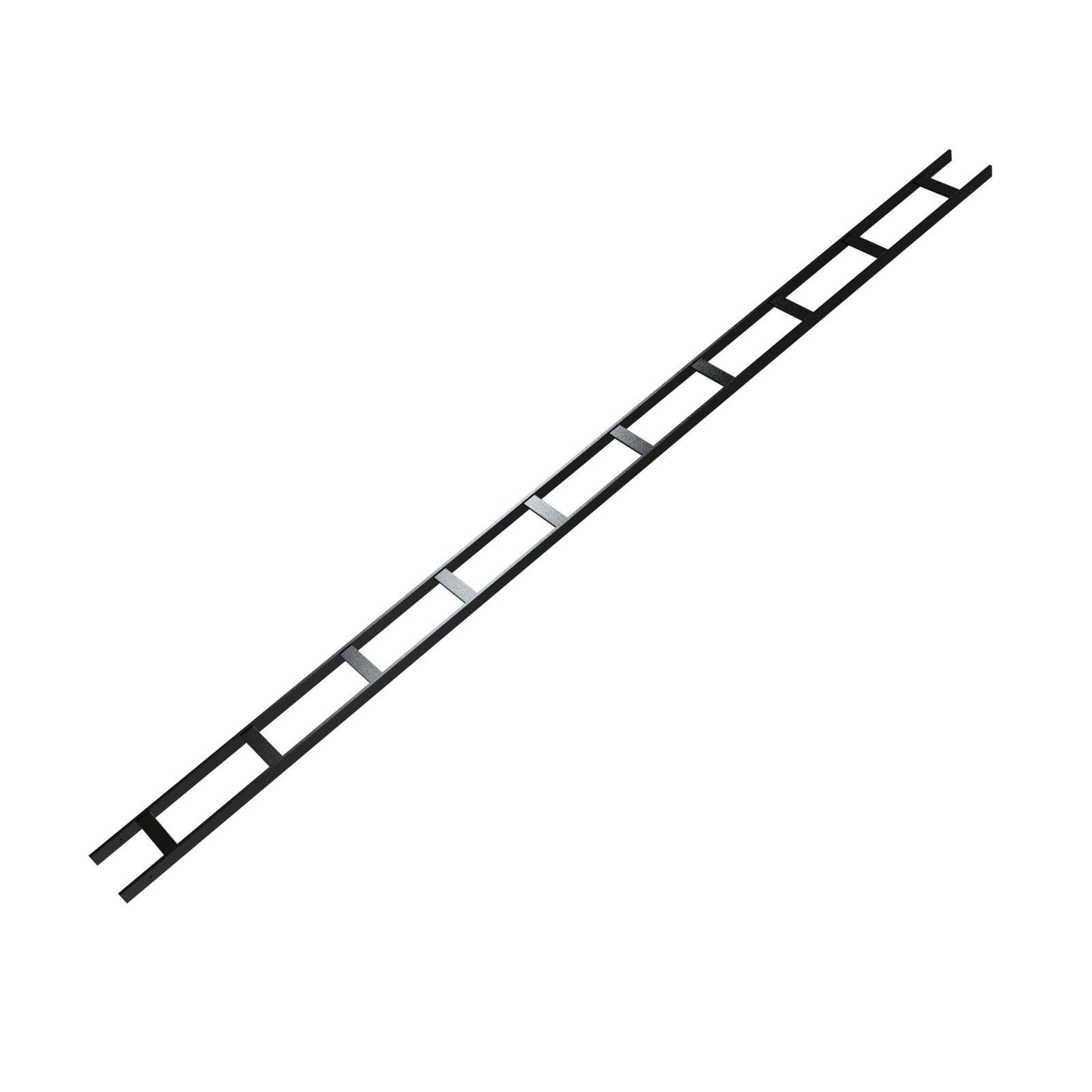

Hammond CL6W10LBK 6 in Wide 10 ft Steel Cable Ladder Rack Section

CL6W10LBK is a 6 in wide, 10 ft steel cable ladder rack section for overhead cable routing in data centers, server rooms, telecom closets and structured cabling environments. It ships as one (1) ladder piece and forms the backbone of a continuous overhead cable pathway that keeps bundles organized, accessible and open to airflow. The 6 in width suits lighter cable volumes and tight routes where a wider runway is not required.

The CL Series is built from 16-gauge, 1.50 in x 0.38 in USA-manufactured tube steel, with the listed material for this part being mild steel. Rungs are set on 12 in spacing to support organized cable placement, and the section is finished in black powder coat (RAL 9005). The powder coat finish used on the series is GREENGUARD, TSCA and RoHS compliant. CL Series ladder sections are rated to 130 lb per 10 ft when supported every 5 ft.

Overall dimensions are 1.50 in (38 mm) high by 6.00 in (152 mm) wide by 119.50 in (3035 mm) long, with a shipping weight of 28 lbs (12.70 kg). The modular design lets CL6W10LBK integrate with the full range of CL Series accessories, including wall mount, floor mount and ceiling mount brackets, triangle wall supports, wall angle supports, butt splice and junction splice kits, horizontal and vertical elbows, elevation kits, end caps and cable radius waterfalls.

Although CL Series products are intended to mount to Hammond rack mounting products, they may also be mounted on existing racks and cabinets, and the system is compatible with industry-standard ladder rack systems. CL6W10LBK is TAA compliant, USMCA compliant, RoHS compliant and REACH compliant, with a country of origin of CA, supporting government and enterprise procurement requirements.
