Hammond CL610SKBK 6 in Wide 10 ft Cable Ladder Rack Kit
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

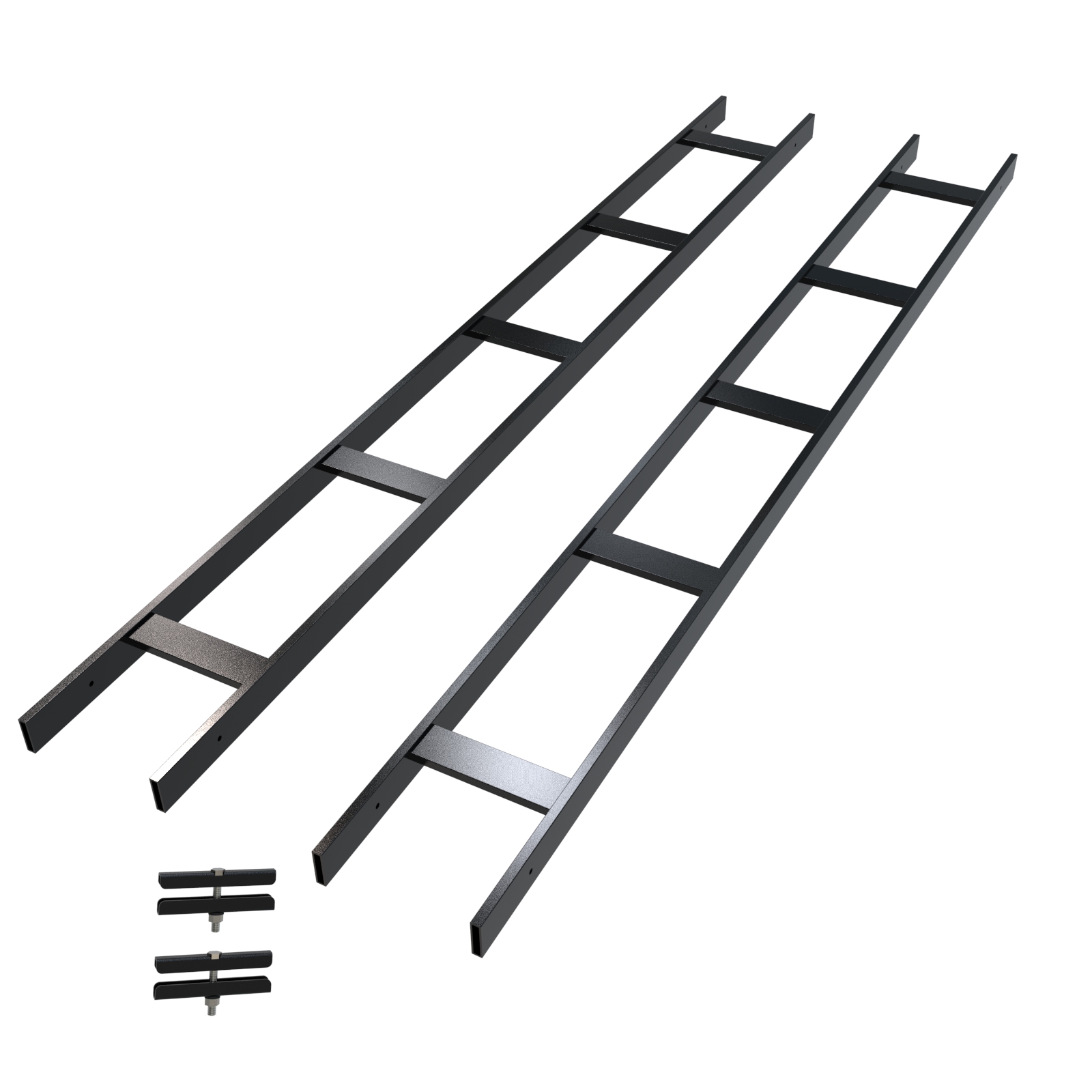

- Includes two (2) 5 ft ladder sections and one (1) CLBSK butt splice kit to build a 10 ft run
- 6.00 in (152 mm) usable width with 1.50 in (38 mm) rail height for narrower overhead cable runs
- Rated to 130 lb per 10 ft when supported every 5 ft
- 16-gauge USA-manufactured 1.50 in x 0.38 in tube steel construction in mild steel
- 12 in (305 mm) rung spacing supports organized cable placement and airflow
- Black powder coat finish; GREENGUARD, TSCA and RoHS compliant
- TAA-compliant and manufactured in North America for government procurement requirements
- Quick-ship packaging lowers shipping cost and transit damage risk; ships unassembled
CL610SKBK is a 6 in wide cable ladder rack quick ship kit from the CLSK Series, supplied as two 5 ft ladder sections plus one butt-splice kit so installers can assemble a continuous 10 ft overhead cable runway on site. It is aimed at IT and low-voltage integrators, telecom technicians and facilities teams building structured overhead cable pathways in data centers, server rooms and network closets.
The ladder is built from 16-gauge, USA-manufactured 1.50 in x 0.38 in tube steel in mild steel, finished in black powder coat that is GREENGUARD, TSCA and RoHS compliant. The kit is rated to 130 lb per 10 ft when supported every 5 ft, and the 12 in rung spacing keeps cable bundles organized while allowing airflow around the run.
Each ladder section measures 59.50 in (1511 mm) long, with a 6.00 in (152 mm) width and 1.50 in (38 mm) side rail height; assembled total length is 119.00 in (3023 mm), with the drawing showing an overall 119.50 in (3035 mm) spliced length. The 6 in width suits lighter or lower-volume cable runs where a narrower pathway is preferred. Shipping weight is 22 lbs (9.98 kg).
CL610SKBK ships unassembled, and the shorter quick-ship cartons reduce shipping cost and the risk of transit damage compared with full-length ladder sections. The modular system integrates with the wider range of ladder rack accessories, including wall brackets, ceiling supports, floor mount brackets, elbows, junction splice kits, waterfalls and end caps, so runs can be extended or redirected as cabling grows. The part is TAA-compliant, USMCA compliant, RoHS and REACH compliant, made in Canada, and classified EAR99 for procurement documentation.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- Structured cabling and backbone pathways
- Overhead cable routing between racks or across rooms
- Industrial and commercial facility cable management
Overview
| Series | CLSK Series - Cable Ladder Rack Quick Ship Kit (10ft) |
| Assembly | Ships unassembled |
| Description | CABLE LADDER 6W SHIP KIT |
| Load Rating | 130 lb per 10 ft when supported every 5 ft |
| Part Number | CL610SKBK |
| Product Type | Cable ladder rack quick ship kit |
Dimensions
| Ladder Width | 6.00 in (152 mm) |
| Rung Spacing | 12.00 in (305 mm) |
| Tube Steel Size | 1.50 in x 0.38 in (38 mm x 10 mm) |
| Ladder Section Length | 59.50 in (1511 mm) |
| Total Assembled Length | 119.00 in (3023 mm) |
| Ladder Height (Side Rail) | 1.50 in (38 mm) |
| Overall Spliced Length (Drawing) | 119.50 in (3035 mm) |
Identifiers
| UPC | 623980007113 |
| UNSPSC | 39131705 |
| GTIN-14 | 00623980007113 |
| Tariff Code | 7326.90.8688 |
| Country Of Origin | CA |
| UPC W/o Check Digit | 62398000711 |
Included Components
| Ladder Pieces | 2 x 5 ft length of ladder |
| Butt Splice Kit | 1 (replacement part no. CLBSK) |
Packaging & Shipping
| Packaging | Quick-ship packaging to reduce shipping cost and prevent damage versus full-length sections |
| Shipping Weight | 22 lbs (9.98 kg) |
Construction & Finish
| Color | Painted black |
| Gauge | 16-gauge tube steel (USA-manufactured) |
| Finish | Black powder coat |
| Material | Mild Steel |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | GREENGUARD, TSCA and RoHS compliant powder coat |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What comes in the CL610SKBK kit?▾
The kit includes two (2) 5 ft ladder sections, each 59.50 in (1511 mm) long, and one (1) ladder butt splice kit (replacement part number CLBSK). It ships unassembled.
How long is the assembled run?▾
The two sections splice together into a 10 ft run: the ordering table lists a total length of 119.00 in (3023 mm) and the drawing shows an overall spliced length of 119.50 in (3035 mm).
How much cable weight will it carry?▾
CL610SKBK is rated to 130 lb per 10 ft when the ladder is supported every 5 ft.
What is the width and rung spacing?▾
This part is 6.00 in (152 mm) wide with a 1.50 in (38 mm) rail height and 12.00 in (305 mm) rung spacing. The CLSK Series is also offered in 12 in and 18 in widths.
Is CL610SKBK suitable for government projects?▾
Yes. It is TAA-compliant and manufactured in North America (country of origin CA), and is USMCA, RoHS and REACH compliant with an ECCN of EAR99.
Can the run be mounted to walls or the ceiling and extended?▾
Yes. The modular system integrates with a full range of ladder rack accessories including wall brackets, ceiling mount brackets, floor mount brackets, 90 degree horizontal elbows, junction splice tee kits, waterfalls, end caps and bonding wire kits. These are ordered separately.
What finish is used?▾
A black powder coat finish that is GREENGUARD, TSCA and RoHS compliant, applied over 16-gauge mild steel tube.
