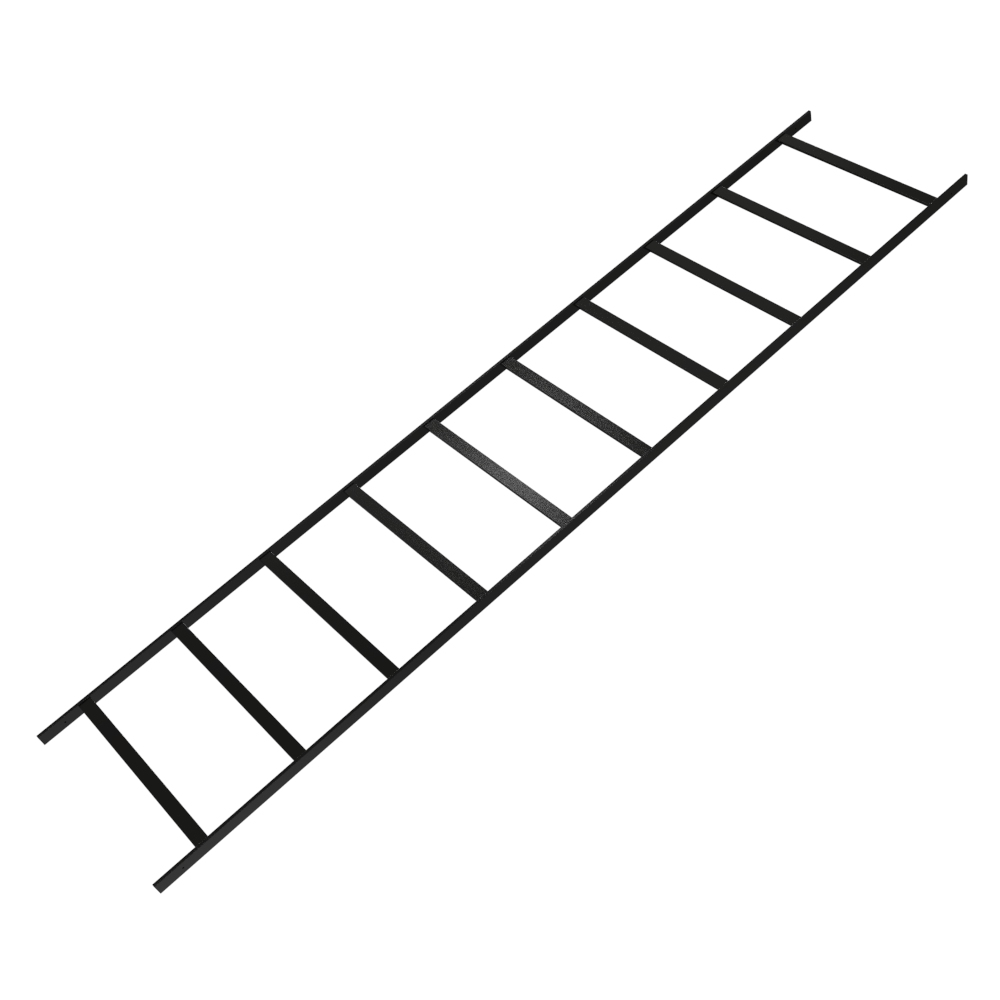

Hammond CL24W10LBK 24 in Wide 10 ft Steel Cable Ladder Rack

CL24W10LBK is a 24 in wide, 10 ft cable ladder rack section for overhead cable routing in data centers, server rooms, telecom closets and structured cabling environments. It is the widest width in the CL Series ladder line, making it suited to high-volume backbone and horizontal cable distribution where large bundles need a continuous, accessible pathway.

The section is built from 16-gauge 1.50 in x 0.38 in USA-manufactured tube steel in mild steel, finished in a black (RAL9005) powder coat that is GREENGUARD, TSCA and RoHS compliant. Rungs are set on 12 in (305 mm) spacing to keep cable placement organized and to allow airflow through the tray. The CL Series is rated to 130 lb per 10 ft when supported every 5 ft.

Overall dimensions are 1.5 in H x 24 in W x 119.5 in D (38 mm x 610 mm x 3,035 mm), shipped as a single ladder piece with a shipping weight of 36 lbs (16.33 kg). Sections join end-to-end with butt splice kits, and the modular design integrates with the wider CL accessory range including wall brackets, wall angle supports, triangle wall supports, ceiling and floor mount brackets, elevation kits, junction splice kits, 90-degree horizontal and vertical elbows, cable radius waterfalls and end caps.

Although CL Series products are intended to mount to Hammond rack mounting products, they may also be mounted on existing racks and cabinets, and the system is compatible with industry-standard ladder rack systems. CL24W10LBK is TAA-compliant and USMCA compliant, made in Canada, supporting government and institutional procurement requirements. A light gray (RAL7035) version is offered as CL24W10LLG, and white is available to order by replacing LG with WH.
