Hammond CL18W10LLG 18 in x 10 ft Light Gray Cable Ladder Section

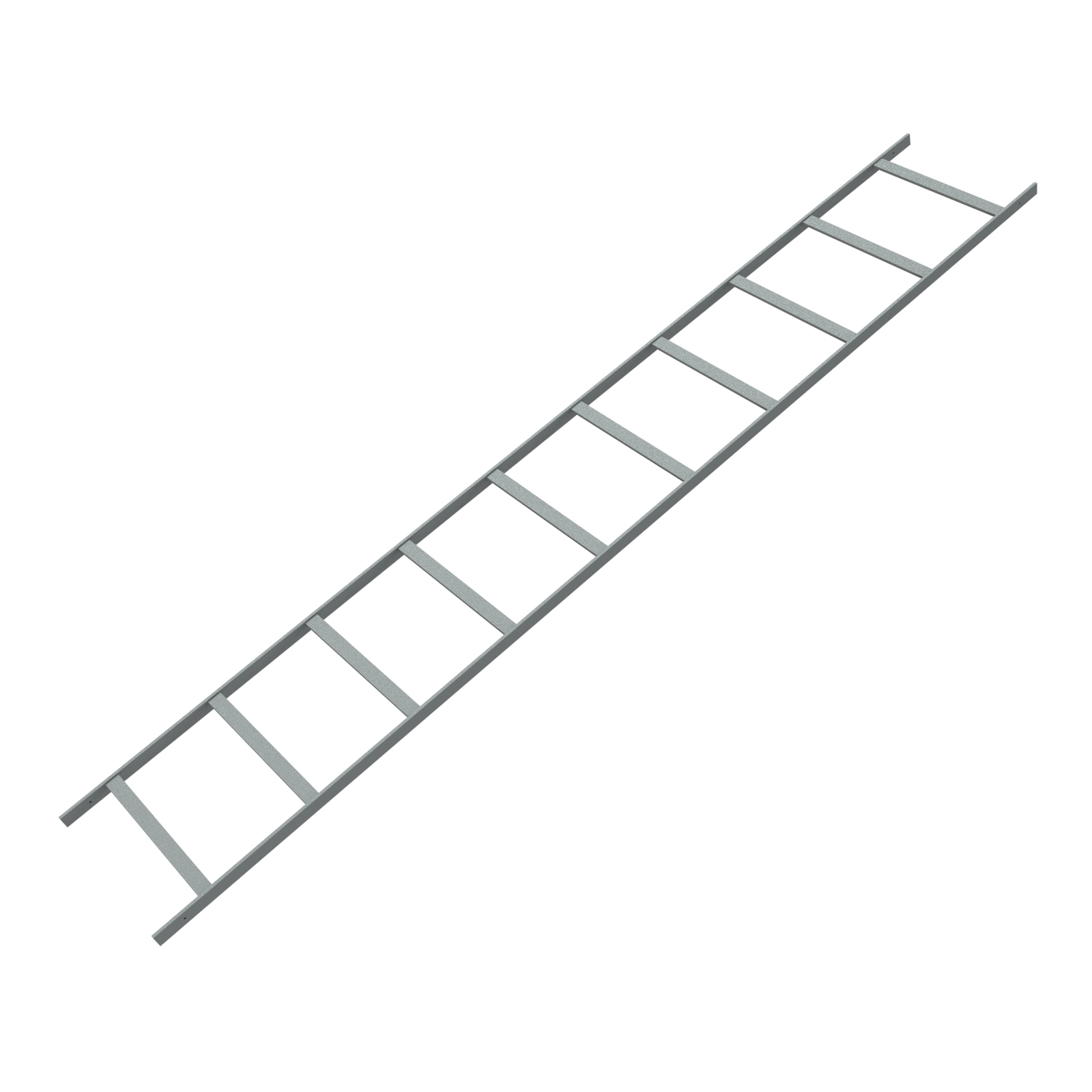

CL18W10LLG is a single 18 in wide, 10 ft cable ladder rack section in light gray (RAL7035), built for high-capacity overhead cable routing in data centers, telecom rooms and network installations. It is the foundation piece for structured overhead pathways used by IT and AV integrators, electricians and facilities teams who need cable bundles kept organized, accessible and off the floor.

The CL Series is built from 16-gauge 1.50 in x 0.38 in USA-manufactured tube steel, with a powder coat finish that is GREENGUARD, TSCA and RoHS compliant. The part's listed material is mild steel. Rungs are spaced 12 in apart to support organized cable placement and airflow along the run.

Overall dimensions for CL18W10LLG are 1.50 in (38 mm) high, 18.00 in (457 mm) wide and 119.50 in (3035 mm) long, shipped as one ladder piece. CL Series ladder is rated to 130 lb per 10 ft when supported every 5 ft, so plan support spacing accordingly for backbone and horizontal cable distribution.

The modular design integrates with a full range of ladder rack accessories, including wall brackets, ceiling supports, wall support triangles, elbows, waterfalls and butt or junction splice kits, so sections can be extended and elevated as infrastructure grows. Although CL Series products are intended to mount to Hammond rack mounting products, they may also be mounted on existing racks and cabinets, and the ladder is compatible with industry-standard ladder rack systems.

The part is TAA-compliant, USMCA compliant, RoHS and REACH compliant, with country of origin CA, supporting government and enterprise procurement requirements. A black version of the same size is offered as CL18W10LBK, and white can be ordered by replacing LG with WH.
