Hammond CL18W10LBK 18 in Wide 10 ft Steel Cable Ladder Rack Section

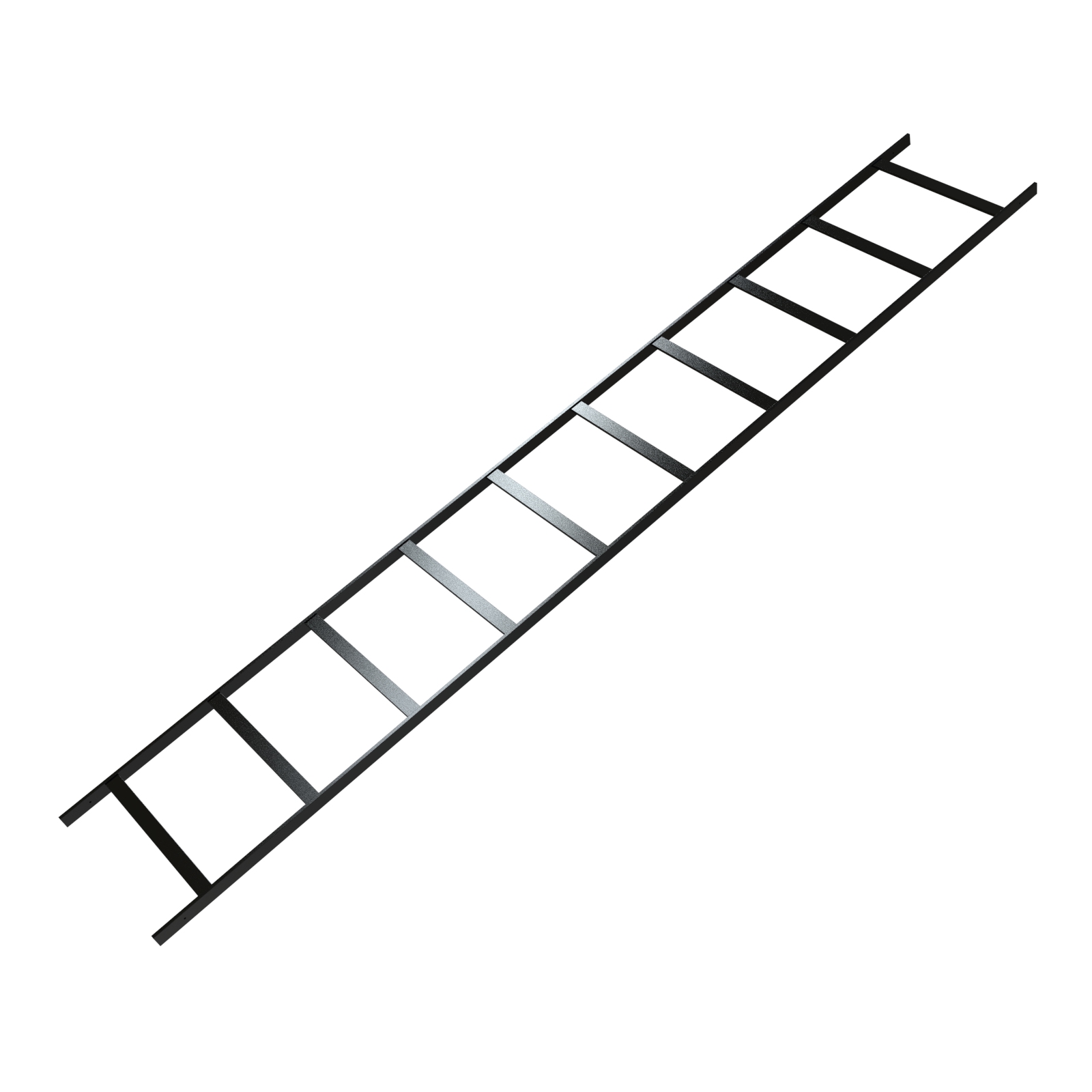

CL18W10LBK is a single 18 in wide, 10 ft long cable ladder rack section in a black (RAL9005) powder coat finish. It is intended for IT and low-voltage integrators, telecom technicians and facilities teams building structured overhead cable pathways above racks, cabinets and equipment rows in data centers, server rooms and network closets.

The section is built from 16-gauge 1.50 in x 0.38 in USA-manufactured tube steel, with a mild steel material specification and a powder coat finish that is GREENGUARD, TSCA and RoHS compliant. The CL Series ladder is rated to 130 lb per 10 ft when supported every 5 ft, so it can carry large backbone and horizontal cable bundles while keeping runs organized and accessible.

Overall dimensions are 1.50 in (38 mm) high, 18.00 in (457 mm) wide and 119.50 in (3035 mm) long, shipped as one ladder piece. Rungs are spaced on 12.00 in (305 mm) centers, which supports orderly cable placement and airflow through the pathway. Shipping weight is 32 lbs (14.51 kg).

CL18W10LBK is part of a modular system and integrates with the full range of CL Series accessories, including butt splice and junction splice kits, wall mount, floor mount and ceiling mount brackets, triangle wall supports, wall angle supports, elevation kits, 90-degree horizontal and vertical elbows, end caps, cable radius waterfalls and rack-to-ladder adapters. Although the CL Series is intended to mount to Hammond rack mounting products, sections may also be mounted on existing racks and cabinets, and the system is compatible with industry-standard ladder rack products.

The part is TAA compliant, USMCA compliant, RoHS and REACH compliant, with country of origin CA — useful for government and regulated procurement. Matching 18 in sections are also offered in light gray (CL18W10LLG) and white within the series.
