Hammond CL12W10LBK 12 in Wide 10 ft Steel Cable Ladder Rack

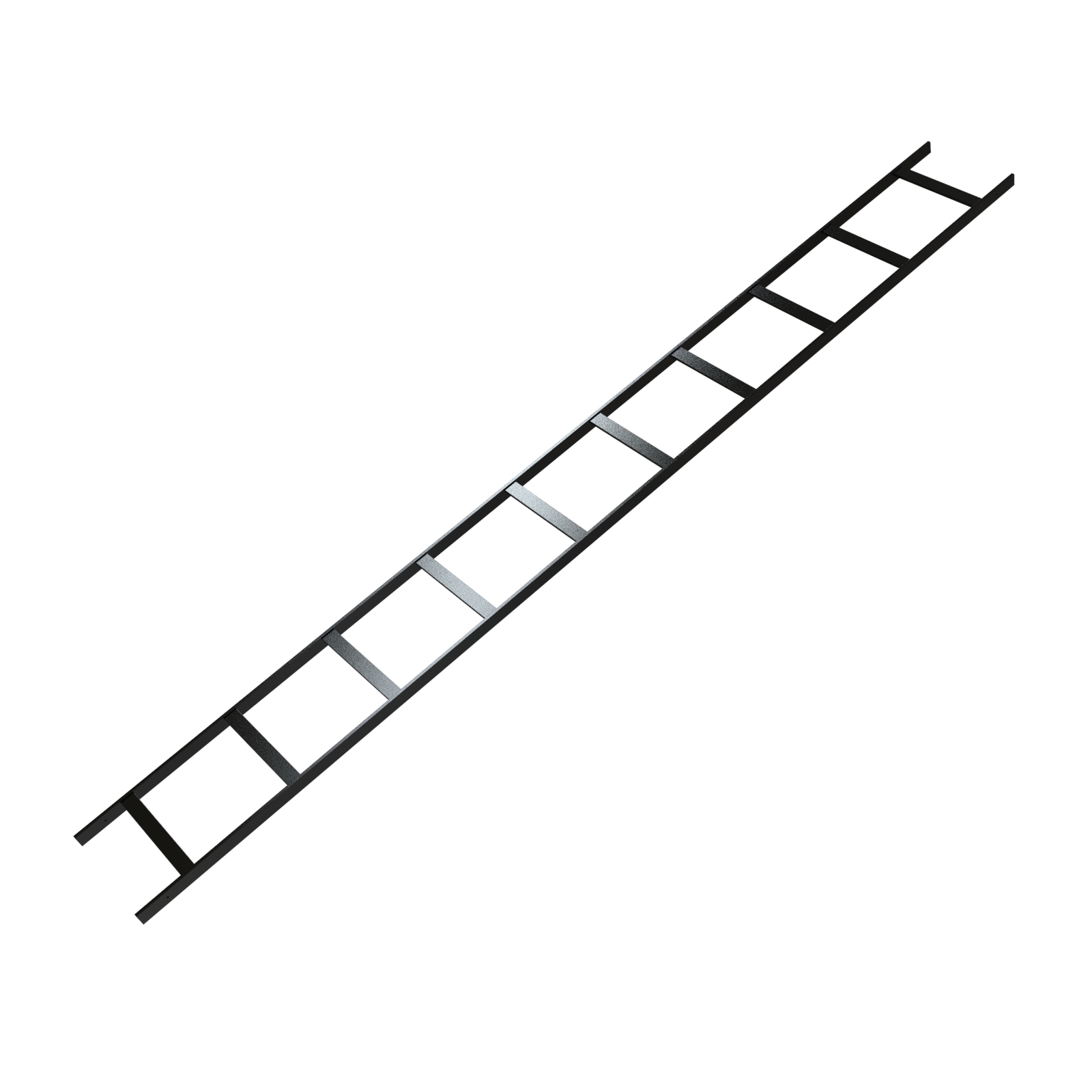

CL12W10LBK is a single 10 ft cable ladder rack section, 12.00 in (305 mm) wide, finished in black (RAL9005). It is part of the CL Series of steel overhead cable routing products used by IT and network integrators, structured cabling contractors and facilities teams to create continuous overhead pathways for backbone and horizontal cable distribution in data centers, telecom rooms and network installations.

The ladder is built from mild steel using 16-gauge 1.50 in x 0.38 in USA-manufactured tube steel stringers, a construction the CL Series rates to 130 lb per 10 ft when the run is supported every 5 ft. Rungs provide organized cable placement while leaving the pathway open for airflow and future cable adds. The powder coat finish is GREENGUARD, TSCA and RoHS compliant, supporting environmental and durability requirements in occupied equipment rooms.

Overall dimensions for this section are 119.50 in (3035 mm) long x 12.00 in (305 mm) wide x 1.50 in (38 mm) high, and the part ships as one ladder piece with a shipping weight of 26 lbs (11.79 kg). The 12 in width suits medium cable volumes where 6 in is too narrow and 18 in or 24 in is more than the bundle requires.

CL12W10LBK integrates with the full range of CL Series accessories, including butt splice and junction splice kits, wall, floor and ceiling mount brackets, triangle wall supports, wall angle supports, horizontal and vertical 90-degree elbows, elevation kits, cable radius waterfalls and rack-to-ladder adapters, so runs can be extended, turned, elevated and tied into racks. Although the CL series products are intended to mount to Hammond rack mounting products, they may also be mounted on existing racks and cabinets. The part is TAA-compliant and manufactured in North America for government procurement requirements.
