Hammond CDF1978SLG1 45U Solid Steel Cabinet Door, Light Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Solid door sized for 45U C2 Series cabinets with a 78.75 in (2000 mm) frame height
- Constructed in 16-gauge steel for a rigid, fully enclosed front or rear panel
- Textured RAL 7035 light gray powder coat that meets Greenguard indoor air quality guidelines
- Installs into C2 Series cabinets via integrated spring pin at the top and bottom of the door
- Supplied with formed plastic handle, quarter-turn lock with .531 in cam and two 1/4 in x 4-1/2 in hinge pins
- Panel measures 19.33 in (491 mm) wide x 78.50 in (1994 mm) high
- TAA-compliant for GSA Schedule purchases; RoHS, REACH and USMCA compliant
- Manufactured in North America in mild steel
The CDF1978SLG1 is a 45U solid steel door from the Hammond CDF Series, designed exclusively for use with C2 Series cabinets. It suits IT and AV integrators, facilities teams and OEM engineers who need to fully enclose the front or rear of a 45U (78.75 in / 2000 mm) C2 frame for a finished, secured appearance without ventilation cut-outs.
The door is constructed in 16-gauge mild steel and finished in textured RAL 7035 light gray powder coat, a finish that complies with the Greenguard guidelines for indoor air quality. Overall panel dimensions are 19.33 in (491 mm) wide by 78.50 in (1994 mm) high, with a 0.53 in (13 mm) formed depth at the bottom. Shipping weight is 57 lbs (25.85 kg).
Installation is straightforward: the door mounts to a C2 Series cabinet using an integrated spring pin at the top and bottom, and it ships complete with the hardware needed to hang and secure it:
- C2 solid flush door panel, 19 x 78 nominal
- Quarter-turn lock complete with .531 in high cam (DWS220-9208)
- Formed black plastic handle
- Two 1/4 in x 4-1/2 in long hinge pins
CDF1978SLG1 is manufactured in North America (country of origin CA) and is USMCA compliant, RoHS and REACH compliant, and TAA-compliant for GSA Schedule purchases. A black textured version of the same door is offered as CDF1978SBK1, making it easy to match existing cabinet colours across a room or row.
Ideal For
- Enclosing the front or rear of a 45U C2 Series network cabinet
- Securing rack-mounted equipment in offices and shared spaces
- Replacement or retrofit door for an existing C2 cabinet
- Colour-matched light gray cabinet builds in indoor, Greenguard-conscious environments
- GSA Schedule and TAA-compliant government cabinet projects
Overview
| Series | CDF Series C2 Doors |
| Door Type | Solid |
| Description | 45U Solid Door for C2 Frame |
| Part Number | CDF1978SLG1 |
| Compatibility | Exclusively for use with the C2 Cabinet Series |
| Short Description | 45U 23W C2 SOLID DOOR |
Dimensions
| Nominal Size | 19 x 78 in (C2 solid flush door, 23 in wide nominal per short description) |
| Overall Width | 19.33 in (491 mm) |
| Overall Height | 78.50 in (1994 mm) |
| Formed Depth (Bottom) | 0.53 in (13 mm) |
Identifiers
| UPC | 623980576015 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980576015 |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA (Manufactured in North America) |
| Related Part Number | CDF1978SBK1 (painted black textured) |
| UPC W/o Check Digit | 62398057601 |
Rack Mounting
| Rack Units | 45U |
| Mounting Method | Integrated spring pin at top and bottom of the door |
| Use With Cabinet Height | 78.75 in (2000 mm) |
Included Items
| Lock | Quarter-turn lock complete with .531 in high cam, DWS220-9208 (qty 1) |
| Handle | Black plastic handle (qty 1) |
| Door Panel | C2 Solid Flush Door 19X78 (qty 1) |
| Hinge Pins | Hinge pin 1/4 in x 4-1/2 in long (qty 2) |
Packaging & Shipping
| Shipping Weight | 57 lbs (25.85 kg) |
Construction & Finish
| Gauge | 16-gauge steel |
| Finish | Textured RAL 7035 light gray powder coat |
| Material | Mild Steel |
Compliance & Certifications
| TAA | TAA-compliant for GSA Schedule purchases |
| ECCN | EAR99 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Indoor Air Quality | Finish complies with the Greenguard guidelines for indoor air quality |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which cabinets does CDF1978SLG1 fit?▾
It is designed exclusively for the Hammond C2 Cabinet Series, specifically a 45U cabinet with a 78.75 in (2000 mm) height. It installs using an integrated spring pin at the top and bottom of the door.
Does the door come with a lock and handle?▾
Yes. CDF1978SLG1 includes a formed black plastic handle, a quarter-turn lock complete with a .531 in high cam (DWS220-9208) and two 1/4 in x 4-1/2 in long hinge pins to mount it on the cabinet.
What are the exact door dimensions and weight?▾
The panel measures 19.33 in (491 mm) wide by 78.50 in (1994 mm) high with a 0.53 in (13 mm) formed depth at the bottom. Shipping weight is 57 lbs (25.85 kg).
Is this door vented?▾
No. CDF1978SLG1 is the solid door version. The CDF Series also offers acrylic window, perforated and split perforated door options in other part numbers.
Is CDF1978SLG1 available in black?▾
Yes. The same 45U solid door in textured black is CDF1978SBK1; CDF1978SLG1 is the textured RAL 7035 light gray version.
Is this part suitable for government procurement?▾
The CDF Series is TAA-compliant for GSA Schedule purchases, and this part is RoHS, REACH and USMCA compliant with ECCN EAR99 and country of origin CA.
Related Products
Save 35%CDF1978SBK1 — 45U Solid Door for C2 Frame
Hammond Manufacturing · CDF1978SBK1

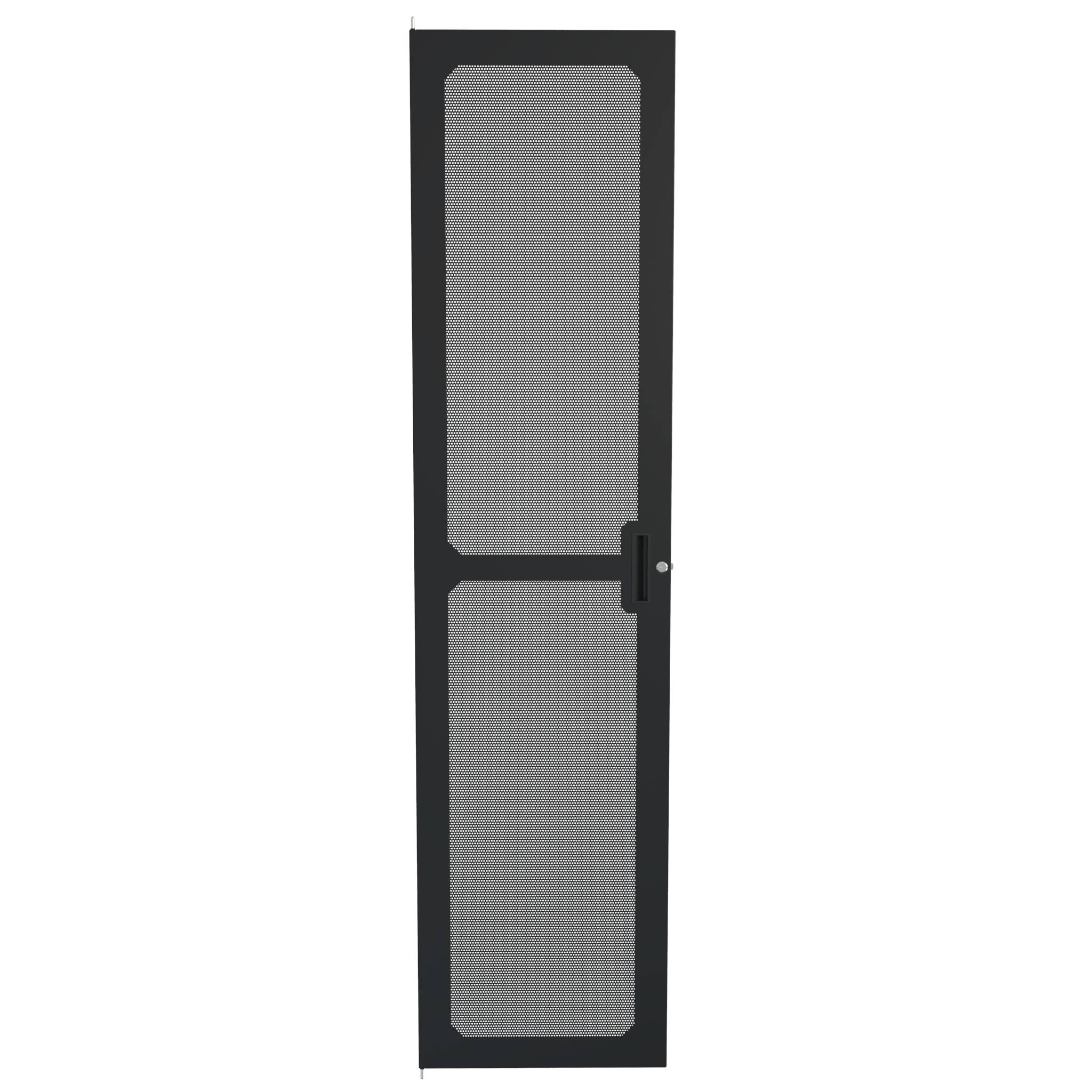

Save 35%CDF1978VBK1 — 45U Vented Door for C2 Frame
Hammond Manufacturing · CDF1978VBK1
Save 35%CDF1978LLG1 — 45U Louvered Door for C2 Frame
Hammond Manufacturing · CDF1978LLG1

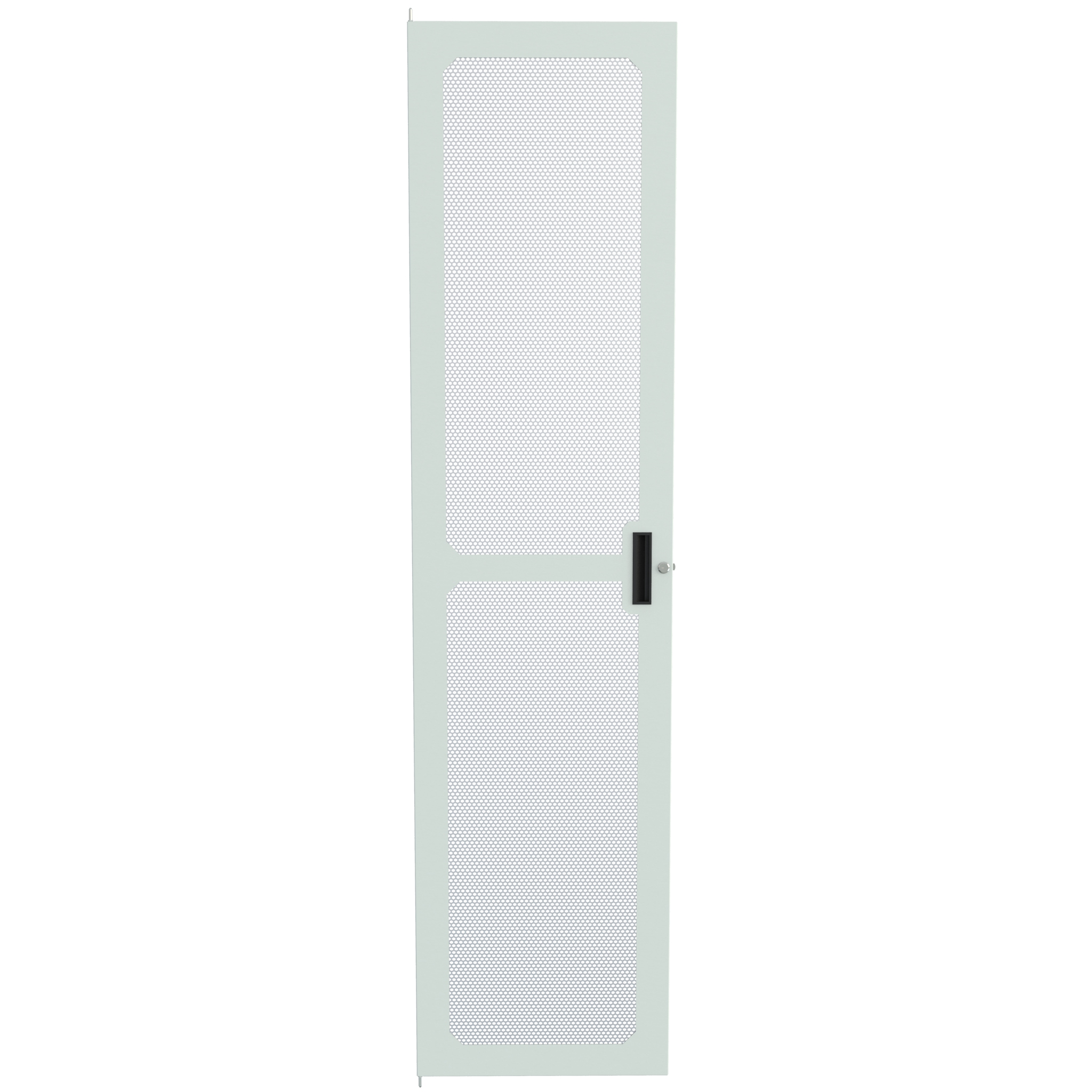

Save 35%CDF1978VLG1 — 45U Vented Door for C2 Frame
