Hammond CDF1978LLG1 45U Louver Vented Cabinet Door, Light Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Louver vented door sized for 45U C2 Series cabinets with 78.75 in (2000 mm) frame height
- Constructed in 16-gauge mild steel for rigidity
- Textured RAL 7035 light gray powder coat meeting Greenguard indoor air quality guidelines
- Installs into C2 Series cabinets using integrated spring pin at top and bottom of the door
- Includes formed plastic handle, quarter-turn lock with cam and two 1/4 in x 4-1/2 in hinge pins
- Overall panel 19.33 in (491 mm) W x 78.50 in (1994 mm) H, 0.53 in (13 mm) deep
- TAA-compliant for GSA Schedule purchases; RoHS, REACH and USMCA compliant
- Manufactured in North America; black equivalent available as CDF1978LBK1
CDF1978LLG1 is a 45U louver vented front or rear door built exclusively for use with the C2 Cabinet Series. It is the replacement or add-on door for C2 cabinets with a 78.75 in (2000 mm) frame height, making it a practical choice for IT and AV integrators, facilities teams and OEM engineers who need ventilated enclosure access on naturally cooled or fan-assisted cabinets.
The door is constructed in 16-gauge mild steel and finished in a textured RAL 7035 light gray powder coat that complies with the Greenguard guidelines for indoor air quality. The matching black version of the same door is CDF1978LBK1, so mixed-colour installations can be specified from the same size.
Overall panel dimensions are 19.33 in (491 mm) wide by 78.50 in (1994 mm) high, with a 0.53 in (13 mm) formed depth. Shipping weight is 57 lbs (25.85 kg). The part is listed as a 45U, 23 in wide C2 louvered door in the manufacturer's description data.
Installation uses the integrated spring pin at the top and bottom of the door, so CDF1978LLG1 drops into a C2 Series cabinet without special tooling. The door ships with a formed plastic handle, a quarter-turn lock complete with 0.531 in high cam (DWS220-9208) and two 1/4 in x 4-1/2 in hinge pins to mount on the cabinet.
- Door type: louver vented
- For C2 cabinets rated 45U / 78.75 in (2000 mm)
- Finish: textured RAL 7035 light gray powder coat
The door is RoHS and REACH compliant, USMCA compliant and TAA-compliant for GSA Schedule purchases, and is manufactured in North America (country of origin: CA).
Ideal For
- Replacement front or rear door for 45U C2 Series cabinets
- Ventilated door for passively cooled network and server cabinets
- Lockable access for AV and IT equipment cabinets
- TAA-compliant door for GSA Schedule cabinet builds
Overview
| Series | C2 Doors (CDF Series) |
| Door Type | Louver Vented Door |
| Part Number | CDF1978LLG1 |
| Compatibility | Exclusively for use with the C2 Cabinet Series |
| Long Description | 45U Louvered Door for C2 Frame |
| Short Description | 45U 23W C2 LOUVERED DOOR |
| Black Equivalent Part Number | CDF1978LBK1 |
Dimensions
| Panel Depth | 0.53 in (13 mm) |
| Overall Width | 19.33 in (491 mm) |
| Overall Height | 78.50 in (1994 mm) |
Identifiers
| UPC | 623980576008 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980576008 |
| UPC W/o Check Digit | 62398057600 |
Rack Mounting
| Nominal Size | 45U, 23 in wide (per part description "45U 23W") |
| Use With Cabinet - Height | 78.75 in (2000 mm) |
| Use With Cabinet - Rack Units | 45U |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 57 lbs (25.85 kg) |
| Country Of Origin | CA (manufactured in North America) |
Construction & Finish
| Gauge | 16-gauge steel |
| Finish | Textured RAL 7035 light gray powder coat |
| Material | Mild Steel |
| Included - Lock | Quarter-turn lock complete with .531 in high cam, DWS220-9208 (1) |
| Mounting Method | Integrated spring pin at top and bottom of the door |
| Included - Handle | Formed plastic handle (1) |
| Included - Hinge Pins | Hinge pin 1/4 in x 4-1/2 in long (2) |
Environmental & Protection
| Indoor Air Quality | Finish complies with the Greenguard guidelines for indoor air quality |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant (for GSA Schedule purchases) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which cabinets does CDF1978LLG1 fit?▾
It is exclusively for use with the C2 Cabinet Series, specifically 45U cabinets with a 78.75 in (2000 mm) height.
How does the door attach to the cabinet?▾
It installs into C2 Series cabinets using an integrated spring pin at the top and bottom of the door, and includes hinges (two 1/4 in x 4-1/2 in hinge pins) to mount on the cabinet.
Does the door come with a lock and handle?▾
Yes. CDF1978LLG1 includes a formed plastic handle and a quarter-turn lock complete with a .531 in high cam (DWS220-9208).
What colour and material is this door?▾
It is 16-gauge mild steel finished in textured RAL 7035 light gray powder coat. The same door in textured black is CDF1978LBK1.
Is this part suitable for government contract purchases?▾
The data lists it as TAA-compliant for GSA Schedule purchases, and it is also RoHS, REACH and USMCA compliant with an ECCN of EAR99.
What are the door's overall dimensions and weight?▾
The panel measures 19.33 in (491 mm) wide by 78.50 in (1994 mm) high with a 0.53 in (13 mm) depth, and the shipping weight is 57 lbs (25.85 kg).
Related Products
Save 35%CDF1978LBK1 — 45U Louvered Door for C2 Frame
Hammond Manufacturing · CDF1978LBK1
Save 35%CDF1978SBK1 — 45U Solid Door for C2 Frame
Hammond Manufacturing · CDF1978SBK1
Save 35%CDF1970VPLG1 — 40U Vented Window Door for C2 Frame
Hammond Manufacturing · CDF1970VPLG1

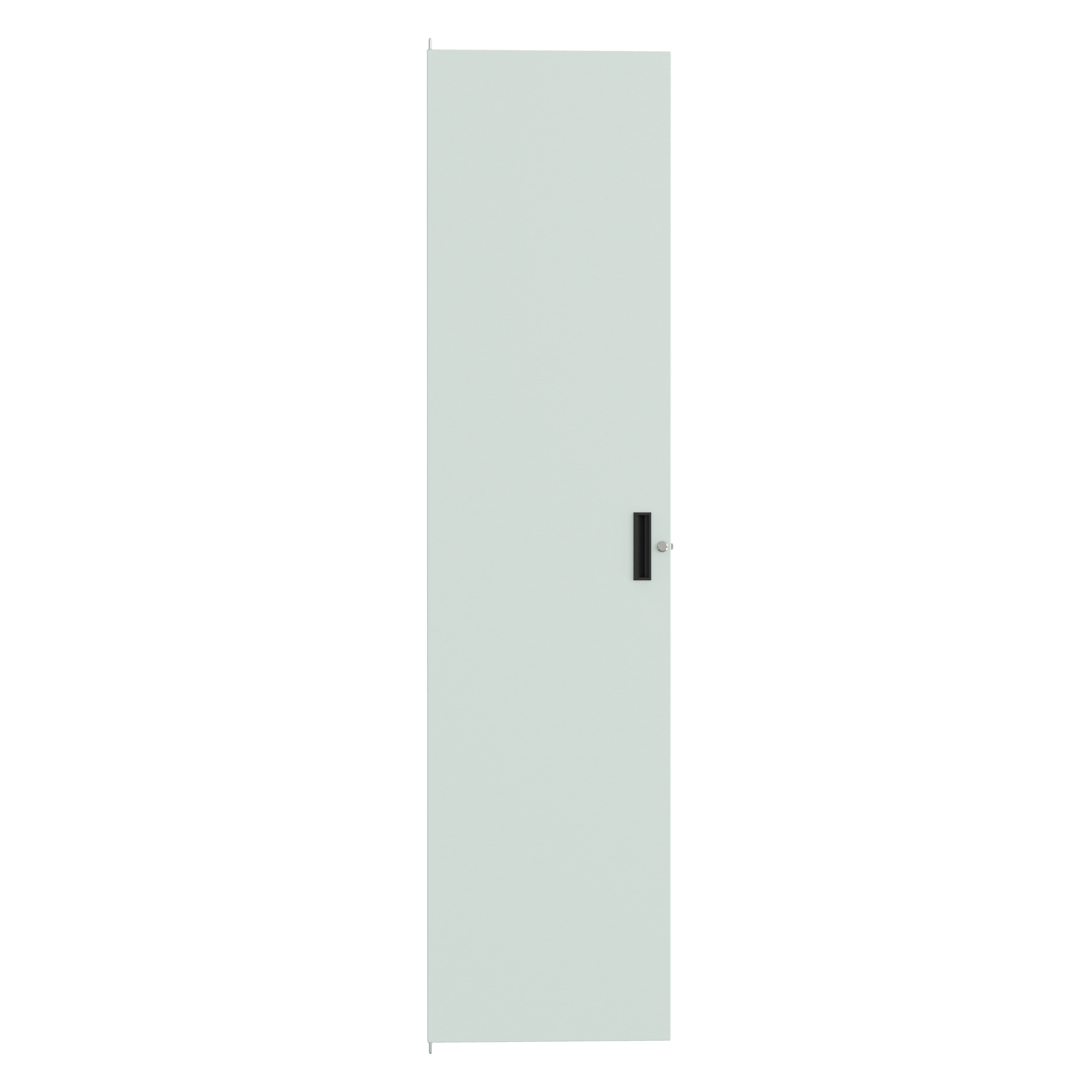

Save 35%CDF1978SLG1 — 45U Solid Door for C2 Frame
