Hammond CDF1978LBK1 45U Louver Vented Door for C2 Cabinets
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 45U louver vented door sized for C2 Series cabinets with a 78.75 in (2000 mm) height
- Panel measures 19.33 in (491 mm) wide x 78.50 in (1994 mm) high
- Constructed in 16-gauge mild steel for rigidity
- Textured RAL9005 black powder coat that complies with Greenguard indoor air quality guidelines
- Installs into C2 cabinets using integrated spring pins at the top and bottom of the door
- Includes formed plastic handle, quarter-turn lock with .531 in cam and two 1/4 in x 4-1/2 in hinge pins
- TAA-compliant for GSA Schedule purchases; RoHS, REACH and USMCA compliant
- Manufactured in North America; also available in RAL 7035 light gray as CDF1978LLG1
The CDF1978LBK1 is a 45U louver vented door from the CDF Series, made exclusively for use with Hammond C2 Series cabinets. It suits IT and AV integrators, facilities teams and OEM engineers who need a lockable front or rear closure that still allows airflow through the cabinet for passively or fan-cooled equipment.
The door is constructed in 16-gauge mild steel and finished in textured RAL9005 black powder coat, a finish that complies with the Greenguard guidelines for indoor air quality. The louvered panel measures 19.33 in (491 mm) wide by 78.50 in (1994 mm) high, with a 0.53 in (13 mm) panel depth shown on the bottom view, and ships at 57 lbs (25.85 kg).
Installation uses the integrated spring pin at the top and bottom of the door, so the door drops into a C2 Series cabinet without loose hardware at the frame. Supplied components include a formed black plastic handle, a quarter-turn lock with a .531 in high cam (DWS220-9208) and two 1/4 in x 4-1/2 in long hinge pins for mounting to the cabinet.
Match CDF1978LBK1 to a 45U C2 cabinet with a 78.75 in (2000 mm) height. A light gray RAL 7035 version of the same door is catalogued as CDF1978LLG1, and the series also offers solid, vented, window and vented window styles in other rack-unit heights.
CDF1978LBK1 is manufactured in North America, is USMCA compliant, RoHS and REACH compliant, TAA-compliant for GSA Schedule purchases, and is classified ECCN EAR99 under tariff code 9403.10.0040.
Ideal For
- Ventilated front or rear closure for 45U C2 Series network cabinets
- Airflow-friendly door for passively cooled server and switch stacks
- Lockable access control for AV and IT equipment cabinets
- TAA-compliant cabinet build-outs for GSA Schedule projects
Overview
| Series | C2 Doors (CDF Series) |
| Door Type | Louver Vented Door |
| Description | 45U Louvered Door for C2 Frame |
| Part Number | CDF1978LBK1 |
| Compatibility | Exclusively for use with the C2 Cabinet Series |
| Short Description | 45U 23W C2 LOUVERED DOOR |
| Light Gray Equivalent | CDF1978LLG1 (RAL 7035 light gray) |
Dimensions
| Door Width | 19.33 in (491 mm) |
| Door Height | 78.50 in (1994 mm) |
| Nominal Size | 45U, 23 in wide (23W) cabinet door |
| Panel Depth (Bottom View) | 0.53 in (13 mm) |
Identifiers
| UPC | 623980525112 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980525112 |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA (Manufactured in North America) |
| UPC W/o Check Digit | 62398052511 |
Rack Mounting
| Rack Units | 45U |
| Use With Cabinet Height | 78.75 in (2000 mm) |
Packaging & Shipping
| Shipping Weight | 57 lbs (25.85 kg) |
Construction & Finish
| Finish | Textured RAL9005 black powder coat |
| Material | Mild steel, 16-gauge |
| Lock Type | Quarter-turn lock |
| Mounting Method | Integrated spring pin at top and bottom of the door |
| Included Hardware | Black plastic handle (1), lock c/w .531 in high cam DWS220-9208 (1), hinge pin 1/4 in x 4-1/2 in long (2) |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant (GSA Schedule purchases) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Indoor Air Quality | Finish complies with Greenguard guidelines |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which cabinets does CDF1978LBK1 fit?▾
It is made exclusively for the Hammond C2 Cabinet Series and is matched to a 45U cabinet with a 78.75 in (2000 mm) height.
Is a handle and lock included?▾
Yes. The door ships with a formed black plastic handle, a quarter-turn lock with a .531 in high cam (DWS220-9208) and two 1/4 in x 4-1/2 in long hinge pins for mounting to the cabinet.
How does the door attach to the cabinet?▾
It installs into C2 Series cabinets using the integrated spring pin at the top and bottom of the door, with the supplied hinges mounted on the cabinet.
Is this door available in light gray?▾
Yes. The same 45U louver vented door is catalogued as CDF1978LLG1 in textured RAL 7035 light gray; CDF1978LBK1 is the textured RAL9005 black version.
Is CDF1978LBK1 suitable for government contracts?▾
It is TAA-compliant for GSA Schedule purchases, and is RoHS, REACH and USMCA compliant with ECCN EAR99.
What are the door's dimensions and weight?▾
The panel measures 19.33 in (491 mm) wide by 78.50 in (1994 mm) high with a 0.53 in (13 mm) panel depth, and the shipping weight is 57 lbs (25.85 kg).
Related Products
Save 35%CDF1970VPLG1 — 40U Vented Window Door for C2 Frame
Hammond Manufacturing · CDF1970VPLG1
Save 35%CDF1978LLG1 — 45U Louvered Door for C2 Frame
Hammond Manufacturing · CDF1978LLG1
Save 35%CDF1970VPBK1 — 40U Vented Window Door for C2 Frame
Hammond Manufacturing · CDF1970VPBK1

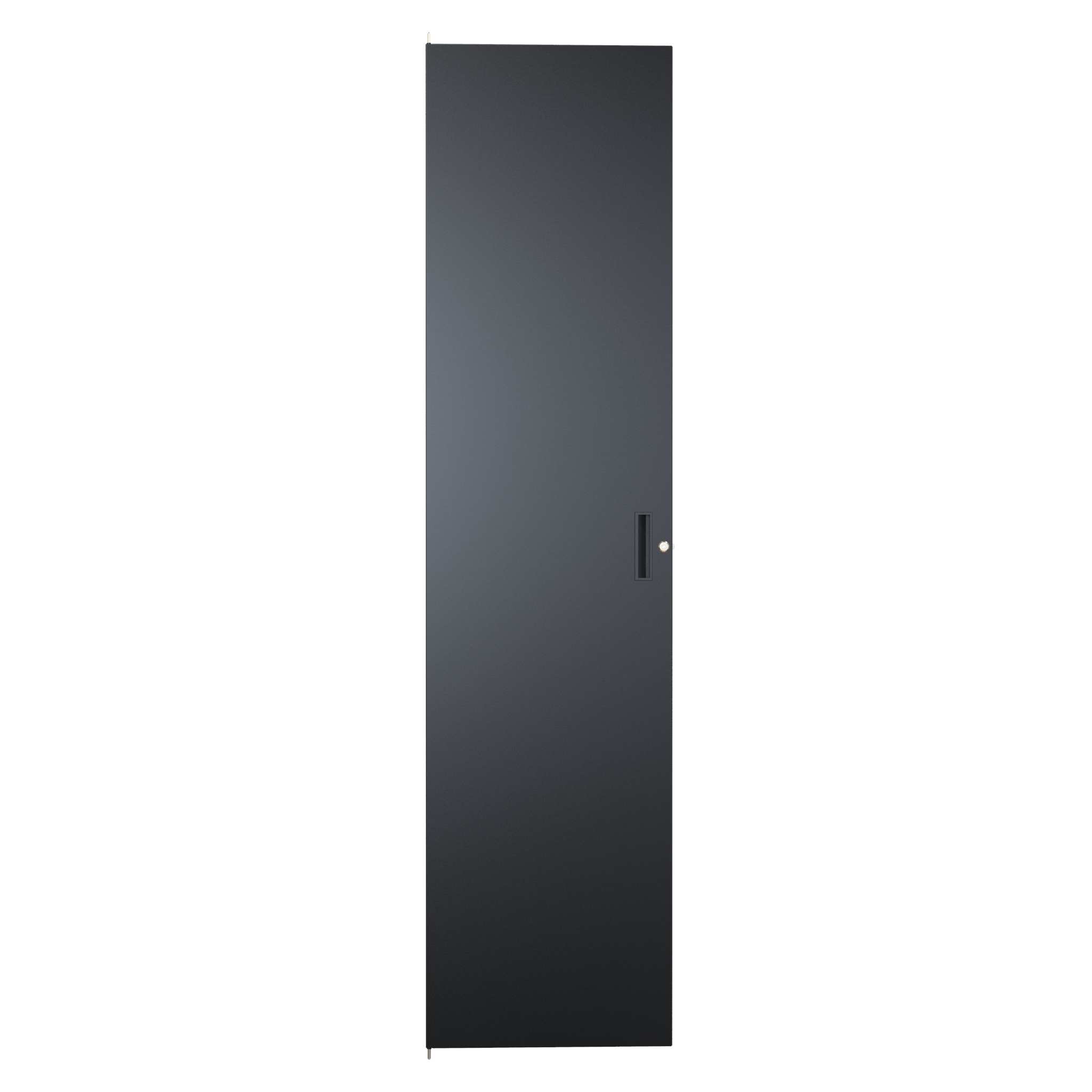

Save 35%CDF1978SBK1 — 45U Solid Door for C2 Frame
