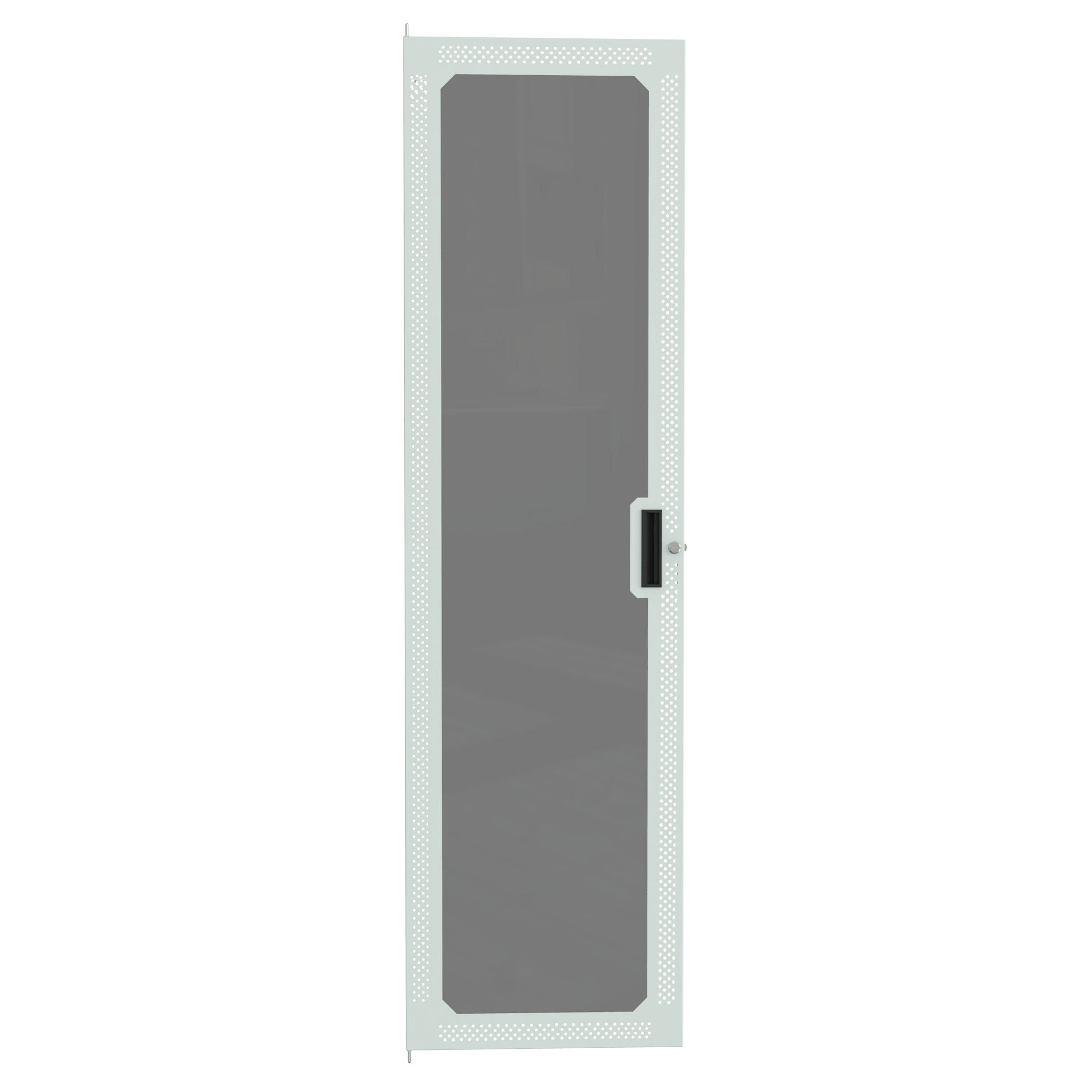

Hammond CDF1970VPLG1 40U Vented Window Cabinet Door, Light Gray

The CDF1970VPLG1 is a 40U vented window door from the CDF Series, made exclusively for use with the Hammond C2 Cabinet Series. It suits IT and AV integrators, facilities teams and OEM engineers who need a lockable front or rear closure that combines visibility of mounted equipment with passive airflow through the vented area.

The door is constructed in 16-gauge mild steel and finished in textured RAL 7035 light gray powder coat. The same door is offered in black as CDF1970VPBK1, so mixed-finish installations can be matched across a room. The powder coat finish complies with the Greenguard guidelines for indoor air quality, and the part is RoHS and REACH compliant as well as TAA-compliant for GSA Schedule purchases.

This size is intended for C2 cabinets with 40U of mounting space and a 70.00 in (1778 mm) frame height. Short description data lists the door as 23W. Shipping weight is 30 lbs (13.61 kg).

Installation uses an integrated spring pin at the top and bottom of the door, so CDF1970VPLG1 drops into a C2 Series cabinet without loose hardware at the pivot points. A formed plastic handle, quarter-turn lock and the hinges that mount on the cabinet are included. Series accessories listed by the manufacturer include a Door Adapter Kit, a Cabinet Door Replacement Lock and a Partial Height Door Support.

The door is manufactured in North America, is USMCA compliant, and carries country of origin CA, tariff code 7326.90.8688 and ECCN EAR99 for import and export documentation.
