Hammond CDF1963SLG1 36U Solid Door for C2 Cabinets, Light Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Solid 36U door for C2 Series cabinets with 63.00 in (1600 mm) frame height
- Overall size 19.33 in (491 mm) W x 62.75 in (1594 mm) H per part drawing
- Constructed in 16-gauge mild steel with textured RAL 7035 light gray powder coat
- Integrated spring pin at top and bottom for easy installation into C2 cabinets
- Includes formed plastic handle, quarter-turn lock with cam and two 1/4 in x 4-1/2 in hinge pins
- Powder coat complies with Greenguard guidelines for indoor air quality
- TAA-compliant for GSA Schedule purchases; RoHS, REACH and USMCA compliant
- Manufactured in North America; shipping weight 45 lbs (20.41 kg)
CDF1963SLG1 is a 36U solid front door finished in textured RAL 7035 light gray, made exclusively for use with the Hammond C2 Cabinet Series. It suits IT, AV and facilities teams that want to fully enclose a C2 frame, conceal cabled equipment and add a lockable barrier to mounted gear.
The door is constructed in 16-gauge steel (mild steel) with a textured powder coat finish that complies with the Greenguard guidelines for indoor air quality. As a solid door, it provides a closed front panel with no perforations or window; the CDF Series also offers louver vented, vented, window and vented window styles for airflow or visibility needs.
Per the part drawing, CDF1963SLG1 measures 19.33 in (491 mm) wide by 62.75 in (1594 mm) high with a 0.53 in (13 mm) formed profile depth, and it is designated for C2 cabinets with 36U of rack space and a 63.00 in (1600 mm) height. Shipping weight is 45 lbs (20.41 kg).
Installation uses an integrated spring pin at the top and bottom of the door, so it drops into C2 Series cabinets without loose hardware kits. The door ships with a formed black plastic handle, a quarter-turn lock complete with 0.531 in H cam (DWS220-9208) and two 1/4 in x 4-1/2 in long hinge pins to mount on the cabinet.
- RoHS and REACH compliant, TAA-compliant for GSA Schedule purchases
- USMCA compliant, manufactured in North America (Country of Origin: CA)
- Accessories available in the series include a Door Adapter Kit, Cabinet Door Replacement Lock and Partial Height Door Support
Ideal For
- Enclosing and securing 36U C2 Series server cabinets
- Lockable front door for IT and network equipment cabinets
- AV and equipment rooms where a solid, dust-shielding front panel is preferred
- Replacement or upgrade door for existing C2 cabinet frames
- GSA Schedule and TAA-compliant government cabinet builds
Overview
| Series | C2 Doors, CDF Series |
| Door Type | Solid |
| Description | 36U Solid Door for C2 Frame |
| Part Number | CDF1963SLG1 |
| Compatibility | Exclusively for use with the C2 Cabinet Series |
| Short Description | 36U 23W C2 SOLID DOOR |
| Black Equivalent Part Number | CDF1963SBK1 |
Dimensions
| Overall Width (Drawing) | 19.33 in (491 mm) |
| Overall Height (Drawing) | 62.75 in (1594 mm) |
| Profile Depth (Bottom View) | 0.53 in (13 mm) |
Accessories
| Series Accessories | Door Adapter Kit, Cabinet Door Replacement Lock, Partial Height Door Support |
Identifiers
| UPC | 623980575056 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980575056 |
| UPC W/o Check Digit | 62398057505 |
Rack Mounting
| Mounting Method | Integrated spring pin at top and bottom of the door |
| Use With Cabinet - Height | 63.00 in (1600 mm) |
| Use With Cabinet - Rack Units | 36U |
Included Items
| Lock | Quarter-turn lock complete with 0.531 in H cam, DWS220-9208 (Qty 1) |
| Handle | Black plastic handle (Qty 1) |
| Door Panel | C2 Solid Flush Door 19x63 (Qty 1) |
| Hinge Pins | Hinge pin 1/4 in x 4-1/2 in long (Qty 2) |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 45 lbs (20.41 kg) |
| Country Of Origin | CA |
Construction & Finish
| Gauge | 16-gauge steel |
| Finish | Textured RAL 7035 light gray powder coat |
| Material | Mild Steel |
| Manufactured In | North America |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant (for GSA Schedule purchases) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Indoor Air Quality | Finish complies with Greenguard guidelines for indoor air quality |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which cabinets does CDF1963SLG1 fit?▾
It is made exclusively for the Hammond C2 Cabinet Series, specifically C2 cabinets with 36U of rack space and a 63.00 in (1600 mm) height.
Does this door come with a lock and handle?▾
Yes. The door includes a formed black plastic handle, a quarter-turn lock complete with 0.531 in H cam (DWS220-9208) and two 1/4 in x 4-1/2 in long hinge pins to mount on the cabinet.
Is this door vented?▾
No. CDF1963SLG1 is a solid flush door. The CDF Series also offers louver vented, vented, window and vented window door options if airflow or visibility is required.
What colour is CDF1963SLG1, and is black available?▾
CDF1963SLG1 is finished in textured RAL 7035 light gray powder coat. The equivalent black version is CDF1963SBK1.
How is the door installed?▾
It installs into C2 Series cabinets using the integrated spring pin at the top and bottom of the door, with the supplied hinges mounting to the cabinet.
Is this part suitable for government purchases?▾
It is TAA-compliant for GSA Schedule purchases, USMCA compliant, RoHS and REACH compliant, with country of origin CA and ECCN EAR99.
Related Products
Save 35%CDF1963SBK1 — 36U Solid Door for C2 Frame
Hammond Manufacturing · CDF1963SBK1

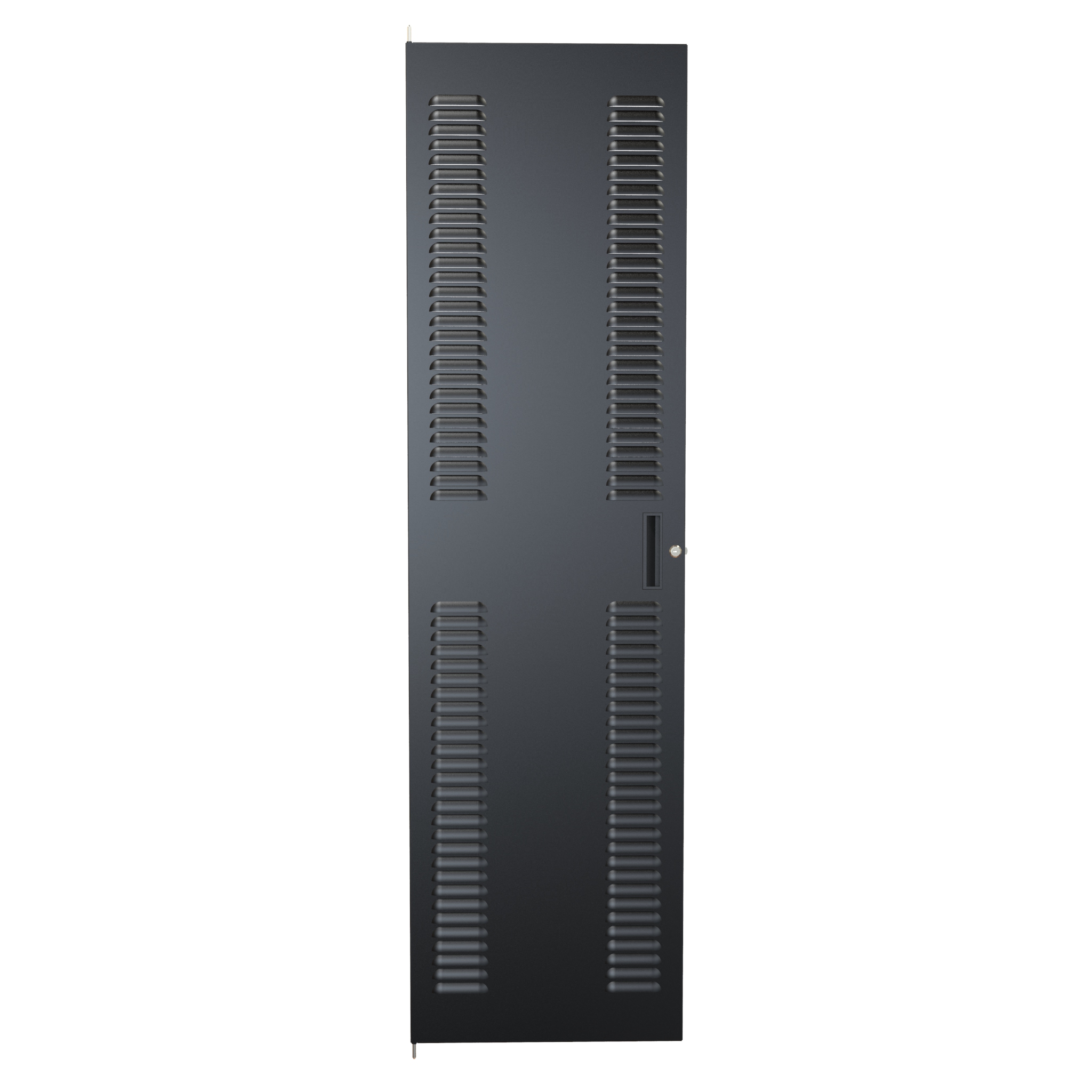

Save 35%CDF1970LBK1 — 40U Louvered Door for C2 Frame
Hammond Manufacturing · CDF1970LBK1
Save 35%CDF1963LLG1 — 36U Louvered Door for C2 Frame
Hammond Manufacturing · CDF1963LLG1

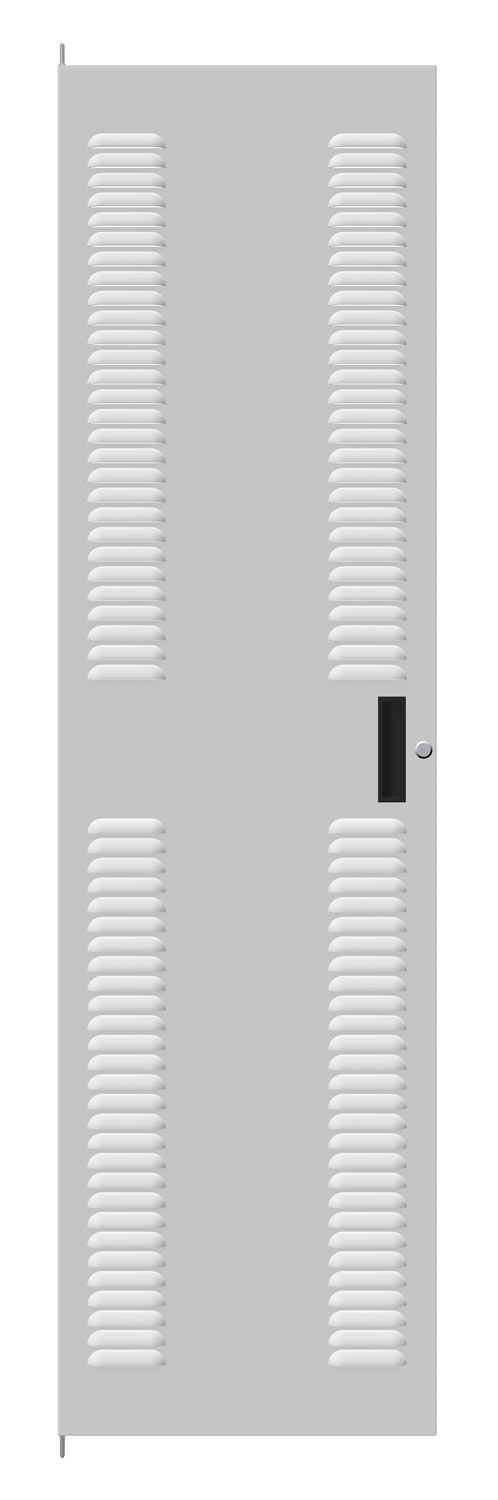

Save 35%CDF1970LLG1 — 40U Louvered Door for C2 Frame
