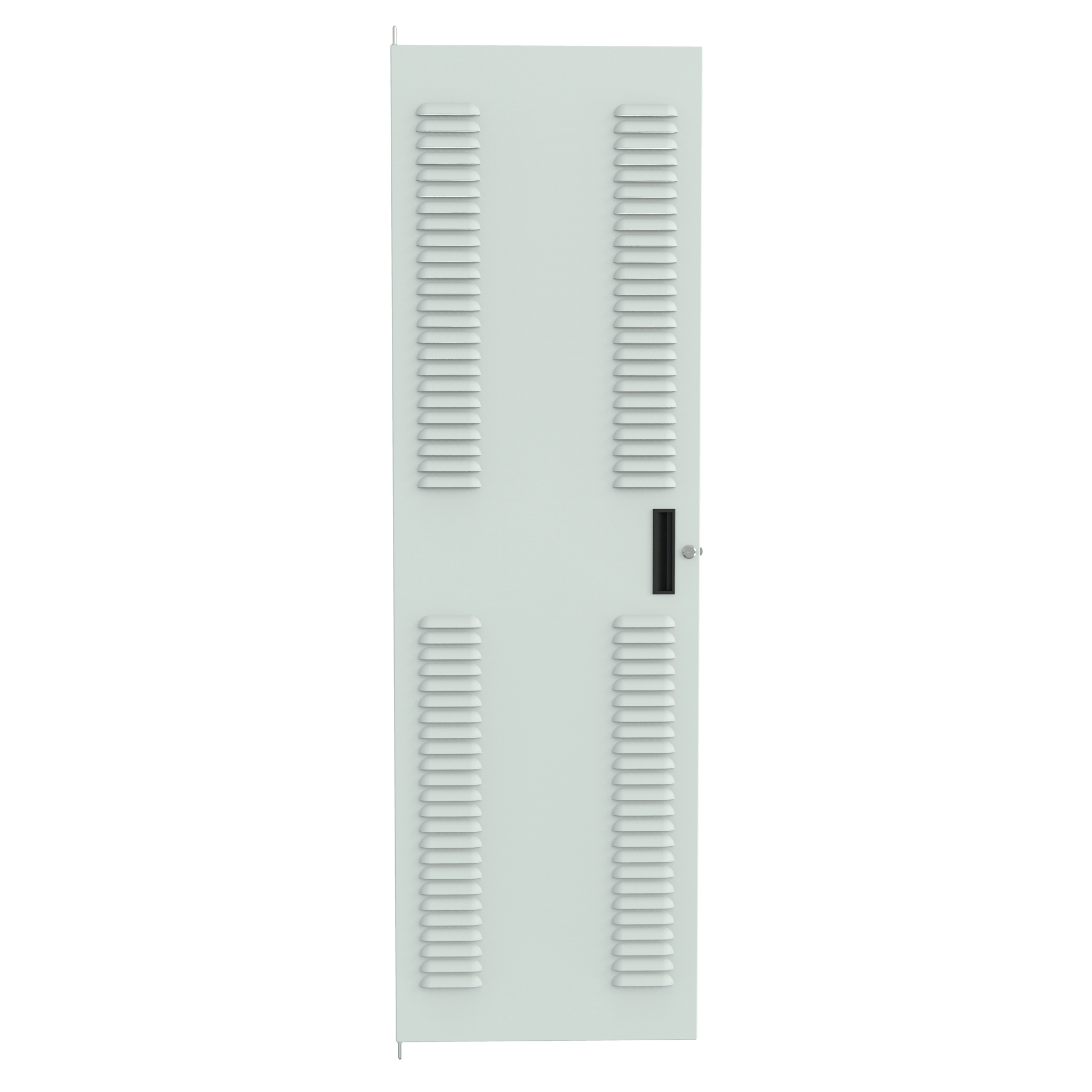

Hammond CDF1963LLG1 36U Louver Vented Cabinet Door in Light Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 36U louver vented door for C2 Series cabinets with 63.00 in (1600 mm) height
- Constructed in 16-gauge mild steel for rigidity
- Textured RAL 7035 light gray powder coat finish
- Includes formed plastic handle, quarter-turn lock with cam and two hinge pins
- Installs into C2 Series cabinets using integrated spring pins at top and bottom
- Panel size 19.33 in (491 mm) wide x 62.75 in (1594 mm) high
- TAA-compliant for GSA Schedule purchases; RoHS, REACH and USMCA compliant
- Greenguard indoor air quality guideline compliant finish; made in North America
The CDF1963LLG1 is a 36U louver vented door from the Hammond CDF Series, made exclusively for use with C2 Series cabinets. It suits IT and AV integrators, data centre and facilities teams who need passive airflow across the front or rear of a rack while keeping installed equipment enclosed and lockable.
The door is constructed in 16-gauge steel and finished in textured RAL 7035 light gray powder coat. Full-height louvers allow air to pass through the door face, and the assembly ships as a complete door: a formed black plastic handle, a quarter-turn lock with cam, and two 1/4 in x 4-1/2 in long hinge pins for mounting to the cabinet.
Overall panel dimensions are 19.33 in (491 mm) wide by 62.75 in (1594 mm) high, with a 0.53 in (13 mm) formed depth. It is intended for C2 cabinets rated at 36U with a 63.00 in (1600 mm) height. Shipping weight is 45 lbs (20.41 kg).
Installation uses integrated spring pins at the top and bottom of the door, so CDF1963LLG1 drops into the cabinet frame without special tooling. Doors are available in black or light gray; this part number is the RAL 7035 light gray version, while CDF1963LBK1 is the textured black equivalent.
- Greenguard guideline compliant powder coat finish for indoor air quality
- TAA-compliant for GSA Schedule purchases
- RoHS, REACH and USMCA compliant; manufactured in North America
Ideal For
- Replacement or added front/rear door for 36U C2 Series cabinets
- Ventilated enclosure of network and server equipment
- Lockable access control for rack-mounted gear
- TAA-compliant GSA Schedule cabinet build-outs
Overview
| Series | C2 Doors (CDF Series) |
| Door Type | Louver Vented Door |
| Description | 36U Louvered Door for C2 Frame |
| Part Number | CDF1963LLG1 |
| Product Type | Rack accessory door |
| Compatibility | Exclusively for use with the C2 Cabinet Series |
| Short Description | 36U 23W C2 LOUVERED DOOR |
Dimensions
| Formed Depth | 0.53 in (13 mm) |
| Overall Width | 19.33 in (491 mm) |
| Overall Height | 62.75 in (1594 mm) |
Identifiers
| UPC | 623980575049 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980575049 |
| UPC W/o Check Digit | 62398057504 |
| Black Equivalent Part Number | CDF1963LBK1 |
Rack Mounting
| Rack Units | 36U |
| Mounting Method | Integrated spring pin at top and bottom of door; hinges mount on the cabinet |
| Use With Cabinet Height | 63.00 in (1600 mm) |
Packaging & Shipping
| ECCN | EAR99 |
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 45 lbs (20.41 kg) |
| Country Of Origin | CA |
Construction & Finish
| Gauge | 16-gauge steel |
| Finish | Textured RAL 7035 light gray powder coat |
| Material | Mild Steel |
| Lock Type | Quarter-turn lock |
| Included Hardware | Black plastic handle (1), lock c/w .531 H cam DWS220-9208 (1), hinge pin 1/4 in x 4-1/2 in long (2) |
Compliance & Certifications
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Indoor Air Quality | Complies with the Greenguard guidelines for indoor air quality |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which cabinets does CDF1963LLG1 fit?▾
It is made exclusively for Hammond C2 Series cabinets, specifically 36U cabinets with a 63.00 in (1600 mm) height.
What colour and finish is this door?▾
It is finished in textured RAL 7035 light gray powder coat. The same door in textured black is CDF1963LBK1.
Does the door come with a lock and handle?▾
Yes. It includes a formed black plastic handle, a quarter-turn lock with a .531 H cam (DWS220-9208) and two 1/4 in x 4-1/2 in hinge pins for mounting to the cabinet.
How does it install?▾
It installs into C2 Series cabinets using the integrated spring pins at the top and bottom of the door, with the hinges mounting on the cabinet.
Is this door suitable for government procurement?▾
It is TAA-compliant for GSA Schedule purchases and is manufactured in North America, with a country of origin of Canada.
What are the door's dimensions and weight?▾
The panel measures 19.33 in (491 mm) wide by 62.75 in (1594 mm) high with a 0.53 in (13 mm) formed depth, and shipping weight is 45 lbs (20.41 kg).
Related Products

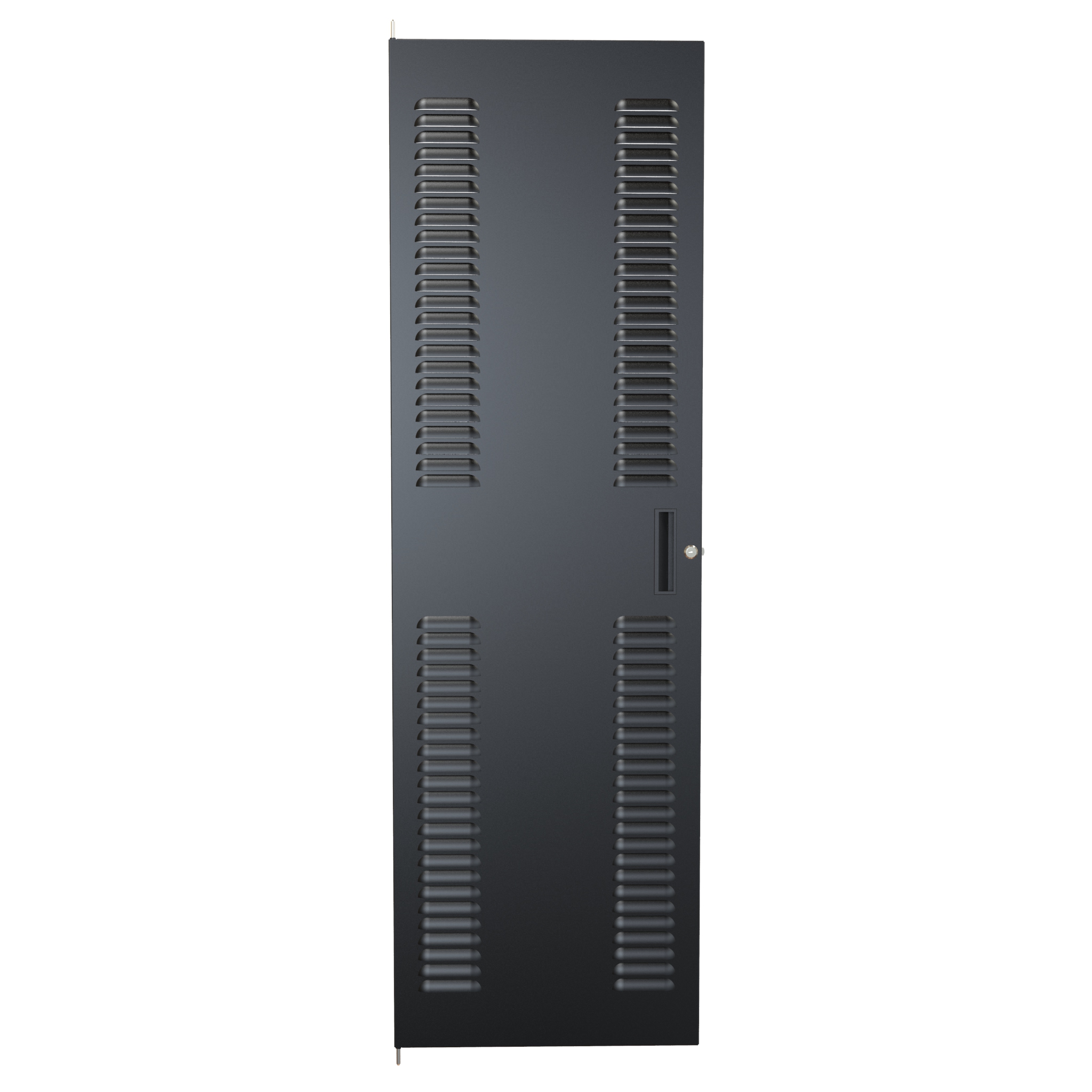

Save 35%CDF1963LBK1 — 36U Louvered Door for C2 Frame
Hammond Manufacturing · CDF1963LBK1

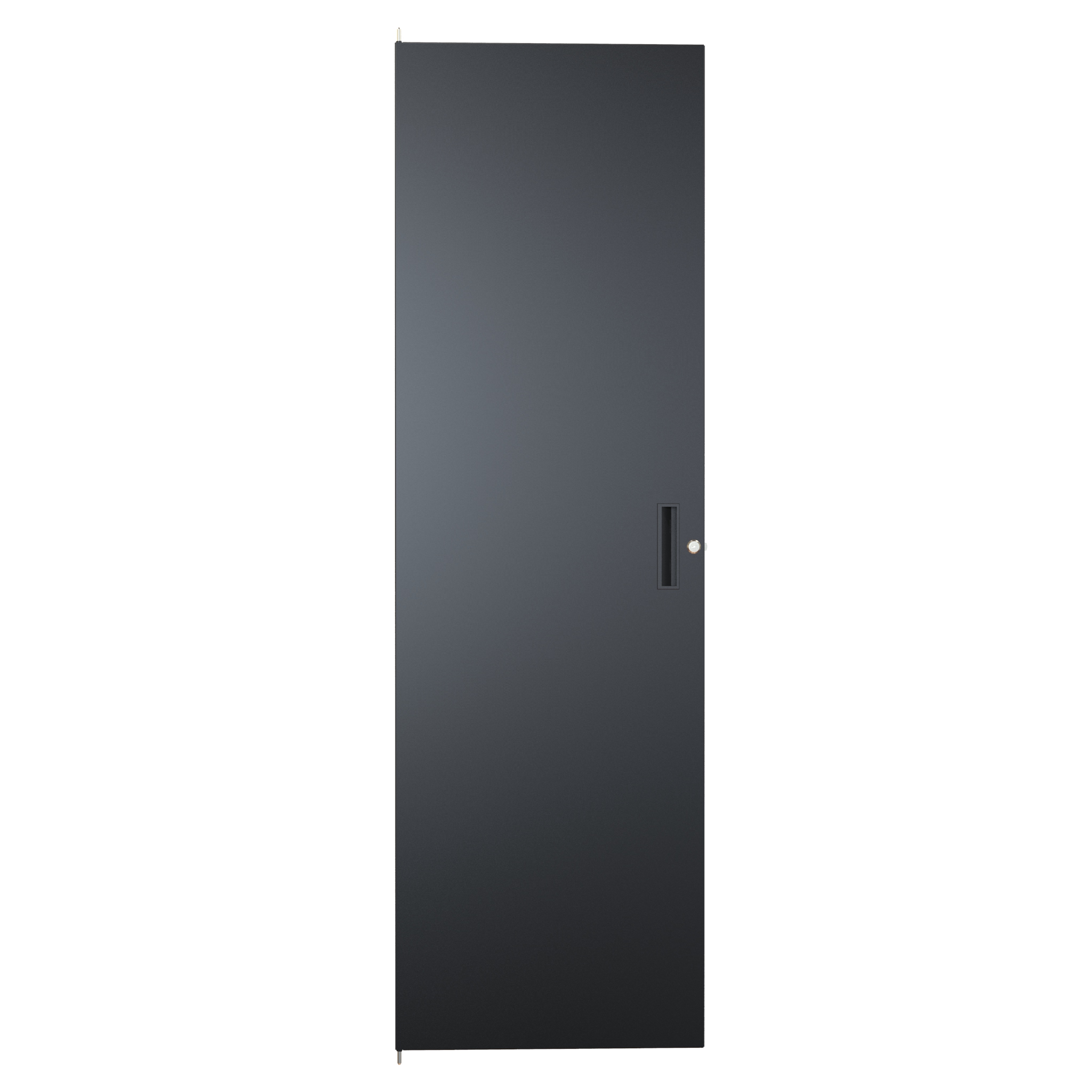

Save 35%CDF1963SBK1 — 36U Solid Door for C2 Frame
Hammond Manufacturing · CDF1963SBK1

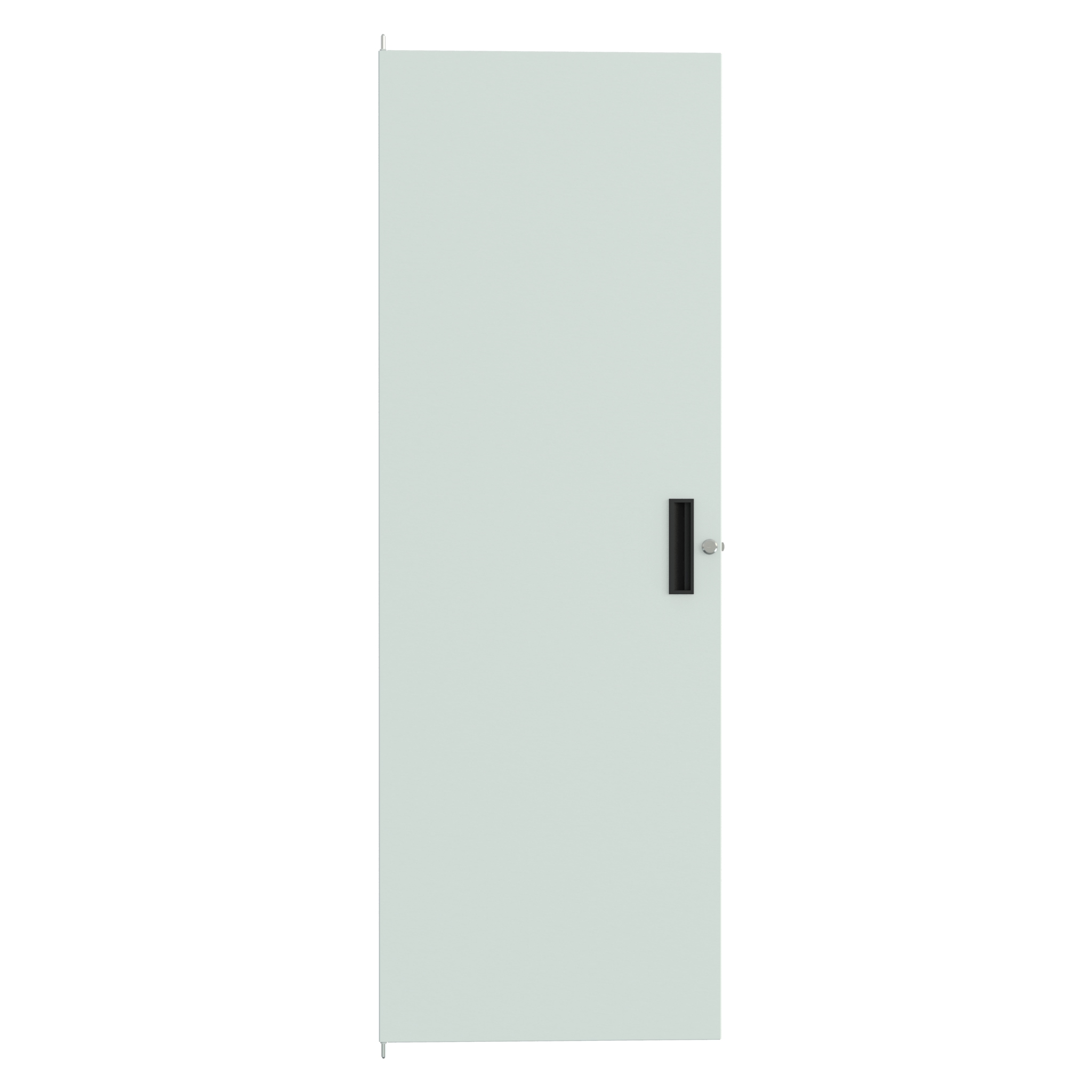

Save 35%CDF1956SLG1 — 32U Solid Door for C2 Frame
Hammond Manufacturing · CDF1956SLG1

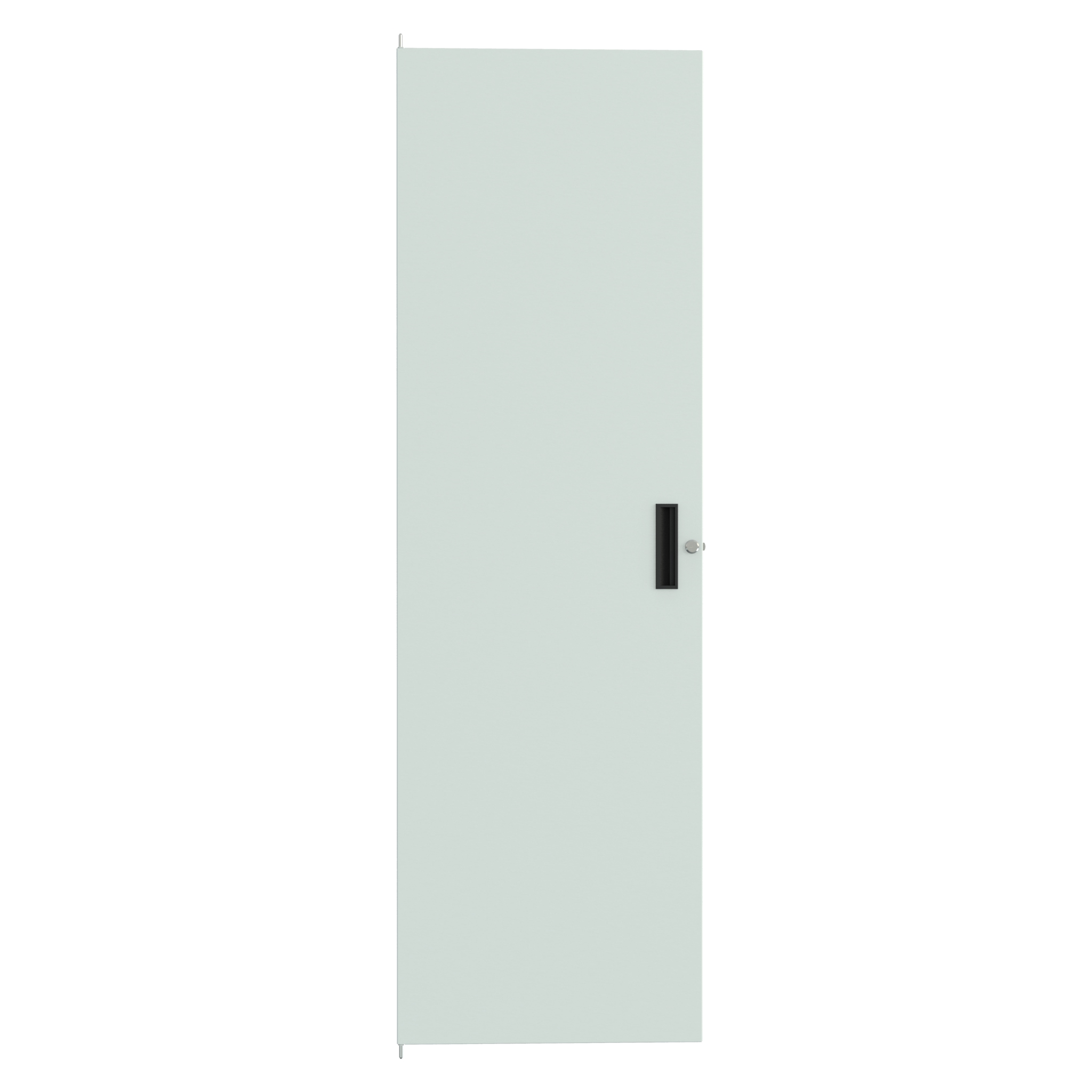

Save 35%CDF1963SLG1 — 36U Solid Door for C2 Frame
Hammond Manufacturing · CDF1963SLG1

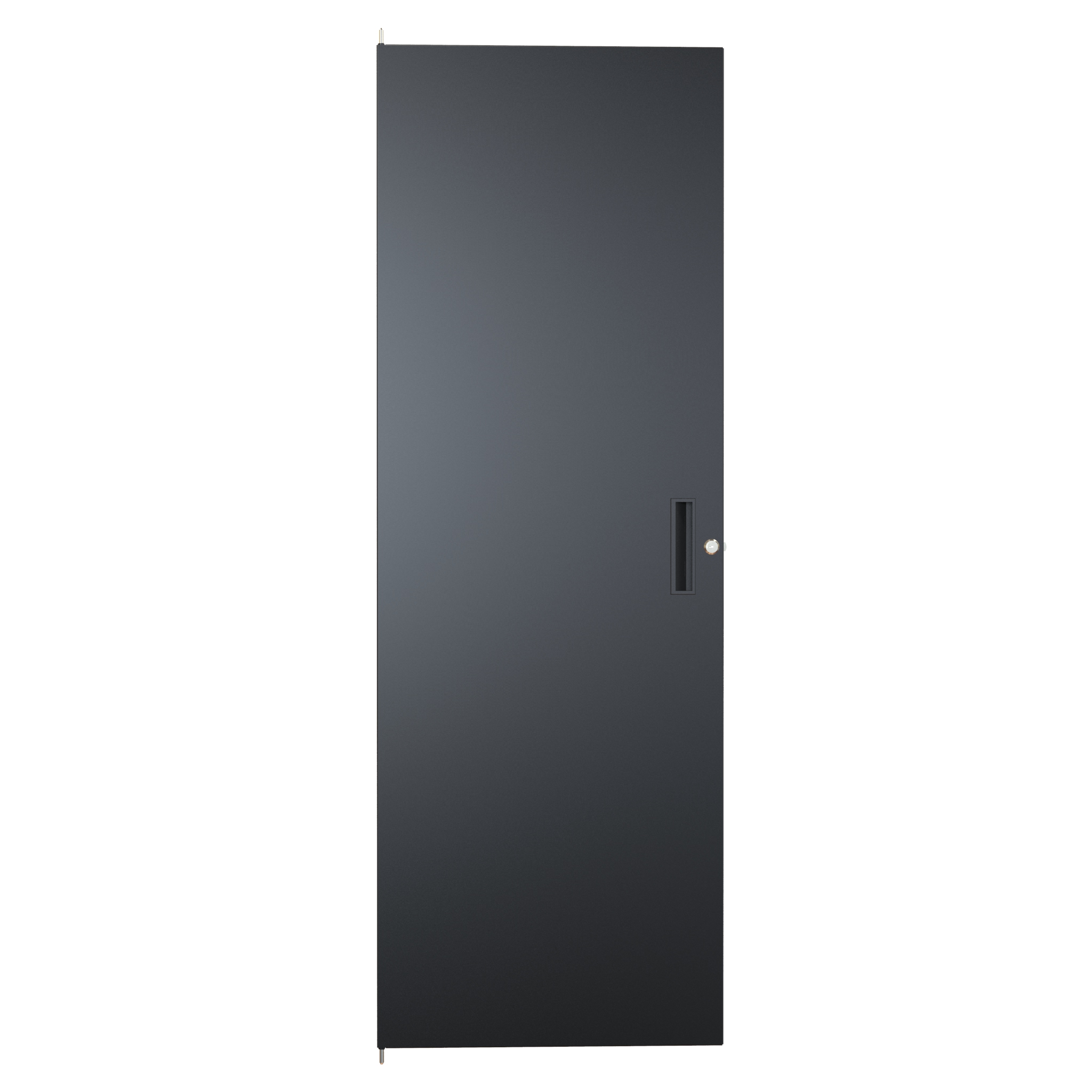

Save 35%CDF1956SBK1 — 32U Solid Door for C2 Frame
