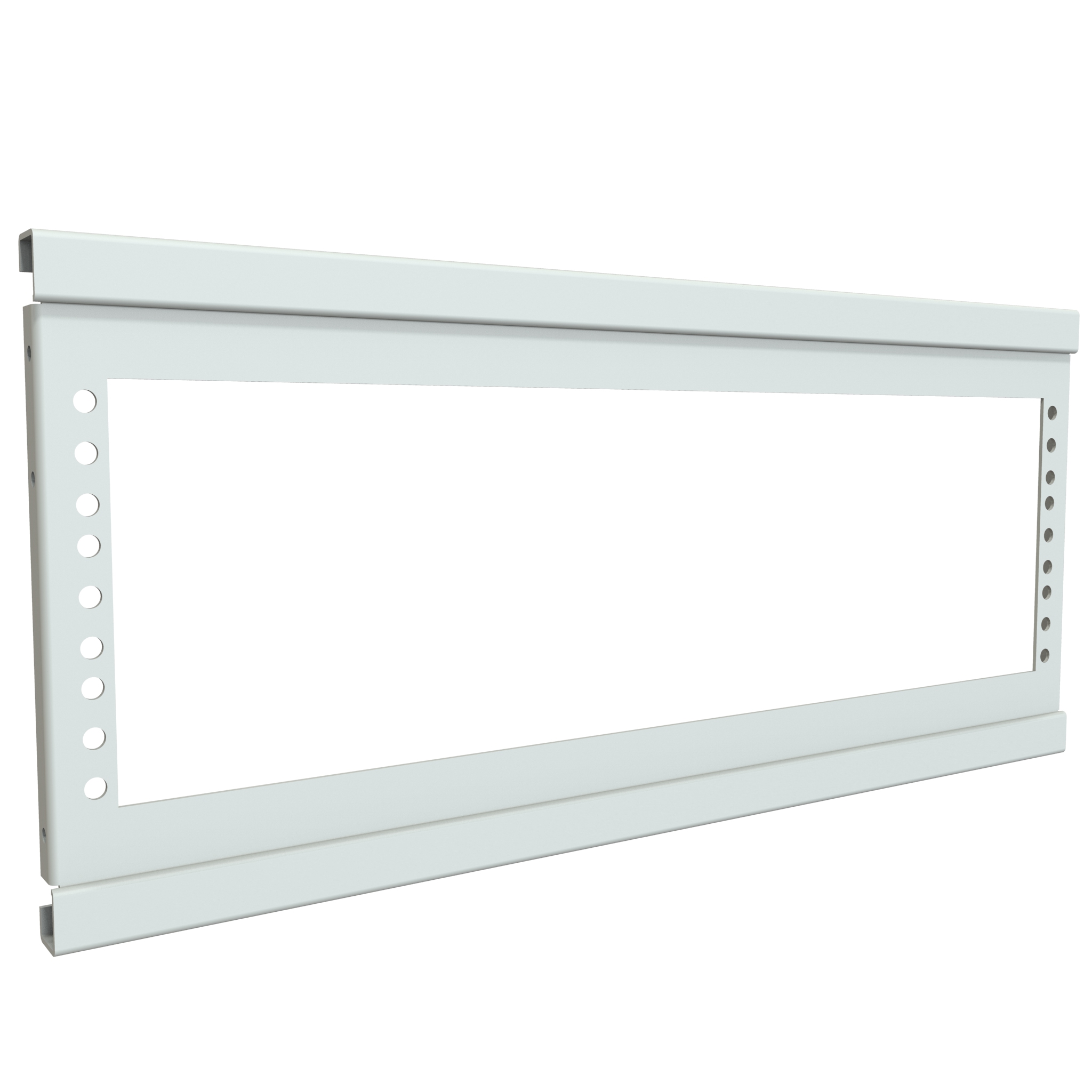

Hammond CBA1985LG1 5U Door Adapter Rack Mount Kit, Light Gray

The CBA1985LG1 is a door adapter rack mount kit from the Hammond CBA Series, intended exclusively for use with the C2 Cabinet Series. It is designed for IT, AV and facilities teams who need rack mount access at the front or rear of a C2 cabinet in place of a full-height door, and is catalogued by the manufacturer as a rack accessory with the short description "5U 19W BLOWER ADAPTOR KIT".

The panel is constructed of 14-gauge mild steel and finished in textured RAL7035 light gray powder paint coat. The finish complies with the Greenguard guidelines for indoor air quality, and the part is RoHS and REACH compliant, USMCA compliant and TAA-compliant for GSA Schedule purchases. It is manufactured in North America, with Canada listed as the country of origin.

Overall dimensions are 8.75 in (222 mm) high, 19.50 in (495 mm) wide and 0.75 in (19 mm) deep. The CBA1985LG1 occupies 5U of the cabinet frame and provides 3U of usable rack mounting space, with 19 in mounting flanges on E.I.A. spacing, 18.35 in (466 mm) between mounting rails and 17.81 in (452 mm) inside width. The 3U mounting area measures 4.75 in (121 mm), and the internal height is 5.31 in (135 mm). Mounting holes are 0.28 in (7 mm).

The kit is designed to fit within the frame width opening at either the top or bottom of the C2 frame, so a C2 door can be installed above or below it for a combined solution. Mounting hardware is included. Shipping weight is 5 lbs (2.27 kg).
