Hammond C4D3077VBK1 44U Vented Surface Door for 30 in Wide Cabinet

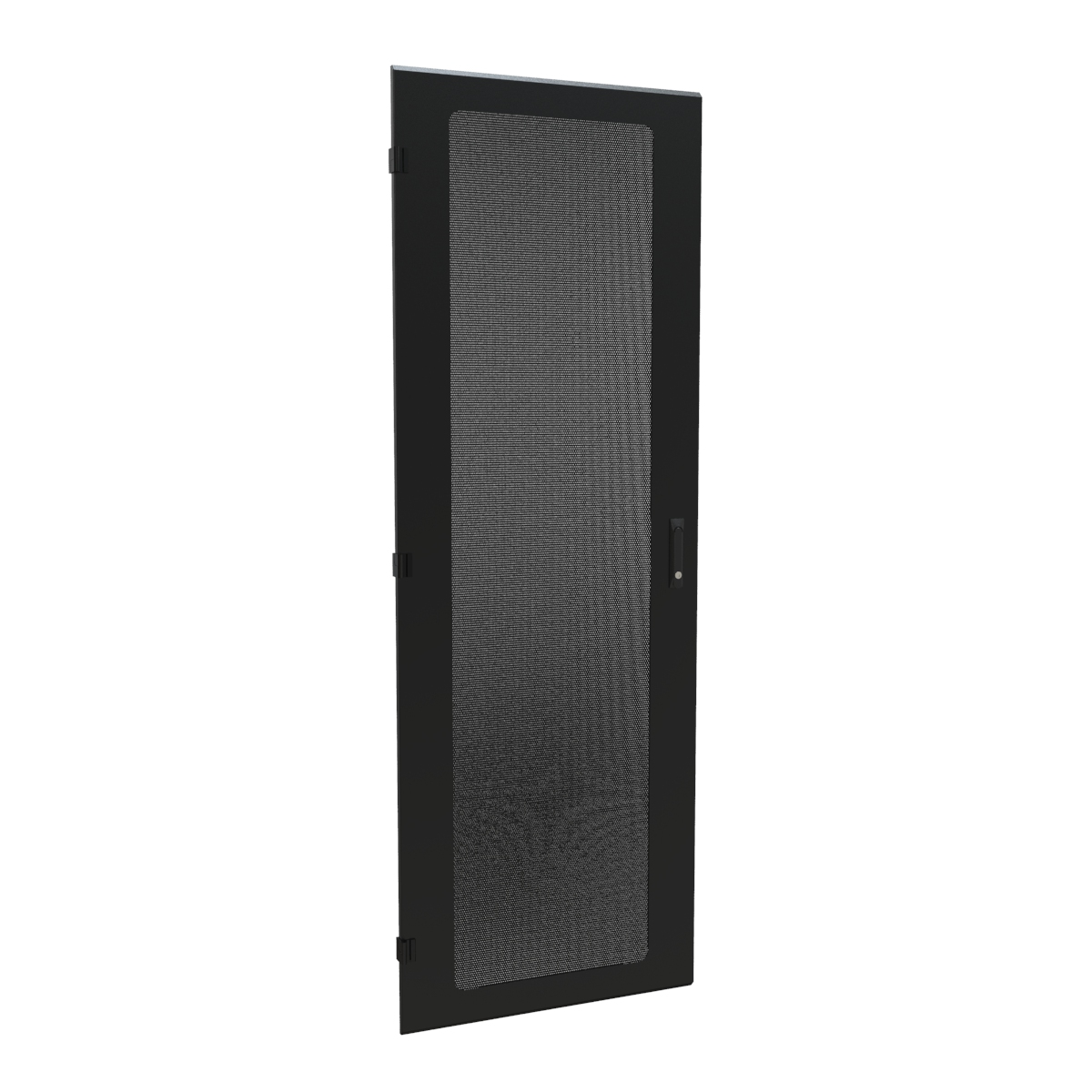

The C4D3077VBK1 is a vented surface-mount cabinet door sized for 44U C4 Series cabinets with a 30.00 in (762 mm) width. It is intended for IT, AV and facilities teams who need front or rear airflow through a server or network cabinet while keeping equipment secured behind a locking door. Perforated doors for both the front and back of the cabinet are suggested for most server applications.

The door is constructed in 16-gauge mild steel and finished in a textured RAL9005 black powder paint coat that complies with the Greenguard guidelines for indoor air quality. The door panel carries a 79% perforation pattern for open ventilation area. Overall panel dimensions are 29.00 in (737 mm) wide by 82.06 in (2084 mm) high, with a 0.84 in (21 mm) formed depth, and shipping weight is 54 lbs (24.49 kg).

C4D3077VBK1 ships as a complete surface door assembly: three left-hand surface door hinges, an FH333 swing handle key lock, an offset cam, and three stick-on rubber bumper feet. As supplied, the door is hinged on the left and swings from right to left; the drawing notes that a DC100HINGE kit is required for right-hand hinging, and the series also lists C4RHINGE for right-hand hinging.

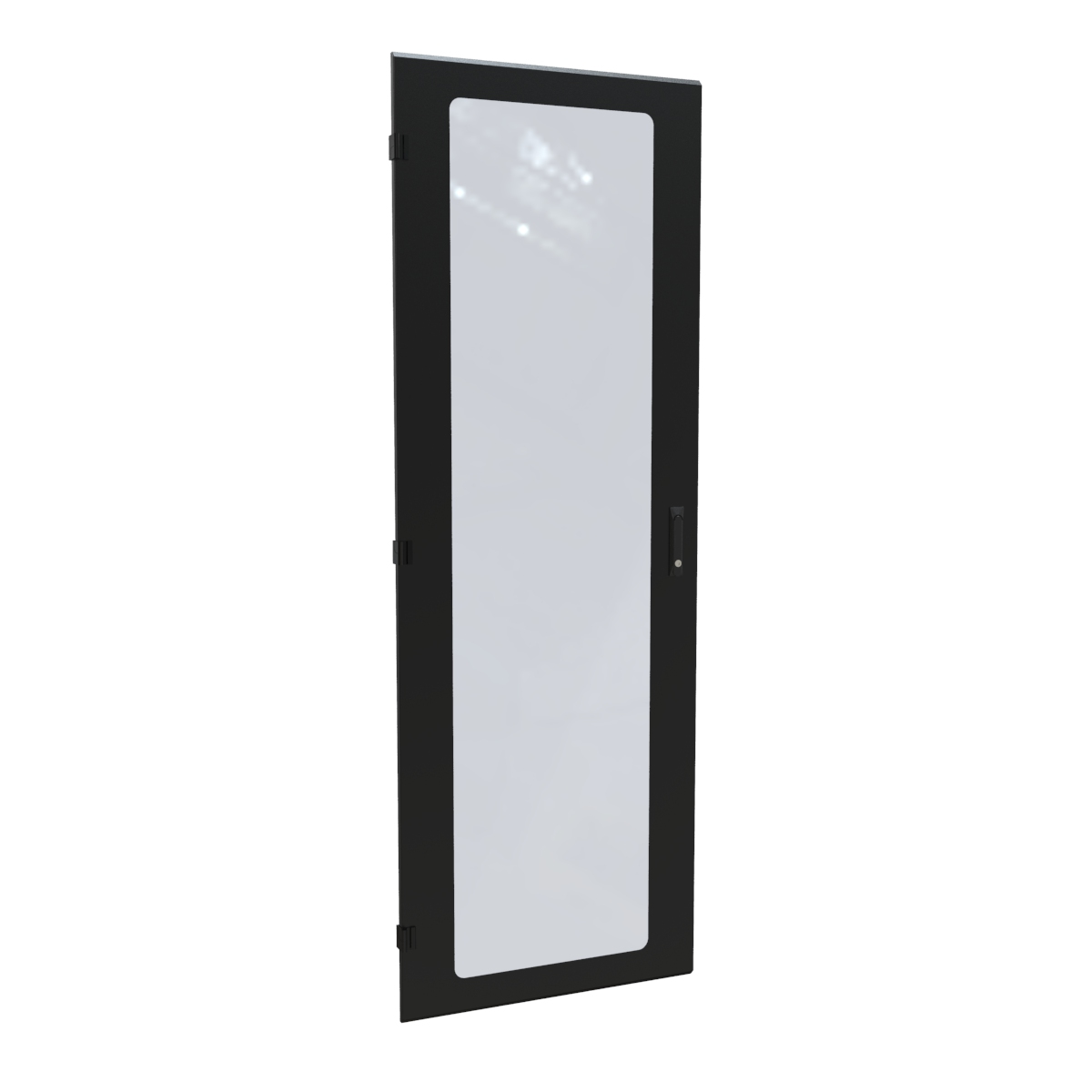

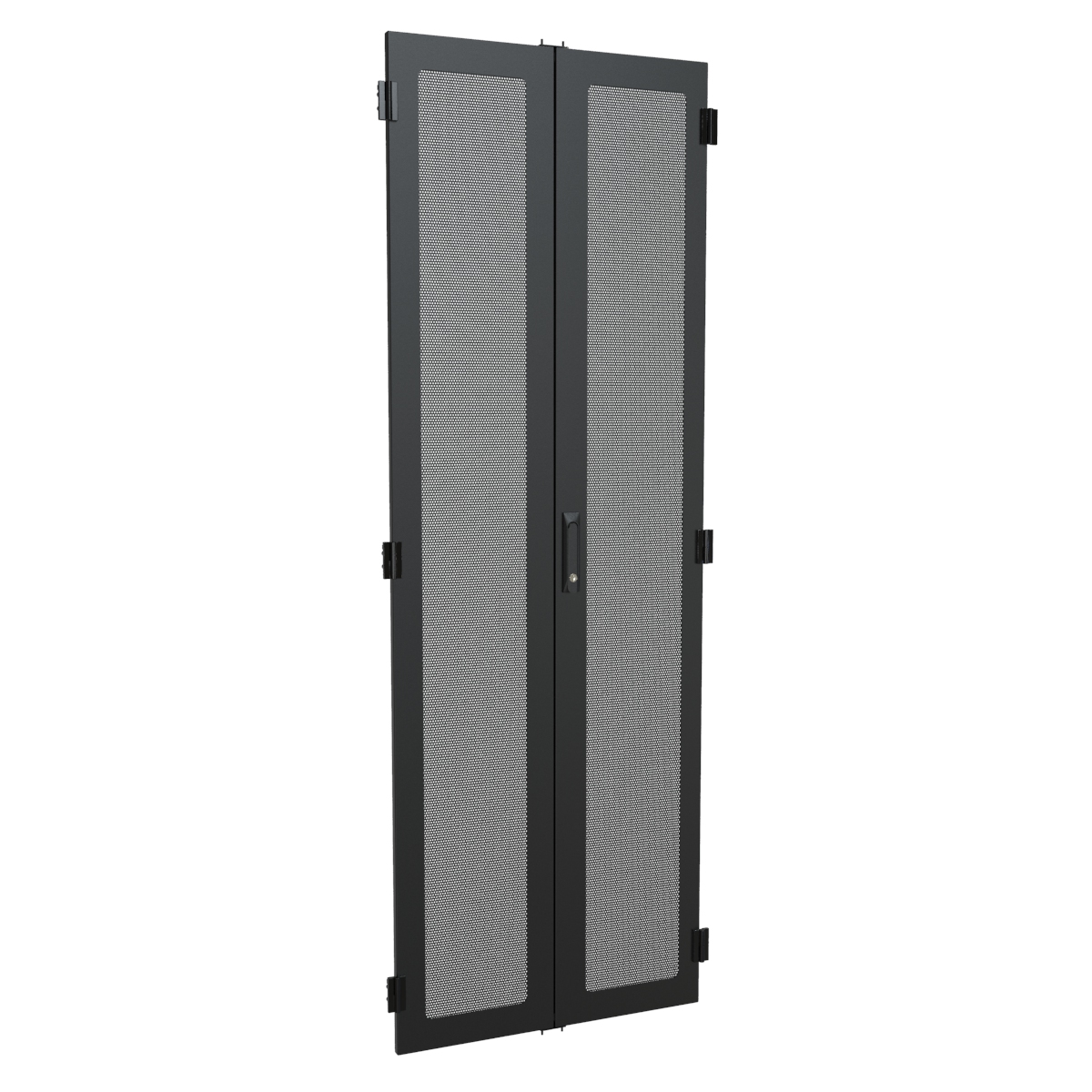

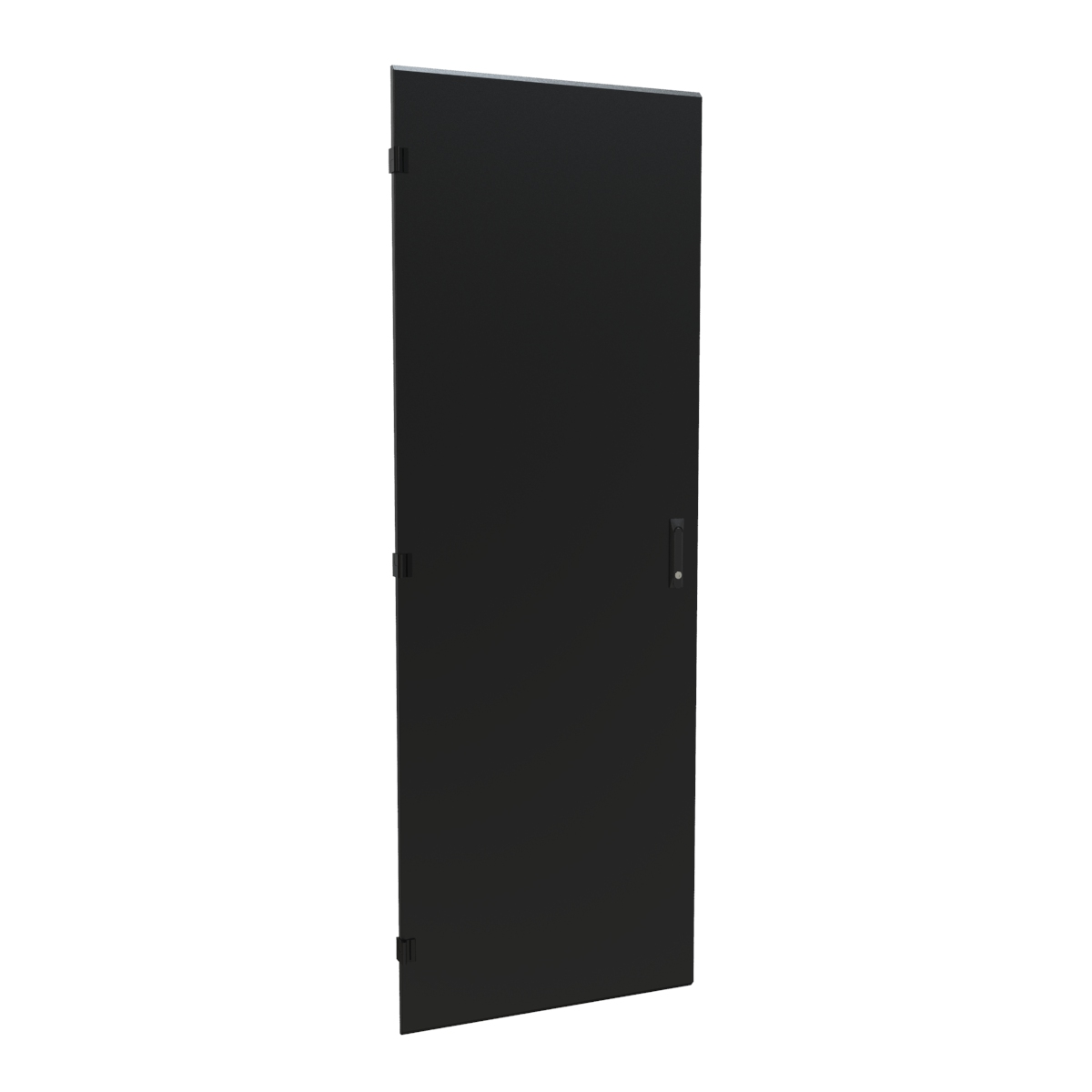

The part is TAA-compliant for GSA Schedule purchases, RoHS and REACH compliant, USMCA compliant, and manufactured in North America (country of origin CA). Solid, window and vented split (barn) versions of the same 44U, 30 in wide surface door are also offered in the series if a different panel style is required.
