Hammond C4BBCE3042BK1 Brushed Cable Entry Bottom Panel, 30 x 42
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Brushed cable entry bottom panel for C4 cabinet frames 30.00 in (762 mm) wide x 42.00 in (1067 mm) deep
- 14 gauge steel construction with black powder paint coat finish
- Brushed entry allows cabling to pass into the cabinet while the base stays enclosed
- Encloses cabinets for airflow management
- Compatible with C4, C4RR and DCZ4 cabinet series
- Mounting hardware included: 6 x 8-32 clip nuts and 6 x 8-32 x 0.5 in machine screws (CLPKIT832-6)
- TAA-compliant for GSA Schedule purchases; RoHS, REACH and USMCA compliant
- Finish complies with Greenguard guidelines for indoor air quality

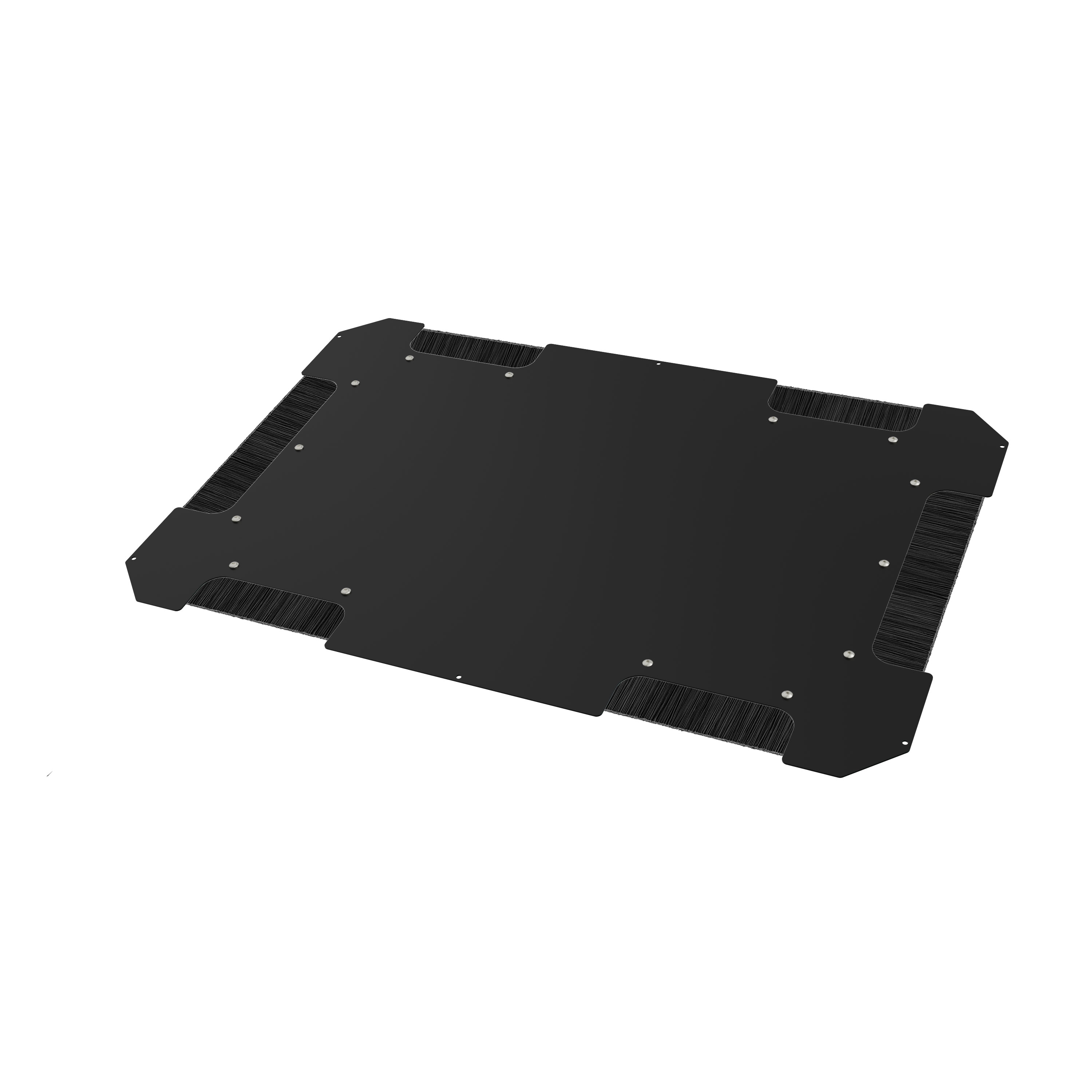

The C4BBCE3042BK1 is a brushed cable entry bottom panel sized for cabinet frames measuring 30.00 in (762 mm) wide by 42.00 in (1067 mm) deep. It is intended for IT, AV and facilities teams who need to close off the base of an open cabinet frame while still routing power and data cabling into the enclosure from below. The brushed cable entry opening lets cable bundles pass through the floor of the cabinet, while the panel itself encloses the base for airflow management.
Construction is 14 gauge mild steel finished in black powder paint coat, and the finish complies with the Greenguard guidelines for indoor air quality. The panel is designed for use with the C4, C4RR and DCZ4 cabinet series, so it can be added to new builds or retrofitted to frames already in service.
Mounting hardware is included in the box: six 8-32 clip nuts with a black oxide finish and six 8-32 x 0.5 in zinc-plated machine screws, available separately as replacement kit CLPKIT832-6. Shipping weight of C4BBCE3042BK1 is 20 lbs (9.07 kg).
Key drawing dimensions include an overall 37.00 in (940 mm) dimension, 0.22 in (6 mm) diameter mounting holes, and 12.00 in (305 mm), 25.00 in (635 mm), 7.49 in (190 mm), 2.36 in (60 mm) and 0.86 in (22 mm) call-outs as shown on the part drawing.
- RoHS and REACH compliant, USMCA compliant and TAA-compliant for GSA Schedule purchases.
- Manufactured in North America; country of origin CA.
Ideal For
- Closing the base of C4, C4RR or DCZ4 server cabinets
- Under-floor cable entry into data center cabinets
- Cabinet airflow management and containment
- Retrofitting existing 30 x 42 in cabinet frames
- TAA-compliant GSA Schedule cabinet builds
Overview
| Series | C4B Series Bottom Panels |
| Panel Type | Brushed cable entry bottom panel |
| Description | C4 Brushed Cable Bottom Panel |
| Part Number | C4BBCE3042BK1 |
| Solid Equivalent Part No. | C4B3042SBK1 |
Dimensions
| Hole Diameter | 0.22 in (6 mm) |
| Drawing Dimension | 2.36 in (60 mm) |
| Use With Cabinet Depth | 42.00 in (1067 mm) |
| Use With Cabinet Width | 30.00 in (762 mm) |
| Drawing Dimension (Overall) | 37.00 in (940 mm) |
| Drawing Dimension (Front View) | 0.86 in (22 mm) |
Identifiers
| UPC | 623980004945 |
| UNSPSC | 43201611 |
| GTIN-14 | 00623980004945 |
| Tariff Code | 8538.10.0000 |
| Country Of Origin | CA (Manufactured in North America) |
| UPC W/o Check Digit | 62398000494 |
Rack Mounting
| Mounting Hardware | Included (CLPKIT832-6) |
| Included Hardware Detail | 6 x 8-32 clip nut (black oxide finish); 6 x 8-32 x 0.5 in machine screw (zinc plated) |
| Compatible Cabinet Series | C4, C4RR and DCZ4 cabinet series |
Packaging & Shipping
| Shipping Weight | 20 lbs (9.07 kg) |
| What's In The Box | 1 x bottom panel, 6 x 8-32 clip nuts, 6 x 8-32 x 0.5 in machine screws |
Construction & Finish
| Gauge | 14 gauge steel construction |
| Finish | Black powder paint coat (RAL9005 black or RAL7035 gray offered in series) |
| Material | Mild Steel |
| Drawing Finish Call-Out | Painted Black |
Environmental & Protection
| Airflow Function | Encloses cabinets for airflow management |
| Indoor Air Quality | Finish complies with Greenguard guidelines |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant (for GSA Schedule purchases) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which cabinets does C4BBCE3042BK1 fit?▾
It is sized for a cabinet 30.00 in (762 mm) wide by 42.00 in (1067 mm) deep, and the C4B series is used with the C4, C4RR and DCZ4 cabinet series.
What is the difference between C4BBCE3042BK1 and C4B3042SBK1?▾
C4BBCE3042BK1 is the brushed cable entry version, while C4B3042SBK1 is the solid bottom panel for the same 30 x 42 in cabinet size.
Is mounting hardware included?▾
Yes. The box includes the panel plus six 8-32 black oxide clip nuts and six 8-32 x 0.5 in zinc-plated machine screws, sold separately as kit CLPKIT832-6.
What material and finish is used?▾
The panel is 14 gauge mild steel with a black powder paint coat finish that complies with Greenguard guidelines for indoor air quality.
Is this part TAA-compliant?▾
Yes. It is listed as TAA-compliant for GSA Schedule purchases, is USMCA compliant, and is manufactured in North America with a country of origin of CA.
How much does it weigh for shipping?▾
The shipping weight is 20 lbs (9.07 kg).
