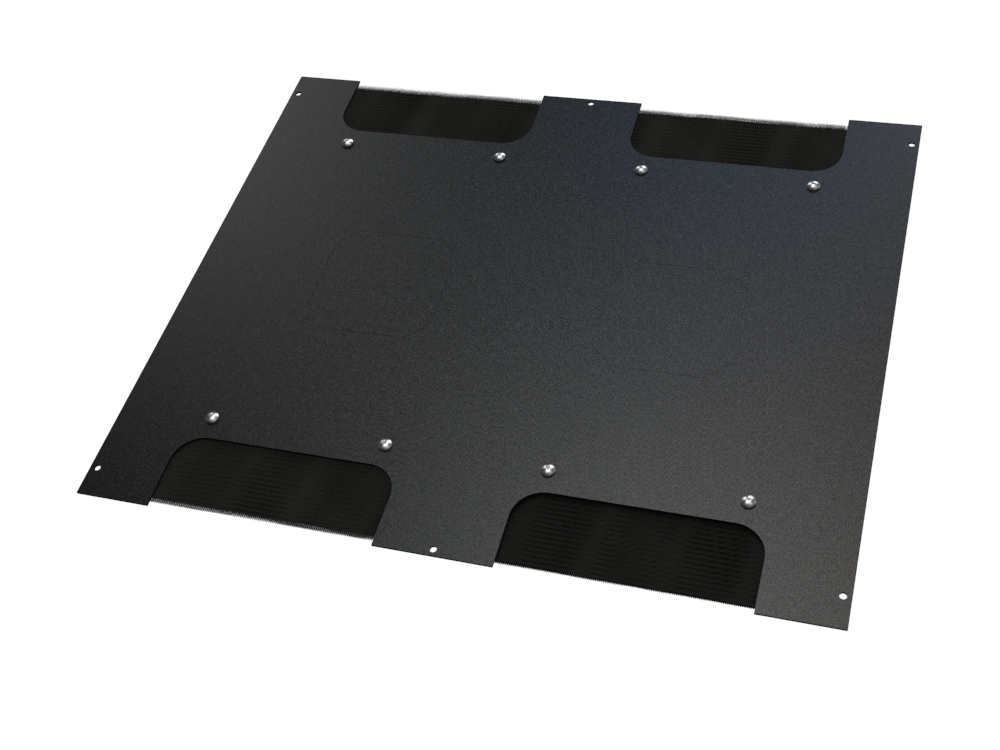

Hammond C2T1931BFBK1 20 x 23.75 in Brush Cable Top Panel, 4 Openings
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Overall panel size 20.00 in (508 mm) wide x 23.75 in (603 mm) deep for rack cabinet tops
- Four brushed cable entry openings included, each 2.36 in (60 mm) x 7.50 in (191 mm)
- 4 in laser fan knockouts accept optional FK fan kits or serve as extra cable entry
- 14-gauge mild steel construction for durable enclosure protection and long-term reliability
- Black powder coat finish is GREENGUARD, TSCA and RoHS compliant
- CLPKIT832-6 cabinet mounting hardware included for quick installation
- Fits C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK and CLC cabinets (H1 needs H1TC Series)
- TAA-compliant and manufactured in North America; RoHS, REACH and USMCA compliant
The C2T1931BFBK1 is a rack cabinet top panel with integrated brush cable entry, intended for IT, network, telecom, AV and broadcast installations where cables drop in from overhead ladder rack or cable tray. It replaces a solid top panel so cabling can pass cleanly into the cabinet while airflow and enclosure protection are maintained.
This panel measures 20.00 in (508 mm) wide by 23.75 in (603 mm) deep and is supplied with four brushed openings, each 2.36 in (60 mm) wide by 7.50 in (191 mm) long. The brush strips let bundles pass through in an organized way, and the four entry zones support higher cable densities than a single-entry panel. Integrated 4 in laser fan knockouts are dual purpose: use them to add active cooling with FK fan kits, or open them to increase cable entry capacity.
Construction is 14-gauge mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant, supporting indoor air quality and environmental requirements. Mounting holes are 0.22 in (6 mm) diameter and CLPKIT832-6 cabinet mounting hardware is included for quick installation.
C2T1931BFBK1 is designed for use with the C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK and CLC cabinet series; H1 cabinets require the H1TC Series for mounting. The panel is TAA-compliant and manufactured in North America, with RoHS, REACH and USMCA compliance for government and enterprise procurement.
Ideal For
- Routing cables from overhead ladder rack or tray into rack cabinets
- Data centers and IT rooms with overhead cable routing
- Network, telecom and structured cabling deployments
- AV and broadcast equipment cabinets
- High-density racks needing airflow plus cable management
Overview
| Series | C2T_BF |
| Part Number | C2T1931BFBK1 |
| Nominal Size | 24 in wide x 36 in deep (per manufacturer short description) |
| Product Type | Rack cabinet top panel with brush cable entry and fan knockouts |
| Short Description | BRUSH TOP PANEL 24W 36D |
Dimensions
| Overall Depth | 23.75 in (603 mm) |
| Overall Width | 20.00 in (508 mm) |
| Mounting Hole Diameter | 0.22 in (6 mm) |
| Brushed Openings Included | 4 |
| Cable Entry Opening Width | 2.36 in (60 mm) |
| Cable Entry Opening Length | 7.50 in (191 mm / 190 mm per drawing) |
Identifiers
| UNSPSC | 43201618 |
| GTIN-14 | 00623980015552 |
| UPC W/ Check Digit | 623980015552 |
| UPC W/o Check Digit | 62398001555 |
Rack Mounting
| Fan Knockout | 4 in laser knockout for optional fan kits or additional cable entry |
| Mounting Hardware | CLPKIT832-6 cabinet mounting hardware included |
| Optional Accessories | High CFM heavy duty cooling fan kits, low-decibel heavy duty cooling fan kits, filter fan grills (FK fan kits) |
| Cabinet Compatibility | C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK, CLC (H1 requires H1TC Series for mounting) |
Packaging & Shipping
| ECCN | EAR99 |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA |
Construction & Finish
| Finish | Black powder coat, painted black |
| Material | Mild Steel |
| Finish Compliance | GREENGUARD, TSCA and RoHS compliant |
| Material Thickness | 14-gauge steel |
Compliance & Certifications
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Manufacturing Origin | Manufactured in North America |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many brush cable entry openings does C2T1931BFBK1 have?▾
It includes four brushed openings, each 2.36 in (60 mm) wide by 7.50 in (191 mm) long.
What are the overall dimensions of this top panel?▾
The panel is 20.00 in (508 mm) wide by 23.75 in (603 mm) deep. Note that the manufacturer's short description lists the nominal size as 24W 36D.
Can I add cooling fans to this panel?▾
Yes. The panel has 4 in laser fan knockouts that accept optional FK fan kits, including high CFM heavy duty kits, low-decibel heavy duty kits and filter fan grills. The same knockouts can also be opened for additional cable entry.
Which cabinets does it fit?▾
It is designed for use with the C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK and CLC cabinet series. H1 cabinets require the H1TC Series for mounting.
Is mounting hardware included?▾
Yes. CLPKIT832-6 cabinet mounting hardware is included, as noted on the part drawing.
Is this part suitable for government procurement?▾
It is TAA-compliant and manufactured in North America, and is listed as RoHS, REACH and USMCA compliant with ECCN EAR99.
