Hammond C2T1923BFBK1 24W x 31D Brush Cable Entry Cabinet Top Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Overall panel size 20.00 in (508 mm) W x 15.00 in (381 mm) D for 24W x 31D rack cabinets
- Two (2) brushed cable entry openings, each 2.36 in (60 mm) x 7.50 in (191 mm), for clean cable pass-through
- 4 in fan laser knockout accepts optional FK fan kits or adds extra cable entry capacity
- 14-gauge mild steel construction for durable enclosure protection
- Black powder coat finish; GREENGUARD, TSCA and RoHS compliant
- CLPKIT832-6 cabinet mounting hardware included for quick installation
- Fits C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK and CLC cabinets (H1 requires H1TC Series)
- TAA-compliant and manufactured in North America; USMCA, RoHS and REACH compliant

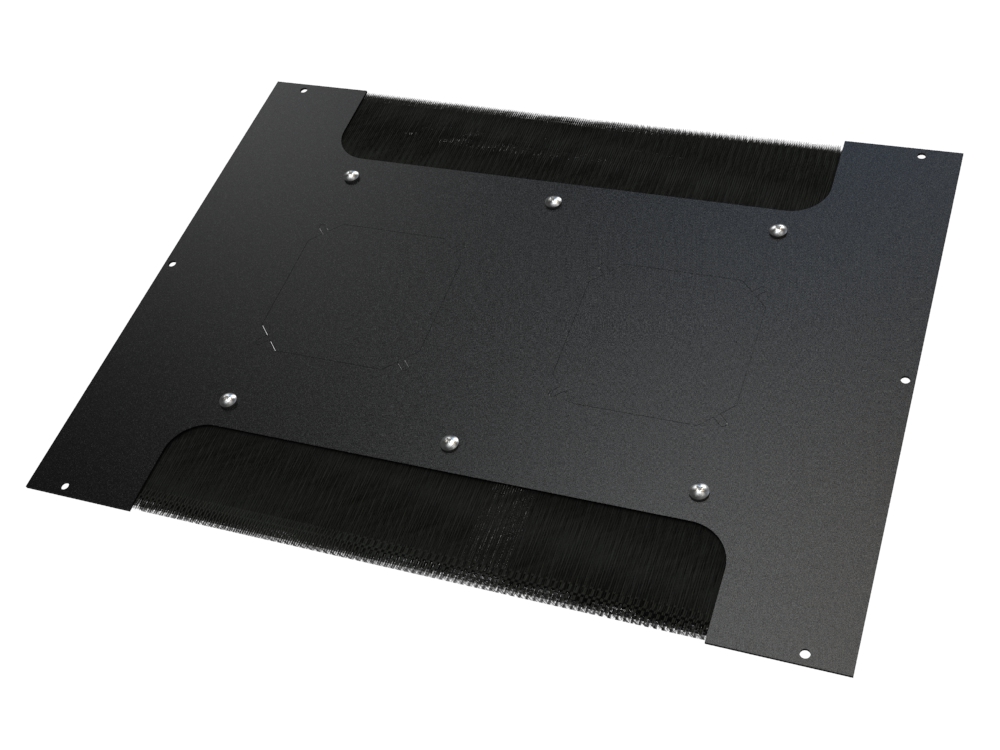

The C2T1923BFBK1 is a rack cabinet top panel with integrated brush cable entry and a fan knockout, sized for 24 in wide x 31 in deep cabinets. It is built for IT, network, telecom, AV and structured cabling teams that need to bring cable bundles into a cabinet from overhead ladder rack or tray while keeping the top of the enclosure closed and organized.
Construction is 14-gauge mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant, supporting indoor air quality and environmental requirements. The panel measures 20.00 in (508 mm) wide by 15.00 in (381 mm) deep overall and includes two (2) brushed openings, each 2.36 in (60 mm) wide by 7.50 in (191 mm) long. Brush strips let cables pass through cleanly without leaving a large open gap, so airflow and cable organization are maintained.
A 4 in laser fan knockout is provided so the panel can be converted for active cooling with FK fan kits, or opened up for additional cable entry capacity. That dual-purpose approach lets one panel cover both passive cable routing and fan-based cooling as a rack's heat load changes.
C2T1923BFBK1 ships with CLPKIT832-6 cabinet mounting hardware for quick installation and is designed for use with the C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK and CLC cabinet series; H1 cabinets require the H1TC Series for mounting. The part is TAA-compliant and manufactured in North America, with USMCA, RoHS and REACH compliance declared, making it suitable for government and enterprise procurement where sourcing documentation matters.
Ideal For
- Routing cables from overhead ladder rack or tray into a rack cabinet
- Data centers and IT rooms with overhead cable routing
- Network, telecom and structured cabling deployments
- AV and broadcast equipment cabinets
- Replacing a solid top panel to improve cable management and airflow
Overview
| Series | C2T_BF |
| Part Number | C2T1923BFBK1 |
| Product Type | Rack cabinet top panel with brush cable entry and fan knockouts |
| Short Description | BRUSH TOP PANEL 24W 31D |
Dimensions
| Overall Depth | 15.00 in (381 mm) |
| Overall Width | 20.00 in (508 mm) |
| Cable Entry Width | 2.36 in (60 mm) |
| Cable Entry Length | 7.50 in (191 mm) |
| Mounting Hole Diameter | 0.22 in (6 mm) |
| Brushed Openings Included | 2 |
Identifiers
| UPC | 623980015545 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980015545 |
| UPC W/o Check Digit | 62398001554 |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA (manufactured in North America) |
Airflow & Cable Entry
| Optional Cooling | FK fan kits (high CFM heavy duty, low-decibel heavy duty cooling fan kits, filter fan grills) |
Construction & Finish
| Gauge | 14-gauge steel |
| Material | Mild Steel |
| Finish / Colour | Black powder coat (painted black) |
| Finish Compliance | GREENGUARD, TSCA, RoHS compliant |
Mounting & Compatibility
| Hardware Included | CLPKIT832-6 cabinet mounting hardware |
| Compatible Cabinet Series | C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK, CLC (H1 requires H1TC Series for mounting) |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size cabinet does C2T1923BFBK1 fit?▾
It is described as a brush top panel for a 24 in wide by 31 in deep cabinet, with overall panel dimensions of 20.00 in (508 mm) wide by 15.00 in (381 mm) deep. It is designed for use with C2, C2RR, C4, C4RR_A, C4RR_S, C4RR_D, H1, RCK or CLC cabinet series; H1 cabinets require the H1TC Series for mounting.
How many brush cable entry openings does it have?▾
Two (2) brushed openings are included, each 2.36 in (60 mm) wide by 7.50 in (191 mm) long.
Can I add a fan to this top panel?▾
Yes. The panel has a 4 in fan laser knockout that supports optional FK fan kits for active cooling, or can be opened to provide additional cable entry capacity.
Is mounting hardware included?▾
Yes. CLPKIT832-6 cabinet mounting hardware is included for quick installation, as also noted on the part drawing.
What is the panel made of and what is the finish?▾
It is 14-gauge mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant.
Does C2T1923BFBK1 meet government procurement requirements?▾
The part is listed as TAA-compliant and manufactured in North America, with country of origin CA, USMCA compliance, RoHS and REACH compliance, and ECCN EAR99.
