Hammond APBS198UBK 8U Adjustable Depth Wall Rack With Shelf, 100 lb
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 8U of usable rack space: 14.00 in (356 mm) mounting height on a 19.00 in (483 mm) wide, 10-32 tapped rail pair
- Depth adjusts from 12.00 in (305 mm) to 18.00 in (457 mm) without disassembly
- 14-gauge steel construction with 100 lb capacity for patch panels, switches and rack equipment
- Integrated 12 in accessory shelf adds 2U of space for modems, routers or other non-rack devices
- Rear cable access with multiple tie points for organized cable routing
- Self-squaring knock-down design ships unassembled; includes (25) 10-32 x 0.75 in screws (SCREW1032-25)
- Black powder coat finish, RAL9005 Black, GREENGUARD, TSCA and RoHS compliant
- TAA-compliant and USMCA compliant, manufactured in North America (Country of Origin: CA)

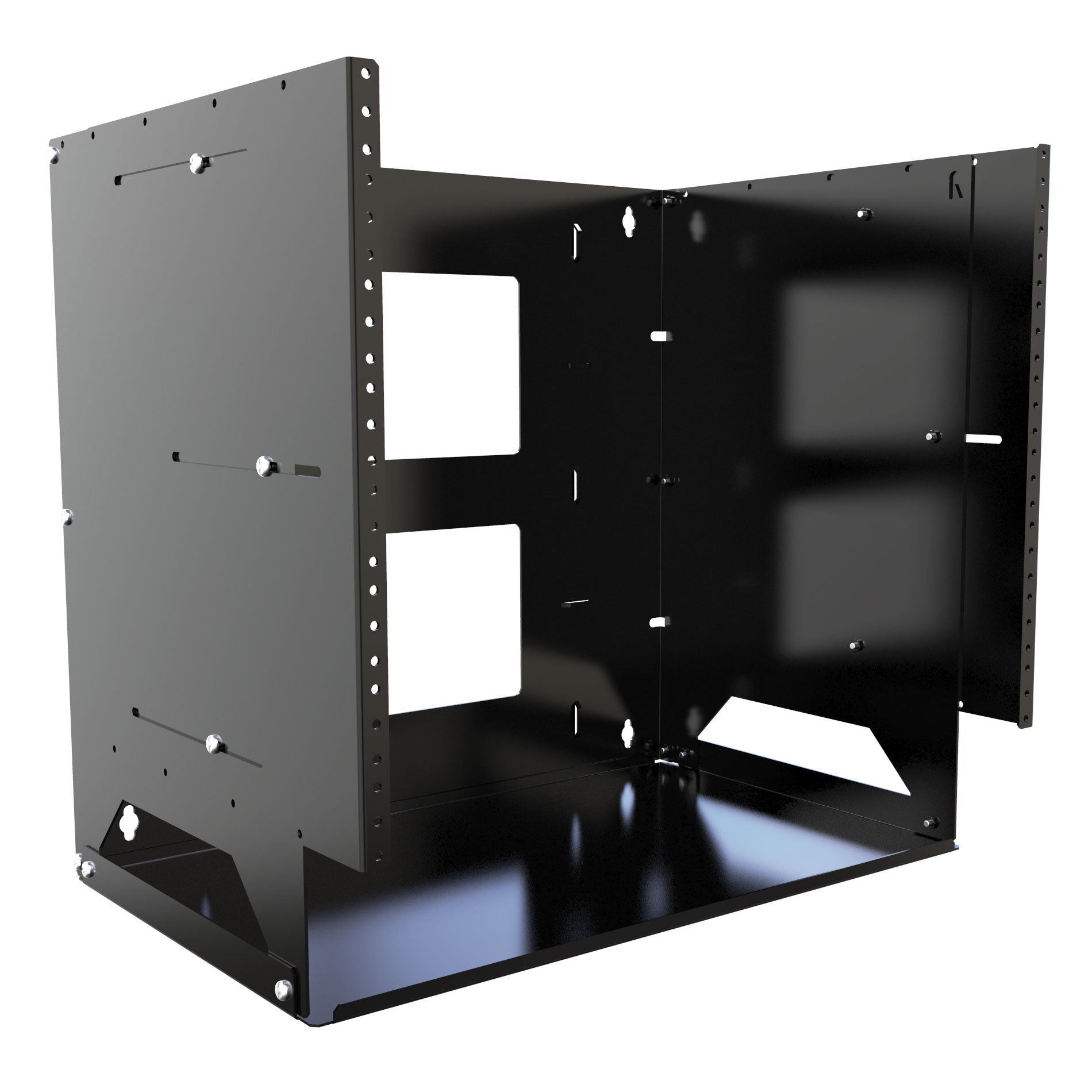

The APBS198UBK is an 8U open wall-mount rack with an integrated shelf, designed for telecom and IT installations where both rack-mount and non-rack equipment must be supported on a wall or backboard. It gives integrators, network technicians and facilities teams a way to mount patch panels, switches and small devices without committing to a full enclosed cabinet.
Construction is 14-gauge mild steel with a 100 lb capacity, finished in a black powder coat (RAL9005 Black) that is GREENGUARD, TSCA and RoHS compliant. The bracket ships as a self-squaring knock-down kit for easier handling and reduced shipping cost, and assembles from a rear wall-mounting section, left and right side sections, two sliding rails and a shelf/cover.
Overall dimensions are 17.46 in (443 mm) high by 19.25 in (489 mm) wide, with the product list citing a nominal 17.5 in x 19.25 in x 18 in (445 mm x 489 mm x 457 mm) envelope. Mounting height is 14.00 in (356 mm) of 8U rack space on a 19.00 in (483 mm) mounting width, and depth adjusts from 12.00 in (305 mm) to 18.00 in (457 mm) without disassembly.
- One pair of 10-32 tapped 19 in mounting rails with rack unit indicators.
- Integrated 12 in accessory shelf providing an additional 2U of equipment space.
- Rear cable access with multiple tie points for organized routing.
APBS198UBK includes a starter pack of (25) 10-32 x 0.75 in rack mounting screws (SCREW1032-25) plus assembly hardware and instructions; wall mounting hardware is not included. The part is TAA-compliant, USMCA compliant, RoHS and REACH compliant, and manufactured in Canada.
Ideal For
- Telecom backboards and network demarcation points
- Small network closets with mixed rack and non-rack equipment
- Retrofit installations where space and flexibility are limited
- Wall-mounted installations needing modems, routers or small devices beside rack gear
- Open mounting where an enclosed cabinet is not preferred
Overview
| Series | APBS Series - Adjustable Depth Wall-Mount Rack with Shelf (100 lb) |
| Rack Type | Open Wall Rack |
| Part Number | APBS198UBK |
| Long Description | Adjustable Wall Bracket w/ shelf - 8U w/ depth 12"-18" |
| Short Description | 8U ADJ WALL RACK WITH SHELF |
Dimensions
| Overall Width | 19.25 in (489 mm) |
| Overall Height | 17.46 in (443 mm) |
| 8U Rail Height (Drawing) | 13.98 in (355 mm) |
| Nominal Size (H X W X D) | 17.5 in x 19.25 in x 18 in (445 mm x 489 mm x 457 mm) |
| Drawing Overall Height (Side View) | 17.54 in (446 mm) |
| 19 In Mounting Flange Width (Drawing) | 18.31 in (465 mm) (19" MTG) |
Identifiers
| UPC | 623980525075 |
| UNSPSC | 43223308 |
| GTIN-14 | 00623980525075 |
| UPC W/o Check Digit | 62398052507 |
Rack Mounting
| Shelf | Integrated 12 in accessory shelf with an additional 2U equipment space |
| Rail Type | Tapped 10-32 |
| Rack Units | 8U |
| Load Capacity | 100 lb |
| Mounting Width | 19.00 in (483 mm) |
| Mounting Height | 14.00 in (356 mm) |
| Adjustable Depth | 12 in to 18 in |
| Maximum Mounting Depth | 18.00 in (457 mm) |
| Minimum Mounting Depth | 12.00 in (305 mm) |
| Mounting Rails Included | One (1) pair of 10-32 threaded 19 in mounting rails with rack unit indicators |
Included Items
| Shelf/Cover | 1 |
| Sliding Rails | 2 |
| Left Side Section | 1 |
| Right Side Section | 1 |
| Assembly Instructions | 1 |
| Wall Mounting Hardware | Not included |
| Rear Wall-mounting Section | 1 |
| 10-32 X 3/8 Assembly Hardware | 10 |
| 10-32 X 0.75 In Rack Mounting Screws | 25 (replacement part SCREW1032-25) |
Cable Management
| Cable Access | Rear cable access with multiple tie points |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 25.4 lbs (11.52 kg) |
| Country Of Origin | CA |
Construction & Finish
| Finish | Black powder coat, painted black thin film |
| Assembly | Self-squaring knock-down design, ships unassembled |
| Material | Mild Steel, 14-gauge |
| Paint Color | RAL9005 Black |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | GREENGUARD, TSCA, RoHS compliant |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much usable rack space does the APBS198UBK provide?▾
It provides 8U of rack mounting space, with a mounting height of 14.00 in (356 mm) on a 19.00 in (483 mm) mounting width. The integrated 12 in shelf adds a further 2U of equipment space for non-rack devices.
How far does the depth adjust?▾
Depth adjusts from 12.00 in (305 mm) to 18.00 in (457 mm), and the design allows adjustment without disassembly.
How much weight can it hold?▾
The 14-gauge steel construction is rated for 100 lb capacity, suitable for patch panels, switches and rack-mounted equipment.
What hardware comes in the box?▾
The box includes the rear wall-mounting section, left and right side sections, two sliding rails, a shelf/cover, (25) 10-32 x 0.75 in rack mounting screws (SCREW1032-25), (10) 10-32 x 3/8 assembly fasteners and assembly instructions. Wall mounting hardware is not included.
Is the APBS198UBK TAA compliant?▾
Yes. It is TAA-compliant and manufactured in North America, with Country of Origin listed as CA. It is also USMCA, RoHS and REACH compliant.
What thread does the rail use, and what colour is the rack?▾
The rails are tapped 10-32 on 19 in centres with rack unit indicators, and the finish is a black powder coat in RAL9005 Black.
Does it arrive assembled?▾
No. It uses a self-squaring knock-down design and ships unassembled for easier handling and reduced shipping cost; assembly instructions are included.
