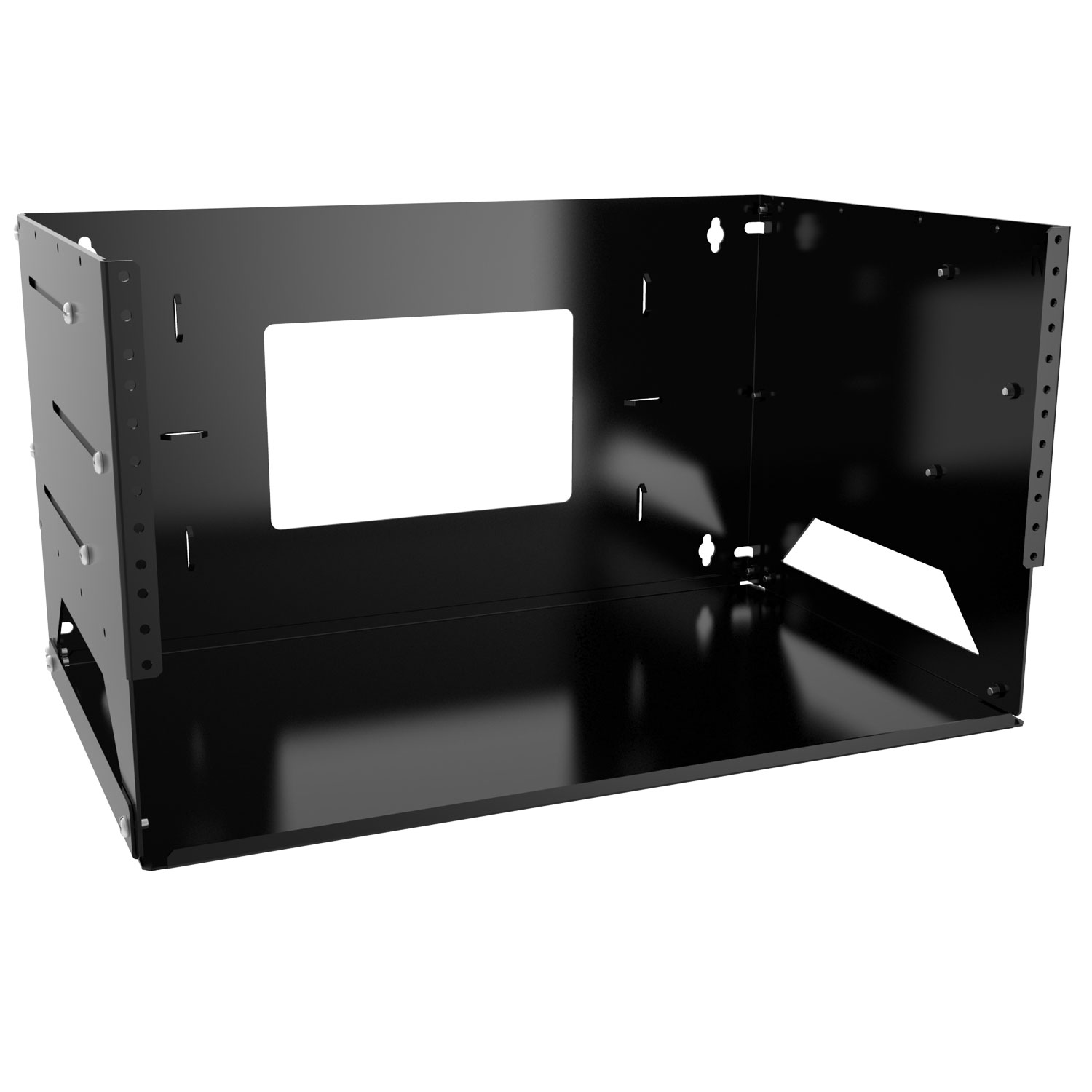

Hammond APBS194UBK 4U Adjustable-Depth Wall Rack with Shelf
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 4U open wall rack with tapped 10-32 19" rails and rack unit indicators for standard rack equipment
- Depth adjusts from 12.00 in (305 mm) to 18.00 in (457 mm) without disassembly
- 14-gauge steel construction, 100 lb capacity; shelf formed from 16-gauge steel
- Integrated 12" accessory shelf adds 2U of space for modems, routers and other non-rack devices
- Rear cable access with multiple tie points for organized wall-mounted cable routing
- Self-squaring knock-down design ships unassembled for easier handling and reduced shipping cost
- RAL9005 black powder coat finish, GREENGUARD, TSCA and RoHS compliant
- TAA and USMCA compliant, manufactured in Canada; includes 25 10-32 x 0.75 in mounting screws
The APBS194UBK is a 4U open wall rack with an integrated shelf, built for telecom backboards, network demarcation points and small network closets where both rack-mount and non-rack equipment have to live on the same wall. It gives installers 4U of tapped 19-inch rail space plus a 12-inch accessory shelf, so switches, patch panels, modems and routers can be organized without committing to a full cabinet.
Construction is 14-gauge mild steel (the shelf is 16-gauge steel), finished in RAL9005 black powder coat that is GREENGUARD, TSCA and RoHS compliant. Rated capacity is 100 lb. The bracket ships as a self-squaring knock-down kit, which reduces carton size and makes handling on site easier; assembly instructions and 10 pieces of 10-32 x 3/8 assembly hardware are included.
Overall size is 10.54 in (268 mm) high by 19.25 in (489 mm) wide, with mounting dimensions of 7.00 in (178 mm) high by 19.00 in (483 mm) wide. Depth adjusts from 12.00 in (305 mm) to 18.00 in (457 mm) without disassembly, so the same bracket suits shallow patch panels or deeper switches. Shipping weight is 16 lbs (7.26 kg).
- One pair of 10-32 threaded 19-inch rails with rack unit indicators
- Integrated 12-inch shelf with an additional 2U of equipment space
- Rear cable access with multiple tie points for routed, dressed cabling
A starter hardware pack of 25 10-32 x 0.75 in rack mounting screws (SCREW1032-25) is supplied for equipment mounting; wall mounting hardware is not included. Made in Canada and TAA compliant, APBS194UBK also meets USMCA, RoHS and REACH requirements for procurement-sensitive projects.
Ideal For
- Telecom backboards and network demarcation points
- Small network closets with mixed rack and non-rack equipment
- Retrofit installations where space and flexibility are limited
- Open wall mounting where an enclosed cabinet is not preferred
- Mounting modems, routers or small devices alongside rack equipment
Overview
| Series | APBS Series - Adjustable Depth Wall-Mount Rack with Shelf (100 lb) |
| Rack Type | Open Wall Rack |
| Part Number | APBS194UBK |
| Load Capacity | 100 lb |
| Long Description | Adjustable Wall Bracket w/ shelf - 4U w/ depth 12"-18" |
| Short Description | 4U ADJ WALL RACK WITH SHELF |
Dimensions
| Shelf Depth | 12 in |
| Overall Width | 19.25 in (489 mm) |
| Overall Height | 10.54 in (268 mm) |
| Adjustable Depth Range | 12.00 in to 18.00 in (305 mm to 457 mm) |
| Nominal Size (H X W X D) | 10.5 in x 19.25 in x 18 in (267 mm x 489 mm x 457 mm) |
| Side View Depth Reference | 16.00 in (406 mm) |
| Front View Width Reference | 18.31 in (465 mm) |
| Side View Height Reference | 8.44 in (214 mm) |
Identifiers
| UPC | 623980525068 |
| UNSPSC | 43223308 |
| GTIN-14 | 00623980525068 |
| UPC W/o Check Digit | 62398052506 |
Rack Mounting
| Rail Type | Tapped 10-32 |
| Rack Units | 4U |
| Mounting Width | 19.00 in (483 mm) |
| Rails Supplied | One (1) pair of 10-32 threaded 19" mounting rails with rack unit indicators |
| Mounting Height | 7.00 in (178 mm) |
| Rail Usable Height | 6.98 in (177 mm) (4U) |
| Maximum Mounting Depth | 18.00 in (457 mm) |
| Minimum Mounting Depth | 12.00 in (305 mm) |
| Additional Shelf Equipment Space | 2U |
What's In The Box
| Shelf/Cover | 1 |
| Sliding Rails | 2 |
| Left Side Section | 1 |
| Right Side Section | 1 |
| Assembly Instructions | 1 |
| Wall Mounting Hardware | Not included |
| Rear Wall-mounting Section | 1 |
| 10-32 X 3/8 Assembly Hardware | 10 |
| 10-32 X 0.75 In Rack Mounting Screws (SCREW1032-25) | 25 |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 16 lbs (7.26 kg) |
Construction & Finish
| Gauge | 14 GA steel, except shelf, 16 GA steel |
| Finish | Black powder coat |
| Assembly | Self-squaring knock-down design, ships unassembled |
| Material | Mild Steel |
| Paint Color | RAL9005 Black |
| Cable Management | Rear cable access with multiple tie points |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | GREENGUARD, TSCA, RoHS compliant |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much equipment can the APBS194UBK hold?▾
The bracket is rated for 100 lb and is built from 14-gauge steel (the shelf is 16-gauge steel), supporting patch panels, switches and other rack-mounted equipment.
How deep is this wall rack, and can the depth be changed after mounting?▾
Depth is adjustable from 12.00 in (305 mm) to 18.00 in (457 mm). The adjustable depth design allows this change without disassembly.
What rail type and mounting hardware are supplied?▾
It includes one pair of 10-32 tapped 19" rails with rack unit indicators, 25 10-32 x 0.75 in rack mounting screws (SCREW1032-25) and 10 pieces of 10-32 x 3/8 assembly hardware. Wall mounting hardware is not included.
Does the shelf take up rack space?▾
No. The integrated 12" accessory shelf provides an additional 2U of equipment space for non-rack items such as modems, routers or small devices, alongside the 4U of rail space.
Does APBS194UBK arrive assembled?▾
No. It uses a self-squaring knock-down design and ships unassembled for easier handling and reduced shipping cost; assembly instructions are included in the box.
Is this part suitable for government projects?▾
Yes. APBS194UBK is TAA-compliant and manufactured in North America (country of origin CA), and is USMCA, RoHS and REACH compliant with ECCN EAR99.
