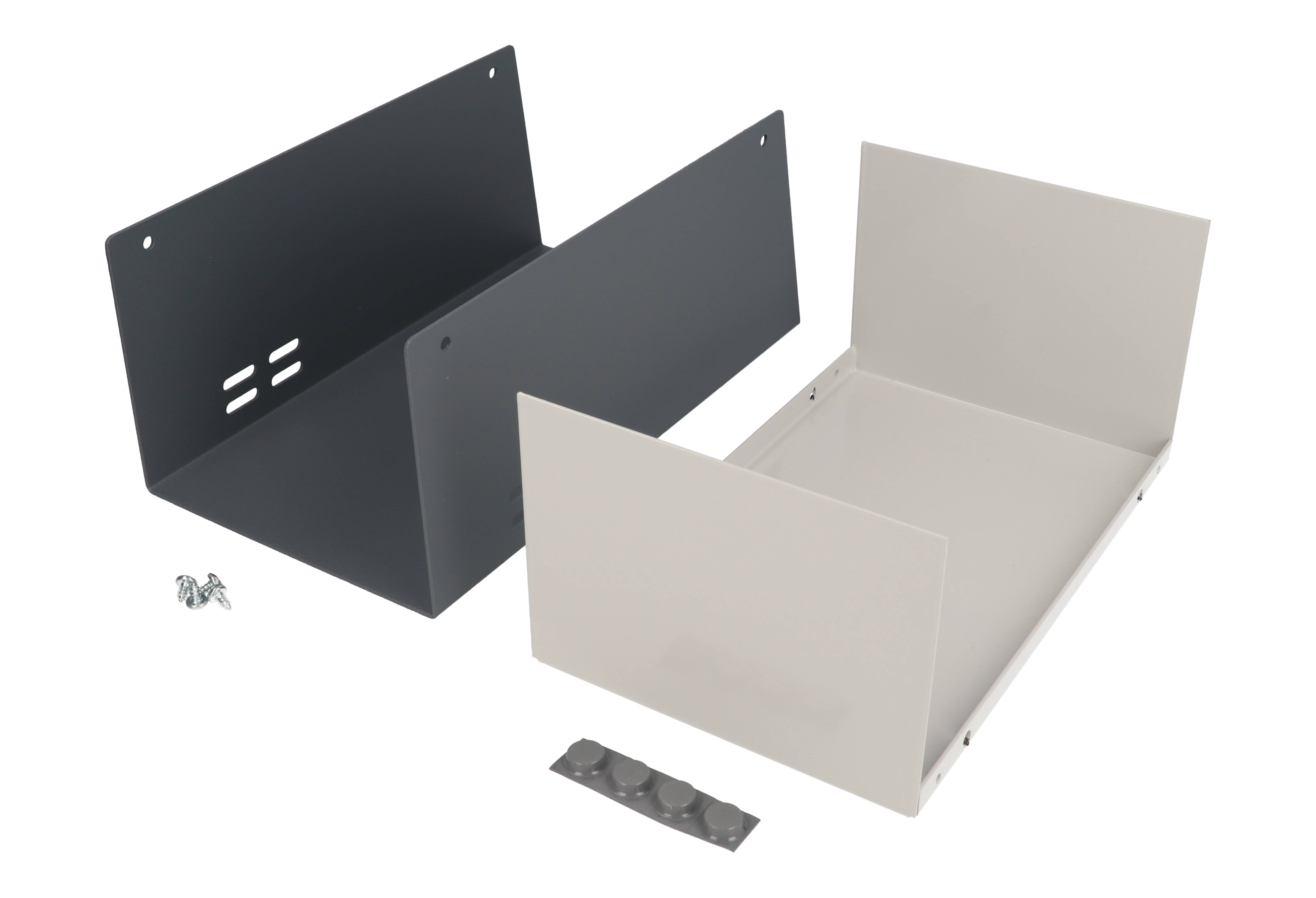

Hammond 513-0900 8.63x4.75x3.5 in Ventilated Steel Instrument Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Largest in the series: 4.75 in W x 3.50 in H
- 8.63 in top length and 7.88 in bottom length
- Rigid 18 ga. steel base and top for panel-mounted controls
- Reverse the case for sloping or vertical sides
- Two rows of horizontal side ventilation
- Two tone grey powder coat; IP30; RoHS and REACH compliant
- Supplied pre-assembled with four rubber feet
The 513-0900 is the largest of the three 511-513 Series ventilated steel instrument enclosures, offering the most internal room for circuit boards, transformers, controls and wiring in a vented desktop utility case. It is aimed at engineers, technicians and makers who need a rigid steel box with room to work.
The 18 ga. steel base and top give strength so the front and back panels will not push in from mounted buttons, controls or connectors. Two horizontal rows of ventilation run along each side, and reversing the case gives a choice of sloping or vertical sides. It is supplied pre-assembled in two tone grey powder coat: a dark satin grey top with a smooth light grey bottom, front and back. The enclosure is rated IP30 and is RoHS and REACH compliant.
The 513-0900 measures 4.75 in (121 mm) wide and 3.50 in (89 mm) high, with an 8.63 in (219 mm) top length and a 7.88 in (200 mm) bottom length. The drawing gives an overall length of 219.77 mm [8.65 in]. The case is 0.05" steel, and shipping weight is 2.48 lbs (1.12 kg).
Four self-adhesive rubber feet and required hardware come with the case. Replacement screws are SC19482-50 (pack of 50, #6 x 1/4" self-tapping) and grey feet are 1421T2GY (pack of 4). The factory can mill, drill and print the enclosure on request, and STEP or IGES solid models are available.
Ideal For
- Bench instruments and test equipment
- Vented housings for transformers or power circuits
- Control boxes with front and rear panel connectors
- Electronics prototyping enclosures
Overview
| Type | Instrument, ventilated |
| Series | 511-513 Series Ventilated Steel Instrument |
| CAD Models | Solid models available in STEP or IGES |
| Short Description | UTILITY CASE |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) - contact factory for quotes |
Dimensions
| Width | 4.75 in (121 mm) |
| Height | 3.50 in (89 mm) |
| Length (Top) | 8.63 in (219 mm) |
| Length (Bottom) | 7.88 in (200 mm) |
| Size (L X W X H) | 8.63 in x 4.75 in x 3.5 in (219 mm x 121 mm x 89 mm) |
| Overall Length (Drawing) | 219.77 mm [8.65 in] |
Accessories
| Replacement Rubber Feet | 1421T2GY (grey self-adhesive, Pkg 4) |
| Replacement Cover Screws | SC19482-50 (Pkg. of 50, Phillips head #6 x 1/4" self-tapping, plated) |
Identifiers
| UPC | 623980965352 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Four self-adhesive rubber feet and required hardware |
| Packaging Type | shrink wrap |
| Shipping Weight | 2.48 lbs (1.12 kg) |
Construction & Finish
| Color | Gray |
| Finish | Two tone grey powder coat: dark satin grey top, smooth light grey bottom, front & back |
| Assembly | Sold pre-assembled |
| Material | Steel |
| Ventilation | Two horizontal rows of ventilation in the sides |
| Base And Top | 18 ga. steel (front & back panel will not push in from mounted buttons, controls, connectors) |
| Side Orientation | Choice of sloping or vertical sides by reversing case |
| Enclosure Case Material | 0.05" steel |
Environmental & Protection
| IP Rating | IP30 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
