Hammond 512-0900 5.25x3x2 in Ventilated Steel Instrument Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Smallest in the series: 3.00 in W x 2.00 in H
- 5.25 in top length, 4.88 in bottom length
- 18 ga. steel base and top resist push-in from mounted controls
- Reversible case for sloping or vertical sides
- Two horizontal rows of ventilation on each side
- IP30; RoHS and REACH compliant; 0.9 lbs shipping weight
- Pre-assembled with rubber feet and hardware

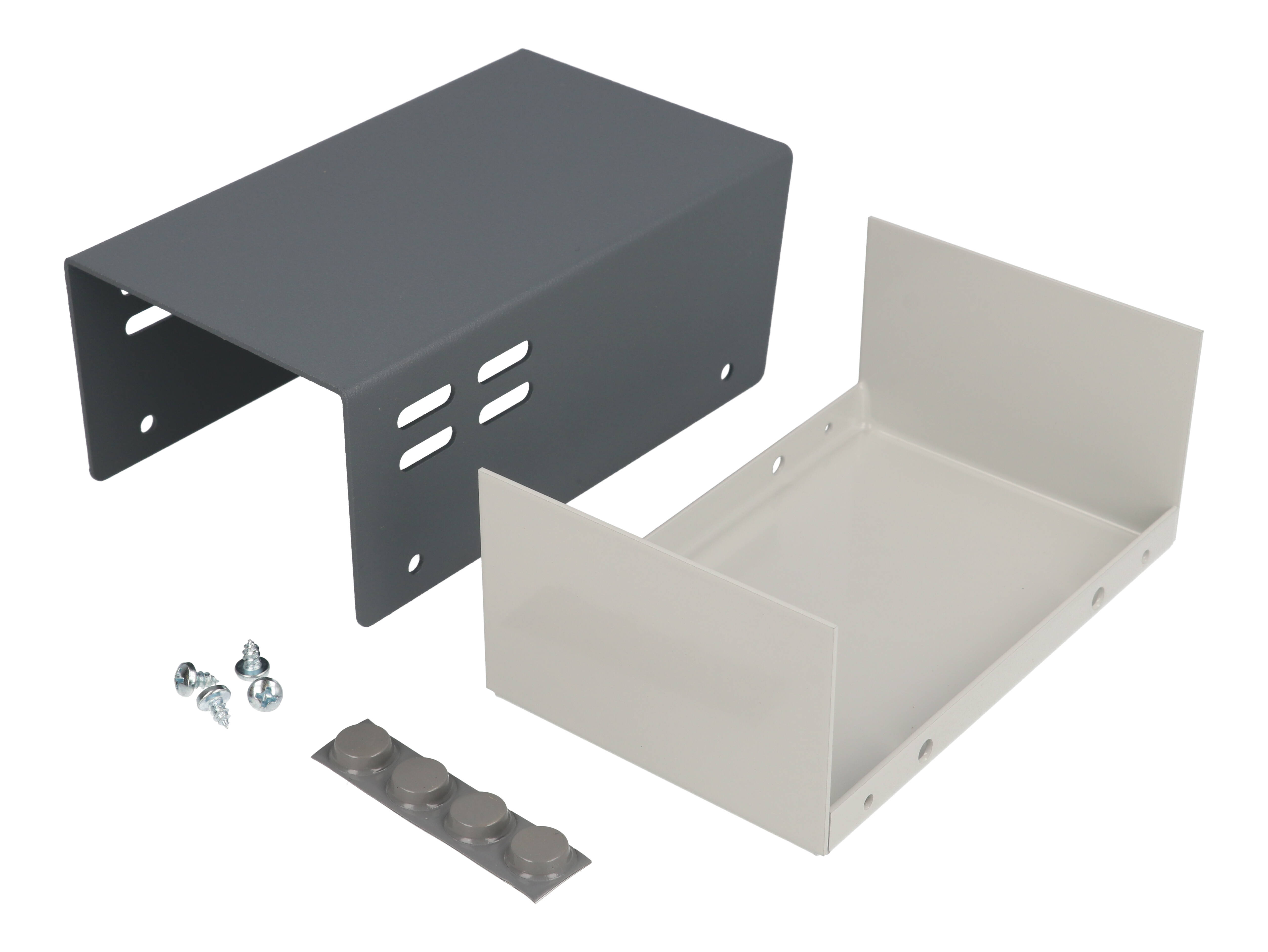

The 512-0900 is the smallest enclosure in the 511-513 Series ventilated steel instrument line. It is a compact utility case for small control boxes, sensors, interface circuits and hobby builds where a sturdy, vented metal housing is needed in a small footprint.
Both the base and top are 18 ga. steel, giving front and back panels that will not push in when fitted with buttons, controls or connectors. Two horizontal rows of ventilation run along each side. The case can be oriented for sloping or vertical sides by reversing it. It ships pre-assembled with a two tone grey powder coat finish: dark satin grey top; smooth light grey bottom, front and back. It is IP30 rated and RoHS and REACH compliant.
Dimensions are 3.00 in (76 mm) wide by 2.00 in (51 mm) high, with a 5.25 in (133 mm) top length and a 4.88 in (124 mm) bottom length. The drawing shows an overall length of 134.82 mm [5.31 in] and an 81.7° side angle. The case is made from 0.05" steel, and the shipping weight is 0.9 lbs (0.41 kg).
The 512-0900 comes with four self-adhesive rubber feet and required hardware. Replacement screws are SC19482-50 (pack of 50, #6 x 1/4" self-tapping) and replacement grey feet are 1421T2GY (pack of 4). The case can be factory modified (milling, drilling, printing), and STEP or IGES solid models are available.
Ideal For
- Compact control and interface boxes
- Small vented electronics housings
- Sensor and signal conditioning enclosures
- Hobby and prototype builds
Overview
| Type | Instrument, ventilated |
| Series | 511-513 Series Ventilated Steel Instrument |
| CAD Models | Solid models available in STEP or IGES |
| Short Description | UTILITY CASE |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) - contact factory for quotes |
Dimensions
| Width | 3.00 in (76 mm) |
| Height | 2.00 in (51 mm) |
| Length (Top) | 5.25 in (133 mm) |
| Length (Bottom) | 4.88 in (124 mm) |
| Size (L X W X H) | 5.25 in x 3 in x 2 in (133 mm x 76 mm x 51 mm) |
| Side Angle (Drawing) | 81.7° |
| Overall Length (Drawing) | 134.82 mm [5.31 in] |
Accessories
| Replacement Rubber Feet | 1421T2GY (grey self-adhesive, Pkg 4) |
| Replacement Cover Screws | SC19482-50 (Pkg. of 50, Phillips head #6 x 1/4" self-tapping, plated) |
Identifiers
| UPC | 623980965338 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Four self-adhesive rubber feet and required hardware |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.9 lbs (0.41 kg) |
Construction & Finish
| Color | Gray |
| Finish | Two tone grey powder coat: dark satin grey top, smooth light grey bottom, front & back |
| Assembly | Sold pre-assembled |
| Material | Steel |
| Ventilation | Two horizontal rows of ventilation in the sides |
| Base And Top | 18 ga. steel (front & back panel will not push in from mounted buttons, controls, connectors) |
| Side Orientation | Choice of sloping or vertical sides by reversing case |
| Enclosure Case Material | 0.05" steel |
Environmental & Protection
| IP Rating | IP30 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
