Hammond 511-0900 7x3.63x2.75 in Ventilated Steel Instrument Case
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 3.63 in W x 2.75 in H; 7.00 in top and 6.50 in bottom length
- 18 ga. steel base and top: panels will not push in from mounted controls
- Sloping or vertical sides by reversing the case
- Two horizontal rows of side ventilation
- Two tone grey powder coat, sold pre-assembled
- IP30 rated; RoHS and REACH compliant
- Four self-adhesive rubber feet and hardware included

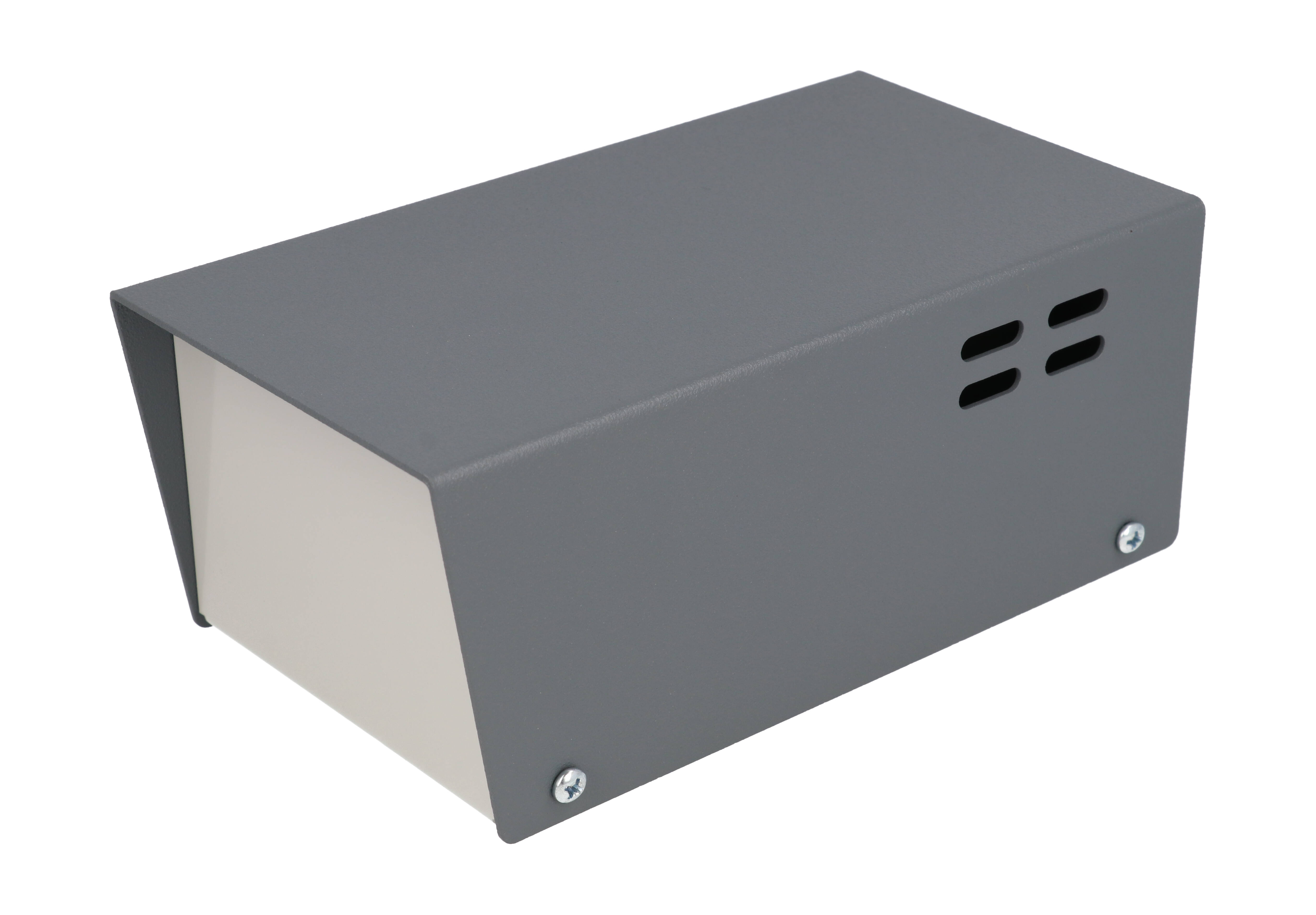

The 511-0900 is the middle size of the 511-513 Series ventilated steel instrument enclosures, a compact utility case for electronic hobbyists, test engineers and OEMs housing small circuits, power supplies or controls. The base and top are both 18 ga. steel, so the front and back panels will not push in when buttons, controls or connectors are mounted on them.
Each side carries two horizontal rows of ventilation. Because the top is longer than the bottom, the case can be set up with sloping or vertical sides simply by reversing it. It comes pre-assembled in a two tone grey powder coat, with a dark satin grey top and smooth light grey bottom, front and back. The enclosure is rated IP30 and is RoHS and REACH compliant.
The 511-0900 is 3.63 in (92 mm) wide and 2.75 in (70 mm) high, with a 7.00 in (178 mm) top length and 6.50 in (165 mm) bottom length. The drawing shows an overall length of 179.82 mm [7.08 in] and a side angle of 81.0°. Case material is 0.05" steel, and shipping weight is 1.4 lbs (0.64 kg).

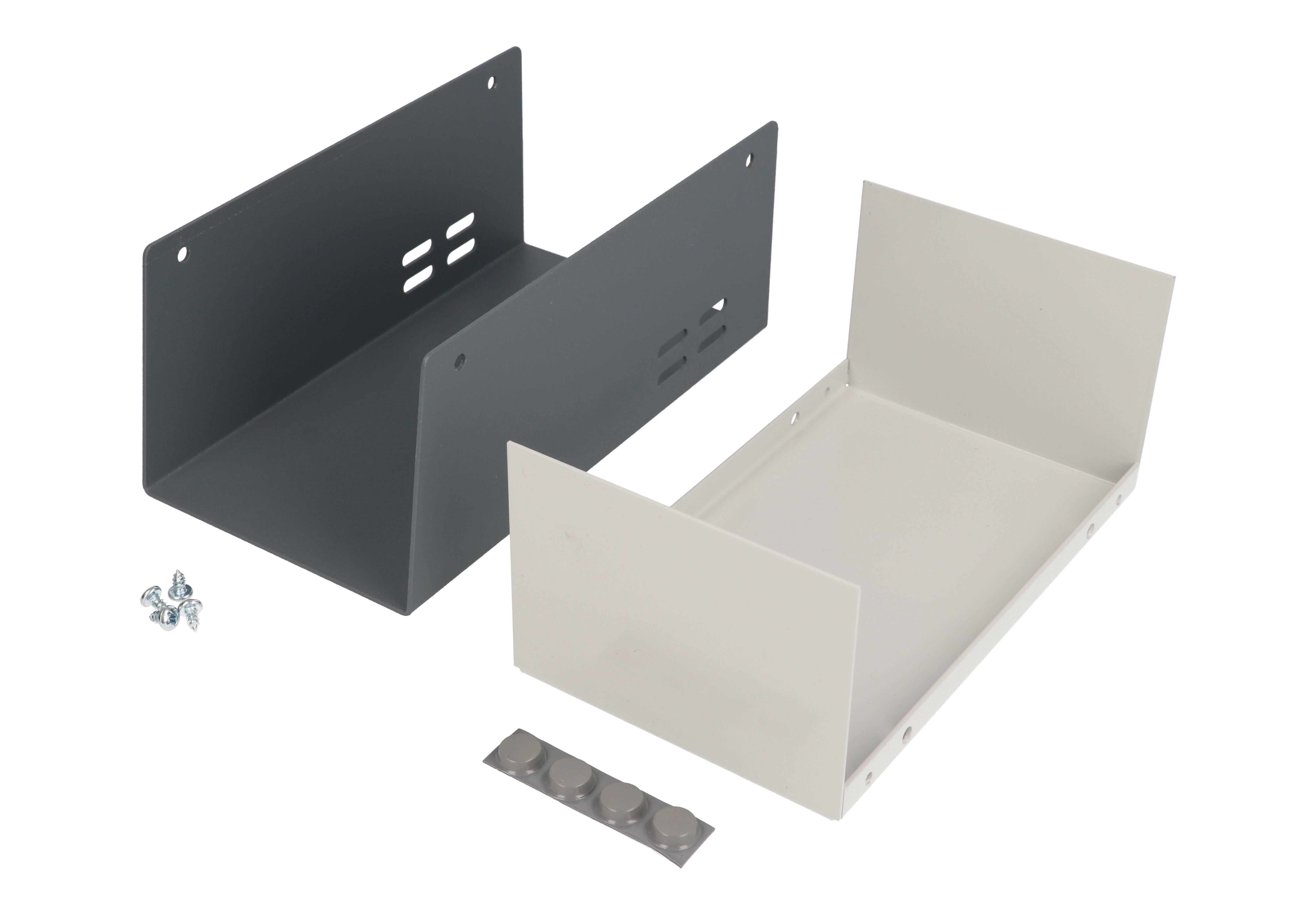

Four self-adhesive rubber feet and the required hardware are supplied. Replacement screws are SC19482-50 (pack of 50, #6 x 1/4" self-tapping) and replacement grey feet are 1421T2GY. Factory milling, drilling and printing are available on request, and solid models can be had in STEP or IGES.
Ideal For
- Small electronic instrument housings
- Test equipment and bench controls
- Vented cases for power supplies or circuits
- Hobby and prototype projects
Overview
| Type | Instrument, ventilated |
| Series | 511-513 Series Ventilated Steel Instrument |
| CAD Models | Solid models available in STEP or IGES |
| Short Description | UTILITY CASE |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) - contact factory for quotes |
Dimensions
| Width | 3.63 in (92 mm) |
| Height | 2.75 in (70 mm) |
| Length (Top) | 7.00 in (178 mm) |
| Length (Bottom) | 6.50 in (165 mm) |
| Size (L X W X H) | 7 in x 3.63 in x 2.75 in (178 mm x 92 mm x 70 mm) |
| Side Angle (Drawing) | 81.0° |
| Overall Length (Drawing) | 179.82 mm [7.08 in] |
Accessories
| Replacement Rubber Feet | 1421T2GY (grey self-adhesive, Pkg 4) |
| Replacement Cover Screws | SC19482-50 (Pkg. of 50, Phillips head #6 x 1/4" self-tapping, plated) |
Identifiers
| UPC | 623980965345 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Four self-adhesive rubber feet and required hardware |
| Packaging Type | shrink wrap |
| Shipping Weight | 1.4 lbs (0.64 kg) |
Construction & Finish
| Color | Gray |
| Finish | Two tone grey powder coat: dark satin grey top, smooth light grey bottom, front & back |
| Assembly | Sold pre-assembled |
| Material | Steel |
| Ventilation | Two horizontal rows of ventilation in the sides |
| Base And Top | 18 ga. steel (front & back panel will not push in from mounted buttons, controls, connectors) |
| Side Orientation | Choice of sloping or vertical sides by reversing case |
| Enclosure Case Material | 0.05" steel |
Environmental & Protection
| IP Rating | IP30 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 511-0900?▾
3.63 in (92 mm) wide, 2.75 in (70 mm) high, 7.00 in (178 mm) long at the top and 6.50 in (165 mm) at the bottom.
Can the sides be vertical instead of sloped?▾
Yes. The series offers a choice of sloping or vertical sides by reversing the case.
Will the panels flex when I mount connectors?▾
The base and top are 18 ga. steel, and the series data states the front and back panel will not push in from mounted buttons, controls or connectors.
Is it ventilated?▾
Yes, the sides include two horizontal rows of ventilation.
What finish does it have?▾
Two tone grey powder coat: dark satin grey top with smooth light grey bottom, front and back.
