Hammond 290UEX 240V Blues Deluxe Replacement Power Transformer
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 240V @ 50/60 Hz primary version for Blues Deluxe family amps
- Listed for BLUES DELUXE, BLUES DELUXE (REISSUE), HOT ROD DELUXE and 63 VIBROVERB REISSUE
- 308.5V @ 250 mA high voltage secondary
- 39V bias winding and 6.6V @ 3.75A
- Paper winding
- 4 lbs (1.81 kg); RoHS and REACH compliant
The 290UEX is the 240V @ 50/60 Hz version of a 290 Series tube guitar amplifier power transformer, listed as a replacement for the Fender BLUES DELUXE. The series ordering table also lists it for the BLUES DELUXE (REISSUE), the HOT ROD DELUXE (chassis 021-3202-000) and the 63 VIBROVERB REISSUE, all for reference only. It is a fit for technicians servicing these amps on 240V mains.
Windings are 308.5V @ 250 mA (Secondary 1), a 39V bias winding and 6.6V @ 3.75A. In the Hot Rod Deluxe and 63 Vibroverb Reissue rows the bias winding appears as 39V @ 250 mA (Secondary 3) and the 6.6V @ 3.75A winding as Secondary 4. The short description reads 240V , 50 HZ 440VDC / 6.6V, and the winding type is paper.
Every 290 Series transformer was designed for drop in replacement of the original unit, to look similar to the original factory part where possible, and with material and design specs kept close to the original to preserve the stock tone.
The 290UEX ships at 4 lbs (1.81 kg). It is RoHS and REACH compliant, UPC 623980208077, UNSPSC 39121301. For 117V @ 60 Hz amplifiers, the same windings are listed on the 290UX.
Ideal For
- 240V Fender BLUES DELUXE transformer replacement
- HOT ROD DELUXE power transformer replacement
- 63 VIBROVERB REISSUE repair on 240V mains
Overview
| Series | 290 Series (Tube Guitar Amplifier - Power Transformers, Replacement & Upgrades) |
| Product Type | Power transformer, replacement for Fender guitar amp, 290 series |
| Short Description | 240V , 50 HZ 440VDC / 6.6V |
Electrical
| Secondary 1 | 308.5V @ 250 mA |
| Secondary 2 | 39V Bias |
| Secondary 3 | 6.6V @ 3.75A |
| Primary Volts | 240V @ 50/60 Hz |
| Bias Winding (HOT ROD DELUXE / 63 VIBROVERB REISSUE Table Rows) | Secondary 3: 39V @ 250 mA |
| Heater Winding (HOT ROD DELUXE / 63 VIBROVERB REISSUE Table Rows) | Secondary 4: 6.6V @ 3.75A |
Identifiers
| UPC | 623980208077 |
| UNSPSC | 39121301 |
Amplifier Reference
| Amp Manufacturer | Fender |
| Amp Model (Ref. Only) | BLUES DELUXE* |
| Also Listed For (Ref. Only) | BLUES DELUXE* (REISSUE); HOT ROD DELUXE*; 63 VIBROVERB REISSUE* |
| Chassis No. (Ref. Only, HOT ROD DELUXE*) | 021-3202-000 |
Packaging & Shipping
| Shipping Weight | 4 lbs (1.81 kg) |
Construction & Finish
| Winding | Paper |
| Appearance | Designed to look similar to original factory units (where possible) |
| Design Intent | Designed for drop in replacement of original units |
| Materials & Design Specs | Kept as close as possible to the original part to preserve the stock "tone" |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which amps is the 290UEX listed for?▾
The Fender BLUES DELUXE, BLUES DELUXE (REISSUE), HOT ROD DELUXE (chassis 021-3202-000) and 63 VIBROVERB REISSUE. Amp models are for reference only.
What is the primary voltage of the 290UEX?▾
240V @ 50/60 Hz.
What are the secondary ratings?▾
308.5V @ 250 mA, a 39V bias winding (listed as 39V @ 250 mA in some table rows) and 6.6V @ 3.75A.
Is there a 120V version?▾
The 290UX has the same secondary ratings with a 117V @ 60 Hz primary.
What winding type is used?▾
Paper.
Related Products
Save 52%194A — Choke designed for Fender guitar amp, inductance 4 H @ 50 ma., 194 Series
Hammond Manufacturing · 194A

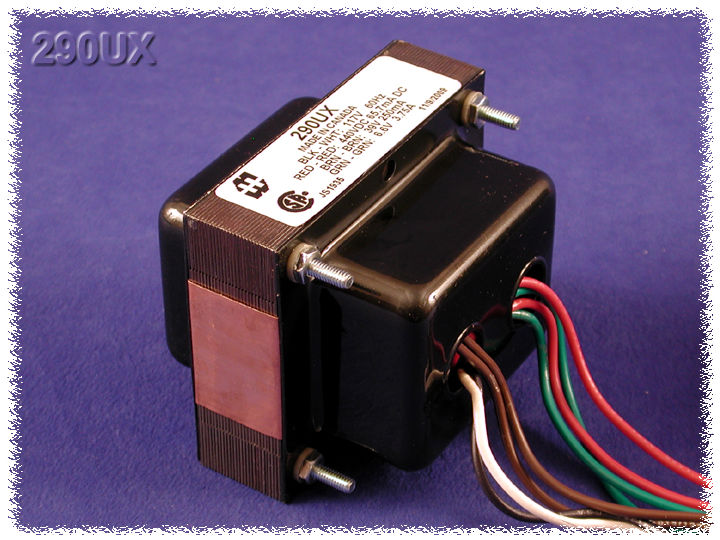

Save 52%290UX — Power transformer, replacement for Fender guitar amp, 290 series
Hammond Manufacturing · 290UX

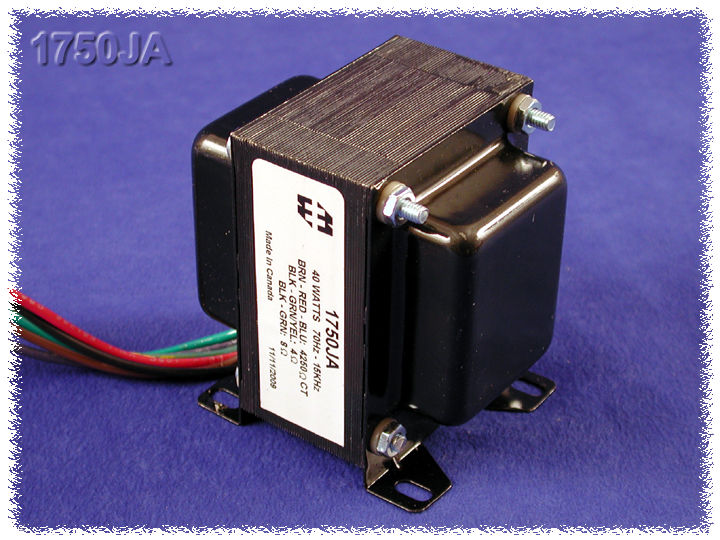

Save 52%1750JA — Output transformer, guitar amp, 4,250 C.T. ohm pri., 4, 8 ohm sec., 40W
