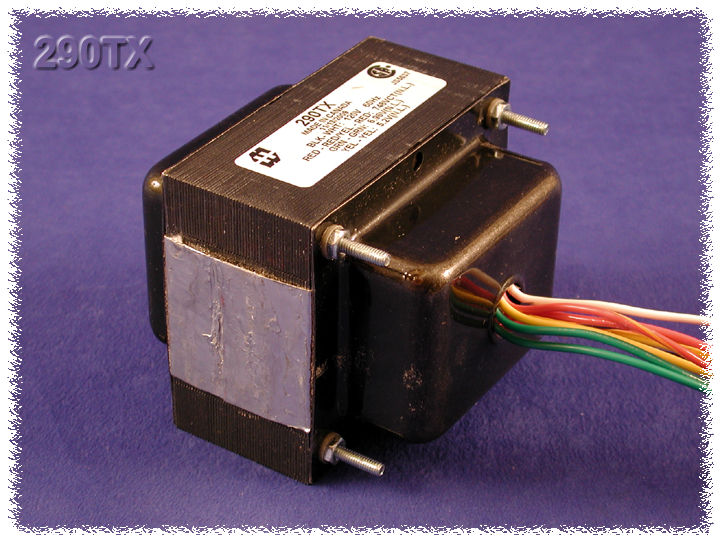

Hammond 290TX Bassman 59 Reissue 120V Power Transformer
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Replacement for Fender BASSMAN 59 (REISSUE), ref. P/N 36483
- Reference chassis number 217-1000-010
- 120V @ 60 Hz primary
- 696Vct high voltage secondary plus 52V bias winding
- 6.5V @ 2A and 5V @ 2A low voltage windings
- Bobbin winding; designed for drop in replacement
- 8.25 lbs (3.74 kg); RoHS and REACH compliant
The 290TX is a 290 Series power transformer for tube guitar amplifiers, listed as a replacement for the Fender BASSMAN 59 (REISSUE), similar amp P/N 36483 and chassis number 217-1000-010 (reference only). It is intended for technicians and owners replacing the mains transformer in a 120V reissue Bassman.
The primary is 120V @ 60 Hz. The high voltage winding is listed as 696Vct @ 500 nA, with a 52V bias winding, a 6.5V @ 2A winding and a 5V @ 2A winding. The short description reads 748VCT AC/55V/6.3VAC/5VAC. The winding type is bobbin.
The 290 Series was designed for drop in replacement of original units. Parts were physically designed to look similar to the original factory units where possible, and the materials and design specs were kept as close as possible to the original part to preserve the stock tone.
The 290TX has a shipping weight of 8.25 lbs (3.74 kg). It is RoHS and REACH compliant and is identified by UPC 623980252643 and UNSPSC 39121301. Amp model, similar part number and chassis number are reference information; check your existing transformer ratings before ordering.
Ideal For
- Fender BASSMAN 59 reissue power transformer replacement
- 120V tube amp repair
- Amp restoration preserving stock tone
Overview
| Series | 290 Series (Tube Guitar Amplifier - Power Transformers, Replacement & Upgrades) |
| Product Type | Power transformer, replacement for Fender guitar amp, 290 series |
| Short Description | 748VCT AC/55V/6.3VAC/5VAC |
Electrical
| Secondary 1 | 696Vct @ 500 nA |
| Secondary 2 | 52V Bias |
| Secondary 3 | 6.5V @ 2A |
| Secondary 4 | 5V @ 2A |
| Primary Volts | 120V @ 60 Hz |
Identifiers
| UPC | 623980252643 |
| UNSPSC | 39121301 |
Amplifier Reference
| Amp Manufacturer | Fender |
| Amp Model (Ref. Only) | BASSMAN 59* (REISSUE) |
| Chassis No. (Ref. Only) | 217-1000-010 |
| Similar Amp P/N's (Ref. Only) | 36483 |
Packaging & Shipping
| Shipping Weight | 8.25 lbs (3.74 kg) |
Construction & Finish
| Winding | Bobbin |
| Appearance | Designed to look similar to original factory units (where possible) |
| Design Intent | Designed for drop in replacement of original units |
| Materials & Design Specs | Kept as close as possible to the original part to preserve the stock "tone" |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which amp does the 290TX fit?▾
It is listed as a replacement for the Fender BASSMAN 59 (REISSUE), similar amp P/N 36483, chassis 217-1000-010. These are reference only.
What is the 290TX primary rating?▾
120V @ 60 Hz.
What windings does the 290TX have?▾
Secondary 1 is listed as 696Vct @ 500 nA, Secondary 2 is 52V Bias, Secondary 3 is 6.5V @ 2A and Secondary 4 is 5V @ 2A.
Does the 290TX have a bias winding?▾
Yes, Secondary 2 is a 52V bias winding.
How much does the 290TX weigh?▾
The shipping weight is 8.25 lbs (3.74 kg).
